EXHAUST SYSTEM of Ferrari Ferrari 360 Modena

View All

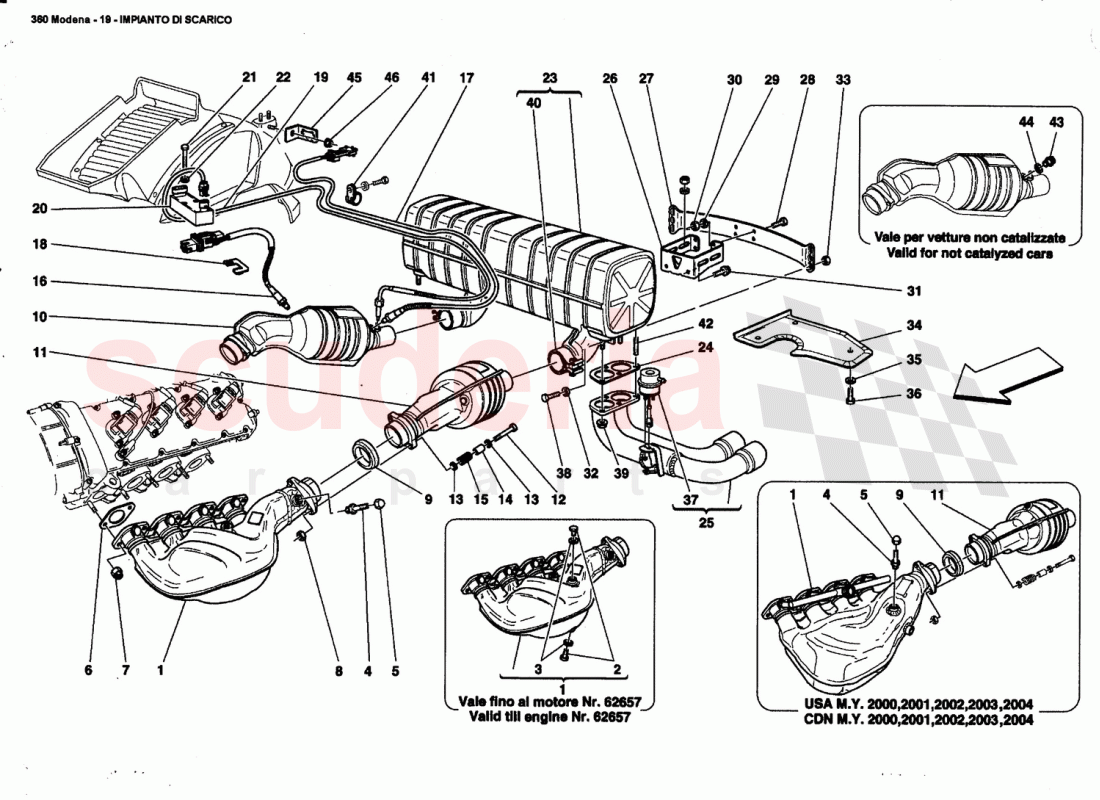

Ferrari 360 Modena - EXHAUST SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	182151	R.H. EXHAUST MANIFOLD	Enquire	To Order
	184393	R.H. EXHAUST MANIFOLD	Enquire	To Order
	178438	R.H. EXHAUST MANIFOLD	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	110860	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144240	THREADED CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150595	CAP NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151064	Exhaust Manifold Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	138392	Exhaust Brass Locknut M8 x 1.25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114748	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159914	EXHAUST RING GASKET D.60.5-71	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181966	R.H. CATALYST	Enquire	To Order
	180019	R.H. CATALYST	Enquire	To Order
	180082	R.H. CATALYST	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	181967	L.H. CATALYST	Enquire	To Order
	180020	L.H. CATALYST	Enquire	To Order
	180083	L.H. CATALYST	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	16044834	BOLT M8 X 80	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263276	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114749	Spacer D8. 10 x 23	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	111743	EXHAUST BRACKET SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182837	Front Lambda Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180915	Rear Lambda Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175856	CONNECTOR FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168824	THERMOCOUPLE	Enquire	ARRIVING SOON
	193467	THERMOCOUPLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179278	CATALYTIC CONVERTER TEMPERATURE CONTROL ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15210824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174089	COMPLETE EXHAUST SILENCER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177612	Exhaust Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	210102	COMPLETE R.H. OUTLET PIPE	Enquire	To Order
	178769	COMPLETE L.H. OUTLET PIPE	Enquire	To Order
	210101	COMPLETE L.H. OUTLET PIPE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	212691	GEARBOX SIDE SILENCER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185468	SILENCER SUPPORT EXHAUST SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043324	SCREW M8 X 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043434	HEX HEAD SCREW M8 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263276	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114748	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196340	L.H. SHIELD	Enquire	To Order
	196340	L.H. SHIELD	Enquire	To Order
	196339	R.H. SHIELD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183876	LH BY - PASS VALVE	Enquire	To Order
	183877	RH BY - PASS VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043434	HEX HEAD SCREW M8 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185307	Exhaust Clamp	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	10441390	P clip Bracket With Sheath D.12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188986	Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182998	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183003	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185408	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	182151	R.H. EXHAUST MANIFOLD	182151 R.H. EXHAUST MANIFOLD Valid for USA, CDN and AUS / Not for USA MY 2000,2001,2002,2003,2004 and / CDN MY 2000,2001,2002,2003,2004	-	1	Enquire
1	184393	R.H. EXHAUST MANIFOLD	184393 R.H. EXHAUST MANIFOLD Valid for USA MY 2000,2001,2002,2003,2004 and / CDN MY 2000,2001,2002,2003,2004	-	1	Enquire
1	178438	R.H. EXHAUST MANIFOLD	178438 R.H. EXHAUST MANIFOLD Not for USA, CDN and AUS / Valid till engine Nr. 62657	-	1	Enquire
1	189665	R.H. EXHAUST MANIFOLD	189665 R.H. EXHAUST MANIFOLD Not for USA, CDN and AUS / Valid from engine Nr.62658	-	1	Enquire
1	182148	L.H. EXHAUST MANIFOLD	182148 L.H. EXHAUST MANIFOLD Valid for USA, CDN and AUS / Not for USA MY 2000,2001,2002,2003,2004 and / CDN MY 2000,2001,2002,2003,2004	-	1	Enquire
1	184394	L.H. EXHAUST MANIFOLD	184394 L.H. EXHAUST MANIFOLD Valid for USA MY 2000,2001,2002,2003,2004 and / CDN MY 2000,2001,2002,2003,2004	-	1	Enquire
1	178437	L.H. EXHAUST MANIFOLD	178437 L.H. EXHAUST MANIFOLD Not for USA, CDN and AUS / Valid till engine Nr. 62657	-	1	Enquire
1	189666	L.H. EXHAUST MANIFOLD	189666 L.H. EXHAUST MANIFOLD Not for USA, CDN and AUS / Valid from engine Nr. 62658	-	-	Enquire
2	110860	THREADED PLUG	110860 THREADED PLUG Valid till engine Nr. 62657	-	8	Enquire
3	10298460	GASKET	10298460 GASKET Valid till engine Nr. 62657	-	8	Enquire
4	144240	THREADED CONNECTOR	144240 THREADED CONNECTOR	-	2	Enquire
5	150595	CAP NUT	150595 CAP NUT	-	2	Enquire
6	151064	Exhaust Manifold Gasket	151064 Exhaust Manifold Gasket	-	8	Enquire
7	138392	Exhaust Brass Locknut M8 x 1.25	138392 Exhaust Brass Locknut M8 x 1.25	-	16	Enquire
8	114748	Nut	114748 Nut	-	4	Enquire
9	159914	EXHAUST RING GASKET D.60.5-71	159914 EXHAUST RING GASKET D.60.5-71	-	2	Enquire
10	181966	R.H. CATALYST	181966 R.H. CATALYST Valid for USA MY 2000,2001,2002,2003,2004 and / CDN MY 2000,2001,2002,2003,2004	-	1	Enquire
10	180019	R.H. CATALYST	180019 R.H. CATALYST Valid for USA, CDN and AUS- -Not for USA MY 2000, / 2001,2002,2003,2004 and CDN MY 2000,2001, / 2002,2003,2004 / Valid for EU GS not F1 and J not F1 from car / Ass.Nr. 39159 / Valid for GB not F1 from car Ass.Nr. 39145 / Valid for EU GS F1 and J F1 from car Ass.Nr. 39160	-	1	Enquire
10	180082	R.H. CATALYST	180082 R.H. CATALYST Valid for not catalyzed cars / Not for USA, CDN and AUS	-	1	Enquire
10	174211	R.H. CATALYST	174211 R.H. CATALYST Valid for catalyzed cars / Not for USA, CDN and AUS / Valid for EU GS not F1 and J not F1 till car / Ass.Nr. 39158 / Valid for GB not F1 till car Ass.Nr. 39144 / Valid for EU GS F1 and J F1 till car Ass.Nr. 39159 /	-	1	Enquire
11	181967	L.H. CATALYST	181967 L.H. CATALYST Valid for USA MY 2000,2001,2002,2003,2004 and / CDN MY 2000,2001,2002,2003,2004	-	1	Enquire
11	180020	L.H. CATALYST	180020 L.H. CATALYST Valid for USA, CDN and AUS- -Not for USA MY 2000, / 2001,2002,2003,2004 and CDN MY 2000,2001,2002, / 2003,2004 / Valid for EU GS not F1 and J not F1 from car / Ass.Nr. 39159 / Valid for GB not F1 from car Ass.Nr. 39145 / Valid for EU GS F1 and J F1 from car Ass.Nr. 39160	-	1	Enquire
11	180083	L.H. CATALYST	180083 L.H. CATALYST Valid for not catalyzed cars / Not for USA, CDN and AUS	-	1	Enquire
11	174210	L.H. CATALYST	174210 L.H. CATALYST Valid for catalyzed cars / Not for USA, CDN and AUS / Valid for EU GS not F1 and J not F1 till car / Ass.Nr. 39158 / Valid for GB not F1 till car Ass.Nr. 39144 / Valid for EU GS F1 and J F1 till car Ass.Nr. 39159 / Valid for GB F1 till car Ass.Nr. 39148	-	1	Enquire
12	16044834	BOLT M8 X 80	16044834 BOLT M8 X 80	-	4	Enquire
13	263276	WASHER	263276 WASHER	-	8	Enquire
14	114749	Spacer D8. 10 x 23	114749 Spacer D8. 10 x 23	-	4	Enquire
15	111743	EXHAUST BRACKET SPRING	111743 EXHAUST BRACKET SPRING	-	4	Enquire
16	182837	Front Lambda Sensor	182837 Front Lambda Sensor	-	2	Enquire
17	180915	Rear Lambda Sensor	180915 Rear Lambda Sensor Valid for catalyzed cars	-	2	Enquire
18	175856	CONNECTOR FASTENER BRACKET	175856 CONNECTOR FASTENER BRACKET	-	2	Enquire
19	168824	THERMOCOUPLE ARRIVING SOON	168824 THERMOCOUPLE ARRIVING SOON	-	2	Enquire
19	193467	THERMOCOUPLE	193467 THERMOCOUPLE Valid after stock exhaustion of 168824	-	2	Enquire
20	179278	CATALYTIC CONVERTER TEMPERATURE CONTROL ECU	179278 CATALYTIC CONVERTER TEMPERATURE CONTROL ECU CONTROL STATION	-	2	Enquire
21	15210824	SCREW	15210824 SCREW	-	4	Enquire
22	10519224	WASHER	10519224 WASHER	-	4	Enquire
23	174089	COMPLETE EXHAUST SILENCER	174089 COMPLETE EXHAUST SILENCER	-	1	Enquire
24	177612	Exhaust Gasket	177612 Exhaust Gasket	-	2	Enquire
25	210102	COMPLETE R.H. OUTLET PIPE	210102 COMPLETE R.H. OUTLET PIPE Valid from Nr.53911 for AUS	-	1	Enquire
25	178769	COMPLETE L.H. OUTLET PIPE	178769 COMPLETE L.H. OUTLET PIPE Valid till Ass. Nr.53910 for AUS	-	1	Enquire
25	210101	COMPLETE L.H. OUTLET PIPE	210101 COMPLETE L.H. OUTLET PIPE Valid from Nr.53911 for AUS	-	1	Enquire
25	178770	COMPLETE R.H. OUTLET PIPE	178770 COMPLETE R.H. OUTLET PIPE Valid till Ass. Nr.53910 for AUS	-	1	Enquire
26	212691	GEARBOX SIDE SILENCER MOUNTING	212691 GEARBOX SIDE SILENCER MOUNTING	-	1	Enquire
27	185468	SILENCER SUPPORT EXHAUST SIDE	185468 SILENCER SUPPORT EXHAUST SIDE EXHAUST SIDE	-	1	Enquire
28	16043324	SCREW M8 X 18	16043324 SCREW M8 X 18	-	4	Enquire
29	127496	WASHER	127496 WASHER	-	4	Enquire
30	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	4	Enquire
31	16043434	HEX HEAD SCREW M8 X 20	16043434 HEX HEAD SCREW M8 X 20	-	4	Enquire
32	263276	WASHER	263276 WASHER	-	4	Enquire
33	114748	Nut	114748 Nut	-	4	Enquire
34	196340	L.H. SHIELD	196340 L.H. SHIELD	-	1	Enquire
34	196340	L.H. SHIELD	196340 L.H. SHIELD	-	1	Enquire
34	196339	R.H. SHIELD	196339 R.H. SHIELD	-	1	Enquire
34	196339	R.H. SHIELD	196339 R.H. SHIELD	-	1	Enquire
35	12643724	WASHER	12643724 WASHER	-	6	Enquire
36	10902424	SCREW	10902424 SCREW	-	6	Enquire
37	183876	LH BY - PASS VALVE	183876 LH BY - PASS VALVE	-	1	Enquire
37	183877	RH BY - PASS VALVE	183877 RH BY - PASS VALVE	-	1	Enquire
38	16043434	HEX HEAD SCREW M8 X 20	16043434 HEX HEAD SCREW M8 X 20	-	4	Enquire
39	14059311	NUT	14059311 NUT	-	8	Enquire
40	185307	Exhaust Clamp ARRIVING SOON	185307 Exhaust Clamp ARRIVING SOON	-	2	Enquire
41	10441390	P clip Bracket With Sheath D.12	10441390 P clip Bracket With Sheath D.12	-	1	Enquire
42	188986	Stud	188986 Stud	-	8	Enquire
43	182998	THREADED PLUG	182998 THREADED PLUG Valid for not catalyzed cars	-	2	Enquire
44	183003	WASHER	183003 WASHER Valid for not catalyzed cars	-	2	Enquire
45	185408	BRACKET	185408 BRACKET	-	2	Enquire
46	14059211	NUT	14059211 NUT	-	1	Enquire
