Antievaporation Device -Not Far Usa My 2000, 2001, 2002, 2003, 2004

Ferrari 360 Modena

Find Your Part

Ferrari 360 Modena - ANTIEVAPORATION DEVICE -Not far USA MY 2000, 2001, 2002, 2003, 2004

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
180132 FUEL VAPOR FILTER Enquire To Order
174782 FUEL VAPOR FILTER Enquire To Order
Photo Part No Description Price (each) Stock
178451 DEWATERER FILTER FIXING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
178456 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
178458 RUBBER THICKNESS Enquire To Order
Photo Part No Description Price (each) Stock
178457 RUBBER THICKNESS Enquire To Order
Photo Part No Description Price (each) Stock
81591700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12639724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
180376 Pipe From Filter To rear Valve Enquire To Order
Photo Part No Description Price (each) Stock
180375 PIPE FROM FILTER TO FRONT VALVE Enquire To Order
Photo Part No Description Price (each) Stock
180374 PIPE FROM FILTER TO MULTIFUNTIONAL VALVE Enquire To Order
Photo Part No Description Price (each) Stock
180030 MULTIFUNTIONAL VALVE Enquire To Order
Photo Part No Description Price (each) Stock
195049 Gasket Enquire To Order
Photo Part No Description Price (each) Stock
175967 MULTIFUNTIONAL VALVE Enquire To Order
Photo Part No Description Price (each) Stock
176393 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
176442 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
12639724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10902834 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
10720124 NUT Enquire To Order
Photo Part No Description Price (each) Stock
13577724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10977524 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10902224 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
13577724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
13577724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
174708 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
174623 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
13577724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10979434 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
162412 Flush Valve Enquire To Order
Photo Part No Description Price (each) Stock
180377 PIPE TO ENGINE LH. SIDE Enquire To Order
Photo Part No Description Price (each) Stock
180378 PIPE TO ENGINE R.H. SIDE Enquire To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
180373 PIPE FROM MULTIFUNTIONAL VALVE TO DISAREATOR Enquire To Order
Photo Part No Description Price (each) Stock
10902224 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12639724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
179138 INTERCEPTION VALVE Enquire To Order
Photo Part No Description Price (each) Stock
180155 COMPLETE TUBE Enquire To Order
Photo Part No Description Price (each) Stock
13432870 COLLAR FOR HOSE UNION Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
181607 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
10903024 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12639724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
172613 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
145543 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
180179 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
13577724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
199625 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
10902424 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12639724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
View All

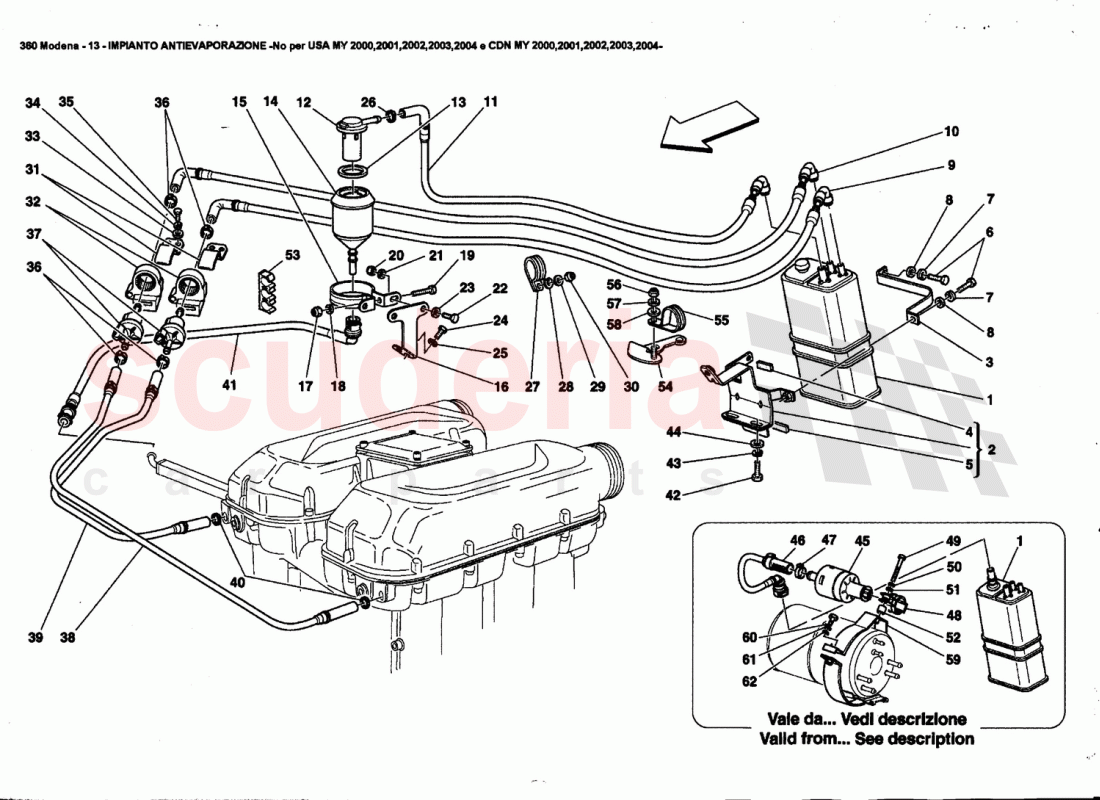

ANTIEVAPORATION DEVICE -Not far USA MY 2000, 2001, 2002, 2003, 2004 of Ferrari Ferrari 360 Modena Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 180132
FUEL VAPOR FILTER
Valid for EU GS not F1 and J not F1 from car / Ass.Nr. 39159 / Valid for GB not F1 from car Ass.Nr. 39145 / Valid for EU GS F1 and J F1 from car Ass.Nr. 39160 / Valid for GB F1 from car Ass.Nr. 39149 / Valid for USA, CDN and AUS 		- 1 Enquire
1 174782
FUEL VAPOR FILTER
Valid for EU GS not F1 and J not F1 till car / Ass.Nr. 39158 / Valid for GB not F1 till car Ass.Nr. 39144 / Valid for EU GS F1 and J F1 till car Ass.Nr. 39159 / Valid for GB F1 till car Ass.Nr. 39148 / Not for USA, CDN and AUS 		- 1 Enquire
2 178451
DEWATERER FILTER FIXING BRACKET
BRACKET 		- 1 Enquire
3 178456
BRACKET 		- 1 Enquire
4 178458
RUBBER THICKNESS 		- 1 Enquire
5 178457
RUBBER THICKNESS 		- 1 Enquire
6 81591700
SCREW 		- 2 Enquire
7 127494
WASHER 		- 2 Enquire
8 12639724
WASHER 		- 2 Enquire
9 180376
Pipe From Filter To rear Valve 		- 1 Enquire
10 180375
PIPE FROM FILTER TO FRONT VALVE 		- 1 Enquire
11 180374
PIPE FROM FILTER TO MULTIFUNTIONAL VALVE
MULTIFUNTIONAL VALVE 		- 1 Enquire
12 180030
MULTIFUNTIONAL VALVE 		- 1 Enquire
13 195049
Gasket 		- 1 Enquire
14 175967
MULTIFUNTIONAL VALVE
CONTAINER 		- 1 Enquire
15 176393
BRACKET WITH SHEATH 		- 1 Enquire
16 176442
BRACKET 		- 1 Enquire
17 14059290
FLANGED NUT M6 		- 1 Enquire
18 12639724
WASHER 		- 1 Enquire
19 10902834
SCREW 		- 1 Enquire
20 10720124
NUT 		- 2 Enquire
21 13577724
WASHER 		- 2 Enquire
22 10977524
SCREW 		- 2 Enquire
23 127494
WASHER 		- 2 Enquire
24 10902224
SCREW 		- 2 Enquire
25 13577724
WASHER 		- 2 Enquire
26 13432070
HOSE COLLAR 		- 1 Enquire
27 291225
P clip Bracket With Sheath 		- 1 Enquire
28 127494
WASHER 		- 2 Enquire
29 13577724
WASHER 		- 2 Enquire
30 14059290
FLANGED NUT M6 		- 2 Enquire
31 174708
BRACKET 		- 2 Enquire
32 174623
BUSH 		- 2 Enquire
33 13577724
WASHER 		- 2 Enquire
34 127494
WASHER 		- 2 Enquire
35 10979434
SCREW 		- 2 Enquire
36 13432070
HOSE COLLAR 		- 4 Enquire
37 162412
Flush Valve 		- 2 Enquire
38 180377
PIPE TO ENGINE LH. SIDE 		- 1 Enquire
39 180378
PIPE TO ENGINE R.H. SIDE 		- 1 Enquire
40 13432070
HOSE COLLAR 		- 2 Enquire
41 180373
PIPE FROM MULTIFUNTIONAL VALVE TO DISAREATOR
VALVE TO DISAREATOR 		- 1 Enquire
42 10902224
SCREW 		- 2 Enquire
43 12639724
WASHER 		- 2 Enquire
44 127494
WASHER 		- 2 Enquire
45 179138
INTERCEPTION VALVE
Valid for EU GS not F1 and J not F1 from car / Ass.Nr. 39159 / Valid for GB not F1 from car Ass.Nr. 39145 / Valid for EU GS F1 and J F1 from car Ass.Nr. 39160 / Valid for GB F1 from car Ass.Nr. 39149 / Valid for USA, CDN and AUS 		- 1 Enquire
46 180155
COMPLETE TUBE
Valid for EU GS not F1 and J not F1 from car / Ass.Nr. 39159 / Valid for GB not F1 from car Ass.Nr. 39145 / Valid for EU GS F1 and J F1 from car Ass.Nr. 39160 / Valid for GB F1 from car Ass.Nr. 39149 / Valid for USA, CDN and AUS 		- 1 Enquire
47 13432870
COLLAR FOR HOSE UNION
Valid for EU GS not F1 and J not F1 from car / Ass.Nr. 39159 / Valid for GB not F1 from car Ass.Nr. 39145 / Valid for EU GS F1 and J F1 from car Ass.Nr. 39160 / Valid for GB F1 from car Ass.Nr. 39149 / Valid for USA, CDN and AUS
ARRIVING SOON 		- 1 Enquire
48 181607
BRACKET WITH SHEATH
Valid for EU GS not F1 and J not F1 from car / Ass.Nr. 39159 / Valid for GB not F1 from car Ass.Nr. 39145 / Valid for EU GS F1 and J F1 from car Ass.Nr. 39160 / Valid for GB F1 from car Ass.Nr. 39149 / Valid for USA, CDN and AUS 		- 1 Enquire
49 10903024
SCREW
Valid for EU GS not F1 and J not F1 from car / Ass.Nr. 39159 / Valid for GB not F1 from car Ass.Nr. 39145 / Valid for EU GS F1 and J F1 from car Ass.Nr. 39160 / Valid for GB F1 from car Ass.Nr. 39149 / Valid for USA, CDN and AUS 		- 1 Enquire
50 127494
WASHER
Valid for EU GS not F1 and J not F1 from car / Ass.Nr. 39159 / Valid for GB not F1 from car Ass.Nr. 39145 / Valid for EU GS F1 and J F1 from car Ass.Nr. 39160 / Valid for GB F1 from car Ass.Nr. 39149 / Valid for USA, CDN and AUS 		- 1 Enquire
51 12639724
WASHER
Valid for EU GS not F1 and J not F1 from car / Ass.Nr. 39159 / Valid for GB not F1 from car Ass.Nr. 39145 / Valid for EU GS F1 and J F1 from car Ass.Nr. 39160 / Valid for GB F1 from car Ass.Nr. 39149 / Valid for USA, CDN and AUS 		- 1 Enquire
52 172613
SPACER
Valid for EU GS not F1 and J not F1 from car / Ass.Nr. 39159 / Valid for GB not F1 from car Ass.Nr. 39145 / Valid for EU GS F1 and J F1 from car Ass.Nr. 39160 / Valid for GB F1 from car Ass.Nr. 39149 / Valid for USA, CDN and AUS 		- 1 Enquire
53 145543
CLIP 		- 1 Enquire
54 180179
BRACKET 		- 1 Enquire
55 291225
P clip Bracket With Sheath 		- 1 Enquire
56 14059290
FLANGED NUT M6 		- 1 Enquire
57 127494
WASHER 		- 1 Enquire
58 13577724
WASHER 		- 1 Enquire
59 199625
CLAMP
Valid for EU GS not F1 and J not F1 from car / Ass.Nr. 39159 / Valid for GB not F1 from car Ass.Nr. 39145 / Valid for EU GS F1 and J F1 from car Ass.Nr. 39160 / Valid for GB F1 from car Ass.Nr. 39149 		- 1 Enquire
60 10902424
SCREW
Valid for EU GS not F1 and J not F1 from car / Ass.Nr. 39159 / Valid for GB not F1 from car Ass.Nr. 39145 / Valid for EU GS F1 and J F1 from car Ass.Nr. 39160 / Valid for GB F1 from car Ass.Nr. 39149 		- 1 Enquire
61 12639724
WASHER
Valid for EU GS not F1 and J not F1 from car / Ass.Nr. 39159 / Valid for GB not F1 from car Ass.Nr. 39145 / Valid for EU GS F1 and J F1 from car Ass.Nr. 39160 / Valid for GB F1 from car Ass.Nr. 39149 		- 1 Enquire
62 127494
WASHER
Valid for EU GS not F1 and J not F1 from car / Ass.Nr. 39159 / Valid for GB not F1 from car Ass.Nr. 39145 / Valid for EU GS F1 and J F1 from car Ass.Nr. 39160 / Valid for GB F1 from car Ass.Nr. 39149 		- 1 Enquire
