Ferrari 360 Modena - FUEL TANKS - FIXING AND PROTECTION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
180348 TANK FASTENING STRAP Enquire To Order
Photo Part No Description Price (each) Stock
174445 RH BRACKET Enquire To Order
175768 LH BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
103447 PIN Enquire To Order
Photo Part No Description Price (each) Stock
264555 SPLIT PIN Enquire To Order
Photo Part No Description Price (each) Stock
14305324 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
10519424 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
104030 NYLOC NUT M8 X 1.25 X 9.5 Enquire To Order
Photo Part No Description Price (each) Stock
14496524 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
178636 DISAREATOR ANTI-HEAT SHIELD Enquire To Order
179526 DISAREATOR ANTI - HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
10977524 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127493 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12604178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
176993 PROTECTION PLATE Enquire To Order
Photo Part No Description Price (each) Stock
186045 CHASSIS Enquire To Order
Photo Part No Description Price (each) Stock
178772 SPACER STUD Enquire To Order
Photo Part No Description Price (each) Stock
182363 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
10902424 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
13550221 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
224379 LH LOWER HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
182238 LOWER RH ANTI - HEAT SHIELD Enquire To Order
224381 RH LOWER HEAT SHIELD Enquire To Order
180234 LOWER RH ANTI - HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
10902424 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
180231 LH ANTI - HEAT SHIELD Enquire To Order
184300 L.H. ANTI-HEAT SHIELD Enquire To Order
180232 RH ANTI - HEAT SHIELD Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
13577724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10902424 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
177775 LOWER RH TANK FASTENER BRACKET Enquire To Order
177774 LOWER LH TANK FASTENER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
177773 RH RUBBER SPACER Enquire To Order
177772 LH RUBBER SPACER Enquire To Order
Photo Part No Description Price (each) Stock
14664790 CAGE SCREW Enquire To Order
Photo Part No Description Price (each) Stock
10902424 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
14498801 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
177770 RH TANK FASTENER BRACKET Enquire To Order
177771 LH TANK FASTENER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14664790 CAGE SCREW Enquire To Order
Photo Part No Description Price (each) Stock
177769 RUBBER SHIM Enquire To Order
Photo Part No Description Price (each) Stock
177768 RUBBER SHIM Enquire To Order
Photo Part No Description Price (each) Stock
177752 RUBBER SHIM Enquire To Order
Photo Part No Description Price (each) Stock
181192 LH RUBBER SPACER Enquire To Order
181191 RH RUBBER SPACER Enquire To Order
Photo Part No Description Price (each) Stock
181377 RUBBER SHIM Enquire To Order
Photo Part No Description Price (each) Stock
177753 RH RUBBER SPACER Enquire To Order
177763 LH RUBBER SPACER Enquire To Order
Photo Part No Description Price (each) Stock
177749 RUBBER SHIM Enquire To Order
Photo Part No Description Price (each) Stock
177748 RUBBER SHIM Enquire To Order
Photo Part No Description Price (each) Stock
159147 RUBBER SHIM Enquire To Order
Photo Part No Description Price (each) Stock
14498801 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
182363 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
10902424 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
13577724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
178772 SPACER STUD Enquire To Order
Photo Part No Description Price (each) Stock
10519424 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
13577724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
190115 RUBBER GASKET Enquire To Order
View All

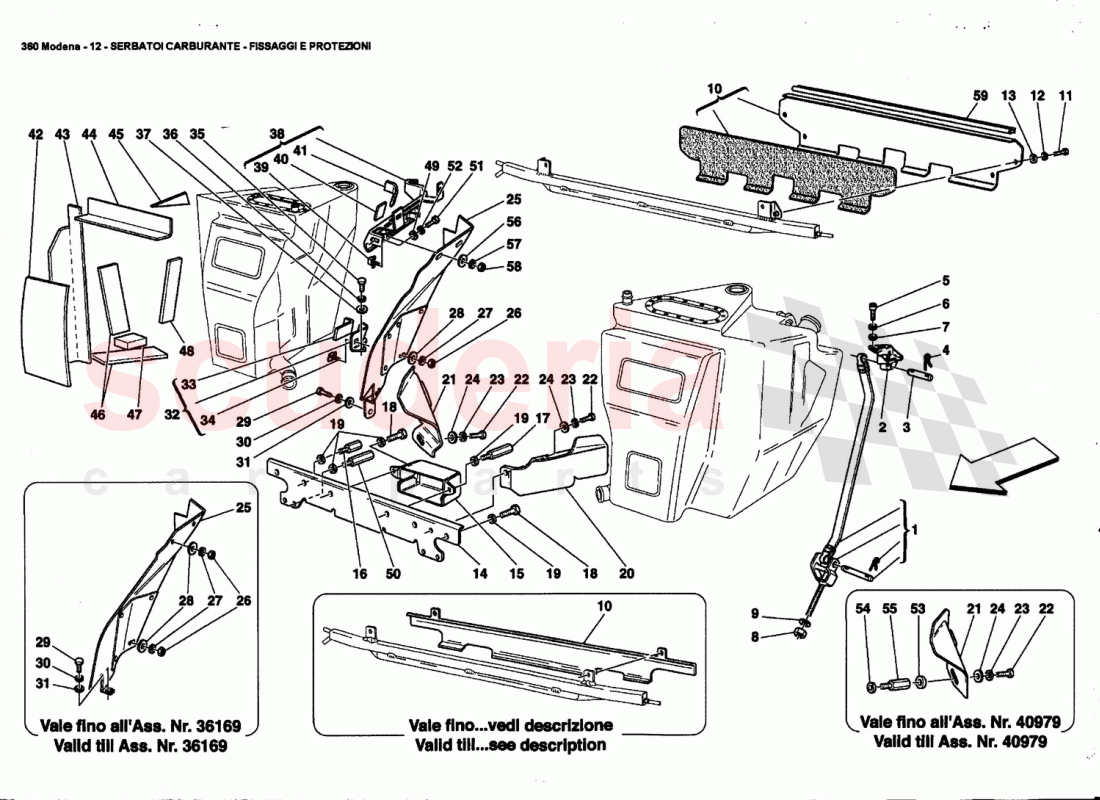

FUEL TANKS - FIXING AND PROTECTION of Ferrari Ferrari 360 Modena Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 180348
TANK FASTENING STRAP
Replaces 174098 		- 2 Enquire
2 174445
RH BRACKET 		- 1 Enquire
2 175768
LH BRACKET 		- 1 Enquire
3 103447
PIN 		- 2 Enquire
4 264555
SPLIT PIN 		- 4 Enquire
5 14305324
SCREW 		- 6 Enquire
6 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 6 Enquire
7 10519424
WASHER 		- 6 Enquire
8 104030
NYLOC NUT M8 X 1.25 X 9.5 		- 2 Enquire
9 14496524
WASHER 		- 2 Enquire
10 178636
DISAREATOR ANTI-HEAT SHIELD
Valid for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004 / Not for USA MY 2000,2001,2002,2003,2004 and / CDN MY 2000,2001,2002,2003,2004 from Ass. Nr. 37320 		- 1 Enquire
10 179526
DISAREATOR ANTI - HEAT SHIELD
Not for USA MY 2000,2001,2002,2003,2004 and / CDN MY 2000,2001,2002,2003,2004 / Valid till Ass. Nr. 37320 		- 1 Enquire
11 10977524
SCREW
Valid from Ass. Nr. 37320 		- 4 Enquire
12 127493
WASHER
Valid from Ass. Nr. 37320 		- 4 Enquire
13 12604178
Washer
Valid from Ass. Nr. 37320 		- 4 Enquire
14 176993
PROTECTION PLATE 		- 1 Enquire
15 186045
CHASSIS 		- 1 Enquire
16 178772
SPACER STUD 		- 1 Enquire
17 182363
STUD BOLT 		- 1 Enquire
18 10902424
SCREW 		- 7 Enquire
19 13550221
WASHER 		- 10 Enquire
20 224379
LH LOWER HEAT SHIELD 		- 1 Enquire
21 182238
LOWER RH ANTI - HEAT SHIELD
Valid from Ass. Nr. 35230 till Ass. Nr. 40979 		- 1 Enquire
21 224381
RH LOWER HEAT SHIELD
Valid from Ass. Nr. 40980 		- 1 Enquire
21 180234
LOWER RH ANTI - HEAT SHIELD
Valid till Ass. Nr. 35229 		- 1 Enquire
22 10902424
SCREW 		- 4 Enquire
23 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 4 Enquire
24 12643724
WASHER 		- 4 Enquire
25 180231
LH ANTI - HEAT SHIELD
Valid till Ass. Nr. 36169 		- 1 Enquire
25 184300
L.H. ANTI-HEAT SHIELD
Valid from Ass. Nr. 36170 		- 1 Enquire
25 180232
RH ANTI - HEAT SHIELD
Valid till Ass. Nr. 36169 		- 1 Enquire
25 184301
R.H. ANTI-HEAT SHIELD
Valid from Ass. Nr. 36170 		- 1 Enquire
26 14059290
FLANGED NUT M6
Valid till Ass. Nr. 36169 with Q.ty 4 / Valid from Ass. Nr. 36170 with Q.ty 2 		- 4 Enquire
27 11197774
WAVY WASHER D.6.4 X 12 X 1.2
Valid till Ass. Nr. 36169 with Q.ty 4 / Valid from Ass. Nr. 36170 with Q.ty 2 		- 4 Enquire
28 13577724
WASHER
Valid till Ass. Nr. 36169 with Q.ty 4 / Valid from Ass. Nr. 36170 with Q.ty 2 		- 4 Enquire
29 10902424
SCREW 		- 4 Enquire
30 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 4 Enquire
31 12643724
WASHER 		- 4 Enquire
32 177775
LOWER RH TANK FASTENER BRACKET
R.H. TANK FIXING 		- 1 Enquire
32 177774
LOWER LH TANK FASTENER BRACKET
L.H. TANK FIXING 		- 1 Enquire
33 177773
RH RUBBER SPACER 		- 1 Enquire
33 177772
LH RUBBER SPACER 		- 1 Enquire
34 14664790
CAGE SCREW 		- 2 Enquire
35 10902424
SCREW 		- 4 Enquire
36 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 4 Enquire
37 14498801
WASHER 		- 4 Enquire
38 177770
RH TANK FASTENER BRACKET 		- 1 Enquire
38 177771
LH TANK FASTENER BRACKET 		- 1 Enquire
39 14664790
CAGE SCREW 		- 4 Enquire
40 177769
RUBBER SHIM 		- 4 Enquire
41 177768
RUBBER SHIM 		- 2 Enquire
42 177752
RUBBER SHIM 		- 2 Enquire
43 181192
LH RUBBER SPACER 		- 1 Enquire
43 181191
RH RUBBER SPACER 		- 1 Enquire
44 181377
RUBBER SHIM 		- 2 Enquire
45 177753
RH RUBBER SPACER 		- 1 Enquire
45 177763
LH RUBBER SPACER 		- 1 Enquire
46 177749
RUBBER SHIM 		- 4 Enquire
47 177748
RUBBER SHIM 		- 2 Enquire
48 159147
RUBBER SHIM 		- 2 Enquire
49 14498801
WASHER 		- 2 Enquire
50 182363
STUD BOLT
From Ass. Nr. 36945 for GS and / from Ass. Nr. 37248 for GD stud / fasten pipe 185514 for GS and / 185515 for GD 		- 1 Enquire
51 10902424
SCREW 		- 2 Enquire
52 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 2 Enquire
53 12643724
WASHER
Valid till Ass. Nr. 40979 		- 1 Enquire
54 13577724
WASHER 		- 1 Enquire
55 178772
SPACER STUD
From Ass. Nr. 36945 for GS and / from Ass. Nr. 37248 for GD stud / fasten shield 182238 / Valid till Ass. Nr. 40979 		- 1 Enquire
56 10519424
WASHER
Valid from Ass. Nr. 36170 		- 2 Enquire
57 13577724
WASHER
Valid from Ass. Nr. 36170 		- 2 Enquire
58 14059290
FLANGED NUT M6
Valid from Ass. Nr. 36170 		- 2 Enquire
59 190115
RUBBER GASKET 		- 1 Enquire
