BATTERY of Ferrari Ferrari 360 Challenge Stradale

View All

Ferrari 360 Challenge Stradale - BATTERY

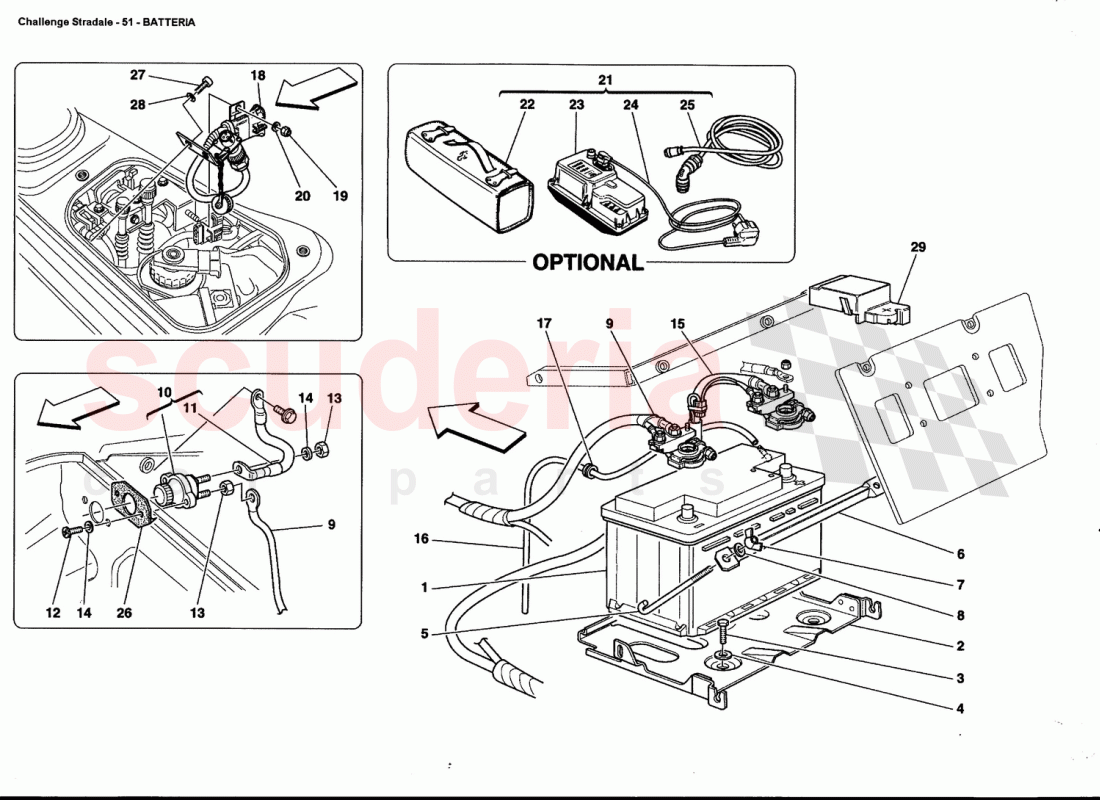

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	312188	BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65521500	BATTERY BIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68040000	WASHER 6 X 20 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65071000	TIE ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69836200	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196861	DASHBOARD CONNECTION CABLES	Enquire	To Order
	196862	DASHBOARD CONNECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188055	CUT-OUT SWITCH ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188056	GROUND CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10721911	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198555	CABLES FOR R.H. REAR TUNNEL CONNECTION	Enquire	To Order
	198554	CABLES FOR R.H. REAR TUNNEL CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181056	BATTERY BREATHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10396280	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200857	BATTERY CHARGER CONNECTOR WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178685	BATTERY CHARGER KIT	Enquire	To Order
	178684	BATTERY CHARGER KIT	Enquire	To Order
	70002820	BATTERY CHARGER KIT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	65699200	BATTERY CHARGER CASE CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177792	BATTERY CHARGER	Enquire	To Order
	177791	BATTERY CHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177795	POWER CABLE	Enquire	To Order
	178294	POWER CABLE	Enquire	To Order
	177796	POWER CABLE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	178676	CABLE COMPLETE WITH CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66079900	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185418	PROTECTIVE COVER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	312188	BATTERY	312188 BATTERY	-	1	Enquire
2	65521500	BATTERY BIN	65521500 BATTERY BIN	-	1	Enquire
3	81591700	SCREW	81591700 SCREW	-	3	Enquire
4	68040000	WASHER 6 X 20 X 2	68040000 WASHER 6 X 20 X 2	-	3	Enquire
5	65071000	TIE ROD	65071000 TIE ROD	-	2	Enquire
6	69836200	BRACKET	69836200 BRACKET	-	1	Enquire
7	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
8	12643724	WASHER	12643724 WASHER	-	2	Enquire
9	196861	DASHBOARD CONNECTION CABLES	196861 DASHBOARD CONNECTION CABLES Not for GD	-	1	Enquire
9	196862	DASHBOARD CONNECTION CABLES	196862 DASHBOARD CONNECTION CABLES Valid for GD	-	1	Enquire
10	188055	CUT-OUT SWITCH ASSEMBLY	188055 CUT-OUT SWITCH ASSEMBLY	-	1	Enquire
11	188056	GROUND CABLE	188056 GROUND CABLE	-	1	Enquire
12	14304324	SCREW	14304324 SCREW	-	2	Enquire
13	10721911	NUT	10721911 NUT	-	2	Enquire
14	12638124	WASHER	12638124 WASHER	-	4	Enquire
15	198555	CABLES FOR R.H. REAR TUNNEL CONNECTION	198555 CABLES FOR R.H. REAR TUNNEL CONNECTION Valid for USA, CDN and J	-	1	Enquire
15	198554	CABLES FOR R.H. REAR TUNNEL CONNECTION	198554 CABLES FOR R.H. REAR TUNNEL CONNECTION CONNECTION / Not for USA, CDN and J	-	1	Enquire
16	181056	BATTERY BREATHER PIPE	181056 BATTERY BREATHER PIPE	-	1	Enquire
17	10396280	CABLE GROMMET	10396280 CABLE GROMMET	-	1	Enquire
18	200857	BATTERY CHARGER CONNECTOR WIRING HARNESS	200857 BATTERY CHARGER CONNECTOR WIRING HARNESS CONNECTION CABLE / Optional	-	1	Enquire
19	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Optional	-	1	Enquire
20	10519424	WASHER	10519424 WASHER Optional	-	1	Enquire
21	178685	BATTERY CHARGER KIT	178685 BATTERY CHARGER KIT Valid for GB and Hong Kong / Optional	-	1	Enquire
21	178684	BATTERY CHARGER KIT	178684 BATTERY CHARGER KIT Valid for AUS / Optional	-	1	Enquire
21	70002820	BATTERY CHARGER KIT	70002820 BATTERY CHARGER KIT Not for USA, CDN, J, GB, Hong Kong and / AUS / Optional	-	1	Enquire
21	803880	BATTERY CHARGER KIT	803880 BATTERY CHARGER KIT Valid for USA, CDN and J / Optional	-	1	Enquire
22	65699200	BATTERY CHARGER CASE CONTAINER	65699200 BATTERY CHARGER CASE CONTAINER Optional	-	1	Enquire
23	177792	BATTERY CHARGER	177792 BATTERY CHARGER 110V / Not for USA, CDN and J / Optional	-	1	Enquire
23	177791	BATTERY CHARGER	177791 BATTERY CHARGER 230V / Not for USA, CDN and J / Optional	-	1	Enquire
24	177795	POWER CABLE	177795 POWER CABLE Valid for USA, CDN and J / Optional	-	1	Enquire
24	178294	POWER CABLE	178294 POWER CABLE Valid for GB and Hong Kong / Optional	-	1	Enquire
24	177796	POWER CABLE	177796 POWER CABLE Valid for AUS / Optional	-	1	Enquire
24	177794	POWER CABLE	177794 POWER CABLE Not for USA, CDN, J, GB, Hong Kong and / AUS / Optional	-	1	Enquire
25	178676	CABLE COMPLETE WITH CONNECTOR	178676 CABLE COMPLETE WITH CONNECTOR Optional	-	1	Enquire
26	66079900	GASKET	66079900 GASKET	-	1	Enquire
27	10902224	SCREW	10902224 SCREW	-	1	Enquire
28	13577724	WASHER	13577724 WASHER	-	1	Enquire
29	185418	PROTECTIVE COVER	185418 PROTECTIVE COVER	-	1	Enquire
