ELECTRICAL SYSTEM of Ferrari Ferrari 360 Challenge Stradale

View All

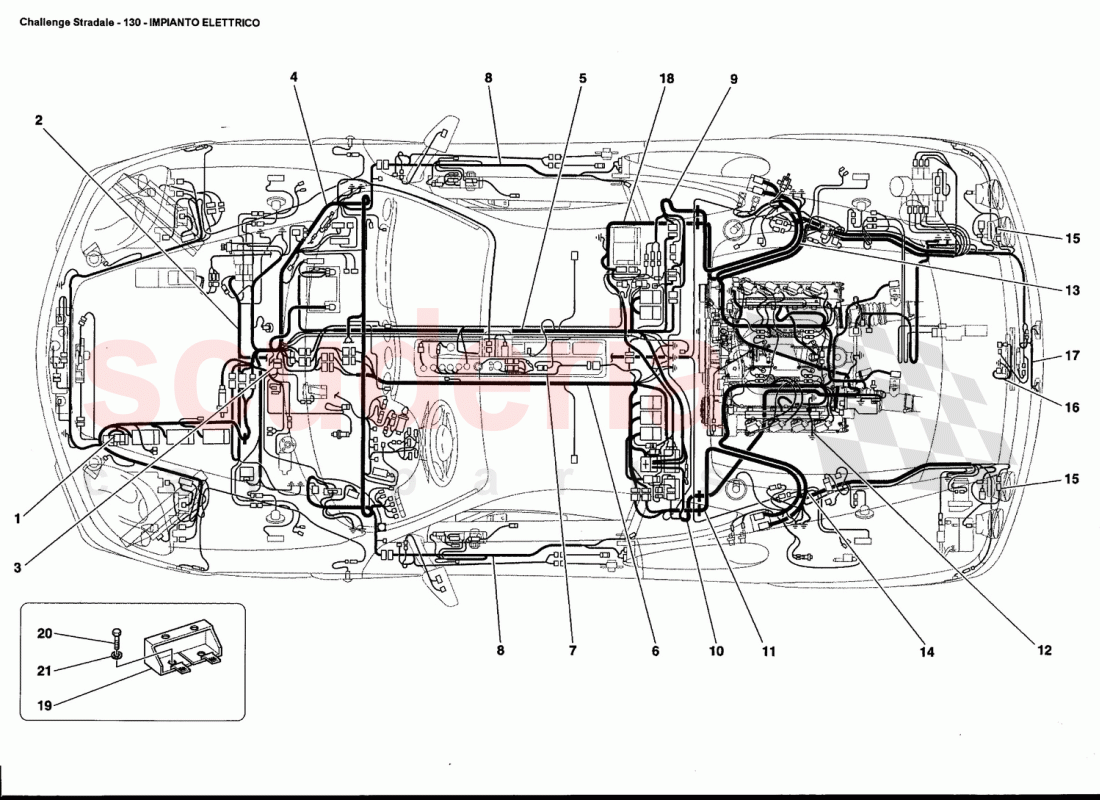

Ferrari 360 Challenge Stradale - ELECTRICAL SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	198395	FRONT PART CONNECTING CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197216	ABS/ASR INSTALLATION CONNECTING CABLES	Enquire	To Order
	197215	ABS/ASR INSTALLATION CONNECTING CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198676	PEDAL DEVICE CONNECTING CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196861	DASHBOARD CONNECTION CABLES	Enquire	To Order
	196862	DASHBOARD CONNECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198554	CABLES FOR R.H. REAR TUNNEL CONNECTION	Enquire	To Order
	198555	CABLES FOR R.H. REAR TUNNEL CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196703	CABLES FOR LH REAR TUNNEL CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196882	CABLES FOR TUNNEL-CONSOLE CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201104	DOOR CONNECTION CABLES	Enquire	To Order
	198209	DOOR CONNECTOR CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200844	CONNECTION CABLES FOR RH ENGINE COMPARTMENT	Enquire	To Order
	205659	CONNECTION CABLES FOR RH ENGINE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	213155	COMPLETE CONNECTION CABLES FOR MOTOR UTILITIES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200840	CONNECTION CABLES FOR LH ENGINE COMPARTMENT	Enquire	To Order
	200843	CONNECTION CABLES FOR LH ENGINE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155073	CABLE FOR ENGINE-FRAME EARTH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199873	R.H. SIDE ENGINE INJECTION CABLES	Enquire	To Order
	199875	R.H. SIDE ENGINE INJECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199874	L.H. SIDE ENGINE INJECTION CABLES	Enquire	To Order
	199876	L.H. SIDE ENGINE INJECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200837	REAR LIGHTS CONNECTING CABLES	Enquire	To Order
	200836	REAR LIGHTS CONNECTING CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241766	STOP-LAMP CONNECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182985	PLATE LIGHT CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	207331	COMPLETE CABLES F1 TRANSMISSION CONNECTION	Enquire	To Order
	196860	COMPLETE CABLES F1 TRANSMISSION CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189876	CONNECTORS FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	198395	FRONT PART CONNECTING CABLES	198395 FRONT PART CONNECTING CABLES CABLES	-	1	Enquire
2	197216	ABS/ASR INSTALLATION CONNECTING CABLES	197216 ABS/ASR INSTALLATION CONNECTING CABLES CONNECTING CABLES / Not for GD	-	1	Enquire
2	197215	ABS/ASR INSTALLATION CONNECTING CABLES	197215 ABS/ASR INSTALLATION CONNECTING CABLES CONNECTING CABLES / Valid for GD	-	1	Enquire
3	198676	PEDAL DEVICE CONNECTING CABLES	198676 PEDAL DEVICE CONNECTING CABLES Not for GD /	-	1	Enquire
4	196861	DASHBOARD CONNECTION CABLES	196861 DASHBOARD CONNECTION CABLES Not for GD	-	1	Enquire
4	196862	DASHBOARD CONNECTION CABLES	196862 DASHBOARD CONNECTION CABLES Valid for GD	-	1	Enquire
5	198554	CABLES FOR R.H. REAR TUNNEL CONNECTION	198554 CABLES FOR R.H. REAR TUNNEL CONNECTION CONNECTION / Not for USA, CDN and J	-	1	Enquire
5	198555	CABLES FOR R.H. REAR TUNNEL CONNECTION	198555 CABLES FOR R.H. REAR TUNNEL CONNECTION Valid for USA, CDN and J	-	1	Enquire
6	196703	CABLES FOR LH REAR TUNNEL CONNECTION	196703 CABLES FOR LH REAR TUNNEL CONNECTION CONNECTION	-	1	Enquire
7	196882	CABLES FOR TUNNEL-CONSOLE CONNECTION	196882 CABLES FOR TUNNEL-CONSOLE CONNECTION CONNECTION	-	1	Enquire
8	201104	DOOR CONNECTION CABLES	201104 DOOR CONNECTION CABLES Valid till Ass. Nr.52139	-	2	Enquire
8	198209	DOOR CONNECTOR CABLES	198209 DOOR CONNECTOR CABLES Valid from Ass. Nr.52140	-	2	Enquire
9	200844	CONNECTION CABLES FOR RH ENGINE COMPARTMENT	200844 CONNECTION CABLES FOR RH ENGINE COMPARTMENT R.H. ENGINE COMPARTMENT / Valid for USA and CDN	-	1	Enquire
9	205659	CONNECTION CABLES FOR RH ENGINE COMPARTMENT	205659 CONNECTION CABLES FOR RH ENGINE COMPARTMENT R.H. ENGINE COMPARTMENT / Not for USA and CDN / Valid till stock exhaustion	-	1	Enquire
10	213155	COMPLETE CONNECTION CABLES FOR MOTOR UTILITIES	213155 COMPLETE CONNECTION CABLES FOR MOTOR UTILITIES CABLES FOR MOTOR UTILITIES	-	1	Enquire
11	200840	CONNECTION CABLES FOR LH ENGINE COMPARTMENT	200840 CONNECTION CABLES FOR LH ENGINE COMPARTMENT L.H. ENGINE COMPARTMENT / Not for USA, CDN and J	-	1	Enquire
11	200843	CONNECTION CABLES FOR LH ENGINE COMPARTMENT	200843 CONNECTION CABLES FOR LH ENGINE COMPARTMENT L.H. ENGINE COMPARTMENT / Valid for USA, CDN and J	-	1	Enquire
12	155073	CABLE FOR ENGINE-FRAME EARTH	155073 CABLE FOR ENGINE-FRAME EARTH	-	1	Enquire
13	199873	R.H. SIDE ENGINE INJECTION CABLES	199873 R.H. SIDE ENGINE INJECTION CABLES Not for USA and CDN	-	1	Enquire
13	199875	R.H. SIDE ENGINE INJECTION CABLES	199875 R.H. SIDE ENGINE INJECTION CABLES Valid for USA and CDN	-	1	Enquire
14	199874	L.H. SIDE ENGINE INJECTION CABLES	199874 L.H. SIDE ENGINE INJECTION CABLES Not for USA and CDN	-	1	Enquire
14	199876	L.H. SIDE ENGINE INJECTION CABLES	199876 L.H. SIDE ENGINE INJECTION CABLES Valid for USA and CDN	-	1	Enquire
15	200837	REAR LIGHTS CONNECTING CABLES	200837 REAR LIGHTS CONNECTING CABLES CABLES / Valid for USA and CDN	-	2	Enquire
15	200836	REAR LIGHTS CONNECTING CABLES	200836 REAR LIGHTS CONNECTING CABLES CABLES / Not for USA and CDN	-	2	Enquire
16	241766	STOP-LAMP CONNECTION CABLES	241766 STOP-LAMP CONNECTION CABLES	-	1	Enquire
17	182985	PLATE LIGHT CABLES	182985 PLATE LIGHT CABLES LIGHTS	-	1	Enquire
18	207331	COMPLETE CABLES F1 TRANSMISSION CONNECTION	207331 COMPLETE CABLES F1 TRANSMISSION CONNECTION TRANSMISSION CONNECTION / Valid for F1 / Included relay 194909 Tab. 133 / Ref. 16	-	1	Enquire
18	196860	COMPLETE CABLES F1 TRANSMISSION CONNECTION	196860 COMPLETE CABLES F1 TRANSMISSION CONNECTION TRANSMISSION CONNECTION / Valid for F1 / Valid till stock exhaustion	-	1	Enquire
19	189876	CONNECTORS FIXING BRACKET	189876 CONNECTORS FIXING BRACKET	-	1	Enquire
20	10902224	SCREW	10902224 SCREW	-	2	Enquire
21	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
