Outside Gearbox Controls

Ferrari 355 (5.2 Motronic)

Find Your Part

Ferrari 355 (5.2 Motronic) - OUTSIDE GEARBOX CONTROLS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
154771 GEARBOX CONTROL CASE Enquire To Order
Photo Part No Description Price (each) Stock
164541 GEARBOX CONTROL LEVER Enquire To Order
Photo Part No Description Price (each) Stock
147561 SPRING Enquire To Order
Photo Part No Description Price (each) Stock
146994 PIN Enquire To Order
Photo Part No Description Price (each) Stock
154745 BALL Enquire To Order
Photo Part No Description Price (each) Stock
235980 BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
14303123 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
163128 ANTI-VIBRATIONS BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
154737 GEARBOX CONTROL TRANSMISSION ROD Enquire To Order
Photo Part No Description Price (each) Stock
127446 BALL SEAT FOR JOINT Enquire To Order
Photo Part No Description Price (each) Stock
165618 RUBBER BOOT Enquire To Order
Photo Part No Description Price (each) Stock
163855 REINFORCEMENT PLATE Enquire To Order
Photo Part No Description Price (each) Stock
13273911 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127493 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
160480 GEAR LEVER KNOB Enquire To Order
Photo Part No Description Price (each) Stock
108010 CHECKNUT Enquire To Order
Photo Part No Description Price (each) Stock
164540 GEAR SELECTOR Enquire To Order
Photo Part No Description Price (each) Stock
159389 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
159357 Screw Enquire To Order
Photo Part No Description Price (each) Stock
154744 ROD Enquire To Order
Photo Part No Description Price (each) Stock
231338 SPRING Enquire To Order
Photo Part No Description Price (each) Stock
103319 SPRING RETAINING DISC Enquire To Order
Photo Part No Description Price (each) Stock
103326 SEEGER RING Enquire To Order
Photo Part No Description Price (each) Stock
147985 NUT Enquire To Order
Photo Part No Description Price (each) Stock
107409 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
145773 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
149907 BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
159427 BUSH WITH JOINT Enquire To Order
Photo Part No Description Price (each) Stock
139555 SILENTBLOCK Enquire To Order
Photo Part No Description Price (each) Stock
15212724 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
10519424 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
107830 Screw -Valid till car Enquire To Order
Photo Part No Description Price (each) Stock
101309 NUT Enquire To Order
Photo Part No Description Price (each) Stock
164392 FRONT CONTROL BAR FOR GEARBOX Enquire To Order
Photo Part No Description Price (each) Stock
103321 Adjusting tie rod Enquire To Order
Photo Part No Description Price (each) Stock
10791224 NUT Enquire To Order
Photo Part No Description Price (each) Stock
10791924 Lock nut L.H. thread Enquire To Order
Photo Part No Description Price (each) Stock
159448 BUSH WITH JOINT Enquire To Order
Photo Part No Description Price (each) Stock
115980A SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
164387 FRONT PART REAR CONTROL BAR FOR GEARBOX Enquire To Order
Photo Part No Description Price (each) Stock
163526 REAR PART REAR CONTROL BAR FOR GEARBOX Enquire To Order
Photo Part No Description Price (each) Stock
163525 BAR BUFFER Enquire To Order
Photo Part No Description Price (each) Stock
107980 SHIM Enquire To Order
Photo Part No Description Price (each) Stock
139555 SILENTBLOCK Enquire To Order
Photo Part No Description Price (each) Stock
107830 Screw -Valid till car Enquire To Order
Photo Part No Description Price (each) Stock
101309 NUT Enquire To Order
Photo Part No Description Price (each) Stock
164386 PIN WITH FLANGE Enquire To Order
Photo Part No Description Price (each) Stock
14054511 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
163986 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
10730114 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
169527 TRASMISSION CONTROL DASHBOARD Enquire To Order
View All

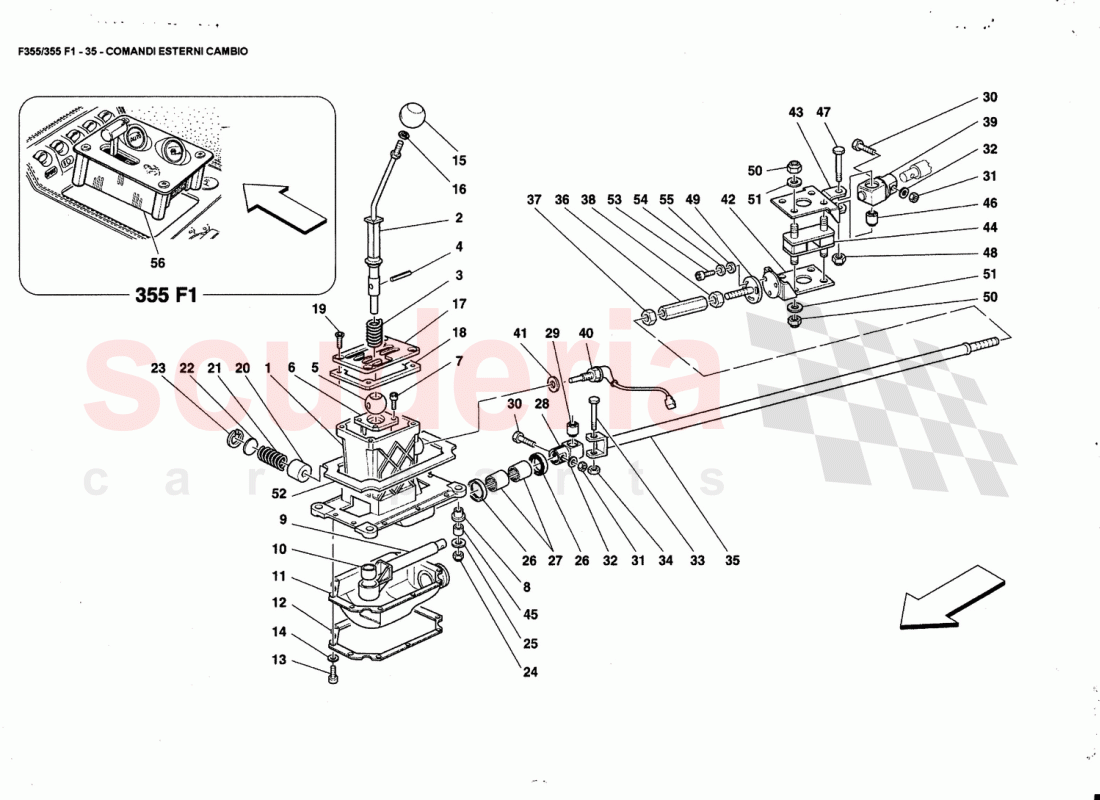

OUTSIDE GEARBOX CONTROLS of Ferrari Ferrari 355 (5.2 Motronic) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 171623
TRASMISSION CONTROL DASHBOARD
Valid for GB 		- 1 Enquire
- 163800
GEARBOX CONTROL CASE
Valid for GD 		- 1 Enquire
- 167911
GEARBOX CONTROL LEVER 		- 1 Enquire
1 154771
GEARBOX CONTROL CASE
Not for GD / Not for 355 F1 cars 		- 1 Enquire
2 164541
GEARBOX CONTROL LEVER 		- 1 Enquire
3 147561
SPRING 		- 1 Enquire
4 146994
PIN 		- 1 Enquire
5 154745
BALL 		- 1 Enquire
6 235980
BUSHING 		- 1 Enquire
7 14303123
SCREW 		- 4 Enquire
8 163128
ANTI-VIBRATIONS BUSHING 		- 8 Enquire
9 154737
GEARBOX CONTROL TRANSMISSION ROD 		- 1 Enquire
10 127446
BALL SEAT FOR JOINT 		- 1 Enquire
11 165618
RUBBER BOOT 		- 1 Enquire
12 163855
REINFORCEMENT PLATE 		- 1 Enquire
13 13273911
SCREW 		- 8 Enquire
14 127493
WASHER 		- 8 Enquire
15 160480
GEAR LEVER KNOB 		- 1 Enquire
16 108010
CHECKNUT 		- 1 Enquire
17 164540
GEAR SELECTOR 		- 1 Enquire
18 159389
GASKET 		- 1 Enquire
19 159357
Screw 		- 4 Enquire
20 154744
ROD 		- 1 Enquire
21 231338
SPRING 		- 1 Enquire
22 103319
SPRING RETAINING DISC 		- 1 Enquire
23 103326
SEEGER RING 		- 1 Enquire
24 147985
NUT 		- 4 Enquire
25 107409
WASHER 		- 4 Enquire
26 145773
GASKET 		- 2 Enquire
27 149907
BUSHING 		- 2 Enquire
28 159427
BUSH WITH JOINT 		- 1 Enquire
29 139555
SILENTBLOCK 		- 1 Enquire
30 15212724
SCREW 		- 2 Enquire
31 14059290
FLANGED NUT M6 		- 2 Enquire
32 10519424
WASHER 		- 2 Enquire
33 107830
Screw -Valid till car 		- 1 Enquire
34 101309
NUT 		- 1 Enquire
35 164392
FRONT CONTROL BAR FOR GEARBOX 		- 1 Enquire
36 103321
Adjusting tie rod 		- 1 Enquire
37 10791224
NUT 		- 1 Enquire
38 10791924
Lock nut L.H. thread 		- 1 Enquire
39 159448
BUSH WITH JOINT 		- 1 Enquire
40 115980A
SWITCH 		- 1 Enquire
41 84653800
WASHER 		- 1 Enquire
42 164387
FRONT PART REAR CONTROL BAR FOR GEARBOX
BAR FOR GEARBOX 		- 1 Enquire
43 163526
REAR PART REAR CONTROL BAR FOR GEARBOX 		- 1 Enquire
44 163525
BAR BUFFER
Not for 355 355 F1 cars 		- 2 Enquire
45 107980
SHIM 		- 4 Enquire
46 139555
SILENTBLOCK 		- 1 Enquire
47 107830
Screw -Valid till car 		- 1 Enquire
48 101309
NUT 		- 1 Enquire
49 164386
PIN WITH FLANGE 		- 1 Enquire
50 14054511
NUT 		- 8 Enquire
51 12601374
WASHER 		- 8 Enquire
52 163986
GASKET 		- 1 Enquire
53 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER 		- 3 Enquire
54 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 3 Enquire
55 10730114
WASHER 		- 3 Enquire
56 169527
TRASMISSION CONTROL DASHBOARD
Valid for 355 F1 cars / Not for GB 		- 1 Enquire
