CLUTCH RELEASE CONTROL AND PEDAL SUPPORT -Not for Gd- of Ferrari Ferrari 355 (5.2 Motronic)

View All

Ferrari 355 (5.2 Motronic) - CLUTCH RELEASE CONTROL AND PEDAL SUPPORT -Not for Gd-

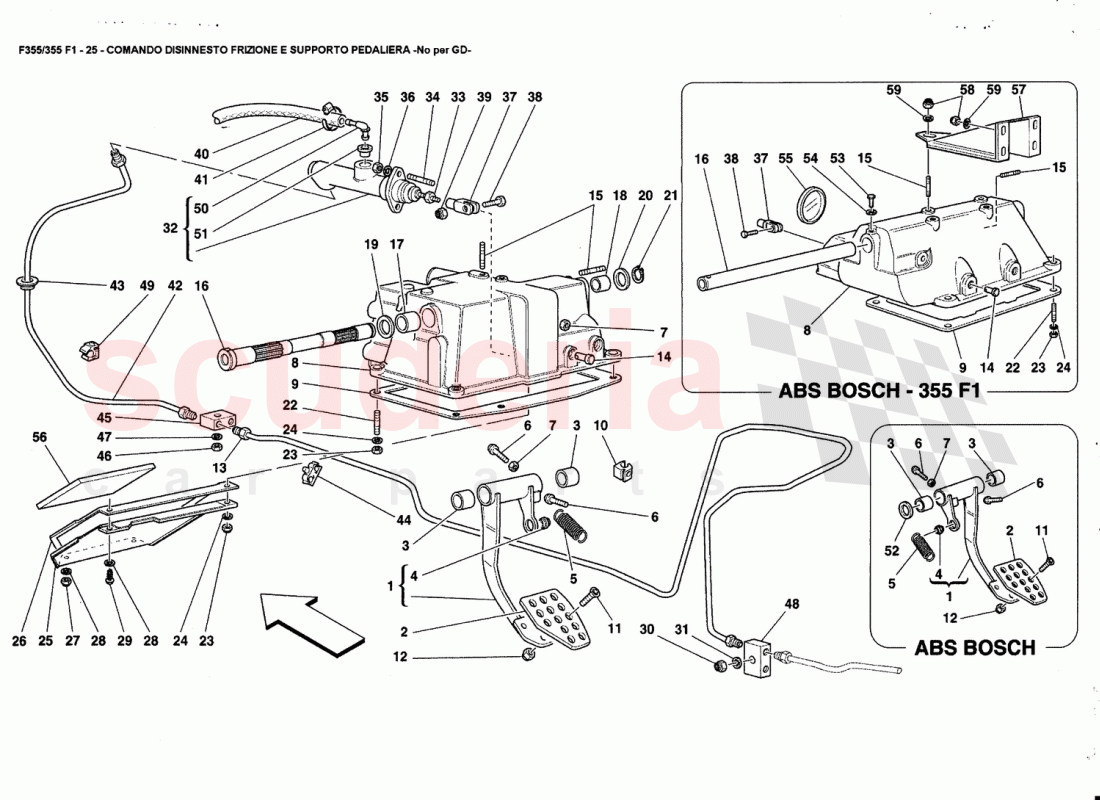

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	157268	CLUTCH PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162536	CLUTCH PEDAL DRILLED PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103163	SELF-LUBRICATING BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109407	BALL-JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101305	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187014	PEDAL ADJUSTER SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147690	COMPLETE PEDAL SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	129615	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141521	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145034	CLUTCH CONTROL INTERMEDIATE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	129612	SPRING ANCHOR PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500224	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	129613	PEDALS SUPPORT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101314	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	112153	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	112125	SPACER WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	112127	DITTO THICKNESS mm. 0.9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11066676	FLEXIBLE RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13516824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14499421	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62877200	PEDAL SUPPORT PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62694400	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646604	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15925601	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175211	Clutch master cylinder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13516824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10248271	FORK FOR CLUTCH LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043634	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151845	PIPE FROM CLUTCH PUMP TO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157934	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162892	PIPE FROM PUMP TO UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	105369	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141522	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139375	2-WAY UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139375	2-WAY UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141521	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184497	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175189	SEAT RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	106083	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163651	FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169045	RUBBER THICKNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65265300	REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498801	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	112130	DITTO THICKNESS mm. 1.2	112130 DITTO THICKNESS mm. 1.2	-	1	Enquire
-	112131	DITTO THICKNESS mm. 1.3	112131 DITTO THICKNESS mm. 1.3 Not for 355F1 cars	-	1	Enquire
-	184497	CONNECTOR	184497 CONNECTOR Valid for pump 175211	-	1	Enquire
-	175189	SEAT RING	175189 SEAT RING	-	1	Enquire
-	173974	PIPE FROM CLUTCH PUMP TO TANK	173974 PIPE FROM CLUTCH PUMP TO TANK	-	1	Enquire
-	170627	FORK	170627 FORK	-	1	Enquire
-	16043434	HEX HEAD SCREW M8 X 20	16043434 HEX HEAD SCREW M8 X 20	-	1	Enquire
-	175211	Clutch master cylinder	175211 Clutch master cylinder Substitutes 123416	-	1	Enquire
-	112130	DITTO THICKNESS mm. 1.2	112130 DITTO THICKNESS mm. 1.2 Notfor ABS BOSCH and 355 F1 cars	-	1	Enquire
-	112131	DITTO THICKNESS mm. 1.3	112131 DITTO THICKNESS mm. 1.3	-	1	Enquire
-	112128	DITTO THICKNESS mm. 1.0	112128 DITTO THICKNESS mm. 1.0	-	1	Enquire
-	112129	DITTO THICKNESS mm. 1.1	112129 DITTO THICKNESS mm. 1.1	-	1	Enquire
-	143377	PEDALS SUPPORT PIN	143377 PEDALS SUPPORT PIN	-	1	Enquire
-	170578	CLUTCH CONTROL INTERMEDIATE PIPE	170578 CLUTCH CONTROL INTERMEDIATE PIPE	-	1	Enquire
-	170622	PEDAL SUPPORT	170622 PEDAL SUPPORT	-	1	Enquire
-	147690	COMPLETE PEDAL SUPPORT	147690 COMPLETE PEDAL SUPPORT	-	1	Enquire
-	176009	COMPLETE PEDAL SUPPORT	176009 COMPLETE PEDAL SUPPORT Valid for ABS BOSCH and 355 F1 cars	-	1	Enquire
-	170624	CLUTCH PEDAL	170624 CLUTCH PEDAL Valid for ABS BOSCH cars / Not for 355 F1 cars	-	1	Enquire
1	157268	CLUTCH PEDAL	157268 CLUTCH PEDAL	-	1	Enquire
2	162536	CLUTCH PEDAL DRILLED PLATE	162536 CLUTCH PEDAL DRILLED PLATE	-	1	Enquire
3	103163	SELF-LUBRICATING BUSHING	103163 SELF-LUBRICATING BUSHING	-	2	Enquire
4	109407	BALL-JOINT	109407 BALL-JOINT	-	1	Enquire
5	101305	SPRING	101305 SPRING	-	1	Enquire
6	187014	PEDAL ADJUSTER SCREW	187014 PEDAL ADJUSTER SCREW	-	2	Enquire
7	16102314	NUT	16102314 NUT	-	2	Enquire
8	147690	COMPLETE PEDAL SUPPORT	147690 COMPLETE PEDAL SUPPORT Not as spare part / With the complete pedal support	-	1	Enquire
9	129615	GASKET	129615 GASKET	-	1	Enquire
10	141521	CLIP	141521 CLIP	-	2	Enquire
11	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20	-	2	Enquire
12	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
13	145034	CLUTCH CONTROL INTERMEDIATE PIPE	145034 CLUTCH CONTROL INTERMEDIATE PIPE PIPE / Not for ABS BOSCH and 355 F1 cars	-	1	Enquire
14	129612	SPRING ANCHOR PIN	129612 SPRING ANCHOR PIN	-	1	Enquire
15	11500224	STUD BOLT	11500224 STUD BOLT	-	7	Enquire
16	129613	PEDALS SUPPORT PIN	129613 PEDALS SUPPORT PIN	-	1	Enquire
17	101314	BUSHING	101314 BUSHING	-	1	Enquire
18	112153	BUSHING	112153 BUSHING	-	1	Enquire
19	112125	SPACER WASHER	112125 SPACER WASHER	-	1	Enquire
20	112127	DITTO THICKNESS mm. 0.9	112127 DITTO THICKNESS mm. 0.9 Possible fitting	-	1	Enquire
21	11066676	FLEXIBLE RING	11066676 FLEXIBLE RING	-	1	Enquire
22	13516824	STUD BOLT	13516824 STUD BOLT	-	4	Enquire
23	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	4	Enquire
24	14499421	WASHER	14499421 WASHER	-	4	Enquire
25	62877200	PEDAL SUPPORT PROTECTION	62877200 PEDAL SUPPORT PROTECTION	-	1	Enquire
26	62694400	GASKET	62694400 GASKET	-	1	Enquire
27	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
28	12646604	WASHER	12646604 WASHER	-	3	Enquire
29	15925601	SCREW	15925601 SCREW	-	1	Enquire
30	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
31	12639724	WASHER	12639724 WASHER	-	1	Enquire
32	175211	Clutch master cylinder	175211 Clutch master cylinder Not as spare part for F355 replaced / by 175211	-	1	Enquire
33	16102314	NUT	16102314 NUT	-	1	Enquire
34	13516824	STUD BOLT	13516824 STUD BOLT	-	2	Enquire
35	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	2	Enquire
36	12601374	WASHER	12601374 WASHER	-	2	Enquire
37	10248271	FORK FOR CLUTCH LEVER	10248271 FORK FOR CLUTCH LEVER	-	1	Enquire
38	16043634	SCREW	16043634 SCREW	-	1	Enquire
39	147985	NUT	147985 NUT	-	1	Enquire
40	151845	PIPE FROM CLUTCH PUMP TO	151845 PIPE FROM CLUTCH PUMP TO TANK /	-	1	Enquire
41	157934	SCREW COLLAR	157934 SCREW COLLAR	-	1	Enquire
42	162892	PIPE FROM PUMP TO UNION	162892 PIPE FROM PUMP TO UNION PIPE FROM PUMP TO UNION	-	1	Enquire
43	105369	CABLE GROMMET	105369 CABLE GROMMET	-	1	Enquire
44	141522	CLIP	141522 CLIP	-	7	Enquire
45	139375	2-WAY UNION	139375 2-WAY UNION	-	1	Enquire
46	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
47	12639724	WASHER	12639724 WASHER	-	1	Enquire
48	139375	2-WAY UNION	139375 2-WAY UNION	-	1	Enquire
49	141521	CLIP	141521 CLIP	-	1	Enquire
50	184497	CONNECTOR	184497 CONNECTOR Valid for pump 123416	-	1	Enquire
51	175189	SEAT RING	175189 SEAT RING	-	1	Enquire
52	106083	WASHER	106083 WASHER Notfor355 F1 cars	-	1	Enquire
53	10902224	SCREW	10902224 SCREW	-	1	Enquire
54	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	1	Enquire
55	163651	FLANGE	163651 FLANGE Valid for 355 F1 cars	-	1	Enquire
56	169045	RUBBER THICKNESS	169045 RUBBER THICKNESS	-	1	Enquire
57	65265300	REINFORCEMENT	65265300 REINFORCEMENT	-	1	Enquire
58	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	7	Enquire
59	14498801	WASHER	14498801 WASHER	-	7	Enquire
