Find Your Part

View All

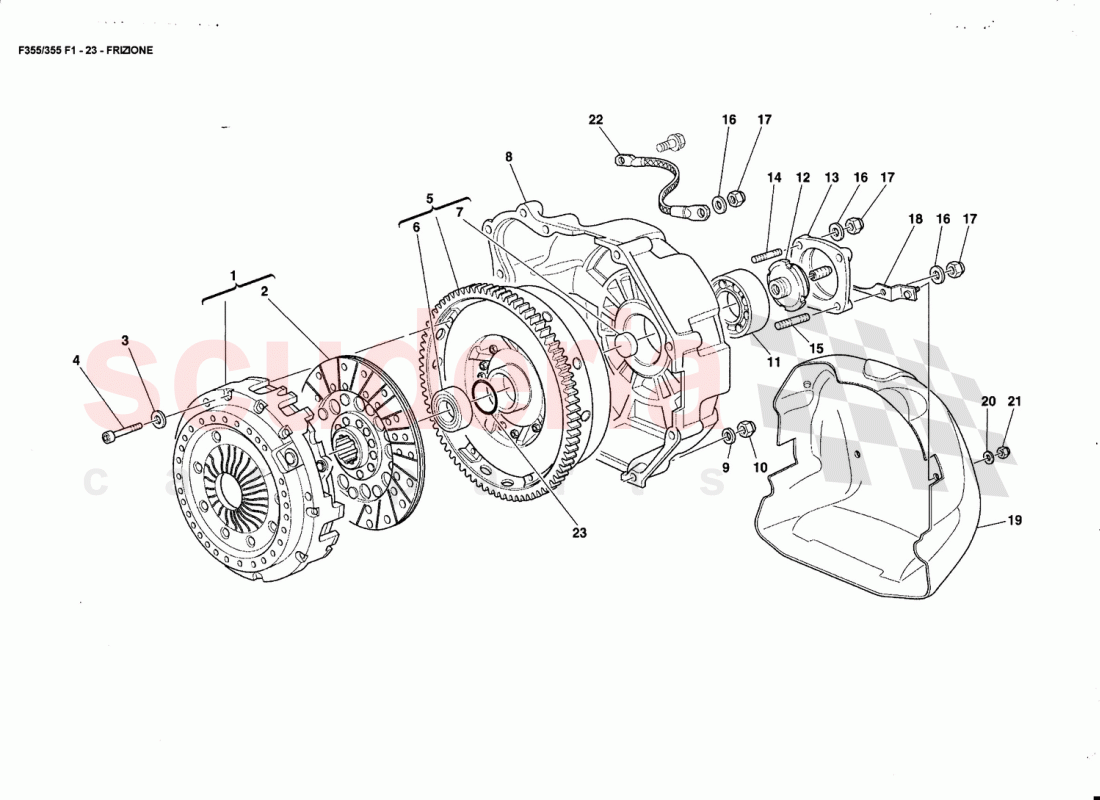

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	157754	Complete Clutch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157756	CLUTCH DISC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238108	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305974	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159507	FLYWHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	165539	SEALED BALL BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	165540	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157887	CLUTCH HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	136957	Double Ball Sealed Bearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168156	SPECIAL SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171408	REAR SMALL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12354524	Stud Securing Exhaust	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543424	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171574	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170694	INSULATING SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155073	CABLE FOR ENGINE-FRAME EARTH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104984	O-Ring	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	164050	COMPLETE CLUTCH HOUSING	164050 COMPLETE CLUTCH HOUSING	-	1	Enquire

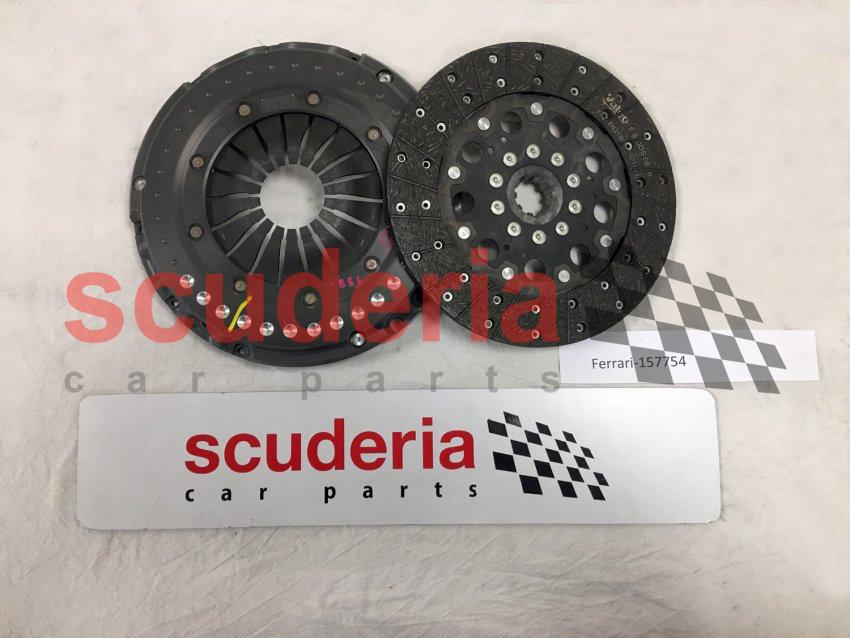

1	157754	Complete Clutch	157754 Complete Clutch	-	1	Enquire
2	157756	CLUTCH DISC	157756 CLUTCH DISC	-	1	Enquire
3	238108	WASHER	238108 WASHER	-	9	Enquire
4	14305974	SCREW	14305974 SCREW	-	9	Enquire
5	159507	FLYWHEEL	159507 FLYWHEEL	-	1	Enquire
6	165539	SEALED BALL BEARING	165539 SEALED BALL BEARING	-	1	Enquire
7	165540	SPACER	165540 SPACER	-	1	Enquire
8	157887	CLUTCH HOUSING	157887 CLUTCH HOUSING Not as spare part / With the complete clutch housing	-	1	Enquire
9	12601374	WASHER	12601374 WASHER	-	8	Enquire
10	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	8	Enquire

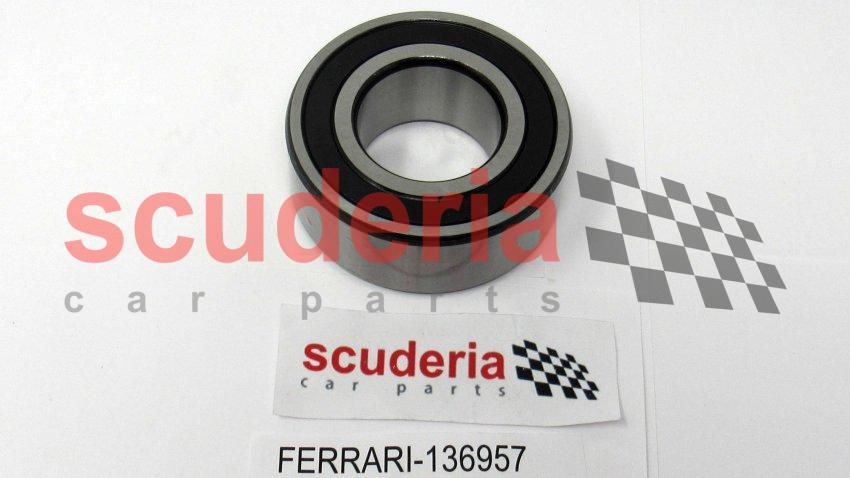

11	136957	Double Ball Sealed Bearing	136957 Double Ball Sealed Bearing	-	1	Enquire
12	168156	SPECIAL SCREW	168156 SPECIAL SCREW	-	1	Enquire
13	171408	REAR SMALL COVER	171408 REAR SMALL COVER	-	1	Enquire
14	12354524	Stud Securing Exhaust	12354524 Stud Securing Exhaust	-	2	Enquire
15	13543424	STUD BOLT	13543424 STUD BOLT	-	2	Enquire
16	12601374	WASHER	12601374 WASHER	-	4	Enquire
17	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	4	Enquire
18	171574	BRACKET	171574 BRACKET	-	1	Enquire
19	170694	INSULATING SHIELD	170694 INSULATING SHIELD	-	1	Enquire
20	860172	WASHER	860172 WASHER	-	2	Enquire
21	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
22	155073	CABLE FOR ENGINE-FRAME EARTH	155073 CABLE FOR ENGINE-FRAME EARTH	-	1	Enquire
23	104984	O-Ring	104984 O-Ring	-	1	Enquire
