AIR BOXES of Ferrari Ferrari 355 (5.2 Motronic)

View All

Ferrari 355 (5.2 Motronic) - AIR BOXES

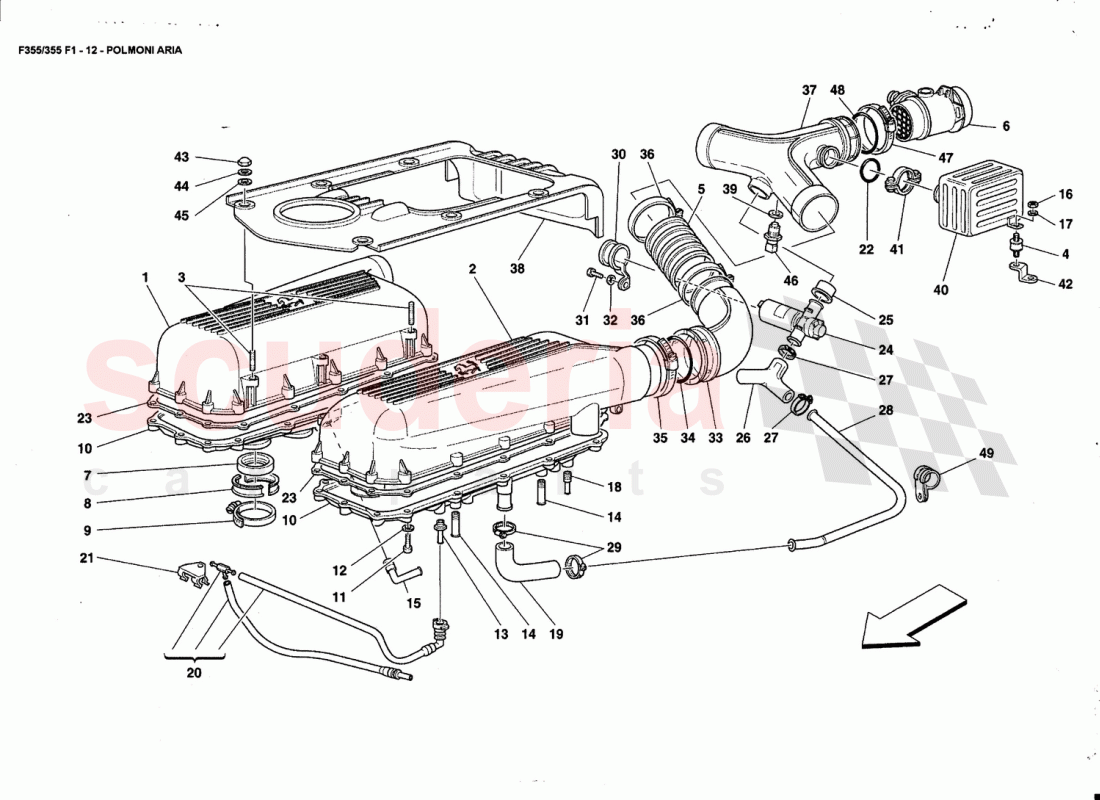

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	168709	RH AIR FEEDING PLENUM CHAMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170019	COMPLETE LH AIR FEEDING PLENUM CHAMBER AND COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500724	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113021	Plug	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170917	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162397	AIR FLOW METER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145643	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169452	SEMI-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145645	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	167356	LOWER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	160846	THREADED UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	129808	THREADED UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153926	THREADED UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170444	THREADED UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164279	PIPE FROM REGULATOR TO PLENUM CHAMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166494	COMPLETE ANTI-EVAPORATION PIPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	128292	CLIP -For GD q.ty 2-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	862084	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153381	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162406	REGULATOR FOR IDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164337	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164278	T SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13000490	Screw Collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164299	R.H. AIR DELIVERY TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13000490	Screw Collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164284	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168684	R.H. AIR DELIVERY SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149666	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171001	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13001090	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164225	AIR DELIVERY Y TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159517	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10296160	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168783	DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168902	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168911	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100044	Selflocking nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113113	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162419	AIR TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171000	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126596	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441790	BRACKET WITH SHEATH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	179203	FLEXIBLE CLIP	179203 FLEXIBLE CLIP	-	1	Enquire
-	170018	COMPLETE RH AIR FEEDING PLENUM CHAMBER AND COVER	170018 COMPLETE RH AIR FEEDING PLENUM CHAMBER AND COVER	-	1	Enquire
-	168685	L.H. AIR DELIVERY SLEEVE	168685 L.H. AIR DELIVERY SLEEVE	-	1	Enquire
-	164300	LH. AIR DELIVERY TUBE	164300 LH. AIR DELIVERY TUBE	-	1	Enquire
-	165414	LH AIR FEEDING PLENUM CHAMBER	165414 LH AIR FEEDING PLENUM CHAMBER With compl. air chamber 167479	-	1	Enquire
-	170019	COMPLETE LH AIR FEEDING PLENUM CHAMBER AND COVER	170019 COMPLETE LH AIR FEEDING PLENUM CHAMBER AND COVER	-	1	Enquire
-	167479	COMPLETE LH AIR FEEDING PLENUM CHAMBER AND COVER	167479 COMPLETE LH AIR FEEDING PLENUM CHAMBER AND COVER	-	1	Enquire
-	165415	RH AIR FEEDING PLENUM CHAMBER	165415 RH AIR FEEDING PLENUM CHAMBER With compl. air chamber 167478	-	1	Enquire
-	170018	COMPLETE RH AIR FEEDING PLENUM CHAMBER AND COVER	170018 COMPLETE RH AIR FEEDING PLENUM CHAMBER AND COVER CHAMBER AND COVER / Not for USA, CDN, SA, ZA, AUS and J	-	1	Enquire
-	167478	COMPLETE RH AIR FEEDING PLENUM CHAMBER AND COVER	167478 COMPLETE RH AIR FEEDING PLENUM CHAMBER AND COVER Valid for USA, CDN, SA, ZA, AUS and J	-	1	Enquire
1	168709	RH AIR FEEDING PLENUM CHAMBER	168709 RH AIR FEEDING PLENUM CHAMBER CHAMBER / Not as spare part / With compl. air chamber 170018	-	1	Enquire
2	170019	COMPLETE LH AIR FEEDING PLENUM CHAMBER AND COVER	170019 COMPLETE LH AIR FEEDING PLENUM CHAMBER AND COVER With compl. air chamber 170019 /	-	1	Enquire
3	11500724	STUD BOLT	11500724 STUD BOLT	-	6	Enquire
4	113021	Plug	113021 Plug	-	1	Enquire
5	170917	SLEEVE	170917 SLEEVE	-	2	Enquire
6	162397	AIR FLOW METER	162397 AIR FLOW METER	-	2	Enquire
7	145643	GASKET	145643 GASKET	-	8	Enquire
8	169452	SEMI-RING	169452 SEMI-RING	-	16	Enquire
9	145645	CLAMP	145645 CLAMP	-	8	Enquire
10	167356	LOWER COVER	167356 LOWER COVER Not as spare part now / With compl. air chambers 170018, / 170019,167478 and 167479	-	2	Enquire
11	231620	SCREW	231620 SCREW	-	32	Enquire
12	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	32	Enquire
13	160846	THREADED UNION	160846 THREADED UNION	-	2	Enquire
14	129808	THREADED UNION	129808 THREADED UNION	-	2	Enquire
15	153926	THREADED UNION	153926 THREADED UNION	-	2	Enquire
16	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	1	Enquire
17	13577724	WASHER	13577724 WASHER	-	1	Enquire
18	170444	THREADED UNION	170444 THREADED UNION	-	2	Enquire
19	164279	PIPE FROM REGULATOR TO PLENUM CHAMBER	164279 PIPE FROM REGULATOR TO PLENUM CHAMBER PLENUM CHAMBER	-	2	Enquire
20	166494	COMPLETE ANTI-EVAPORATION PIPING	166494 COMPLETE ANTI-EVAPORATION PIPING PIPING	-	1	Enquire
21	128292	CLIP -For GD q.ty 2-	128292 CLIP -For GD q.ty 2-	-	1	Enquire
22	862084	GASKET	862084 GASKET	-	1	Enquire
23	153381	GASKET	153381 GASKET	-	2	Enquire
24	162406	REGULATOR FOR IDLE	162406 REGULATOR FOR IDLE	-	1	Enquire
25	164337	SLEEVE	164337 SLEEVE	-	1	Enquire
26	164278	T SLEEVE	164278 T SLEEVE	-	1	Enquire
27	13000490	Screw Collar	13000490 Screw Collar	-	3	Enquire
28	164299	R.H. AIR DELIVERY TUBE	164299 R.H. AIR DELIVERY TUBE	-	1	Enquire
29	13000490	Screw Collar	13000490 Screw Collar	-	4	Enquire
30	164284	BRACKET WITH SHEATH	164284 BRACKET WITH SHEATH	-	1	Enquire
31	16043224	SCREW	16043224 SCREW	-	1	Enquire
32	12601374	WASHER	12601374 WASHER	-	1	Enquire
33	168684	R.H. AIR DELIVERY SLEEVE	168684 R.H. AIR DELIVERY SLEEVE	-	1	Enquire
34	149666	O.R. GASKET	149666 O.R. GASKET	-	1	Enquire
35	171001	CLAMP	171001 CLAMP	-	2	Enquire

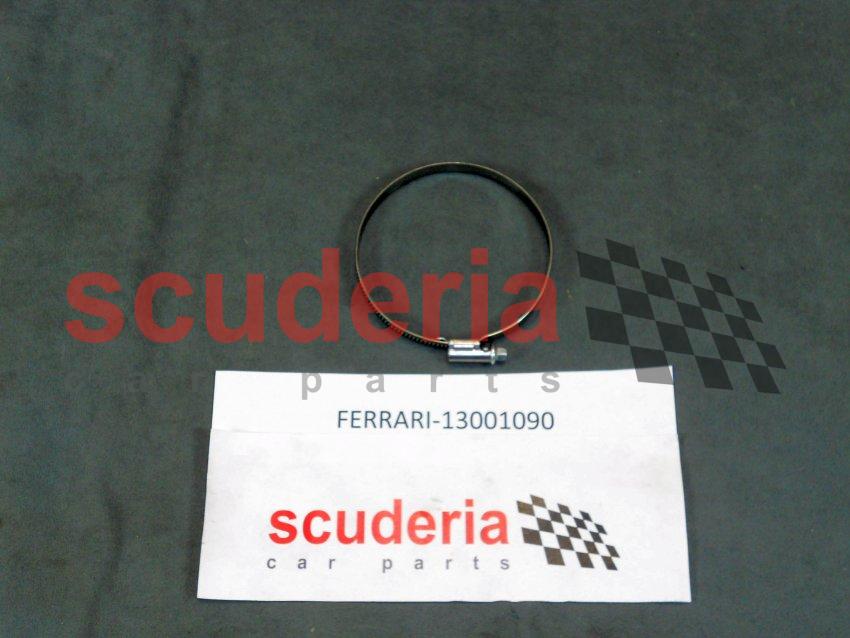

36	13001090	SCREW COLLAR	13001090 SCREW COLLAR	-	4	Enquire
37	164225	AIR DELIVERY Y TUBE	164225 AIR DELIVERY Y TUBE	-	1	Enquire
38	159517	SHIELD	159517 SHIELD	-	1	Enquire
39	10296160	GASKET	10296160 GASKET	-	1	Enquire
40	168783	DUCT	168783 DUCT	-	1	Enquire
41	168902	CLAMP	168902 CLAMP	-	1	Enquire
42	168911	BRACKET	168911 BRACKET	-	1	Enquire
43	100044	Selflocking nut	100044 Selflocking nut	-	2	Enquire
44	10519424	WASHER	10519424 WASHER	-	2	Enquire
45	113113	WASHER	113113 WASHER	-	2	Enquire
46	162419	AIR TEMPERATURE SENSOR	162419 AIR TEMPERATURE SENSOR	-	1	Enquire
47	171000	CLAMP	171000 CLAMP	-	1	Enquire
48	126596	O.R. GASKET	126596 O.R. GASKET	-	1	Enquire
49	10441790	BRACKET WITH SHEATH	10441790 BRACKET WITH SHEATH L.h. side	-	1	Enquire
