L.h. Cylinder Head

Ferrari 355 (5.2 Motronic)

Find Your Part

Ferrari 355 (5.2 Motronic) - L.H. CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
177962 COMPLETE L.H. CYLINDERS HEAD Enquire To Order
Photo Part No Description Price (each) Stock
11500224 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
14326101 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
282755 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
13543324 Stud -Valid for gearbox Enquire To Order
Photo Part No Description Price (each) Stock
13525270 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
13525470 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
13516924 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
151485 OIL EXHAUST DUCTING Enquire To Order
Photo Part No Description Price (each) Stock
138392 Exhaust Brass Locknut M8 x 1.25 Enquire To Order
Photo Part No Description Price (each) Stock
13541224 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
13541124 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
11500624 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
127635 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
13541424 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
141563 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
176157 LH Cam Cover Gasket Enquire To Order
Photo Part No Description Price (each) Stock
177962 COMPLETE L.H. CYLINDERS HEAD Enquire To Order
Photo Part No Description Price (each) Stock
149554 O-Ring Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
158349 O-Ring Enquire To Order
Photo Part No Description Price (each) Stock
158330 FRONT SMALL COVER Enquire To Order
Photo Part No Description Price (each) Stock
163987 Camshaft Oil Seal Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
11500524 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
148023 CAMSHAFT END PLATE Enquire To Order
Photo Part No Description Price (each) Stock
117275 Oil Sealing Ring Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
100044 Selflocking nut Enquire To Order
Photo Part No Description Price (each) Stock
154525 THREADED UNION Enquire To Order
Photo Part No Description Price (each) Stock
13525170 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
163620 LH GASKET Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
163608 COVER Enquire To Order
Photo Part No Description Price (each) Stock
160784 Screw Enquire To Order
Photo Part No Description Price (each) Stock
13525470 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
160732 REAR SMALL COVER Enquire To Order
Photo Part No Description Price (each) Stock
140787 Gasket Phase Sensor Housing Enquire To Order
Photo Part No Description Price (each) Stock
13541624 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
11501224 STUD Enquire To Order
Photo Part No Description Price (each) Stock
163582 COVERS FIXING PIN Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire To Order
Photo Part No Description Price (each) Stock
163861 Cable Grommet Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
147278 O-Ring Enquire To Order
Photo Part No Description Price (each) Stock
14304124 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12604178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
170636 VACUUM PUMP SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
174941 VACUUM PUMP CONTROL COUPLING Enquire To Order
Photo Part No Description Price (each) Stock
174509 O.R. GASKET Enquire To Order
Photo Part No Description Price (each) Stock
170687 VACUUM PUMP Enquire To Order
Photo Part No Description Price (each) Stock
10902224 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
10441390 P clip Bracket With Sheath D.12 Enquire To Order
Photo Part No Description Price (each) Stock
174523 PIPE FOR BRAKE BOOSTER VACUUM PUMP Enquire To Order
View All

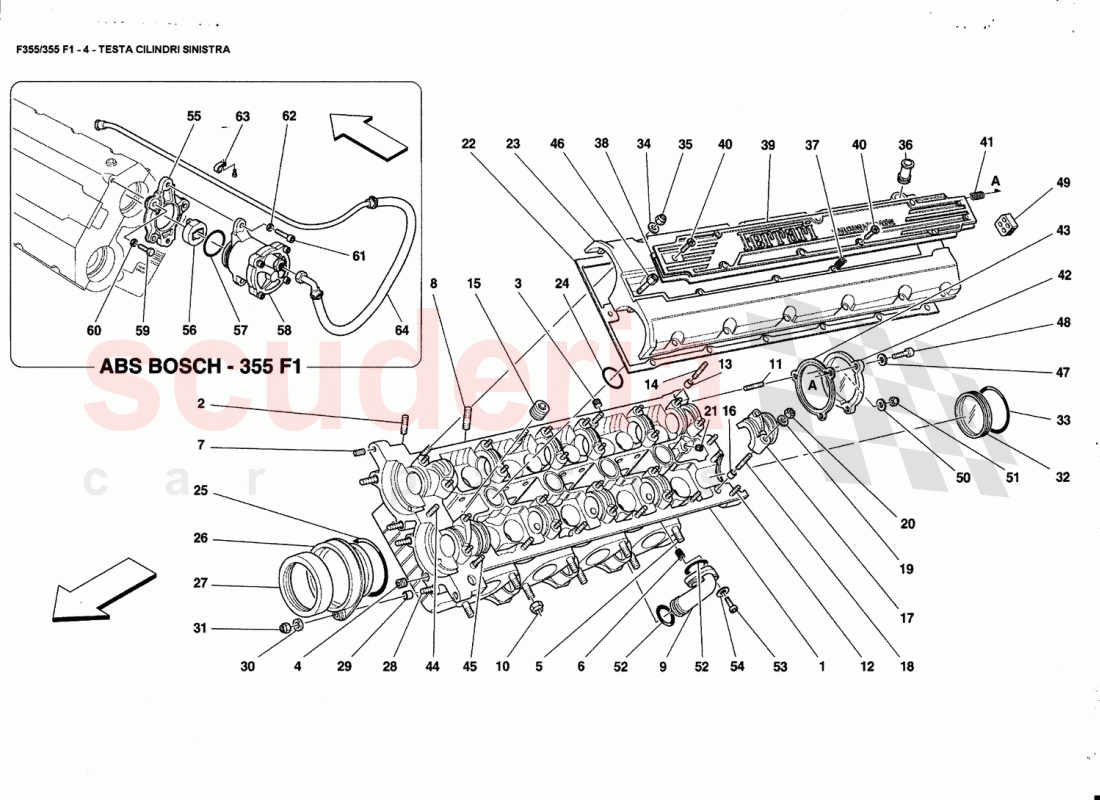

L.H. CYLINDER HEAD of Ferrari Ferrari 355 (5.2 Motronic) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 177962
COMPLETE L.H. CYLINDERS HEAD 		- 1 Enquire
- 172479
L.H. HEAD
With the complete cylinders head 177962 		- 1 Enquire
- 177962
COMPLETE L.H. CYLINDERS HEAD
Not for ABS BOSCH and 355 F1 cars / Valid till stock exhaustion 		- 1 Enquire
1 177962
COMPLETE L.H. CYLINDERS HEAD
Not as spare part / With the complete cylinders head 166456 		- 1 Enquire
2 11500224
STUD BOLT 		- 8 Enquire
3 14326101
THREADED PLUG 		- 2 Enquire
4 282755
THREADED PLUG 		- 4 Enquire
5 13543324
Stud -Valid for gearbox 		- 8 Enquire
6 13525270
THREADED INSERT 		- 6 Enquire
7 13525470
THREADED INSERT 		- 2 Enquire
8 13516924
STUD BOLT 		- 8 Enquire
9 151485
OIL EXHAUST DUCTING 		- 3 Enquire
10 138392
Exhaust Brass Locknut M8 x 1.25 		- 8 Enquire
11 13541224
STUD BOLT 		- 2 Enquire
12 13541124
STUD BOLT 		- 8 Enquire
13 102725
CENTERING DOWEL 		- 2 Enquire
14 11500624
STUD BOLT 		- 1 Enquire
15 127635
THREADED PLUG 		- 5 Enquire
16 102725
CENTERING DOWEL 		- 22 Enquire
18 13541424
STUD BOLT 		- 22 Enquire
19 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 22 Enquire
20 14059290
FLANGED NUT M6 		- 22 Enquire
21 141563
THREADED PLUG 		- 2 Enquire
22 176157
LH Cam Cover Gasket 		- 1 Enquire
23 177962
COMPLETE L.H. CYLINDERS HEAD 		- 1 Enquire
24 149554
O-Ring
ARRIVING SOON 		- 4 Enquire
25 158349
O-Ring 		- 2 Enquire
26 158330
FRONT SMALL COVER 		- 2 Enquire
27 163987
Camshaft Oil Seal
ARRIVING SOON 		- 2 Enquire
28 11500524
STUD BOLT 		- 4 Enquire
29 102725
CENTERING DOWEL 		- 4 Enquire
30 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 4 Enquire
31 14059290
FLANGED NUT M6 		- 4 Enquire
32 148023
CAMSHAFT END PLATE 		- 1 Enquire
33 117275
Oil Sealing Ring 		- 1 Enquire
34 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 11 Enquire
35 100044
Selflocking nut 		- 11 Enquire
36 154525
THREADED UNION 		- 1 Enquire
37 13525170
THREADED INSERT 		- 9 Enquire
38 163620
LH GASKET
ARRIVING SOON 		- 1 Enquire
39 163608
COVER 		- 1 Enquire
40 160784
Screw 		- 10 Enquire
41 13525470
THREADED INSERT 		- 1 Enquire
42 160732
REAR SMALL COVER 		- 1 Enquire
43 140787
Gasket Phase Sensor Housing 		- 1 Enquire
44 13541624
STUD BOLT 		- 1 Enquire
45 11501224
STUD 		- 1 Enquire
46 163582
COVERS FIXING PIN 		- 1 Enquire
47 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 1 Enquire
48 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER 		- 1 Enquire
49 163861
Cable Grommet 		- 1 Enquire
50 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 2 Enquire
51 14059290
FLANGED NUT M6 		- 2 Enquire
52 147278
O-Ring 		- 6 Enquire
53 14304124
SCREW 		- 6 Enquire
54 12604178
Washer 		- 6 Enquire
55 170636
VACUUM PUMP SUPPORT 		- 1 Enquire
56 174941
VACUUM PUMP CONTROL COUPLING 		- 1 Enquire
57 174509
O.R. GASKET 		- 1 Enquire
58 170687
VACUUM PUMP 		- 1 Enquire
59 10902224
SCREW 		- 1 Enquire
60 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 1 Enquire
61 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER 		- 2 Enquire
62 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 2 Enquire
63 10441390
P clip Bracket With Sheath D.12 		- 2 Enquire
64 174523
PIPE FOR BRAKE BOOSTER VACUUM PUMP
VACUUM PUMP 		- 1 Enquire
