Ferrari 355 (5.2 Motronic) - R.H. CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
177960 COMPLETE R.H. CYLINDERS HEAD Enquire To Order
Photo Part No Description Price (each) Stock
11500224 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
14326101 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
282755 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
13543324 Stud -Valid for gearbox Enquire To Order
Photo Part No Description Price (each) Stock
13525270 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
13525470 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
13516924 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
13541324 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
13541424 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
13541124 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
11500624 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
127635 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
13541424 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
141563 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
176156 RH Cam Cover Gasket Enquire To Order
Photo Part No Description Price (each) Stock
177960 COMPLETE R.H. CYLINDERS HEAD Enquire To Order
Photo Part No Description Price (each) Stock
149554 O-Ring Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
158349 O-Ring Enquire To Order
Photo Part No Description Price (each) Stock
158330 FRONT SMALL COVER Enquire To Order
Photo Part No Description Price (each) Stock
163987 Camshaft Oil Seal Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
11500524 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
148023 CAMSHAFT END PLATE Enquire To Order
Photo Part No Description Price (each) Stock
117275 Oil Sealing Ring Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
100044 Selflocking nut Enquire To Order
Photo Part No Description Price (each) Stock
154525 THREADED UNION Enquire To Order
Photo Part No Description Price (each) Stock
13525170 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
163621 RH GASKET Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
163607 COVER Enquire To Order
Photo Part No Description Price (each) Stock
160784 Screw Enquire To Order
Photo Part No Description Price (each) Stock
13525470 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
140787 Gasket Phase Sensor Housing Enquire To Order
Photo Part No Description Price (each) Stock
151275 R.H. PHASE SENSOR SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
163582 COVERS FIXING PIN Enquire To Order
Photo Part No Description Price (each) Stock
151485 OIL EXHAUST DUCTING Enquire To Order
Photo Part No Description Price (each) Stock
147278 O-Ring Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
14305521 ALLEN SCREW SOCKET HEAD M6 X 30 Enquire To Order
Photo Part No Description Price (each) Stock
163861 Cable Grommet Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
14304124 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12604178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
138392 Exhaust Brass Locknut M8 x 1.25 Enquire To Order
View All

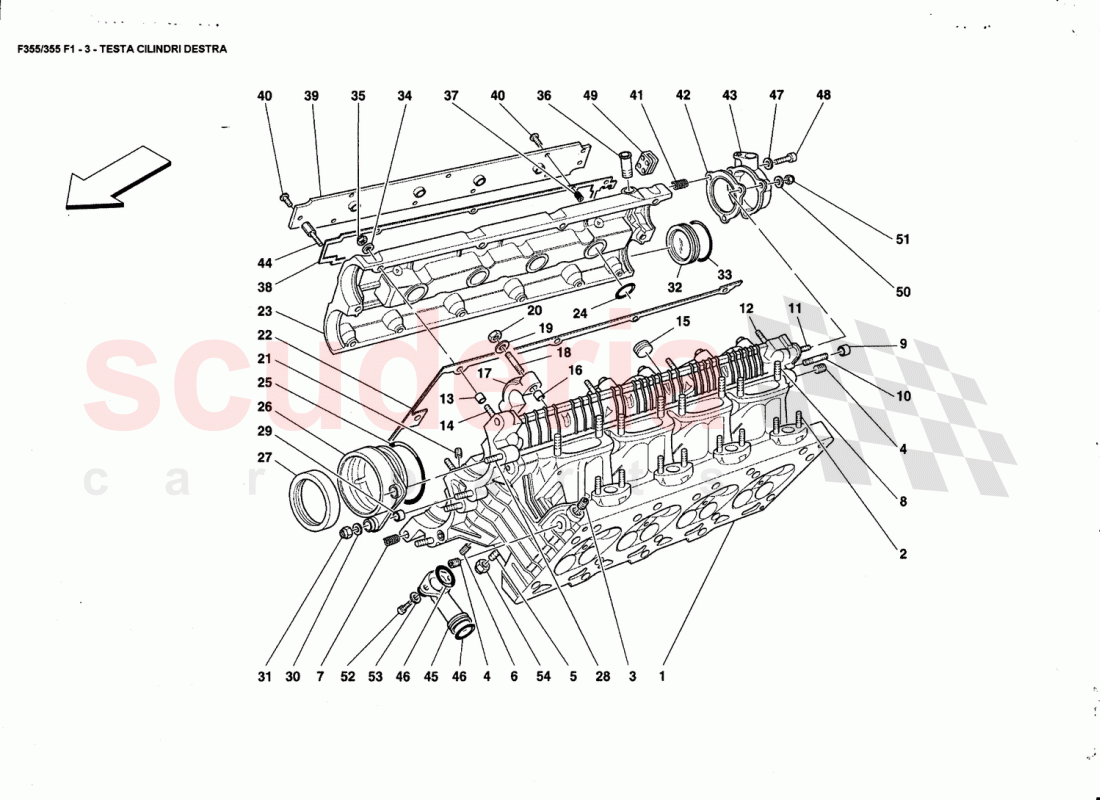

R.H. CYLINDER HEAD of Ferrari Ferrari 355 (5.2 Motronic) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 177960
COMPLETE R.H. CYLINDERS HEAD 		- 1 Enquire
- 163987
Camshaft Oil Seal
Valid after stock exhaustion of 136526
ARRIVING SOON 		- 2 Enquire
- 172480
R.H. HEAD
With the complete cylinders head 177960 		- 1 Enquire
- 177960
COMPLETE R.H. CYLINDERS HEAD
Not for ABS BOSCH and 355 F1 cars / Valid till stock exhaustion 		- 1 Enquire
1 177960
COMPLETE R.H. CYLINDERS HEAD
Not as spare part / With the complete cylinders head 166452 		- 1 Enquire
2 11500224
STUD BOLT 		- 8 Enquire
3 14326101
THREADED PLUG 		- 2 Enquire
4 282755
THREADED PLUG 		- 4 Enquire
5 13543324
Stud -Valid for gearbox 		- 8 Enquire
6 13525270
THREADED INSERT 		- 6 Enquire
7 13525470
THREADED INSERT 		- 2 Enquire
8 13516924
STUD BOLT 		- 8 Enquire
9 102725
CENTERING DOWEL 		- 2 Enquire
10 13541324
STUD BOLT 		- 1 Enquire
11 13541424
STUD BOLT 		- 1 Enquire
12 13541124
STUD BOLT 		- 9 Enquire
13 102725
CENTERING DOWEL 		- 2 Enquire
14 11500624
STUD BOLT 		- 2 Enquire
15 127635
THREADED PLUG 		- 5 Enquire
16 102725
CENTERING DOWEL 		- 22 Enquire
18 13541424
STUD BOLT 		- 22 Enquire
19 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 22 Enquire
20 14059290
FLANGED NUT M6 		- 22 Enquire
21 141563
THREADED PLUG 		- 2 Enquire
22 176156
RH Cam Cover Gasket 		- 1 Enquire
23 177960
COMPLETE R.H. CYLINDERS HEAD 		- 1 Enquire
24 149554
O-Ring
ARRIVING SOON 		- 4 Enquire
25 158349
O-Ring 		- 2 Enquire
26 158330
FRONT SMALL COVER 		- 2 Enquire
27 163987
Camshaft Oil Seal
ARRIVING SOON 		- 2 Enquire
28 11500524
STUD BOLT 		- 4 Enquire
29 102725
CENTERING DOWEL 		- 4 Enquire
30 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 4 Enquire
31 14059290
FLANGED NUT M6 		- 4 Enquire
32 148023
CAMSHAFT END PLATE 		- 1 Enquire
33 117275
Oil Sealing Ring 		- 1 Enquire
34 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 11 Enquire
35 100044
Selflocking nut 		- 11 Enquire
36 154525
THREADED UNION 		- 1 Enquire
37 13525170
THREADED INSERT 		- 9 Enquire
38 163621
RH GASKET
ARRIVING SOON 		- 1 Enquire
39 163607
COVER 		- 1 Enquire
40 160784
Screw 		- 10 Enquire
41 13525470
THREADED INSERT 		- 1 Enquire
42 140787
Gasket Phase Sensor Housing 		- 1 Enquire
43 151275
R.H. PHASE SENSOR SUPPORT 		- 1 Enquire
44 163582
COVERS FIXING PIN 		- 1 Enquire
45 151485
OIL EXHAUST DUCTING 		- 3 Enquire
46 147278
O-Ring 		- 6 Enquire
47 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 1 Enquire
48 14305521
ALLEN SCREW SOCKET HEAD M6 X 30 		- 1 Enquire
49 163861
Cable Grommet 		- 1 Enquire
50 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 2 Enquire
51 14059290
FLANGED NUT M6 		- 2 Enquire
52 14304124
SCREW 		- 6 Enquire
53 12604178
Washer 		- 6 Enquire
54 138392
Exhaust Brass Locknut M8 x 1.25 		- 8 Enquire
