DOORS - FRAMEWORK AND REAR MIRROR of Ferrari Ferrari 355 (2.7 Motronic)

View All

Ferrari 355 (2.7 Motronic) - DOORS - FRAMEWORK AND REAR MIRROR

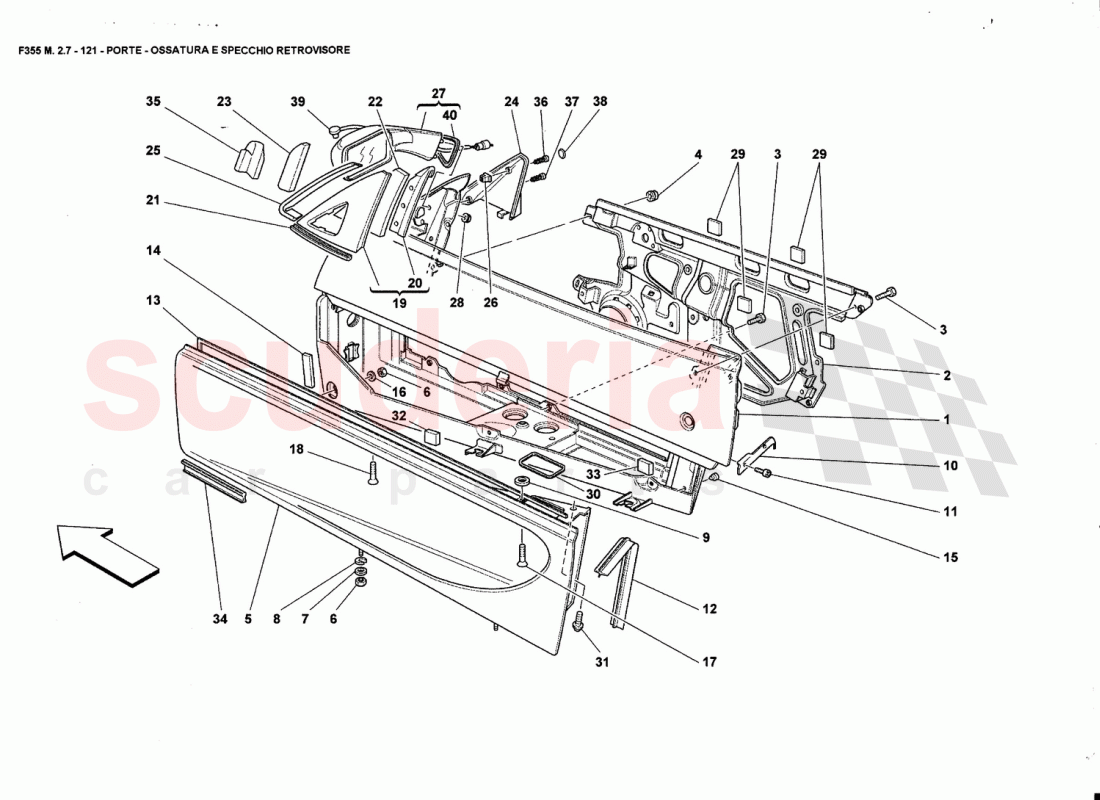

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	63538700	L.H. DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64548800	L.H. DOOR INNER FRAMEWORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13836324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64102810	L.H. DOOR AIR INTAKE GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64121900	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63398400	THICKNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64537700	L.H. REAR CARPET SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15913508	SCREW -Not for GTS-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64517300	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62152900	GRILL PROFILE GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64731900	ANTI-VIBRATIONS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64423400	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498801	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64487500	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64487400	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64507400	L.H. OUTER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64321700	LH OUTER PLATE GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63639200	L.H. LOWER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65209000	FRONT SILENCER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64484700	L.H. REAR SILENCER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65665200	L.H. INNER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64430700	LH MIRROR PLATE GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14115580	FIXING BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64488510	L.H. EXTERNAL REAR MIRROR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

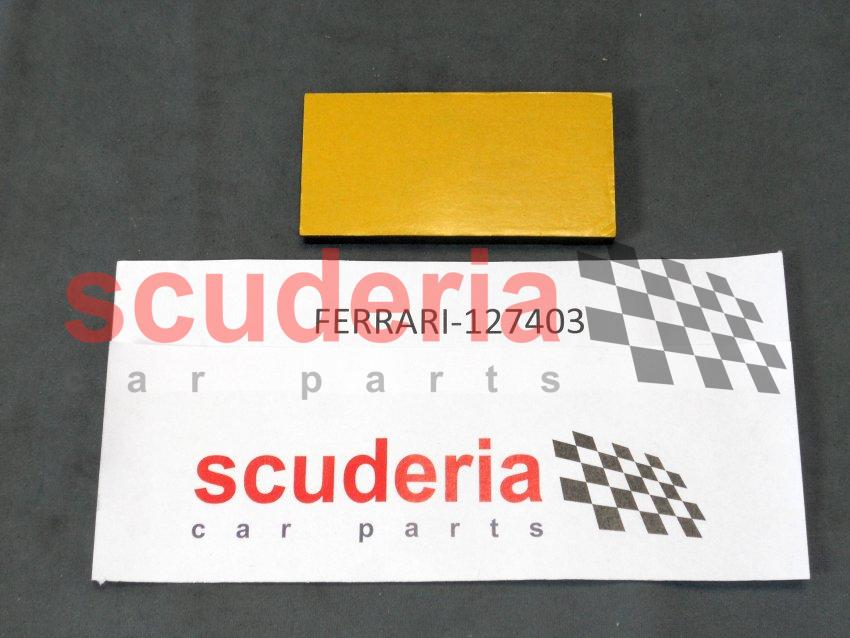

	127403	Rubber Thickness	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64108600	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62940900	Allen Head Screw M6 x 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64463300	FRONT THICKNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64463400	REAR THICKNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64435300	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64502900	L.H. DOOR GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15915877	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15915977	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64462500	BOOT FOR SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64783900	OUTER TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64298700	L.H. MIRROR GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	64298600	R.H. MIRROR GASKET	64298600 R.H. MIRROR GASKET	-	1	Enquire
-	64502800	R.H. DOOR GASKET	64502800 R.H. DOOR GASKET Not for GTS	-	1	Enquire
-	64488610	R.H. EXTERNAL REAR MIRROR	64488610 R.H. EXTERNAL REAR MIRROR Not for USA, CDN and GD	-	1	Enquire
-	64488710	R.H. EXTERNAL REAR MIRROR	64488710 R.H. EXTERNAL REAR MIRROR Valid for USA and CDN	-	1	Enquire
-	64460110	R.H. EXTERNAL REAR MIRROR	64460110 R.H. EXTERNAL REAR MIRROR Valid for GD	-	1	Enquire
-	64460210	L.H. EXTERNAL REAR MIRROR	64460210 L.H. EXTERNAL REAR MIRROR Valid for GB and ZA	-	1	Enquire
-	64621500	L.H. EXTERNAL REAR MIRROR	64621500 L.H. EXTERNAL REAR MIRROR Valid for AUS	-	1	Enquire
-	64332600	RH MIRROR PLATE GASKET	64332600 RH MIRROR PLATE GASKET GASKET / Valid for GTS	-	1	Enquire
-	64332800	L.H. INNER PLATE	64332800 L.H. INNER PLATE Valid for GTS	-	1	Enquire
-	65665300	R.H. INNER PLATE	65665300 R.H. INNER PLATE Not for GTS	-	1	Enquire
-	64332700	R.H. INNER PLATE	64332700 R.H. INNER PLATE Valid for GTS	-	1	Enquire
-	64430900	R.H. LOWER GASKET	64430900 R.H. LOWER GASKET Valid for GTS	-	1	Enquire
-	64484600	R.H. REAR SILENCER	64484600 R.H. REAR SILENCER	-	1	Enquire
-	64431000	L.H. LOWER GASKET	64431000 L.H. LOWER GASKET Valid for GTS	-	1	Enquire
-	63639100	R.H. LOWER GASKET	63639100 R.H. LOWER GASKET Not for GTS	-	1	Enquire
-	64693600	RH OUTER PLATE GASKET	64693600 RH OUTER PLATE GASKET GASKET / Valid for GTS / Replaces 64332000	-	1	Enquire
-	64693800	LH OUTER PLATE GASKET	64693800 LH OUTER PLATE GASKET GASKET / Valid for GTS / Replaces 64332500	-	1	Enquire
-	64321600	RH OUTER PLATE GASKET	64321600 RH OUTER PLATE GASKET GASKET / Not for GTS	-	1	Enquire
-	64931200	R.H. OUTER PLATE	64931200 R.H. OUTER PLATE Valid for GTS / Replaces 64331700	-	1	Enquire
-	64931400	L.H. OUTER PLATE	64931400 L.H. OUTER PLATE Valid for GTS / Replaces 64332200	-	1	Enquire
-	64507100	R.H. OUTER PLATE	64507100 R.H. OUTER PLATE Not for GTS	-	1	Enquire
-	64731900	ANTI-VIBRATIONS	64731900 ANTI-VIBRATIONS Valid after stock exhaustion of / 63345600	-	2	Enquire
-	64517300	GASKET	64517300 GASKET Valid after stock exhaustion of 63239400	-	2	Enquire
-	64537600	R.H. REAR CARPET SHIELD	64537600 R.H. REAR CARPET SHIELD	-	1	Enquire
-	64102710	R.H. DOOR AIR INTAKE GRILLE	64102710 R.H. DOOR AIR INTAKE GRILLE	-	1	Enquire
-	64548800	L.H. DOOR INNER FRAMEWORK	64548800 L.H. DOOR INNER FRAMEWORK Valid after stock exhaustion of / 63539100	-	1	Enquire
-	64548700	R.H. DOOR INNER FRAMEWORK	64548700 R.H. DOOR INNER FRAMEWORK	-	1	Enquire
-	64672500	R.H. DOOR	64672500 R.H. DOOR Valid for USA Spider, Spider CDN / and AUS Spider	-	1	Enquire
-	64672600	L.H. DOOR	64672600 L.H. DOOR Valid for USA Spider, Spider CDN / and AUS Spider	-	1	Enquire
-	63538600	R.H. DOOR	63538600 R.H. DOOR Not for USA, CDN, AUS and SA	-	1	Enquire
-	64477000	R.H. DOOR	64477000 R.H. DOOR Valid for USA, CDN, AUS and SA / Not for Spider	-	1	Enquire
-	64477100	L.H. DOOR	64477100 L.H. DOOR Valid for USA, CDN, AUS and SA / Not for Spider	-	1	Enquire
1	63538700	L.H. DOOR	63538700 L.H. DOOR Not for USA, CDN, AUS and SA	-	1	Enquire
2	64548800	L.H. DOOR INNER FRAMEWORK	64548800 L.H. DOOR INNER FRAMEWORK	-	1	Enquire
3	13836324	SCREW	13836324 SCREW	-	12	Enquire
4	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
5	64102810	L.H. DOOR AIR INTAKE GRILLE	64102810 L.H. DOOR AIR INTAKE GRILLE	-	1	Enquire
6	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	8	Enquire
7	12648925	WASHER	12648925 WASHER	-	4	Enquire
8	64121900	SPACER	64121900 SPACER	-	4	Enquire
9	63398400	THICKNESS	63398400 THICKNESS	-	2	Enquire
10	64537700	L.H. REAR CARPET SHIELD	64537700 L.H. REAR CARPET SHIELD	-	1	Enquire
11	15913508	SCREW -Not for GTS-	15913508 SCREW -Not for GTS-	-	4	Enquire
12	64517300	GASKET	64517300 GASKET	-	2	Enquire
13	62152900	GRILL PROFILE GASKET	62152900 GRILL PROFILE GASKET	-	2	Enquire
14	64731900	ANTI-VIBRATIONS	64731900 ANTI-VIBRATIONS	-	2	Enquire
15	64423400	PLUG	64423400 PLUG	-	2	Enquire
16	14498801	WASHER	14498801 WASHER	-	4	Enquire
17	64487500	SCREW	64487500 SCREW	-	2	Enquire
18	64487400	SCREW	64487400 SCREW	-	2	Enquire
19	64507400	L.H. OUTER PLATE	64507400 L.H. OUTER PLATE Not for GTS	-	1	Enquire
20	64321700	LH OUTER PLATE GASKET	64321700 LH OUTER PLATE GASKET GASKET / Not for GTS	-	1	Enquire
21	63639200	L.H. LOWER GASKET	63639200 L.H. LOWER GASKET Not for GTS	-	1	Enquire
22	65209000	FRONT SILENCER	65209000 FRONT SILENCER	-	2	Enquire
23	64484700	L.H. REAR SILENCER	64484700 L.H. REAR SILENCER	-	1	Enquire
24	65665200	L.H. INNER PLATE	65665200 L.H. INNER PLATE Not for GTS	-	1	Enquire
25	64430700	LH MIRROR PLATE GASKET	64430700 LH MIRROR PLATE GASKET GASKET / Valid for GTS	-	1	Enquire
26	14115580	FIXING BLOCK	14115580 FIXING BLOCK	-	4	Enquire
27	64488510	L.H. EXTERNAL REAR MIRROR	64488510 L.H. EXTERNAL REAR MIRROR Not for GB, ZA and AUS	-	1	Enquire
28	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	6	Enquire
29	127403	Rubber Thickness	127403 Rubber Thickness	-	4	Enquire
30	64108600	GASKET	64108600 GASKET	-	2	Enquire
31	62940900	Allen Head Screw M6 x 15	62940900 Allen Head Screw M6 x 15	-	2	Enquire
32	64463300	FRONT THICKNESS	64463300 FRONT THICKNESS	-	2	Enquire
33	64463400	REAR THICKNESS	64463400 REAR THICKNESS	-	2	Enquire
34	64435300	GASKET	64435300 GASKET	-	2	Enquire
35	64502900	L.H. DOOR GASKET	64502900 L.H. DOOR GASKET Not for GTS	-	1	Enquire
36	15915877	SCREW	15915877 SCREW	-	2	Enquire
37	15915977	SCREW	15915977 SCREW	-	2	Enquire
38	64462500	BOOT FOR SCREW	64462500 BOOT FOR SCREW	-	4	Enquire
39	64783900	OUTER TEMPERATURE SENSOR	64783900 OUTER TEMPERATURE SENSOR SENSOR	-	1	Enquire
40	64298700	L.H. MIRROR GASKET	64298700 L.H. MIRROR GASKET	-	1	Enquire
