TOP-Valid far Spider- of Ferrari Ferrari 355 (2.7 Motronic)

View All

Ferrari 355 (2.7 Motronic) - TOP-Valid far Spider-

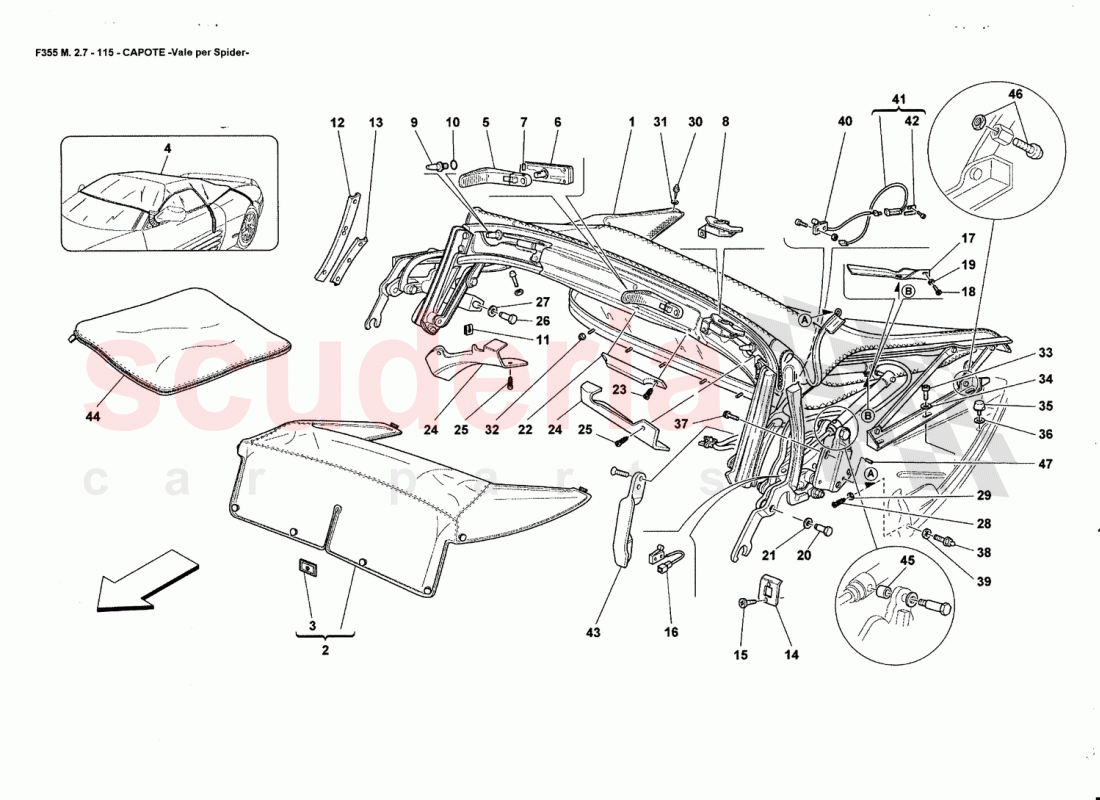

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	64528100	COMPLETE CAPOTE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65098900	TOP COVER COMPLETE OF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63239500	BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63685100	TONNEAU COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64793800	HANDLE FOR TOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63966100	COMPLETE CONTROL BLOCK BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63990900	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63614100	L.H. TOP CLOSING HOOK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64667100	CENTERING CONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123622	O-Ring	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	14189876	CLIP FOR SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63613200	R.H. FRONT RUBBER HOLDER PROFILE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63612700	R.H. REAR RUBBER HOLDER PROFILE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64626000	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15914770	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64416800	SENSOR ON PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64662100	R.H. PISTON COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13273872	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519278	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63639600	PIN mm. 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63639900	WASHER, THICKNESS mm. 1,3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64243400	TOP LIFTING HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60702800	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64781400	R.H. LATERAL MOLDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15690678	SCREW mm. 13	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63936600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12642078	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15902678	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61632100	SCREW TAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61195300	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14084111	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63936600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263276	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63238800	LOWER RUBBER PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62167200	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13838817	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63961100	SCREW TAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61195300	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64416900	SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64667000	EXTENSION FOR SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155751	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64830900	L.H. GUIDE SHOE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63690900	TOP COVER BAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64661900	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64665600	PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13798821	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	64763000	R.H. GUIDE SHOE	64763000 R.H. GUIDE SHOE Not for GD	-	1	Enquire

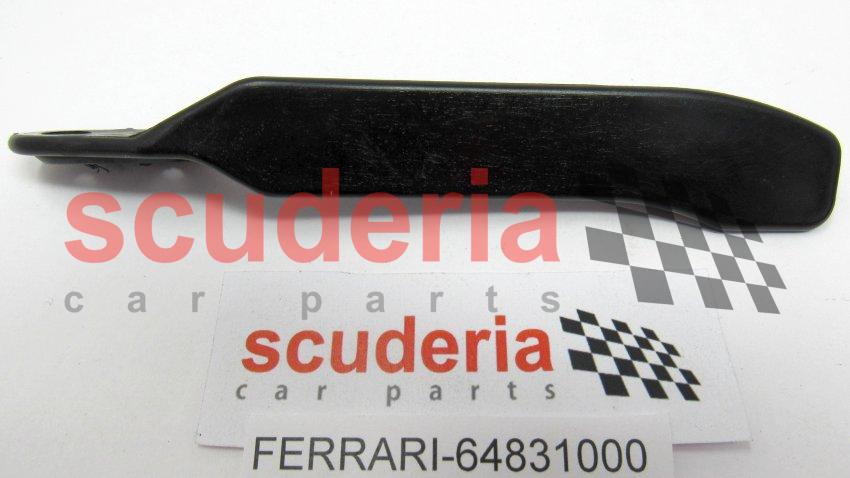

-	64831000	R.H. Guide Shoe	64831000 R.H. Guide Shoe Valid for GD	-	1	Enquire

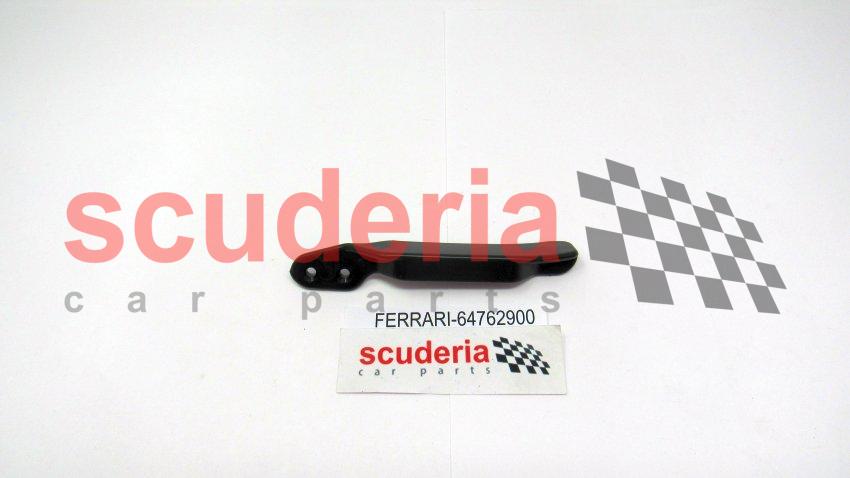

-	64762900	L.H Guide Shoe	64762900 L.H Guide Shoe Valid for GD	-	1	Enquire
-	15909478	SCREW -For dark inner trims-	15909478 SCREW -For dark inner trims-	-	2	Enquire
-	64781500	L.H. LATERAL MOLDING	64781500 L.H. LATERAL MOLDING	-	1	Enquire
-	63639800	PIN mm. 21	63639800 PIN mm. 21	-	10	Enquire
-	63639500	PIN mm. 23	63639500 PIN mm. 23	-	2	Enquire
-	63678400	PIN mm. 25	63678400 PIN mm. 25	-	4	Enquire
-	63639700	PIN mm. 27	63639700 PIN mm. 27	-	8	Enquire
-	63678500	PIN mm. 33	63678500 PIN mm. 33	-	2	Enquire
-	64662200	L.H. PISTON COVER	64662200 L.H. PISTON COVER	-	1	Enquire
-	64416800	SENSOR ON PLATE	64416800 SENSOR ON PLATE Replaces 163780	-	1	Enquire
-	63613400	L.H. FRONT RUBBER HOLDER PROFILE	63613400 L.H. FRONT RUBBER HOLDER PROFILE PROFILE	-	1	Enquire
-	63612800	L.H. REAR RUBBER HOLDER PROFILE	63612800 L.H. REAR RUBBER HOLDER PROFILE PROFILE	-	1	Enquire
-	14189574	CLIP FOR SCREW	14189574 CLIP FOR SCREW Replaces 14189874	-	2	Enquire
-	63614200	R.H. TOP CLOSING HOOK	63614200 R.H. TOP CLOSING HOOK	-	1	Enquire
-	652578	TOP COVER	652578 TOP COVER With chromium-plated button / Replaces 64891800	-	1	Enquire
-	64528205	PROTECTION CLOTH FOR CAPOT	64528205 PROTECTION CLOTH FOR CAPOT Beige	-	1	Enquire
-	650989	TOP COVER	650989 TOP COVER With black button / Replaces 64891800	-	1	Enquire
-	64528105	COMPLETE CAPOTE	64528105 COMPLETE CAPOTE Beige / Not for GD	-	1	Enquire
-	64897705	COMPLETE CAPOTE	64897705 COMPLETE CAPOTE Beige / Valid for GD	-	1	Enquire
-	64528200	PROTECTION CLOTH FOR CAPOT	64528200 PROTECTION CLOTH FOR CAPOT Black	-	1	Enquire
-	64528202	PROTECTION CLOTH FOR CAPOT	64528202 PROTECTION CLOTH FOR CAPOT Blue	-	1	Enquire
-	64897700	COMPLETE CAPOTE	64897700 COMPLETE CAPOTE Black / Valid for GD	-	1	Enquire
-	64528102	COMPLETE CAPOTE	64528102 COMPLETE CAPOTE Blue / Not for GD	-	1	Enquire
-	64897702	COMPLETE CAPOTE	64897702 COMPLETE CAPOTE Blue / Valid for GD	-	1	Enquire
1	64528100	COMPLETE CAPOTE	64528100 COMPLETE CAPOTE Black / Not for GD	-	1	Enquire
2	65098900	TOP COVER COMPLETE OF	65098900 TOP COVER COMPLETE OF TOP COVER BAG / Not as spare part replaced by / 650989. or652578..	-	1	Enquire
3	63239500	BUTTON	63239500 BUTTON	-	1	Enquire
4	63685100	TONNEAU COVER	63685100 TONNEAU COVER	-	1	Enquire
5	64793800	HANDLE FOR TOP	64793800 HANDLE FOR TOP	-	1	Enquire
6	63966100	COMPLETE CONTROL BLOCK BOX	63966100 COMPLETE CONTROL BLOCK BOX BOX	-	1	Enquire
7	63990900	PIN	63990900 PIN	-	1	Enquire
8	63614100	L.H. TOP CLOSING HOOK	63614100 L.H. TOP CLOSING HOOK	-	1	Enquire
9	64667100	CENTERING CONE	64667100 CENTERING CONE	-	2	Enquire
10	123622	O-Ring ARRIVING SOON	123622 O-Ring ARRIVING SOON	-	2	Enquire
11	14189876	CLIP FOR SCREW	14189876 CLIP FOR SCREW For F355 not as spare part / Replaced by 14189574	-	2	Enquire
12	63613200	R.H. FRONT RUBBER HOLDER PROFILE	63613200 R.H. FRONT RUBBER HOLDER PROFILE PROFILE	-	1	Enquire
13	63612700	R.H. REAR RUBBER HOLDER PROFILE	63612700 R.H. REAR RUBBER HOLDER PROFILE PROFILE	-	1	Enquire
14	64626000	PLATE	64626000 PLATE	-	2	Enquire
15	15914770	SCREW	15914770 SCREW	-	4	Enquire
16	64416800	SENSOR ON PLATE	64416800 SENSOR ON PLATE Replaced by 64416800	-	1	Enquire
17	64662100	R.H. PISTON COVER	64662100 R.H. PISTON COVER	-	1	Enquire
18	13273872	SCREW	13273872 SCREW	-	2	Enquire
19	10519278	WASHER	10519278 WASHER	-	2	Enquire
20	63639600	PIN mm. 18	63639600 PIN mm. 18	-	4	Enquire
21	63639900	WASHER, THICKNESS mm. 1,3	63639900 WASHER, THICKNESS mm. 1,3	-	28	Enquire
22	64243400	TOP LIFTING HANDLE	64243400 TOP LIFTING HANDLE	-	1	Enquire
23	60702800	SCREW	60702800 SCREW	-	2	Enquire
24	64781400	R.H. LATERAL MOLDING	64781400 R.H. LATERAL MOLDING	-	1	Enquire
25	15690678	SCREW mm. 13	15690678 SCREW mm. 13	-	2	Enquire
26	63936600	SCREW	63936600 SCREW	-	6	Enquire
27	12642078	WASHER	12642078 WASHER	-	6	Enquire
28	15902678	SCREW	15902678 SCREW	-	2	Enquire
29	12638124	WASHER	12638124 WASHER	-	2	Enquire
30	61632100	SCREW TAP	61632100 SCREW TAP	-	4	Enquire
31	61195300	WASHER	61195300 WASHER	-	4	Enquire
32	14084111	NUT	14084111 NUT	-	5	Enquire
33	63936600	SCREW	63936600 SCREW	-	6	Enquire
34	263276	WASHER	263276 WASHER	-	6	Enquire
35	63238800	LOWER RUBBER PAD	63238800 LOWER RUBBER PAD	-	2	Enquire
36	62167200	WASHER	62167200 WASHER	-	2	Enquire
37	13838817	SCREW	13838817 SCREW	-	6	Enquire
38	63961100	SCREW TAP	63961100 SCREW TAP	-	2	Enquire
39	61195300	WASHER	61195300 WASHER	-	2	Enquire
40	64416900	SENSOR	64416900 SENSOR	-	1	Enquire
41	64667000	EXTENSION FOR SENSOR	64667000 EXTENSION FOR SENSOR	-	1	Enquire
42	155751	CLIP	155751 CLIP	-	1	Enquire
43	64830900	L.H. GUIDE SHOE	64830900 L.H. GUIDE SHOE Not for GD	-	1	Enquire
44	63690900	TOP COVER BAG	63690900 TOP COVER BAG	-	1	Enquire
45	64661900	BUSHING	64661900 BUSHING	-	4	Enquire
46	64665600	PAD	64665600 PAD	-	4	Enquire
47	13798821	SCREW	13798821 SCREW	-	2	Enquire
