CENTRAL PART STRUCTURES of Ferrari Ferrari 355 (2.7 Motronic)

View All

Ferrari 355 (2.7 Motronic) - CENTRAL PART STRUCTURES

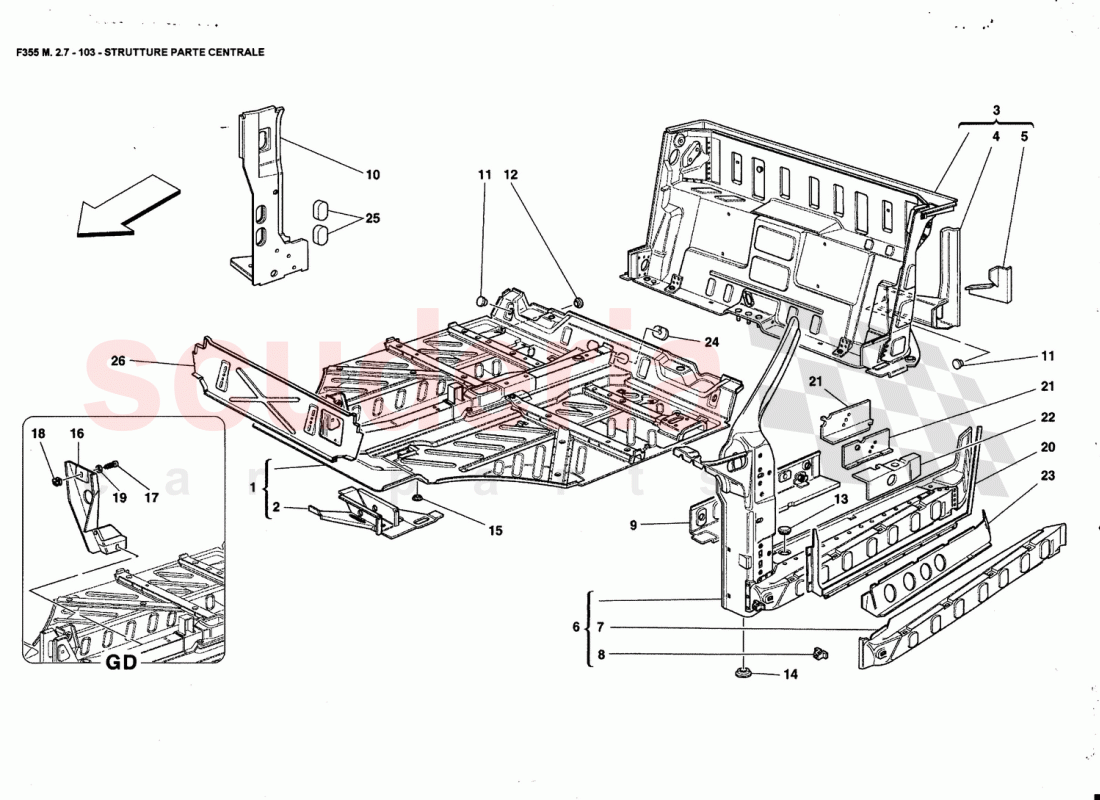

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	64538500	COMPLETE CENTRAL FLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62164100	L.H. PLATE WITH REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63585100	COMPLETE REAR FRAMEWORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64245800	MOVING FRAME FIXING CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64302200	REINFORCEMENT L.H. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62088600	COMPLETE FRAMEWORK FOR LH DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62077400	EXTERNAL COVERING FOR LH SIDE MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62055300	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62069000	INTERNAL PLATE FOR LH SIDE MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62080100	R.H. PILLAR BOX-TYPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14506987	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14506587	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14507987	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	952336	BLANKING PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14506587	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64447000	FOOT-REST REINFORCEMENT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15903975	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14202782	BLOCK -Valid for SA-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64374200	L.H. STRUCTURAL SHAPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63011300	L.H. REAR REINFORCEMENT PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64384300	L.H. OUTER REAR REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63011500	L.H. OUTER REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63566000	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64463600	THICKNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64330200	DASH PANEL LOWER SHIELD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	64436600	DASH PANEL LOWER SHIELD	64436600 DASH PANEL LOWER SHIELD Valid for GD	-	1	Enquire
-	63011400	R.H. OUTER REINFORCEMENT	63011400 R.H. OUTER REINFORCEMENT Valid for GTS and Spider	-	1	Enquire
-	64384600	R.H. REAR REINFORCEMENT PLATE	64384600 R.H. REAR REINFORCEMENT PLATE Valid for GTS and Spider	-	1	Enquire
-	64384200	R.H. OUTER REAR REINFORCEMENT	64384200 R.H. OUTER REAR REINFORCEMENT Valid for GTS and Spider	-	1	Enquire
-	64384700	L.H. REAR REINFORCEMENT PLATE	64384700 L.H. REAR REINFORCEMENT PLATE Valid for GTS and Spider	-	1	Enquire
-	63011200	R.H. REAR REINFORCEMENT PLATE	63011200 R.H. REAR REINFORCEMENT PLATE Valid for BERLINETTA	-	1	Enquire
-	64645400	L.H. STRUCTURAL SHAPE ASSEMBLY	64645400 L.H. STRUCTURAL SHAPE ASSEMBLY Valid for Spider	-	1	Enquire
-	64374100	R.H. STRUCTURAL SHAPE ASSEMBLY	64374100 R.H. STRUCTURAL SHAPE ASSEMBLY Not for Spider	-	1	Enquire
-	64645300	R.H. STRUCTURAL SHAPE ASSEMBLY	64645300 R.H. STRUCTURAL SHAPE ASSEMBLY Valid for Spider	-	1	Enquire
-	62446300	D. 30 PLUG	62446300 D. 30 PLUG	-	4	Enquire
-	62080200	L.H. PILLAR BOX-TYPE	62080200 L.H. PILLAR BOX-TYPE	-	1	Enquire
-	62069000	INTERNAL PLATE FOR LH SIDE MEMBER	62069000 INTERNAL PLATE FOR LH SIDE MEMBER MEMBER / Replaces 62182000	-	1	Enquire
-	62068900	INTERNAL PLATE FOR RH SIDE MEMBER	62068900 INTERNAL PLATE FOR RH SIDE MEMBER MEMBER / Replaces 62181900	-	1	Enquire
-	62077300	EXTERNAL COVERING FOR RH SIDE MEMBER	62077300 EXTERNAL COVERING FOR RH SIDE MEMBER R.H. SIDE MEMBER	-	1	Enquire
-	62088500	COMPLETE FRAMEWORK FOR RH DOOR	62088500 COMPLETE FRAMEWORK FOR RH DOOR Not for GTS / Valid for GD GTS / Not for Spider	-	1	Enquire
-	64384400	R.H. DOOR COMPARTMENT FRAME	64384400 R.H. DOOR COMPARTMENT FRAME Valid for GTS / Not for GD GTS / Not for Spider	-	1	Enquire
-	64522400	R.H. DOOR COMPARTMENT FRAME	64522400 R.H. DOOR COMPARTMENT FRAME Valid for Spider / /	-	1	Enquire
-	64384500	L.H. DOOR COMPARTMENT FRAME	64384500 L.H. DOOR COMPARTMENT FRAME Valid for GTS / Not for GD GTS / Not for Spider	-	1	Enquire
-	64522500	L.H. DOOR COMPARTMENT FRAME	64522500 L.H. DOOR COMPARTMENT FRAME Valid for Spider / /	-	1	Enquire
-	64781800	MOVING FRAME FIXING CROSS MEMBER	64781800 MOVING FRAME FIXING CROSS MEMBER MEMBER / Valid for Spider	-	1	Enquire
-	64302100	REINFORCEMENT R.H. BRACKET	64302100 REINFORCEMENT R.H. BRACKET	-	1	Enquire
-	64895300	COMPLETE REAR FRAMEWORK	64895300 COMPLETE REAR FRAMEWORK Valid for GD Spider /	-	1	Enquire
-	64733200	COMPLETE REAR FRAMEWORK	64733200 COMPLETE REAR FRAMEWORK Valid for Spider with single fuel pump / Not for GD	-	1	Enquire
-	64436800	COMPLETE REAR FRAMEWORK	64436800 COMPLETE REAR FRAMEWORK Valid for GD with double fuel pump / Not for Spider	-	1	Enquire
-	64733100	COMPLETE REAR FRAMEWORK	64733100 COMPLETE REAR FRAMEWORK Valid for GD with single fuel pump / Not for Spider	-	1	Enquire
-	64733000	COMPLETE REAR FRAMEWORK	64733000 COMPLETE REAR FRAMEWORK Valid for cars with single fuel pump / Not for Spider-Not for GD	-	1	Enquire
-	64733200	COMPLETE REAR FRAMEWORK	64733200 COMPLETE REAR FRAMEWORK Valid for Spider with double fuel pump / Not for GD	-	1	Enquire
-	64969700	COMPLETE CENTRAL FLOOR	64969700 COMPLETE CENTRAL FLOOR Valid for GD Spider with AIR-BAG	-	1	Enquire
-	64732000	COMPLETE CENTRAL FLOOR	64732000 COMPLETE CENTRAL FLOOR Valid for GD without AIR-BAG / Not for Spider	-	1	Enquire
-	64969400	COMPLETE CENTRAL FLOOR	64969400 COMPLETE CENTRAL FLOOR Valid for GD with AIR-BAG / Not for Spider	-	1	Enquire
-	64969600	COMPLETE CENTRAL FLOOR	64969600 COMPLETE CENTRAL FLOOR Valid for GD Spider without AIR-BAG	-	1	Enquire
-	64923500	COMPLETE CENTRAL FLOOR	64923500 COMPLETE CENTRAL FLOOR Valid for cars Spider without AIR-BAG / Not for GD	-	1	Enquire
-	64969500	COMPLETE CENTRAL FLOOR	64969500 COMPLETE CENTRAL FLOOR Valid for cars Spider with AIR-BAG / Not for GD	-	1	Enquire
-	64969300	COMPLETE CENTRAL FLOOR	64969300 COMPLETE CENTRAL FLOOR Valid for cars with AIR-BAG / Not for Spider-Not for GD	-	1	Enquire
1	64538500	COMPLETE CENTRAL FLOOR	64538500 COMPLETE CENTRAL FLOOR Not for cars with AIR-BAG / Not for Spider-Not for GD	-	1	Enquire
2	62164100	L.H. PLATE WITH REINFORCEMENT	62164100 L.H. PLATE WITH REINFORCEMENT R.H. PLATE WITH REINFORCEMENT	-	1	Enquire
3	63585100	COMPLETE REAR FRAMEWORK	63585100 COMPLETE REAR FRAMEWORK Valid for cars with double fuel pump / Not for Spider-Not for GD	-	1	Enquire
4	64245800	MOVING FRAME FIXING CROSS MEMBER	64245800 MOVING FRAME FIXING CROSS MEMBER MEMBER / Not for Spider	-	1	Enquire
5	64302200	REINFORCEMENT L.H. BRACKET	64302200 REINFORCEMENT L.H. BRACKET	-	1	Enquire
6	62088600	COMPLETE FRAMEWORK FOR LH DOOR	62088600 COMPLETE FRAMEWORK FOR LH DOOR Not for GTS / Valid for GD GTS / Not for Spider	-	1	Enquire
7	62077400	EXTERNAL COVERING FOR LH SIDE MEMBER	62077400 EXTERNAL COVERING FOR LH SIDE MEMBER L.H. SIDE MEMBER	-	1	Enquire
8	62055300	BRACKET	62055300 BRACKET	-	2	Enquire
9	62069000	INTERNAL PLATE FOR LH SIDE MEMBER	62069000 INTERNAL PLATE FOR LH SIDE MEMBER MEMBER / Not as spare part replaced by 62069000	-	1	Enquire
10	62080100	R.H. PILLAR BOX-TYPE	62080100 R.H. PILLAR BOX-TYPE	-	1	Enquire
11	14506987	CAP	14506987 CAP	-	9	Enquire
12	14506587	PLUG	14506587 PLUG	-	1	Enquire
13	14507987	PLUG	14507987 PLUG	-	2	Enquire
14	952336	BLANKING PLUG	952336 BLANKING PLUG	-	4	Enquire
15	14506587	PLUG	14506587 PLUG Valid for GD	-	3	Enquire
16	64447000	FOOT-REST REINFORCEMENT BRACKET	64447000 FOOT-REST REINFORCEMENT BRACKET BRACKET / Valid for GD	-	1	Enquire
17	15903975	Screw	15903975 Screw Valid for GD /	-	2	Enquire
18	14202782	BLOCK -Valid for SA-	14202782 BLOCK -Valid for SA- Valid for GD	-	2	Enquire
19	62769800	WASHER	62769800 WASHER Valid for GD	-	2	Enquire
20	64374200	L.H. STRUCTURAL SHAPE ASSEMBLY	64374200 L.H. STRUCTURAL SHAPE ASSEMBLY Not for Spider	-	1	Enquire
21	63011300	L.H. REAR REINFORCEMENT PLATE	63011300 L.H. REAR REINFORCEMENT PLATE Valid for BERLINETTA	-	1	Enquire
22	64384300	L.H. OUTER REAR REINFORCEMENT	64384300 L.H. OUTER REAR REINFORCEMENT Valid for GTS and Spider	-	1	Enquire
23	63011500	L.H. OUTER REINFORCEMENT	63011500 L.H. OUTER REINFORCEMENT Valid for GTS and Spider	-	1	Enquire
24	63566000	SEAL RING	63566000 SEAL RING	-	1	Enquire
25	64463600	THICKNESS	64463600 THICKNESS	-	2	Enquire
26	64330200	DASH PANEL LOWER SHIELD	64330200 DASH PANEL LOWER SHIELD Not for GD	-	1	Enquire
