Name: ENGINE ELECTRICAL SYSTEM
Rating: 5.0 (1 reviews)

View All

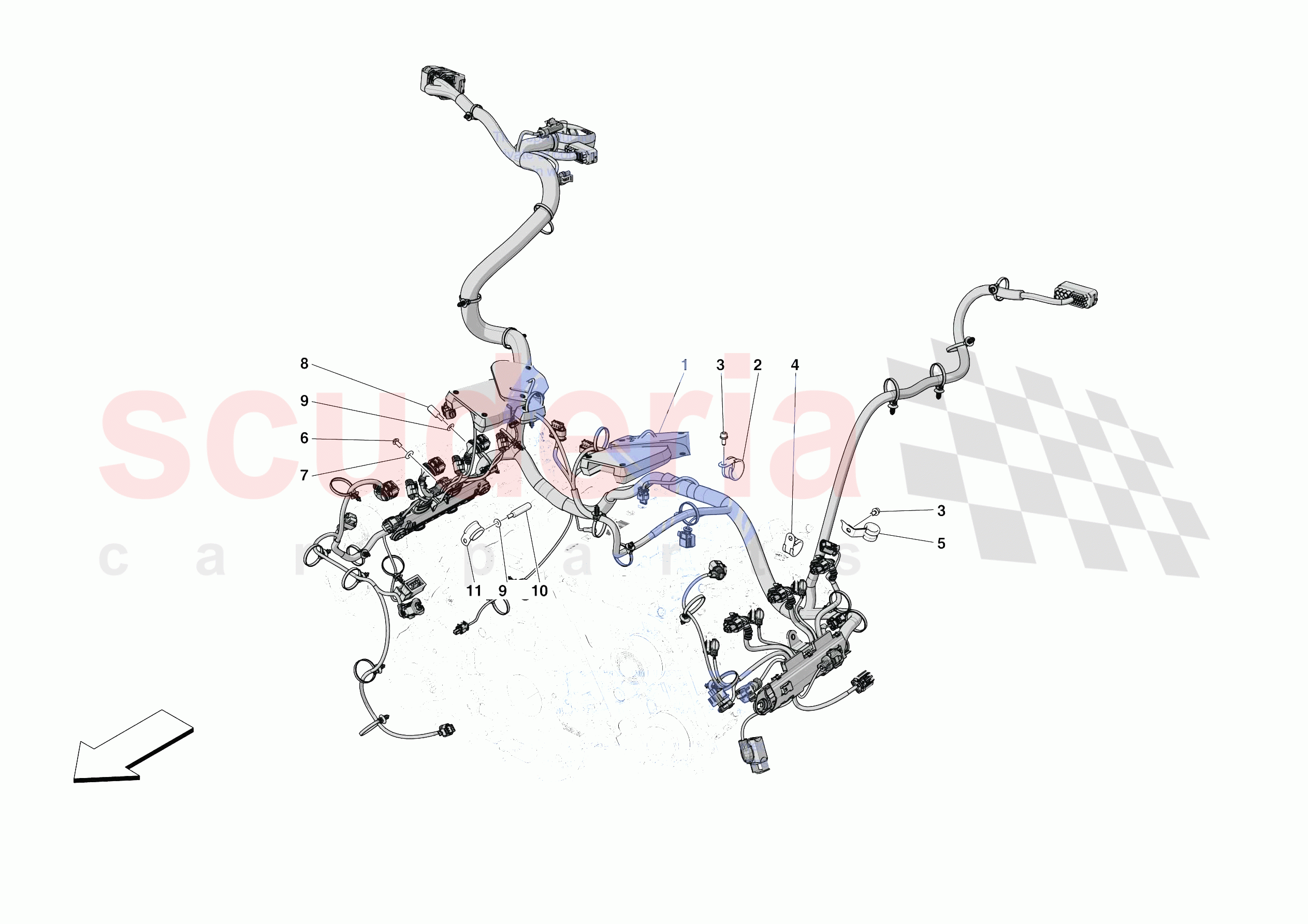

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	291225	P clip Bracket With Sheath	$5.12	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	750725	BRACKET WITH SHEATH	$34.38	To Order

Photo	Part No	Description	Price (each)	Stock
	306938	SCREW	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	14498801	WASHER	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	339377	STUD BOLT	$10.89	To Order

Photo	Part No	Description	Price (each)	Stock
	11193274	WASHER	$0.03	To Order

Photo	Part No	Description	Price (each)	Stock
	841281	STUD BOLT	$22.92	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	906402	INJECTION CABLE	906402 INJECTION CABLE No longer supplied - Replaced by 900174	$2,421.34	1
1	900174	INJECTION CABLE	900174 INJECTION CABLE	$2,924.23	1
2	291225	P clip Bracket With Sheath	291225 P clip Bracket With Sheath	$5.12	2
3	248334	SCREW	248334 SCREW M6 X 14	$0.68	5
4	291225	P clip Bracket With Sheath	291225 P clip Bracket With Sheath	$5.12	1
4	291225	P clip Bracket With Sheath	291225 P clip Bracket With Sheath	$5.12	1
5	750725	BRACKET WITH SHEATH	750725 BRACKET WITH SHEATH	$34.38	1
6	306938	SCREW	306938 SCREW M6 X 14	$0.41	6
7	14498801	WASHER	14498801 WASHER D. 6.45 - 16 X 2	$0.11 MSRP: ~~0.20~~ (45% off)	2
8	339377	STUD BOLT	339377 STUD BOLT	$10.89	1
9	11193274	WASHER	11193274 WASHER	$0.03	2
10	841281	STUD BOLT	841281 STUD BOLT	$22.92	1
11	320600	CLIP	320600 CLIP	$2.25	1
11	320600	CLIP	320600 CLIP	$2.25	1
11	291225	P clip Bracket With Sheath	291225 P clip Bracket With Sheath	$5.12	1
