CRANKCASE of Ferrari Ferrari 296 GTB Europe

View All

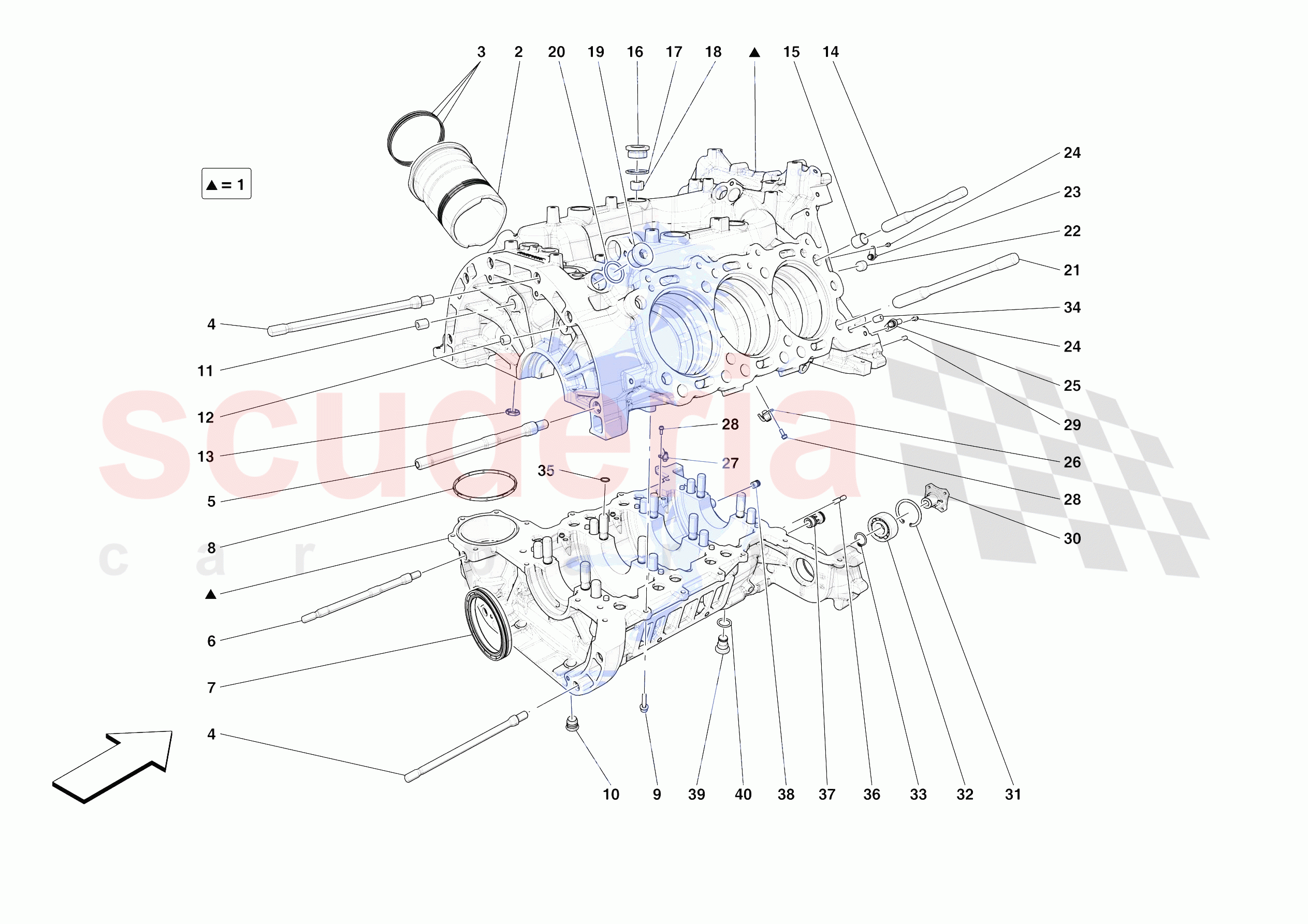

Ferrari 296 GTB Europe - CRANKCASE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	782012	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	Enquire	To Order
	940974	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	Enquire	To Order
	987153	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	984574	CYLINDER SLEEVE	Enquire	To Order
	907486	CYLINDER SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985326	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	935824	SPECIAL STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	868638	SPECIAL GRUB SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	868636	SPECIAL STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240214	GASKET	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	939107	OIL FILTER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	845568	PLUG	Enquire	To Order
	164400	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14324811	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10266901	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	809198	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	935819	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185360	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10278311	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10262160	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307477	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	935820	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164400	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	843929	CHAIN COOLING NOZZLE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315493	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	829568	CHAIN COOLING NOZZLE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	803816	PISTON COOLING NOZZLE ASSEMBLY	Enquire	To Order
	875813	PISTON COOLING NOZZLE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	803815	PISTON COOLING NOZZLE ASSEMBLY	Enquire	To Order
	875812	PISTON COOLING NOZZLE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	850527	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175611	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	796215	DRIVE JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11060276	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247049	BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11066876	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14326101	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	803790	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	911391	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	835895	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	816230	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	957918	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10259960	Copper Washer 18 - 24 x 1.5	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	782012	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	782012 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY No longer supplied - Replaced by 940974; Applicable up to engine No. 533515	-	1	Enquire
1	940974	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	940974 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY No longer supplied - Replaced by 987153; Applicable from engine No. 533516	-	1	Enquire
1	987153	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	987153 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	-	1	Enquire
2	984574	CYLINDER SLEEVE	984574 CYLINDER SLEEVE Applies until depletion	-	6	Enquire
2	907486	CYLINDER SLEEVE	907486 CYLINDER SLEEVE Applicable after depletion of 984574	-	6	Enquire
3	985326	O-RING	985326 O-RING Also included in engine gasket set	-	18	Enquire
4	935824	SPECIAL STUD BOLT	935824 SPECIAL STUD BOLT	-	7	Enquire
5	868638	SPECIAL GRUB SCREW	868638 SPECIAL GRUB SCREW	-	1	Enquire
6	868636	SPECIAL STUD BOLT	868636 SPECIAL STUD BOLT	-	1	Enquire
7	240214	GASKET ARRIVING SOON	240214 GASKET Also included in engine gasket set ARRIVING SOON	-	1	Enquire
8	939107	OIL FILTER GASKET	939107 OIL FILTER GASKET Also included in engine gasket set	-	1	Enquire
9	231620	SCREW	231620 SCREW M6 X 25	-	18	Enquire
10	845568	PLUG	845568 PLUG Applicable up to engine No. 533515	-	2	Enquire
10	164400	THREADED PLUG	164400 THREADED PLUG	-	1	Enquire
11	14324811	THREADED PLUG	14324811 THREADED PLUG	-	3	Enquire
12	10266901	THREADED PLUG	10266901 THREADED PLUG	-	1	Enquire
13	809198	GASKET	809198 GASKET Also included in engine gasket set	-	4	Enquire
14	935819	STUD BOLT	935819 STUD BOLT	-	8	Enquire
15	185360	CENTERING DOWEL	185360 CENTERING DOWEL	-	4	Enquire
16	10278311	THREADED PLUG	10278311 THREADED PLUG	-	5	Enquire
17	10262160	GASKET	10262160 GASKET Also included in engine gasket set	-	5	Enquire
18	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5	-	4	Enquire
19	307477	THREADED PLUG	307477 THREADED PLUG	-	2	Enquire
20	10263460	COPPER GASKET D.28-22.3 X 1.5	10263460 COPPER GASKET D.28-22.3 X 1.5 Also included in engine gasket set	-	2	Enquire
21	935820	STUD BOLT	935820 STUD BOLT	-	8	Enquire
22	164400	THREADED PLUG	164400 THREADED PLUG	-	1	Enquire
23	843929	CHAIN COOLING NOZZLE ASSEMBLY	843929 CHAIN COOLING NOZZLE ASSEMBLY	-	1	Enquire
24	315493	SCREW	315493 SCREW M4 X 10	-	2	Enquire
25	829568	CHAIN COOLING NOZZLE ASSEMBLY	829568 CHAIN COOLING NOZZLE ASSEMBLY	-	1	Enquire
26	803816	PISTON COOLING NOZZLE ASSEMBLY	803816 PISTON COOLING NOZZLE ASSEMBLY Applies until depletion	-	6	Enquire
26	875813	PISTON COOLING NOZZLE ASSEMBLY	875813 PISTON COOLING NOZZLE ASSEMBLY Applicable after depletion of 803816; Exhaust side	-	6	Enquire
27	803815	PISTON COOLING NOZZLE ASSEMBLY	803815 PISTON COOLING NOZZLE ASSEMBLY Applicable up to engine No. 533515	-	6	Enquire
27	875812	PISTON COOLING NOZZLE ASSEMBLY	875812 PISTON COOLING NOZZLE ASSEMBLY Applicable from engine No. 533516; Intake side	-	6	Enquire
28	850527	SCREW	850527 SCREW M4 X 10	-	12	Enquire
29	175611	CENTERING DOWEL	175611 CENTERING DOWEL	-	2	Enquire
30	796215	DRIVE JOINT	796215 DRIVE JOINT	-	1	Enquire
31	11060276	SEEGER RING	11060276 SEEGER RING	-	1	Enquire
32	247049	BEARING	247049 BEARING	-	1	Enquire
33	11066876	SEEGER RING	11066876 SEEGER RING	-	1	Enquire
34	14326101	THREADED PLUG	14326101 THREADED PLUG	-	1	Enquire
35	803790	O-RING	803790 O-RING Also included in engine gasket set	-	16	Enquire
36	911391	PIN	911391 PIN	-	1	Enquire
37	835895	PLUG	835895 PLUG	-	1	Enquire
38	816230	PLUG	816230 PLUG	-	1	Enquire
39	957918	PLUG	957918 PLUG	-	2	Enquire
40	10259960	Copper Washer 18 - 24 x 1.5	10259960 Copper Washer 18 - 24 x 1.5 Also included in engine gasket set	-	2	Enquire
