Name: INTERCOOLER
Rating: 4.7 (1 reviews)

INTERCOOLER of Ferrari Ferrari 296 GTS Europe

View All

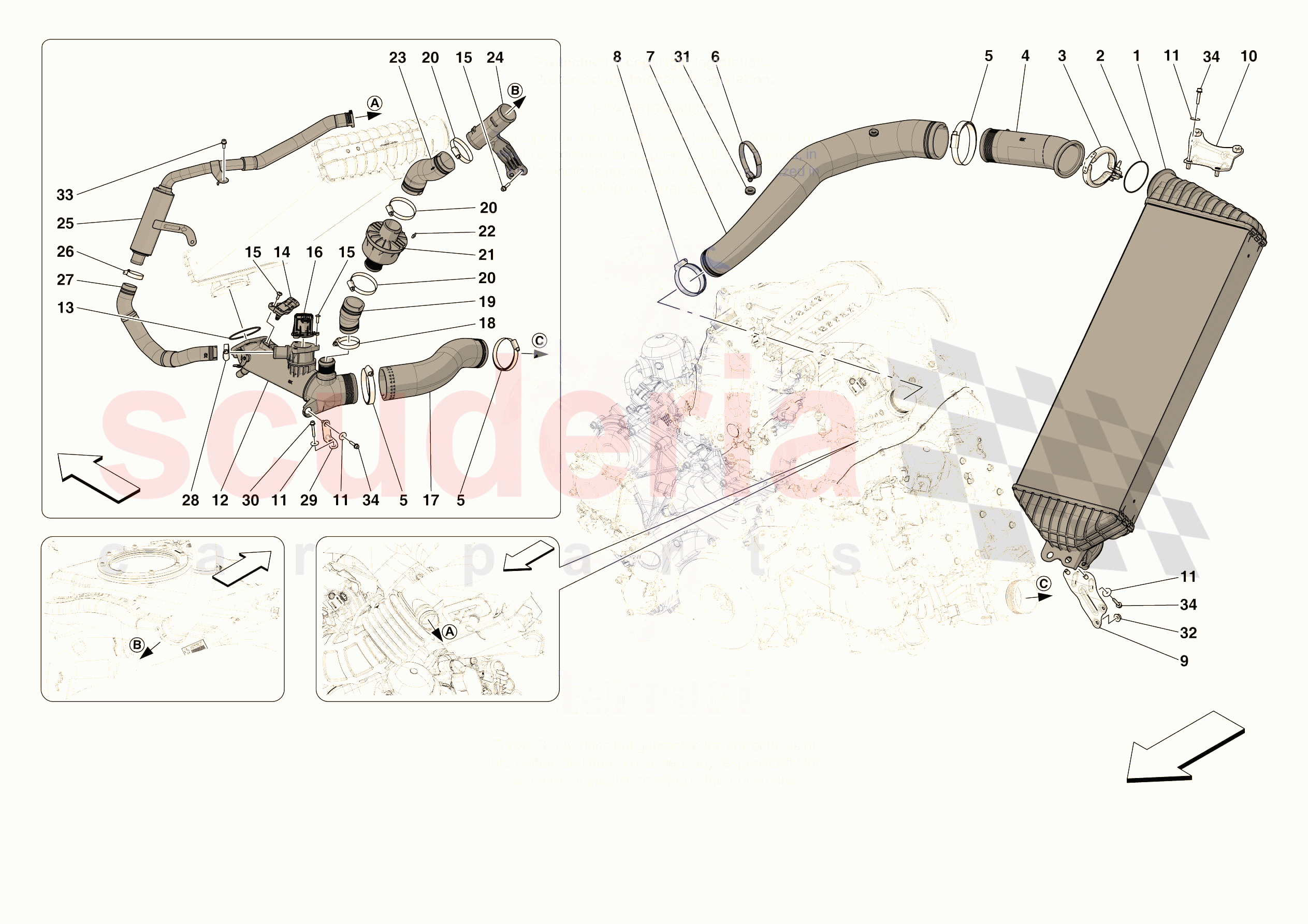

Ferrari 296 GTS Europe - INTERCOOLER

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	874363	LH INTERCOOLER	$1,720.11	To Order
	874364	RH INTERCOOLER	$1,720.11	To Order

Photo	Part No	Description	Price (each)	Stock
	914435	O-RING	$2.38	To Order

Photo	Part No	Description	Price (each)	Stock
	910534	INTERCOOLER V-CLAMP	$86.63	To Order

Photo	Part No	Description	Price (each)	Stock
	941361	LH INTERCOOLER RIGID PIPE	$63.05	To Order
	777776	RH INTERCOOLER RIGID PIPE	$65.92	To Order

Photo	Part No	Description	Price (each)	Stock
	297576	COLLAR	$6.47	To Order

Photo	Part No	Description	Price (each)	Stock
	814993	COLLAR	$45.06	To Order

Photo	Part No	Description	Price (each)	Stock
	941399	LH HOSE	$946.70	To Order
	777774	RH HOSE	$914.60	To Order

Photo	Part No	Description	Price (each)	Stock
	297572	COLLAR	$5.48	To Order

Photo	Part No	Description	Price (each)	Stock
	914140	LH INTERCOOLER LOWER BRACKET	$44.91	To Order
	914144	RH INTERCOOLER LOWER BRACKET	$44.91	To Order

Photo	Part No	Description	Price (each)	Stock
	811614	LH INTERCOOLER UPPER BRACKET	$74.52	To Order
	811654	RH INTERCOOLER UPPER BRACKET	$74.52	To Order

Photo	Part No	Description	Price (each)	Stock
	789073	WASHER	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	844545	LH PIPE CONNECTOR BARREL	$272.34	To Order
	844546	RH PIPE CONNECTOR BARREL	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	889223	O-RING	$2.24	To Order

Photo	Part No	Description	Price (each)	Stock
	835465	PRESSURE AND TEMPERATURE SENSOR	$52.25	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	315495	DUMP-VALVE	$192.54	To Order

Photo	Part No	Description	Price (each)	Stock
	771901	LH HOSE	$97.86	To Order
	771902	RH HOSE	$97.86	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	$9.00	To Order

Photo	Part No	Description	Price (each)	Stock
	920644	SOUND GENERATOR HOSE	$48.72	To Order

Photo	Part No	Description	Price (each)	Stock
	296783	SCREW COLLAR	$11.12	To Order

Photo	Part No	Description	Price (each)	Stock
	310096	SOUND GENERATOR	$272.34	To Order

Photo	Part No	Description	Price (each)	Stock
	314100	RIVET	$0.49	To Order

Photo	Part No	Description	Price (each)	Stock
	920645	FASTENER SLEEVE	$45.85	To Order

Photo	Part No	Description	Price (each)	Stock
	746942	SOUND GENERATOR BRACKET	$45.85	To Order

Photo	Part No	Description	Price (each)	Stock
	847290	LH RIGID DUMP VALVE PIPE	$917.39	To Order
	847291	RH RIGID DUMP VALVE PIPE	$917.39	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	847276	LH DUMP VALVE HOSE	$88.85	To Order
	847277	RH DUMP VALVE HOSE	$88.85	To Order

Photo	Part No	Description	Price (each)	Stock
	178053	CLAMP	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	771777	LH PIPE CONNECTOR BARREL BRACKET	$25.79	To Order
	771778	RH PIPE CONNECTOR BARREL BRACKET	$25.79	To Order

Photo	Part No	Description	Price (each)	Stock
	797731	SCREW	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	917701	RUBBER PAD	$3.40	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	797724	SCREW	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	797729	SCREW	$0.83	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	874363	LH INTERCOOLER	874363 LH INTERCOOLER	$1,720.11	1
0001	874364	RH INTERCOOLER	874364 RH INTERCOOLER	$1,720.11	1
0002	914435	O-RING	914435 O-RING	$2.38	2
0003	910534	INTERCOOLER V-CLAMP	910534 INTERCOOLER V-CLAMP	$86.63	2
0004	941361	LH INTERCOOLER RIGID PIPE	941361 LH INTERCOOLER RIGID PIPE	$63.05	1
0004	777776	RH INTERCOOLER RIGID PIPE	777776 RH INTERCOOLER RIGID PIPE	$65.92	1
0005	297576	COLLAR	297576 COLLAR	$6.47	6
0006	814993	COLLAR	814993 COLLAR	$45.06	2
0007	941399	LH HOSE	941399 LH HOSE	$946.70	1
0007	777774	RH HOSE	777774 RH HOSE	$914.60	1
0008	297572	COLLAR	297572 COLLAR	$5.48	2
0009	914140	LH INTERCOOLER LOWER BRACKET	914140 LH INTERCOOLER LOWER BRACKET	$44.91	1
0009	914144	RH INTERCOOLER LOWER BRACKET	914144 RH INTERCOOLER LOWER BRACKET	$44.91	1
0010	811614	LH INTERCOOLER UPPER BRACKET	811614 LH INTERCOOLER UPPER BRACKET	$74.52	1
0010	811654	RH INTERCOOLER UPPER BRACKET	811654 RH INTERCOOLER UPPER BRACKET	$74.52	1
0011	789073	WASHER	789073 WASHER	$0.32	18
0012	844545	LH PIPE CONNECTOR BARREL	844545 LH PIPE CONNECTOR BARREL	$272.34	1
0012	844546	RH PIPE CONNECTOR BARREL	844546 RH PIPE CONNECTOR BARREL	$240.67	1
0013	889223	O-RING	889223 O-RING	$2.24	2
0014	835465	PRESSURE AND TEMPERATURE SENSOR	835465 PRESSURE AND TEMPERATURE SENSOR	$52.25	2
0015	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 16 ARRIVING SOON	$0.36	16
0016	315495	DUMP-VALVE	315495 DUMP-VALVE	$192.54	2
0017	771901	LH HOSE	771901 LH HOSE	$97.86	1
0017	771902	RH HOSE	771902 RH HOSE	$97.86	1
0018	296781	COLLAR 30-45MM	296781 COLLAR 30-45MM	$9.00	1
0019	920644	SOUND GENERATOR HOSE	920644 SOUND GENERATOR HOSE	$48.72	1
0020	296783	SCREW COLLAR	296783 SCREW COLLAR	$11.12	3
0021	310096	SOUND GENERATOR	310096 SOUND GENERATOR	$272.34	1
0022	314100	RIVET	314100 RIVET	$0.49	2
0023	920645	FASTENER SLEEVE	920645 FASTENER SLEEVE	$45.85	1
0024	746942	SOUND GENERATOR BRACKET	746942 SOUND GENERATOR BRACKET	$45.85	1
0025	847290	LH RIGID DUMP VALVE PIPE	847290 LH RIGID DUMP VALVE PIPE	$917.39	1
0025	847291	RH RIGID DUMP VALVE PIPE	847291 RH RIGID DUMP VALVE PIPE	$917.39	1
0026	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	$1.60	2
0027	847276	LH DUMP VALVE HOSE	847276 LH DUMP VALVE HOSE	$88.85	1
0027	847277	RH DUMP VALVE HOSE	847277 RH DUMP VALVE HOSE	$88.85	1
0028	178053	CLAMP	178053 CLAMP	$1.54	2
0029	771777	LH PIPE CONNECTOR BARREL BRACKET	771777 LH PIPE CONNECTOR BARREL BRACKET	$25.79	1
0029	771778	RH PIPE CONNECTOR BARREL BRACKET	771778 RH PIPE CONNECTOR BARREL BRACKET	$25.79	1
0030	797731	SCREW	797731 SCREW M5 X 35	$0.58	2
0031	917701	RUBBER PAD	917701 RUBBER PAD	$3.40	2
0032	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	4
0033	797724	SCREW	797724 SCREW M5 X 14	$0.47	4
0034	797729	SCREW	797729 SCREW M5 X 25	$0.83	14
