Name: AIR FILTER, AIR INTAKE AND DUCTS
Rating: 5.0 (1 reviews)

View All

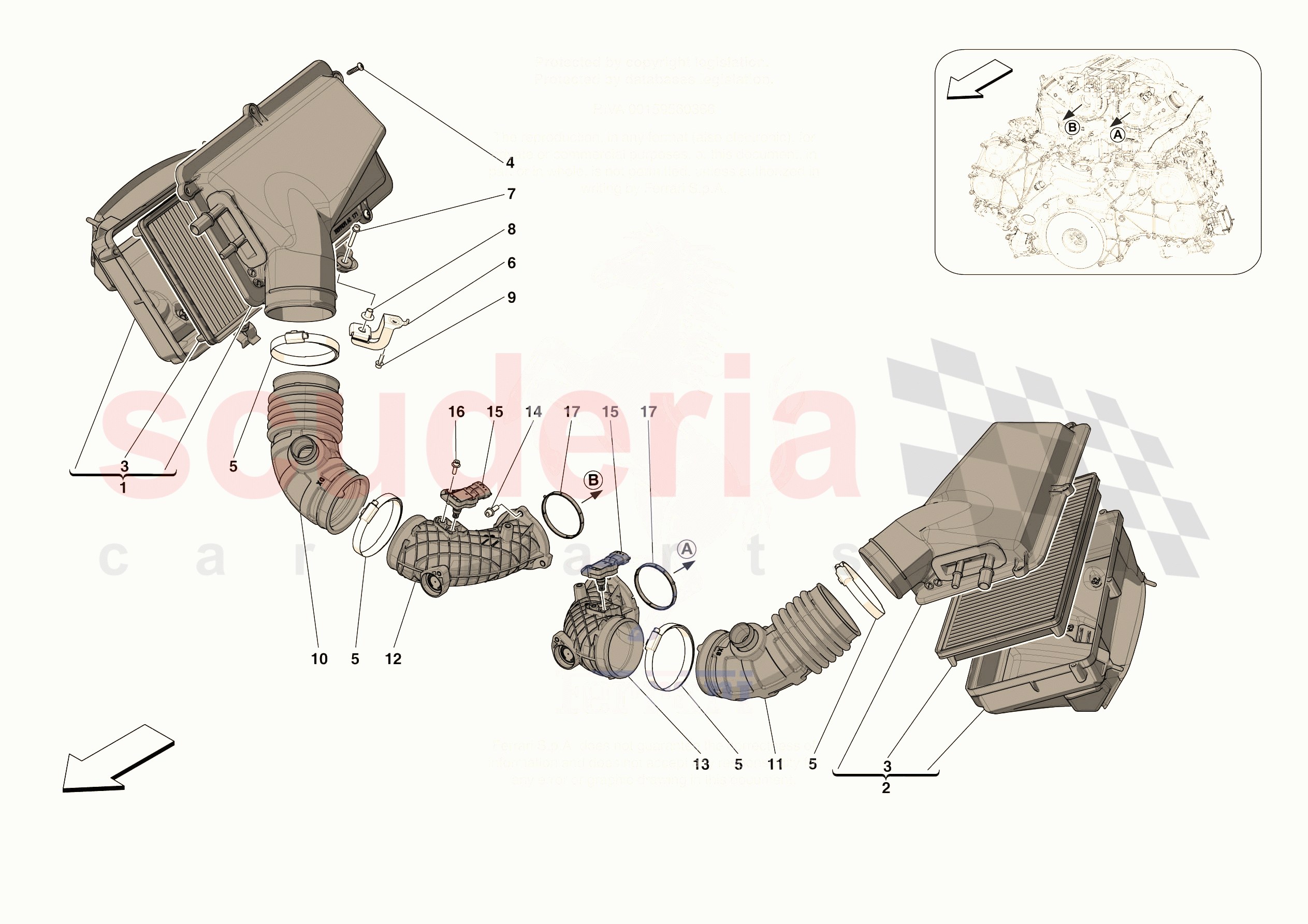

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	308398	SCREW	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	793183	LOWER FASTENER BRACKET	$67.36	To Order

Photo	Part No	Description	Price (each)	Stock
	797730	SCREW	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	$1.17	To Order

Photo	Part No	Description	Price (each)	Stock
	790361	SCREW	$1.26	To Order

Photo	Part No	Description	Price (each)	Stock
	951712	RH AIR INTAKE HOSE	$121.82	To Order

Photo	Part No	Description	Price (each)	Stock
	783272	LH AIR INTAKE HOSE	$113.23	To Order

Photo	Part No	Description	Price (each)	Stock
	799437	RH TURBO INTAKE DUCT	$83.42	To Order

Photo	Part No	Description	Price (each)	Stock
	799436	LH TURBO INTAKE DUCT	$80.21	To Order

Photo	Part No	Description	Price (each)	Stock
	282394	SCREW	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	859736	PRESSURE AND TEMPERATURE SENSOR	$52.25	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	786532	FLANGE GASKET	$8.85	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	900190	COMPL. RH AIR FILTER BOX	900190 COMPL. RH AIR FILTER BOX	$1,059.02	1
0001	900192	COMPL. RH AIR FILTER BOX	900192 COMPL. RH AIR FILTER BOX	$1,347.42	1
0002	900188	COMPL. LH AIR FILTER BOX	900188 COMPL. LH AIR FILTER BOX	$1,017.74	1
0002	900191	COMPL. LH AIR FILTER BOX	900191 COMPL. LH AIR FILTER BOX	$1,347.42	1
0003	741701	AIR FILTER	741701 AIR FILTER	$434.98	2
0003	768721	AIR FILTER	768721 AIR FILTER	$726.15	2
0004	308398	SCREW	308398 SCREW	$0.47	5
0005	900284	HOSE SCREW COLLAR D.80-100 X 9	900284 HOSE SCREW COLLAR D.80-100 X 9	$6.06	4
0005	900284	HOSE SCREW COLLAR D.80-100 X 9	900284 HOSE SCREW COLLAR D.80-100 X 9	$6.06	4
0006	793183	LOWER FASTENER BRACKET	793183 LOWER FASTENER BRACKET	$67.36	2
0007	797730	SCREW	797730 SCREW M5 X 30	$0.58	2
0008	149707	SPACER	149707 SPACER	$1.17 MSRP: ~~1.75~~ (33.1% off)	12
0009	790361	SCREW	790361 SCREW M5 X 16	$1.26	2
0010	951712	RH AIR INTAKE HOSE	951712 RH AIR INTAKE HOSE	$121.82	1
0011	783272	LH AIR INTAKE HOSE	783272 LH AIR INTAKE HOSE	$113.23	1
0012	799437	RH TURBO INTAKE DUCT	799437 RH TURBO INTAKE DUCT	$83.42	1
0013	799436	LH TURBO INTAKE DUCT	799436 LH TURBO INTAKE DUCT	$80.21	1
0014	282394	SCREW	282394 SCREW M6 X 18	$0.73	6
0015	859736	PRESSURE AND TEMPERATURE SENSOR	859736 PRESSURE AND TEMPERATURE SENSOR	$52.25	2
0016	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 16 ARRIVING SOON	$0.36	2
0017	786532	FLANGE GASKET	786532 FLANGE GASKET	$8.85	2
