switches and senders on engine of Bentley Bentley New Flying Spur (2020-2024)

View All

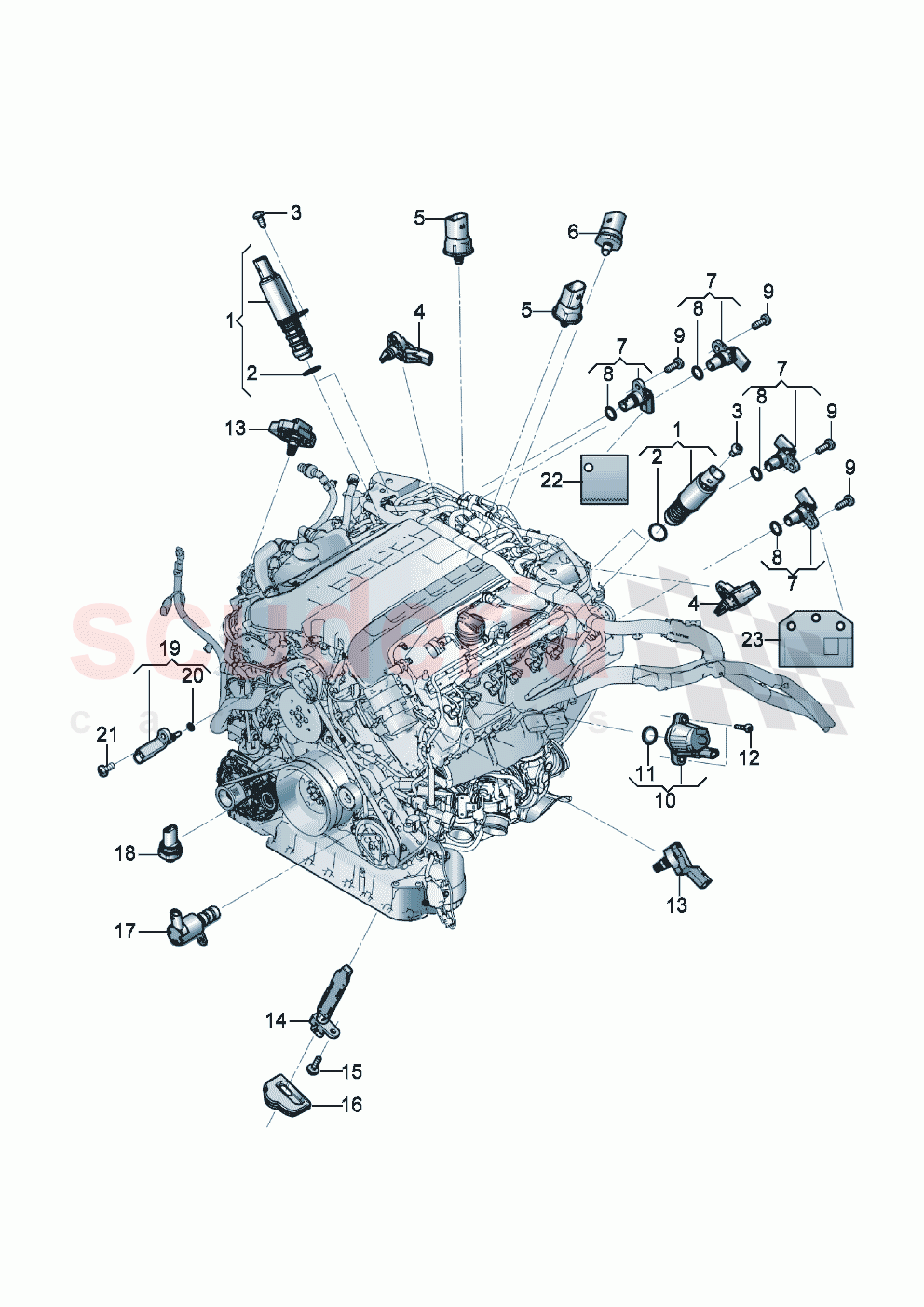

Bentley New Flying Spur (2020-2024) - switches and senders on engine (906050)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7P906455A	Solenoid valve camshaft adjuster unit	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10732001	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	4C907601K	impulse sender	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10196103	Oval socket head bolt with hex drive	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P906048	Shut-off valve for cylinder deactivation	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E906145A	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10599502	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	59906433J	impulse sender D >> - 19.12.2022	Enquire
	59906433K	impulse sender D - 19.12.2022>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91168701	Hexalobular flange screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P906376	Grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	3F919501B	Coolant temperature sender	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT005521	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91096701	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	4L971461	Heat protection sleeve	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C971461A	Heat protection sleeve	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7P906455A	Solenoid valve camshaft adjuster unit	7P906455A Solenoid valve camshaft adjuster unit	-	4	Enquire
3	N10732001	Hexagon socket flat head bolt	N10732001 Hexagon socket flat head bolt M6X14	-	4	Enquire
7	4C907601K	impulse sender	4C907601K impulse sender Camshaft	-	4	Enquire
9	N10196103	Oval socket head bolt with hex drive	N10196103 Oval socket head bolt with hex drive M6X18	-	4	Enquire
10	7P906048	Shut-off valve for cylinder deactivation	7P906048 Shut-off valve for cylinder deactivation cylinders 7-12	-	12	Enquire
11	4E906145A	seal ring	4E906145A seal ring 17,5X1,5	-	12	Enquire
12	N10599502	round hd. screw	N10599502 round hd. screw M5X20	-	24	Enquire
14	59906433J	impulse sender D >> - 19.12.2022	59906433J impulse sender D >> - 19.12.2022	-	1	Enquire
14	59906433K	impulse sender D - 19.12.2022>>	59906433K impulse sender D - 19.12.2022>>	-	1	Enquire
15	N91168701	Hexalobular flange screw	N91168701 Hexalobular flange screw M6X18	-	1	Enquire
16	7P906376	Grommet	7P906376 Grommet	-	1	Enquire
19	3F919501B	Coolant temperature sender	3F919501B Coolant temperature sender	-	1	Enquire
20	WHT005521	O-ring	WHT005521 O-ring 5,1X2,15	-	1	Enquire
21	N91096701	Oval hexagon socket head bolt	N91096701 Oval hexagon socket head bolt M6X16	-	1	Enquire
22	4L971461	Heat protection sleeve	4L971461 Heat protection sleeve Cylinder 1-6 outer	-	1	Enquire
23	7C971461A	Heat protection sleeve	7C971461A Heat protection sleeve cylinders 7-12 outer	-	1	Enquire
