High Voltage Wiring Set For Traction Motor

Bentley New Flying Spur (2020-2024)

Illustration Number: 970010

Find Your Part

Bentley New Flying Spur (2020-2024) - High voltage wiring set for traction motor (970010)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
971971013G Wire set Power and control electronics- for electric drive Enquire
971971013H Wire set Power and control electronics- for electric drive Enquire
Photo Part No Description Price (each) Stock
N10665001 Flat head multi-point socket bolt Enquire
Photo Part No Description Price (each) Stock
N10664801 Socket head collared bolt with inner multipoint head Enquire
Photo Part No Description Price (each) Stock
971971822J Cable guide Enquire
Photo Part No Description Price (each) Stock
5C0971203A seal ring also to be used for: Enquire
Photo Part No Description Price (each) Stock
7PP971203 seal ring Enquire
View All

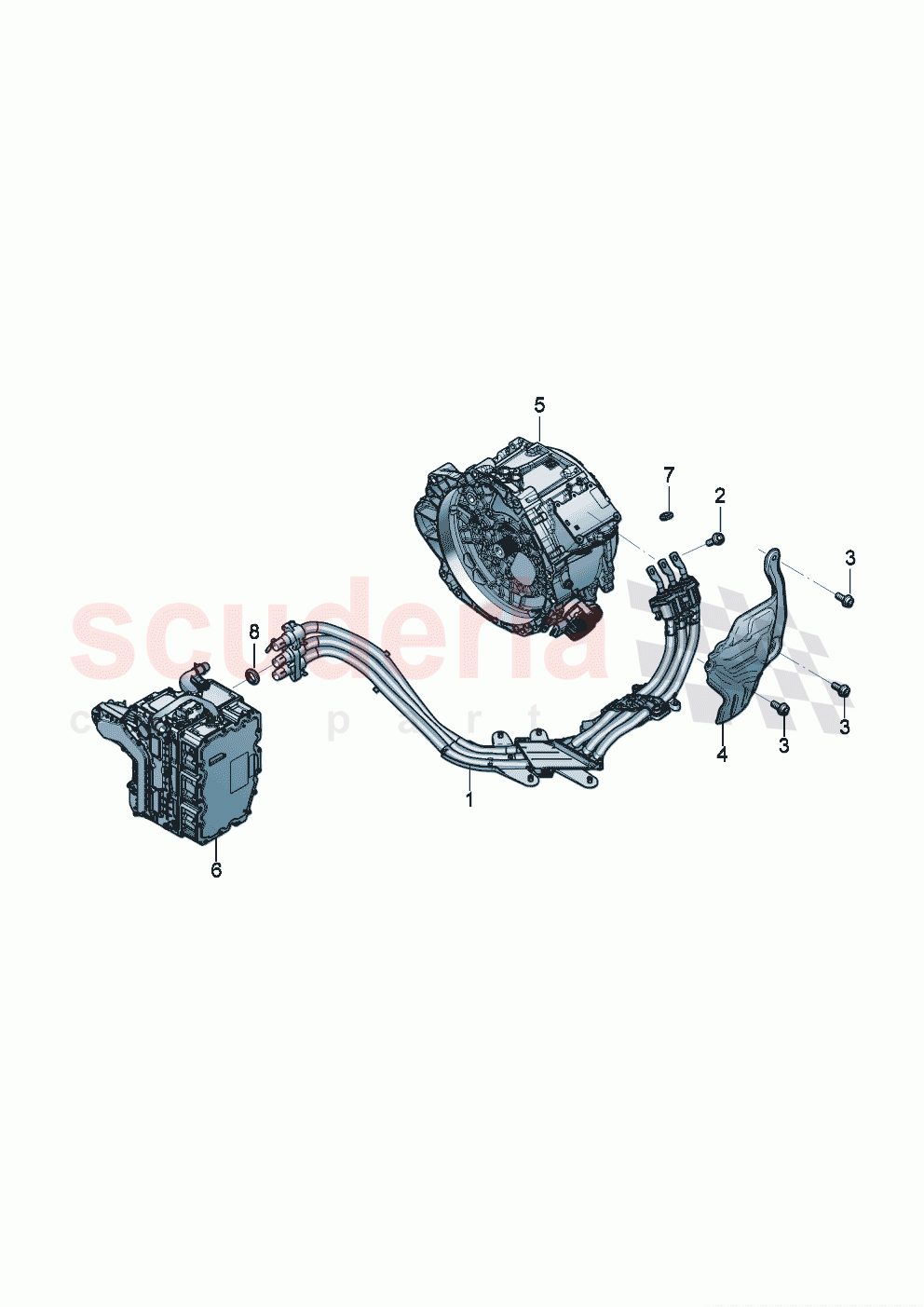

High voltage wiring set for traction motor of Bentley Bentley New Flying Spur (2020-2024) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 971971013G
Wire set Power and control electronics- for electric drive
PR:ES1,ES3 		- 1 Enquire
1 971971013H
Wire set Power and control electronics- for electric drive
PR:ES4 		- 1 Enquire
2 N10665001
Flat head multi-point socket bolt
M8X30 		- 3 Enquire
3 N10664801
Socket head collared bolt with inner multipoint head
M8X20 		- 3 Enquire
4 971971822J
Cable guide 		- 1 Enquire
7 5C0971203A
seal ring also to be used for:
green blue 		- 3 Enquire
8 7PP971203
seal ring
blue red 		- 3 Enquire
