Alternator connecting and mounting parts for alternator Poly-V-belt tensioning lever with idler pulley of Bentley Bentley New Flying Spur (2020-2024)

View All

Bentley New Flying Spur (2020-2024) - Alternator connecting and mounting parts for alternator Poly-V-belt tensioning lever with idler... (903000)

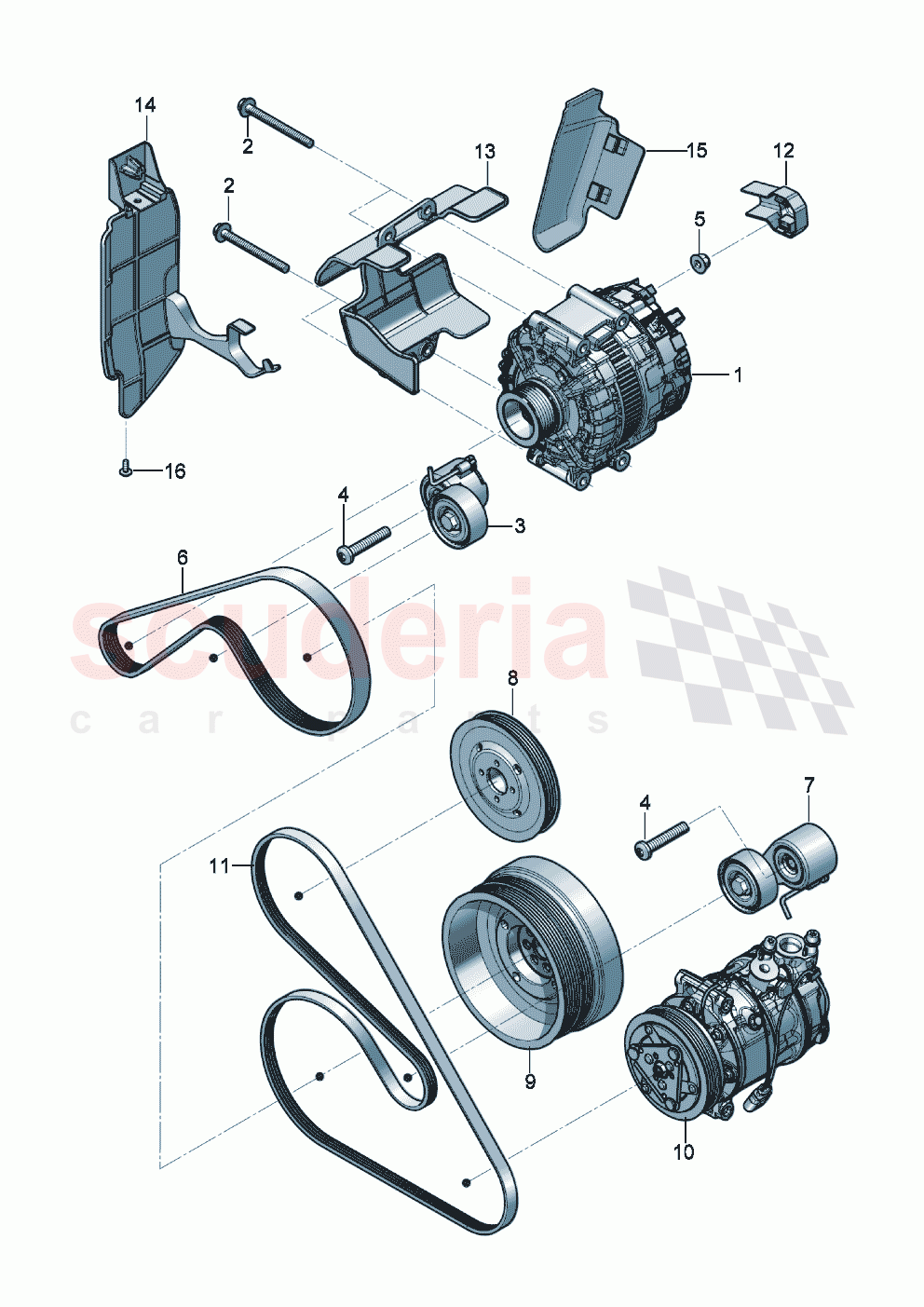

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7P903025C	Alternator D - 13.01.2020>>	Enquire
	7P903025C	Alternator D - 13.01.2020>>	Enquire
	6M903025C	Alternator D - 31.01.2020>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91204501	Hexagon bolt	Enquire
	N91204501	Hexagon bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P145299	tensioning lever with idler pulley	Enquire	IN STOCK
	P2903133A	Belt tensioner damper D >> - 15.12.2022	Enquire	IN STOCK
	P2903133B	Belt tensioner damper D - 15.12.2022>>	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91189401	Flat head multi-point socket bolt	Enquire	IN STOCK
	WHT008066	Hexalobular flange screw	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90761103	Hexagon collar nut self-locking	Enquire	IN STOCK
	WHT008035	Hexalobular flange screw	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7P145933F	Poly-V-belt for alternator	Enquire	IN STOCK
	N10435508	Collar nut	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7P145299A	tensioning lever with idler pulley	Enquire	IN STOCK
	P2903143	bracket for alternator	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10673001	Socket head bolt with inner multipoint head (Kombi)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3L260817	Centre sleeve	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	P2903137B	Poly-V-belt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7P145933H	Poly-V-belt For A/C compressor	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3SA903203	Protective cover	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3SA903445A	Splash guard	Enquire	IN STOCK
	P2260938C	Belt tensioner damper	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3SA903343A	Splash guard	Enquire	IN STOCK
	N91157202	Socket head collared bolt with inner multipoint head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3SA903344	Splash guard	Enquire	IN STOCK
	P2260849	Poly-V-belt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10632004	Hex socket oval head collared	Enquire	IN STOCK
	971804247D	Protective cap for 3-phase alternator	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N0385494	Spreader rivet	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7P903025C	Alternator D - 13.01.2020>>	7P903025C Alternator D - 13.01.2020>> 250A BOSCH	-	1	Enquire
1	7P903025C	Alternator D - 13.01.2020>>	7P903025C Alternator D - 13.01.2020>> 250A BOSCH	-	1	Enquire
1	6M903025C	Alternator D - 31.01.2020>>	6M903025C Alternator D - 31.01.2020>> 160-250A	-	1	Enquire
2	N91204501	Hexagon bolt	N91204501 Hexagon bolt M8X95	-	4	Enquire
2	N91204501	Hexagon bolt	N91204501 Hexagon bolt M8X95	-	2	Enquire
3	7P145299	tensioning lever with idler pulley IN STOCK	7P145299 tensioning lever with idler pulley side, right IN STOCK	-	1	Enquire
3	P2903133A	Belt tensioner damper D >> - 15.12.2022	P2903133A Belt tensioner damper D >> - 15.12.2022	-	1	Enquire
3	P2903133B	Belt tensioner damper D - 15.12.2022>>	P2903133B Belt tensioner damper D - 15.12.2022>>	-	1	Enquire
4	N91189401	Flat head multi-point socket bolt	N91189401 Flat head multi-point socket bolt M10X60	-	2	Enquire
4	WHT008066	Hexalobular flange screw	WHT008066 Hexalobular flange screw M8X33	-	1	Enquire
5	N90761103	Hexagon collar nut self-locking	N90761103 Hexagon collar nut self-locking M8	-	1	Enquire
5	WHT008035	Hexalobular flange screw	WHT008035 Hexalobular flange screw M8X60	-	1	Enquire

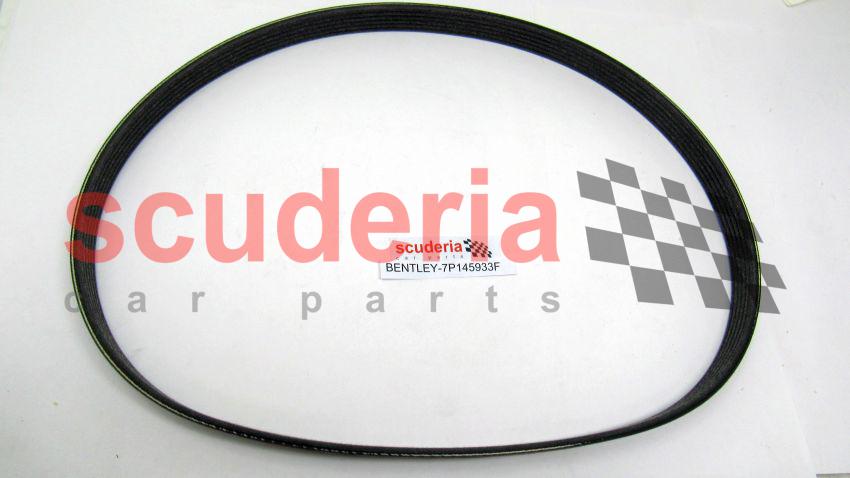

6	7P145933F	Poly-V-belt for alternator IN STOCK	7P145933F Poly-V-belt for alternator 21,36X980MM IN STOCK	-	1	Enquire
6	N10435508	Collar nut IN STOCK	N10435508 Collar nut M8 IN STOCK	-	1	Enquire
7	7P145299A	tensioning lever with idler pulley IN STOCK	7P145299A tensioning lever with idler pulley side, left IN STOCK	-	1	Enquire
7	P2903143	bracket for alternator	P2903143 bracket for alternator	-	1	Enquire
8	N10673001	Socket head bolt with inner multipoint head (Kombi)	N10673001 Socket head bolt with inner multipoint head (Kombi) M8X40	-	4	Enquire
9	3L260817	Centre sleeve	3L260817 Centre sleeve 11,15X6,5	-	2	Enquire
10	P2903137B	Poly-V-belt	P2903137B Poly-V-belt 6PK:21,36X897	-	1	Enquire
11	7P145933H	Poly-V-belt For A/C compressor IN STOCK	7P145933H Poly-V-belt For A/C compressor 14,24X1598MM IN STOCK	-	1	Enquire
12	3SA903203	Protective cover	3SA903203 Protective cover	-	1	Enquire
13	3SA903445A	Splash guard	3SA903445A Splash guard outer	-	1	Enquire
13	P2260938C	Belt tensioner damper	P2260938C Belt tensioner damper	-	1	Enquire
14	3SA903343A	Splash guard	3SA903343A Splash guard front, outer	-	1	Enquire
14	N91157202	Socket head collared bolt with inner multipoint head	N91157202 Socket head collared bolt with inner multipoint head M8X30	-	2	Enquire
15	3SA903344	Splash guard	3SA903344 Splash guard rear, outer	-	1	Enquire
15	P2260849	Poly-V-belt	P2260849 Poly-V-belt 4PK:14,24X1090	-	1	Enquire
16	N10632004	Hex socket oval head collared	N10632004 Hex socket oval head collared M6X16	-	1	Enquire
16	971804247D	Protective cap for 3-phase alternator	971804247D Protective cap for 3-phase alternator	-	1	Enquire
17	N0385494	Spreader rivet IN STOCK	N0385494 Spreader rivet A8X12 IN STOCK	-	4	Enquire
