Exhaust gas turbocharger (water-cooled) Oil pressure line Oil return line of Bentley Bentley New Continental Convertible (2019-2024)

View All

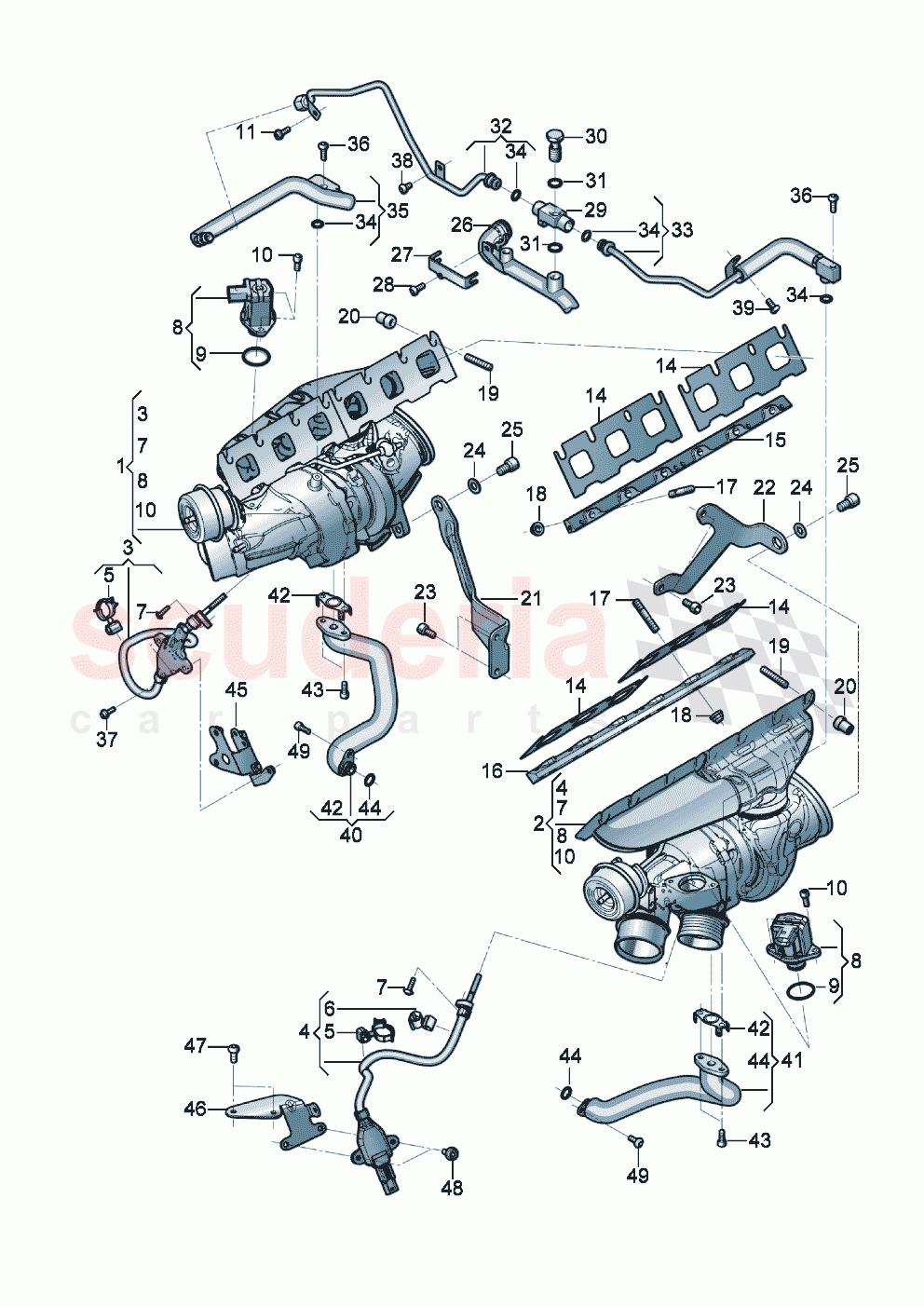

Bentley New Continental Convertible (2019-2024) - Exhaust gas turbocharger (water-cooled) Oil pressure line Oil return line (145020)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7P145701A	Exhaust gas turbocharger (water-cooled) D - 04.11.2019>>	Enquire
	7P145701A	Exhaust gas turbocharger (water-cooled) D - 04.11.2019>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P145702A	Exhaust gas turbocharger (water-cooled) D - 04.11.2019>>	Enquire
	7P145702A	Exhaust gas turbocharger (water-cooled) D - 04.11.2019>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P906341M	Speed sensor with cable See TPI D - 04.11.2019>>	Enquire
	7P906341M	Speed sensor with cable See TPI D - 04.11.2019>>	Enquire

Photo	Part No	Description	Price (each)	Stock

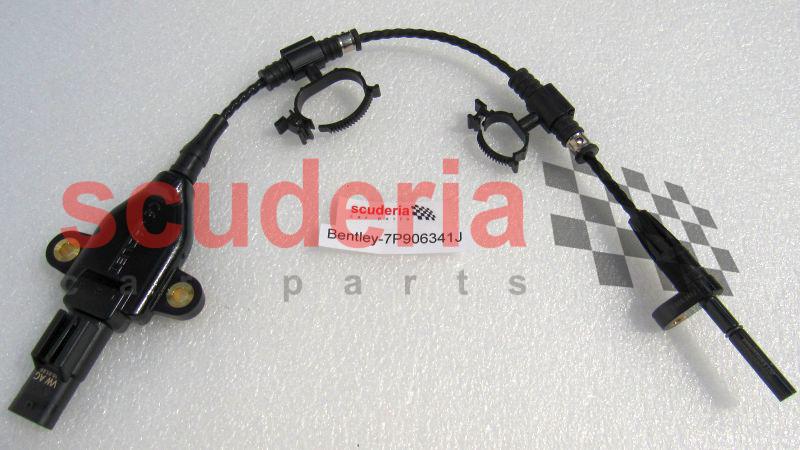

	7P906341J	Speed sensor with cable See TPI D - 04.11.2019>>	Enquire
	7P906341J	Speed sensor with cable See TPI D - 04.11.2019>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10634601	Double clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10664601	Double clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91121101	Hexalobular flange screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	3C145710E	cut-off valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10546403	Hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10405604	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P253117	Seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	3H253451B	Clamping profile	Enquire

Photo	Part No	Description	Price (each)	Stock
	3H253451B	Clamping profile	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90894601	hexagon nut, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT004982	shouldered nut with multipoint socket head	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P253499E	Support bracket (For turbocharger)	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P253499F	Support bracket (For turbocharger)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10572403	Socket head bolt with multi- point inner drive, self-lock.	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0154027	Washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91134301	Int. serration flange screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P145263D	Retaining bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10451405	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P115203H	Pipe union	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P145335B	Banjo bolt with filter	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10891801	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P145140L	oil pipe D - 03.02.2020>>	Enquire
	7P145140L	oil pipe D - 03.02.2020>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P145141H	oil pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT003366A	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P145140C	oil pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10124309	Oval hexagon socket head bolt only for position:	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10569501	Round-head screw with inner hexagon socket head	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10335206	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10405604	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P145735G	Oil return line	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P145736G	Oil return line	Enquire

Photo	Part No	Description	Price (each)	Stock
	3L145757Q	Seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10546403	Hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT008042	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P145245S	Bracket Speed sensor D - 11.03.2019>>	Enquire
	7P145245S	Bracket Speed sensor D - 11.03.2019>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10451405	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10569501	Round-head screw with inner hexagon socket head	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10405604	Oval hexagon socket head bolt	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7P145701A	Exhaust gas turbocharger (water-cooled) D - 04.11.2019>>	7P145701A Exhaust gas turbocharger (water-cooled) D - 04.11.2019>> Cylinder 1-6	-	1	Enquire
1	7P145701A	Exhaust gas turbocharger (water-cooled) D - 04.11.2019>>	7P145701A Exhaust gas turbocharger (water-cooled) D - 04.11.2019>> Cylinder 1-6	-	1	Enquire
2	7P145702A	Exhaust gas turbocharger (water-cooled) D - 04.11.2019>>	7P145702A Exhaust gas turbocharger (water-cooled) D - 04.11.2019>> cylinders 7-12	-	1	Enquire
2	7P145702A	Exhaust gas turbocharger (water-cooled) D - 04.11.2019>>	7P145702A Exhaust gas turbocharger (water-cooled) D - 04.11.2019>> cylinders 7-12	-	1	Enquire
3	7P906341M	Speed sensor with cable See TPI D - 04.11.2019>>	7P906341M Speed sensor with cable See TPI D - 04.11.2019>> Cylinder 1-6 2053348/-	-	1	Enquire
3	7P906341M	Speed sensor with cable See TPI D - 04.11.2019>>	7P906341M Speed sensor with cable See TPI D - 04.11.2019>> Cylinder 1-6 2053348/-	-	1	Enquire
4	7P906341J	Speed sensor with cable See TPI D - 04.11.2019>>	7P906341J Speed sensor with cable See TPI D - 04.11.2019>> cylinders 7-12 2053348/-	-	1	Enquire
4	7P906341J	Speed sensor with cable See TPI D - 04.11.2019>>	7P906341J Speed sensor with cable See TPI D - 04.11.2019>> cylinders 7-12 2053348/-	-	1	Enquire
5	N10634601	Double clip	N10634601 Double clip 16-7.5	-	2	Enquire
6	N10664601	Double clip	N10664601 Double clip 7,5-10	-	1	Enquire
7	N91121101	Hexalobular flange screw	N91121101 Hexalobular flange screw M4X16	-	2	Enquire
8	3C145710E	cut-off valve	3C145710E cut-off valve	-	2	Enquire
10	N10546403	Hexagon socket head bolt	N10546403 Hexagon socket head bolt M6X16	-	4	Enquire
11	N10405604	Oval hexagon socket head bolt	N10405604 Oval hexagon socket head bolt M6X14	-	1	Enquire
14	7P253117	Seal	7P253117 Seal left a. right front and rear	-	4	Enquire
15	3H253451B	Clamping profile	3H253451B Clamping profile Cylinder 1-6	-	1	Enquire
16	3H253451B	Clamping profile	3H253451B Clamping profile cylinders 7-12	-	1	Enquire
18	N90894601	hexagon nut, self-locking	N90894601 hexagon nut, self-locking M8 lower	-	12	Enquire
20	WHT004982	shouldered nut with multipoint socket head	WHT004982 shouldered nut with multipoint socket head M8 upper	-	16	Enquire
21	7P253499E	Support bracket (For turbocharger)	7P253499E Support bracket (For turbocharger) Cylinder 1-6	-	1	Enquire
22	7P253499F	Support bracket (For turbocharger)	7P253499F Support bracket (For turbocharger) cylinders 7-12	-	1	Enquire
23	N10572403	Socket head bolt with multi- point inner drive, self-lock.	N10572403 Socket head bolt with multi- point inner drive, self-lock. M8X16	-	4	Enquire
24	N0154027	Washer	N0154027 Washer 10,5X25X4	-	2	Enquire
25	N91134301	Int. serration flange screw	N91134301 Int. serration flange screw M10X20	-	2	Enquire
27	7P145263D	Retaining bracket	7P145263D Retaining bracket	-	1	Enquire
28	N10451405	Oval hexagon socket head bolt	N10451405 Oval hexagon socket head bolt M6X16	-	1	Enquire
29	7P115203H	Pipe union	7P115203H Pipe union	-	1	Enquire
30	7P145335B	Banjo bolt with filter	7P145335B Banjo bolt with filter M14X1,5	-	1	Enquire
31	N10891801	seal ring	N10891801 seal ring D14X18	-	2	Enquire
32	7P145140L	oil pipe D - 03.02.2020>>	7P145140L oil pipe D - 03.02.2020>> feed Cylinder 1-6	-	1	Enquire
32	7P145140L	oil pipe D - 03.02.2020>>	7P145140L oil pipe D - 03.02.2020>> feed Cylinder 1-6	-	1	Enquire
33	7P145141H	oil pipe	7P145141H oil pipe feed cylinders 7-12	-	1	Enquire
34	WHT003366A	O-ring	WHT003366A O-ring 10X2,5	-	4	Enquire
35	7P145140C	oil pipe	7P145140C oil pipe feed Cylinder 1-6	-	1	Enquire
36	N10124309	Oval hexagon socket head bolt only for position:	N10124309 Oval hexagon socket head bolt only for position: M6X20	-	2	Enquire
37	N10569501	Round-head screw with inner hexagon socket head	N10569501 Round-head screw with inner hexagon socket head M5 X 16	-	2	Enquire
38	N10335206	Hexagon socket flat head bolt	N10335206 Hexagon socket flat head bolt M6X12	-	1	Enquire
39	N10405604	Oval hexagon socket head bolt	N10405604 Oval hexagon socket head bolt M6X14	-	1	Enquire
40	7P145735G	Oil return line	7P145735G Oil return line Cylinder 1-6	-	1	Enquire
41	7P145736G	Oil return line	7P145736G Oil return line cylinders 7-12	-	1	Enquire
42	3L145757Q	Seal	3L145757Q Seal	-	2	Enquire
43	N10546403	Hexagon socket head bolt	N10546403 Hexagon socket head bolt M6X16	-	4	Enquire
44	WHT008042	O-ring	WHT008042 O-ring 12X2,5	-	2	Enquire
46	7P145245S	Bracket Speed sensor D - 11.03.2019>>	7P145245S Bracket Speed sensor D - 11.03.2019>> cylinders 7-12	-	1	Enquire
46	7P145245S	Bracket Speed sensor D - 11.03.2019>>	7P145245S Bracket Speed sensor D - 11.03.2019>> cylinders 7-12	-	1	Enquire
47	N10451405	Oval hexagon socket head bolt	N10451405 Oval hexagon socket head bolt M6X16	-	2	Enquire
48	N10569501	Round-head screw with inner hexagon socket head	N10569501 Round-head screw with inner hexagon socket head M5X16	-	2	Enquire
49	N10405604	Oval hexagon socket head bolt	N10405604 Oval hexagon socket head bolt M6X14	-	2	Enquire
