Engine oil sump upper part oil sump - lower part with opening for oil level sensor oil level sensor of Bentley Bentley New Continental Convertible (2019-2024)

View All

Bentley New Continental Convertible (2019-2024) - Engine oil sump upper part oil sump - lower part with opening for oil level sensor oil level sensor (103010)

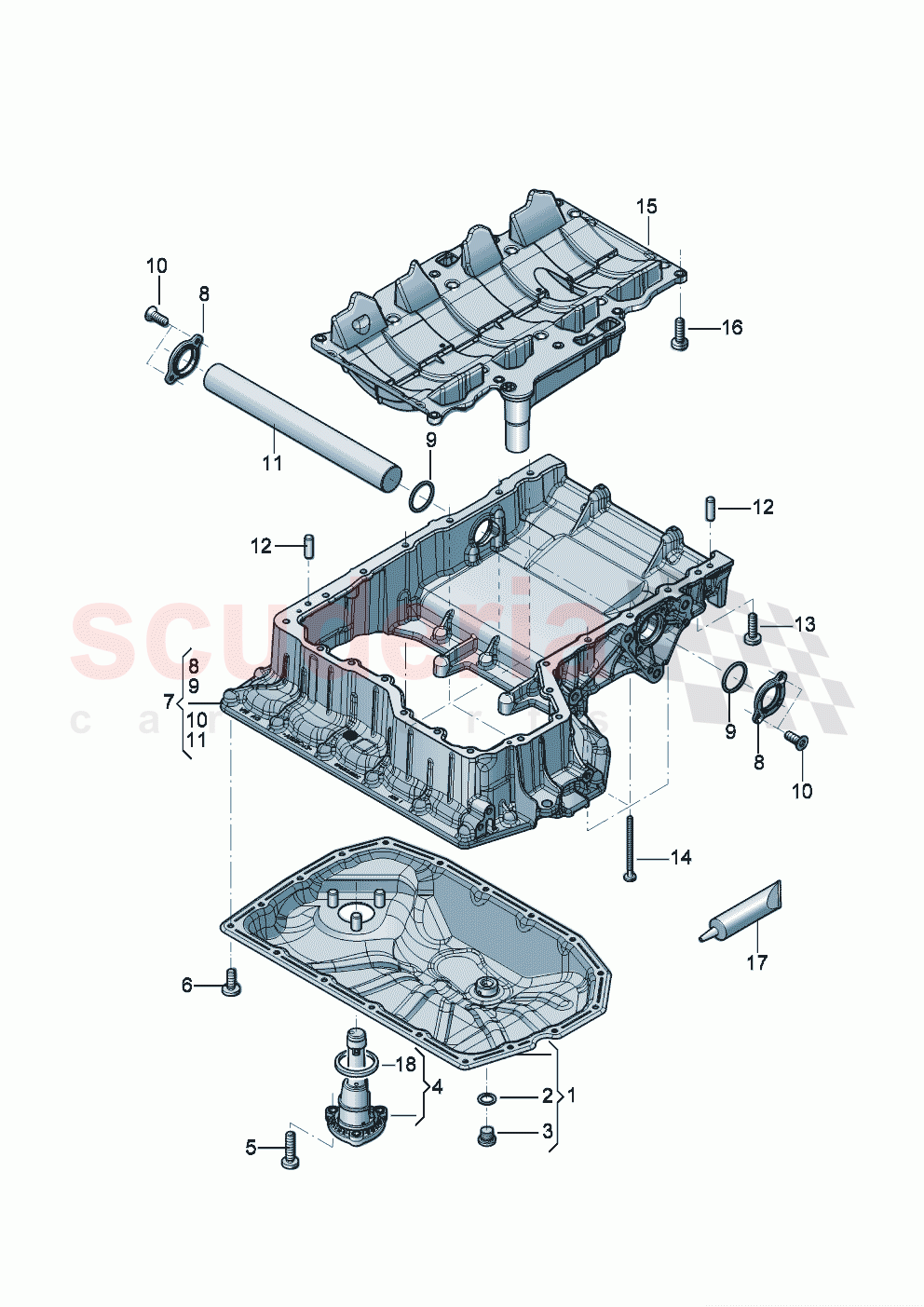

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	P2103602B	oil sump with opening for oil level sensor	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0138498	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91167901	sealing plug	Enquire

Photo	Part No	Description	Price (each)	Stock
	79907660A	oil level sensor D >> - 25.01.2024	Enquire
	6M907637B	oil level sensor D - 25.01.2024>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10413405	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91126601	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	P2103803C	Engine oil sump upper part D >> - 03.12.2020	Enquire
	P2103803D	Engine oil sump upper part D - 03.12.2020>> - 25.11.2022	Enquire
	P2103803E	Engine oil sump upper part D - 25.11.2022>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	6M103708D	Cover	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90713203	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10448506	countersunk bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	6M103689D	Tube	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10693001	Cylinder pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10124306	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91131001	Hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	P2115289A	Surge lock	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10124306	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	D176501A1	Silicon sealant	Enquire

Photo	Part No	Description	Price (each)	Stock
	38103196C	seal ring	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	P2103602B	oil sump with opening for oil level sensor	P2103602B oil sump with opening for oil level sensor	-	1	Enquire
2	N0138498	seal ring	N0138498 seal ring A14X20	-	1	Enquire
3	N91167901	sealing plug	N91167901 sealing plug M14X1,5	-	1	Enquire
4	79907660A	oil level sensor D >> - 25.01.2024	79907660A oil level sensor D >> - 25.01.2024	-	1	Enquire
4	6M907637B	oil level sensor D - 25.01.2024>>	6M907637B oil level sensor D - 25.01.2024>>	-	1	Enquire
5	N10413405	Hexagon socket flat head bolt	N10413405 Hexagon socket flat head bolt M6X25	-	3	Enquire
6	N91126601	Oval hexagon socket head bolt	N91126601 Oval hexagon socket head bolt M6X16	-	18	Enquire
7	P2103803C	Engine oil sump upper part D >> - 03.12.2020	P2103803C Engine oil sump upper part D >> - 03.12.2020	-	1	Enquire
7	P2103803D	Engine oil sump upper part D - 03.12.2020>> - 25.11.2022	P2103803D Engine oil sump upper part D - 03.12.2020>> - 25.11.2022	-	1	Enquire
7	P2103803E	Engine oil sump upper part D - 25.11.2022>>	P2103803E Engine oil sump upper part D - 25.11.2022>>	-	1	Enquire
8	6M103708D	Cover	6M103708D Cover	-	2	Enquire
9	N90713203	O-ring	N90713203 O-ring 31X3	-	2	Enquire
10	N10448506	countersunk bolt	N10448506 countersunk bolt M6X16	-	4	Enquire
11	6M103689D	Tube	6M103689D Tube	-	1	Enquire
12	N10693001	Cylinder pin	N10693001 Cylinder pin 6X18	-	2	Enquire
13	N10124306	Hexagon socket flat head bolt	N10124306 Hexagon socket flat head bolt M6X20	-	14	Enquire
14	N91131001	Hexagon socket head bolt	N91131001 Hexagon socket head bolt M6X80X70	-	7	Enquire
15	P2115289A	Surge lock	P2115289A Surge lock	-	1	Enquire
16	N10124306	Hexagon socket flat head bolt	N10124306 Hexagon socket flat head bolt M6X20	-	10	Enquire
17	D176501A1	Silicon sealant	D176501A1 Silicon sealant 50ml	-	-	Enquire
18	38103196C	seal ring	38103196C seal ring	-	1	Enquire
