Crankcase housing Sealing flange Engine oil sump upper part Engine oil sump lower part with oil level sensor of Bentley Bentley New Continental Convertible (2019-2024)

View All

Bentley New Continental Convertible (2019-2024) - Crankcase housing Sealing flange Engine oil sump upper part Engine oil sump lower part with oil... (103000)

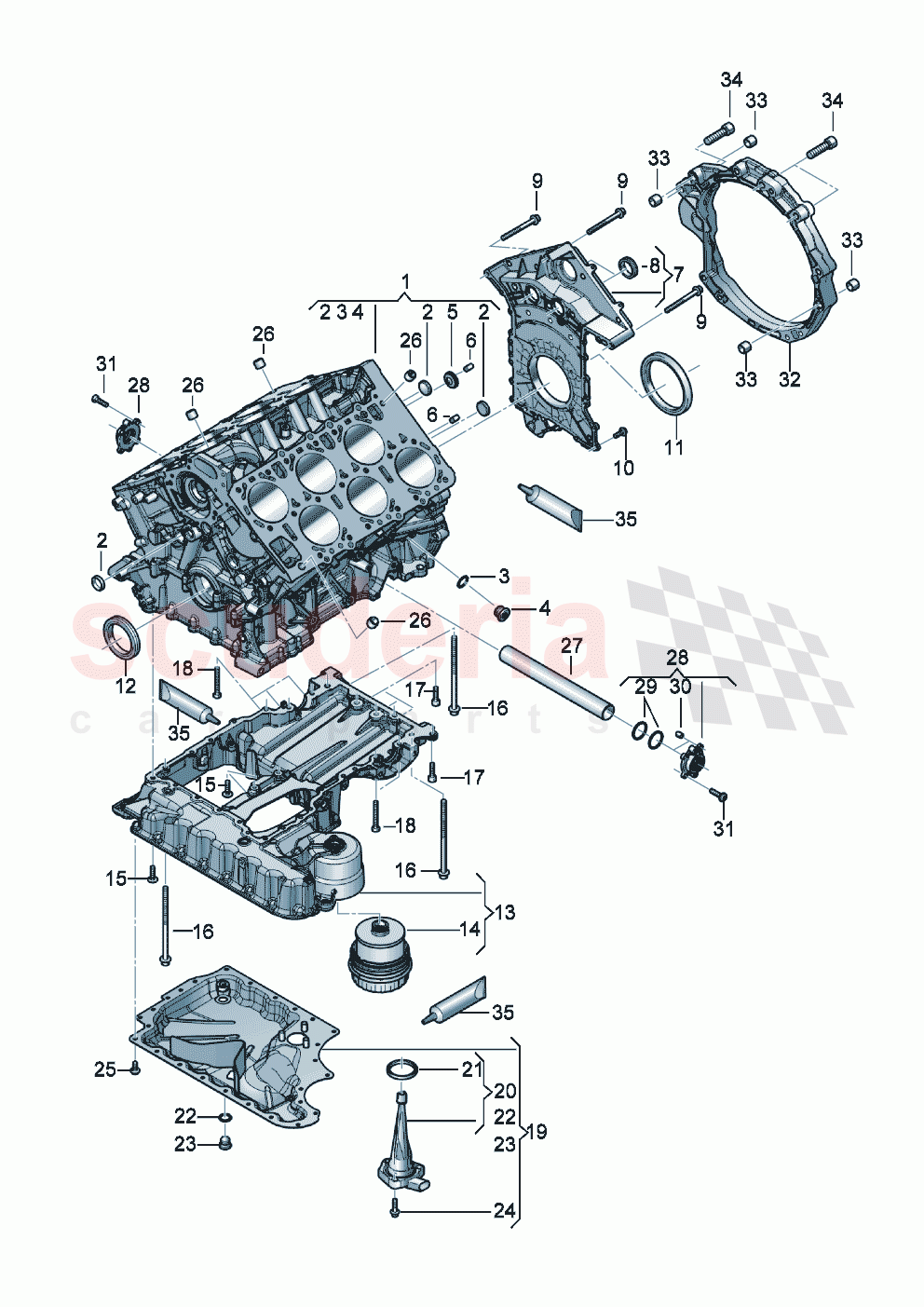

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	N0119149	End cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0138321	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91196501	sealing plug	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C103381D	sealing plug	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0131911	Cylinder pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P103171H	Sealing flange also use: D - 21.05.2018>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P109091C	Seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91165101	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91168701	Hexalobular flange screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	21103051C	shaft oil seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P103085A	Shaft oil seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P103803AE	Engine oil sump upper part also use: D - 26.03.2018>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10644404	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10627901	Socket head bolt with inner multipoint head (Kombi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91021502	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10562603	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P103800J	Engine oil sump lower part with oil level sensor use only in conjunction with: also use: D - 07.12.2018>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P907660	oil level sensor	Enquire

Photo	Part No	Description	Price (each)	Stock
	38103196B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0138157	seal ring use only in conjunction with: D - 07.12.2018>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91167901	sealing plug	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91180401	Hexalobular flange screw to be used for item:	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91126102	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90502601	dowel sleeve	Enquire

Photo	Part No	Description	Price (each)	Stock
	6M103689D	Tube	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P103191A	Cover with seal also use:	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90713203	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91020801	dowel sleeve	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10700201	Hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P103551A	Intermediate plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	22103139B	dowel sleeve	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10624601	Socket head bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	D176501A1	Silicon sealant	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	N0119149	End cap	N0119149 End cap D=24MM	-	5	Enquire
3	N0138321	seal ring	N0138321 seal ring 18X22 ALU	-	1	Enquire
4	N91196501	sealing plug	N91196501 sealing plug M18X1,5	-	1	Enquire
5	7C103381D	sealing plug	7C103381D sealing plug	-	1	Enquire
6	N0131911	Cylinder pin	N0131911 Cylinder pin 8X14,5	-	2	Enquire
7	7P103171H	Sealing flange also use: D - 21.05.2018>>	7P103171H Sealing flange also use: D - 21.05.2018>> lower rear D 176 501 A1	-	11	Enquire
8	7P109091C	Seal	7P109091C Seal	-	2	Enquire
9	N91165101	Hexagon socket flat head bolt	N91165101 Hexagon socket flat head bolt M6X70	-	3	Enquire
10	N91168701	Hexalobular flange screw	N91168701 Hexalobular flange screw M6X18	-	19	Enquire
11	21103051C	shaft oil seal	21103051C shaft oil seal rear	-	1	Enquire
12	7P103085A	Shaft oil seal	7P103085A Shaft oil seal 58X70X7	-	1	Enquire
13	7P103803AE	Engine oil sump upper part also use: D - 26.03.2018>>	7P103803AE Engine oil sump upper part also use: D - 26.03.2018>> D 176 501 A1	-	11	Enquire
15	N10644404	Hexagon socket flat head bolt	N10644404 Hexagon socket flat head bolt M6X22	-	18	Enquire
16	N10627901	Socket head bolt with inner multipoint head (Kombi)	N10627901 Socket head bolt with inner multipoint head (Kombi) M8X138,4	-	3	Enquire
17	N91021502	round hd. screw	N91021502 round hd. screw M8X25	-	5	Enquire
18	N10562603	round hd. screw	N10562603 round hd. screw M6X60	-	5	Enquire
19	7P103800J	Engine oil sump lower part with oil level sensor use only in conjunction with: also use: D - 07.12.2018>>	7P103800J Engine oil sump lower part with oil level sensor use only in conjunction with: also use: D - 07.12.2018>> D 176 501 A1	-	11	Enquire
20	7P907660	oil level sensor	7P907660 oil level sensor	-	1	Enquire
21	38103196B	seal ring	38103196B seal ring	-	1	Enquire
22	N0138157	seal ring use only in conjunction with: D - 07.12.2018>>	N0138157 seal ring use only in conjunction with: D - 07.12.2018>> 14X20X2	-	1	Enquire
23	N91167901	sealing plug	N91167901 sealing plug M14X1,5	-	1	Enquire
24	N91180401	Hexalobular flange screw to be used for item:	N91180401 Hexalobular flange screw to be used for item: M6X22	-	3	Enquire
25	N91126102	Hexagon socket flat head bolt	N91126102 Hexagon socket flat head bolt M6X14	-	26	Enquire
26	N90502601	dowel sleeve	N90502601 dowel sleeve 14X12	-	4	Enquire
27	6M103689D	Tube	6M103689D Tube	-	1	Enquire
28	7P103191A	Cover with seal also use:	7P103191A Cover with seal also use: D 176 501 A1	-	21	Enquire
29	N90713203	O-ring	N90713203 O-ring 31X3	-	4	Enquire
30	N91020801	dowel sleeve	N91020801 dowel sleeve	-	4	Enquire
31	N10700201	Hexagon socket head bolt	N10700201 Hexagon socket head bolt M6X22	-	8	Enquire
32	7P103551A	Intermediate plate	7P103551A Intermediate plate	-	1	Enquire
33	22103139B	dowel sleeve	22103139B dowel sleeve 16X13,5	-	4	Enquire
34	N10624601	Socket head bolt with inner multipoint head	N10624601 Socket head bolt with inner multipoint head M12X45	-	3	Enquire
35	D176501A1	Silicon sealant	D176501A1 Silicon sealant 50ml	-	-	Enquire
