exhaust pipe with catalyst, exhaust pipe of Bentley Bentley Mulsanne (2010+)

View All

Bentley Mulsanne (2010+) - exhaust pipe with catalyst, exhaust pipe

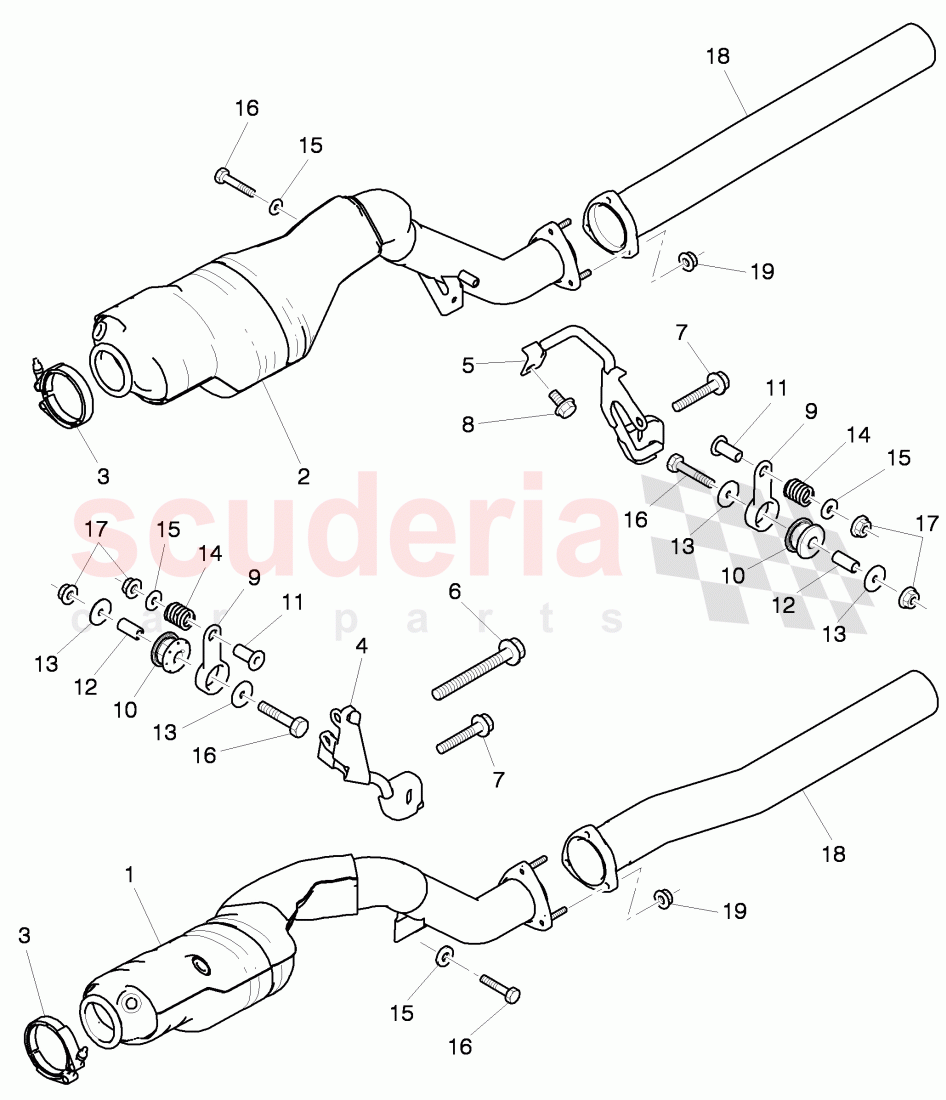

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7V131703	exhaust pipe with catalyst	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V131703B	exhaust pipe with catalyst	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002765	clamp, (Connection flange >, turbocharger)	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V131121D	bracket, catalyst	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V131121C	bracket, catalyst	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10650502	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10468402	bolt, hex. hd. with shoulder	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002751	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V131233	bracket, catalyst	Enquire

Photo	Part No	Description	Price (each)	Stock
	3B0253149	rubber bush	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V131135	sleeve	Enquire

Photo	Part No	Description	Price (each)	Stock
	857253205A	spacer tube, D >> - 07.09.2015	Enquire

Photo	Part No	Description	Price (each)	Stock
	N01167026	Washer	Enquire
	4B0253205D	spacer tube, D - 07.09.2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V131353	spring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N01167026	Washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0403016	screw, hex. hd., D >> - 11.12.2006	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90289105	hexagon nut, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0253173A	exhaust pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT003511	hexagon nut	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7V131703	exhaust pipe with catalyst	7V131703 exhaust pipe with catalyst cylinders 5-8,	-	1	Enquire
2	7V131703B	exhaust pipe with catalyst	7V131703B exhaust pipe with catalyst cylinders 1-4,	-	1	Enquire
3	WHT002765	clamp, (Connection flange >, turbocharger)	WHT002765 clamp, (Connection flange >, turbocharger)	-	2	Enquire
4	7V131121D	bracket, catalyst	7V131121D bracket, catalyst cylinders 5-8,	-	1	Enquire
5	7V131121C	bracket, catalyst	7V131121C bracket, catalyst cylinders 1-4,	-	1	Enquire
6	N10650502	bolt	N10650502 bolt M10X105X90,	-	2	Enquire
7	N10468402	bolt, hex. hd. with shoulder	N10468402 bolt, hex. hd. with shoulder M10X55,	-	2	Enquire
8	WHT002751	bolt	WHT002751 bolt M6X10,	-	1	Enquire
9	7V131233	bracket, catalyst	7V131233 bracket, catalyst	-	2	Enquire
10	3B0253149	rubber bush	3B0253149 rubber bush	-	2	Enquire
11	7V131135	sleeve	7V131135 sleeve	-	2	Enquire
12	857253205A	spacer tube, D >> - 07.09.2015	857253205A spacer tube, D >> - 07.09.2015	-	2	Enquire
13	N01167026	Washer	N01167026 Washer	-	4	Enquire
13	4B0253205D	spacer tube, D - 07.09.2015>>	4B0253205D spacer tube, D - 07.09.2015>>	-	4	Enquire
14	7V131353	spring	7V131353 spring	-	2	Enquire
15	N01167026	Washer	N01167026 Washer	-	4	Enquire
16	N0403016	screw, hex. hd., D >> - 11.12.2006	N0403016 screw, hex. hd., D >> - 11.12.2006	-	4	Enquire
17	N90289105	hexagon nut, self-locking	N90289105 hexagon nut, self-locking	-	4	Enquire
18	3Y0253173A	exhaust pipe	3Y0253173A exhaust pipe	-	2	Enquire
19	WHT003511	hexagon nut	WHT003511 hexagon nut M8,	-	6	Enquire
