fuel pump of Bentley Bentley Mulsanne (2010+)

View All

Bentley Mulsanne (2010+) - fuel pump

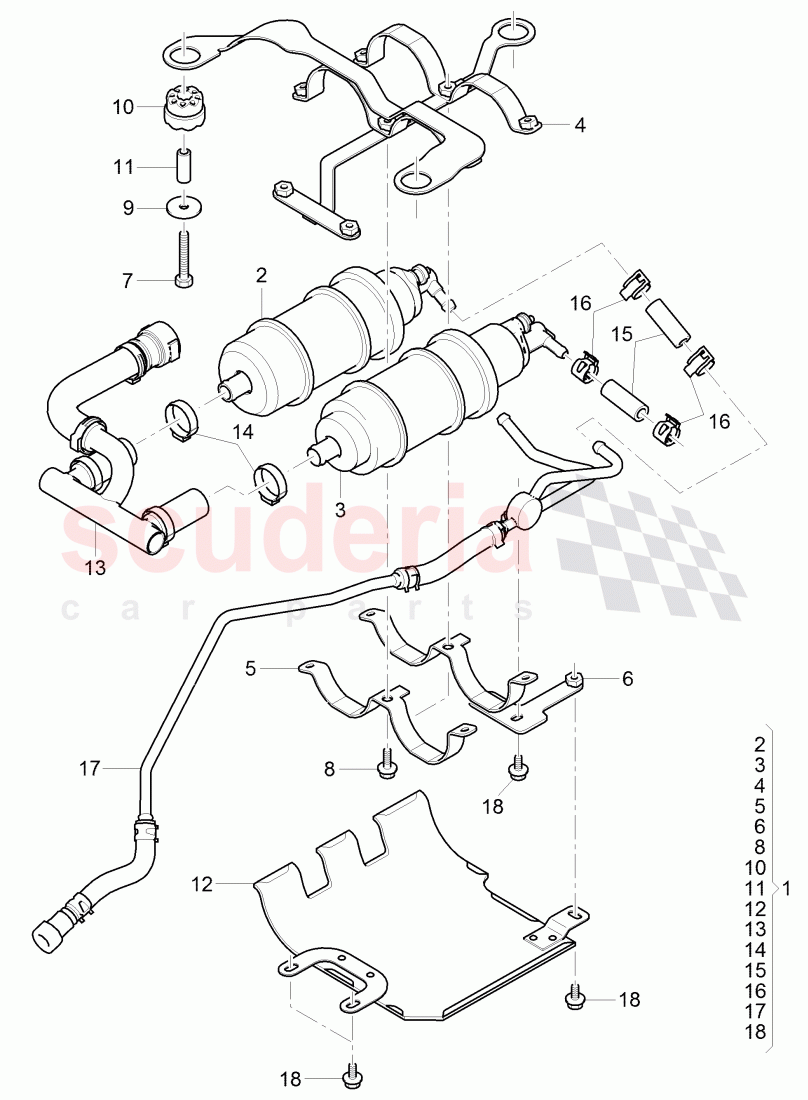

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3Y0201758F	Fuel pump with insulation, and bracket, D - 22.04.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0201037	fuel pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0201037A	fuel pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Z0201809	bracket for fuel pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Z0201827	bracket for fuel pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Z0201898	bracket for fuel pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT003594	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10338302	set screw, D - 11.12.2006>>	Enquire
	WHT002759	Hexagon flange screw, D - 22.04.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90225901	Washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Z0253365	mounting for pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Z0201048	spacer bushing	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Z0201283	pump cover	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Z0201222	fuel pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10418001	clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Z0203537	fuel hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90686701	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0201224C	fuel pipe from filter to, pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10338302	set screw, D - 11.12.2006>>	Enquire
	WHT002728	bolt, D - 22.04.2013>>	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3Y0201758F	Fuel pump with insulation, and bracket, D - 22.04.2013>>	3Y0201758F Fuel pump with insulation, and bracket, D - 22.04.2013>>	-	1	Enquire
2	3Y0201037	fuel pump	3Y0201037 fuel pump NUMBER.1,	-	1	Enquire
3	3Y0201037A	fuel pump	3Y0201037A fuel pump NUMBER.2,	-	1	Enquire
4	3Z0201809	bracket for fuel pump	3Z0201809 bracket for fuel pump upper,	-	1	Enquire
5	3Z0201827	bracket for fuel pump	3Z0201827 bracket for fuel pump front, lower,	-	1	Enquire
6	3Z0201898	bracket for fuel pump	3Z0201898 bracket for fuel pump rear, lower,	-	1	Enquire
7	WHT003594	bolt	WHT003594 bolt M6X35,	-	3	Enquire
8	N10338302	set screw, D - 11.12.2006>>	N10338302 set screw, D - 11.12.2006>> M5X12,	-	6	Enquire
8	WHT002759	Hexagon flange screw, D - 22.04.2013>>	WHT002759 Hexagon flange screw, D - 22.04.2013>> M5X16,	-	6	Enquire
9	N90225901	Washer	N90225901 Washer	-	3	Enquire
10	3Z0253365	mounting for pump	3Z0253365 mounting for pump	-	3	Enquire
11	3Z0201048	spacer bushing	3Z0201048 spacer bushing	-	3	Enquire
12	3Z0201283	pump cover	3Z0201283 pump cover	-	1	Enquire
13	3Z0201222	fuel pipe	3Z0201222 fuel pipe	-	1	Enquire
14	N10418001	clamp	N10418001 clamp	-	2	Enquire
15	3Z0203537	fuel hose	3Z0203537 fuel hose	-	2	Enquire
16	N90686701	Spring band clamp	N90686701 Spring band clamp	-	4	Enquire
17	3Y0201224C	fuel pipe from filter to, pump	3Y0201224C fuel pipe from filter to, pump	-	1	Enquire
18	N10338302	set screw, D - 11.12.2006>>	N10338302 set screw, D - 11.12.2006>> M5X12,	-	4	Enquire
18	WHT002728	bolt, D - 22.04.2013>>	WHT002728 bolt, D - 22.04.2013>> M5X10,	-	4	Enquire
