fuel tank with attached parts, strainer, Sealing flange with fuel, level sensor, F >> 3Y-B-015 862, F >> ZH-B-015 862 of Bentley Bentley Mulsanne (2010+)

View All

Bentley Mulsanne (2010+) - fuel tank with attached parts, strainer, Sealing flange with fuel, level sensor, F >> 3Y-B-015 862,...

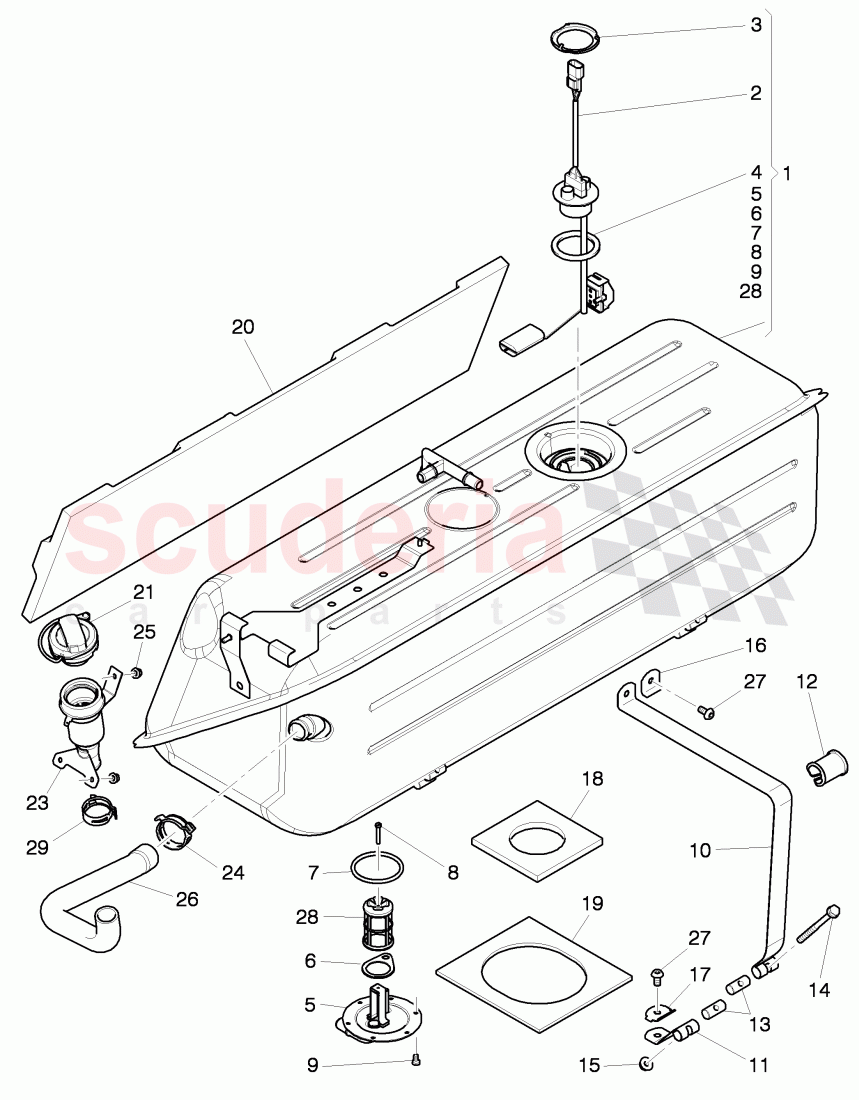

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3Y0201021L	fuel tank, D - 18.01.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0201065	Transmitter unit for fuel, gauge	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Z0201099	crown bracing	Enquire

Photo	Part No	Description	Price (each)	Stock
	UE70476	RING SEALING SENDER UNIT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Y0201194C	flange, fuel tank, D - 13.10.2014>>	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Z0201119	gasket	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT003513	seal ring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT003501	screw, cheese hd.	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N0102258	screw, hex. hd.	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Z0201313A	retaining strap, fuel tank	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Z0201653A	retaining strap, fuel tank	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Z0201656	insulating piece, retaining strap, fuel tank	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Z0201341	pipe	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10414502	hexagon head bolt (combi)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N02300212	hex. nut, self-locking, F >> 3Y-C-016 742, F >> ZH-C-016 742	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Z0201681	support bracket safety belt fuel tank	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Z0201176	support bracket safety belt fuel tank	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Z0201196	seal strip, (self-adhesive)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Z0201446	seal strip, (self-adhesive)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Y0201538A	damping washer, (self-adhesive), fuel tank, D - 04.04.2011>>	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Y0201550N	cap with retaining strap for, fuel tank, D - 18.04.2016>>	Enquire	IN STOCK
	3Y0201550P	cap with retaining strap for, fuel tank, D - 18.04.2016>>	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Y5201133	fuel filler neck	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7L145917	hose clip	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Y5201609B	hose fuel filler neck	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT003770	bolt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Z0201511	fuel filter with flange	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90687101	spring band clamp	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3Y0201021L	fuel tank, D - 18.01.2016>>	3Y0201021L fuel tank, D - 18.01.2016>>	-	1	Enquire
2	3Y0201065	Transmitter unit for fuel, gauge	3Y0201065 Transmitter unit for fuel, gauge	-	1	Enquire
3	3Z0201099	crown bracing	3Z0201099 crown bracing	-	1	Enquire
4	UE70476	RING SEALING SENDER UNIT IN STOCK	UE70476 RING SEALING SENDER UNIT IN STOCK	-	1	Enquire
5	3Y0201194C	flange, fuel tank, D - 13.10.2014>>	3Y0201194C flange, fuel tank, D - 13.10.2014>> supply/return,	-	1	Enquire
6	3Z0201119	gasket	3Z0201119 gasket	-	1	Enquire
7	WHT003513	seal ring	WHT003513 seal ring 62,	-	1	Enquire
8	WHT003501	screw, cheese hd.	WHT003501 screw, cheese hd. M3X20,	-	1	Enquire
9	N0102258	screw, hex. hd.	N0102258 screw, hex. hd. M5X8,	-	6	Enquire
10	3Z0201313A	retaining strap, fuel tank	3Z0201313A retaining strap, fuel tank upper,	-	2	Enquire
11	3Z0201653A	retaining strap, fuel tank	3Z0201653A retaining strap, fuel tank lower,	-	2	Enquire
12	3Z0201656	insulating piece, retaining strap, fuel tank	3Z0201656 insulating piece, retaining strap, fuel tank	-	2	Enquire
13	3Z0201341	pipe	3Z0201341 pipe	-	4	Enquire
14	N10414502	hexagon head bolt (combi)	N10414502 hexagon head bolt (combi) M6X75,	-	2	Enquire
15	N02300212	hex. nut, self-locking, F >> 3Y-C-016 742, F >> ZH-C-016 742	N02300212 hex. nut, self-locking, F >> 3Y-C-016 742, F >> ZH-C-016 742 M6,	-	2	Enquire
16	3Z0201681	support bracket safety belt fuel tank	3Z0201681 support bracket safety belt fuel tank upper,	-	2	Enquire
17	3Z0201176	support bracket safety belt fuel tank	3Z0201176 support bracket safety belt fuel tank lower,	-	2	Enquire
18	3Z0201196	seal strip, (self-adhesive)	3Z0201196 seal strip, (self-adhesive)	-	1	Enquire
19	3Z0201446	seal strip, (self-adhesive)	3Z0201446 seal strip, (self-adhesive)	-	1	Enquire
20	3Y0201538A	damping washer, (self-adhesive), fuel tank, D - 04.04.2011>>	3Y0201538A damping washer, (self-adhesive), fuel tank, D - 04.04.2011>>	-	1	Enquire
21	3Y0201550N	cap with retaining strap for, fuel tank, D - 18.04.2016>>	3Y0201550N cap with retaining strap for, fuel tank, D - 18.04.2016>> Standard, PR-2W3	-	1	Enquire
21	3Y0201550P	cap with retaining strap for, fuel tank, D - 18.04.2016>>	3Y0201550P cap with retaining strap for, fuel tank, D - 18.04.2016>> MULLINER, PR-2W0	-	1	Enquire
23	3Y5201133	fuel filler neck	3Y5201133 fuel filler neck	-	1	Enquire
24	7L145917	hose clip	7L145917 hose clip 36,	-	1	Enquire
25	N90215805	shouldered hex. nut, Discont./New add.+FULU calc. IN STOCK	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6, IN STOCK	-	3	Enquire
26	3Y5201609B	hose fuel filler neck	3Y5201609B hose fuel filler neck	-	1	Enquire
27	WHT003770	bolt	WHT003770 bolt M8X1,25X16,	-	4	Enquire
28	3Z0201511	fuel filter with flange	3Z0201511 fuel filter with flange	-	1	Enquire
29	N90687101	spring band clamp	N90687101 spring band clamp 32X12,	-	1	Enquire
