Bentley Continental GTC (2011+) - fender, D >> - MJ 2015

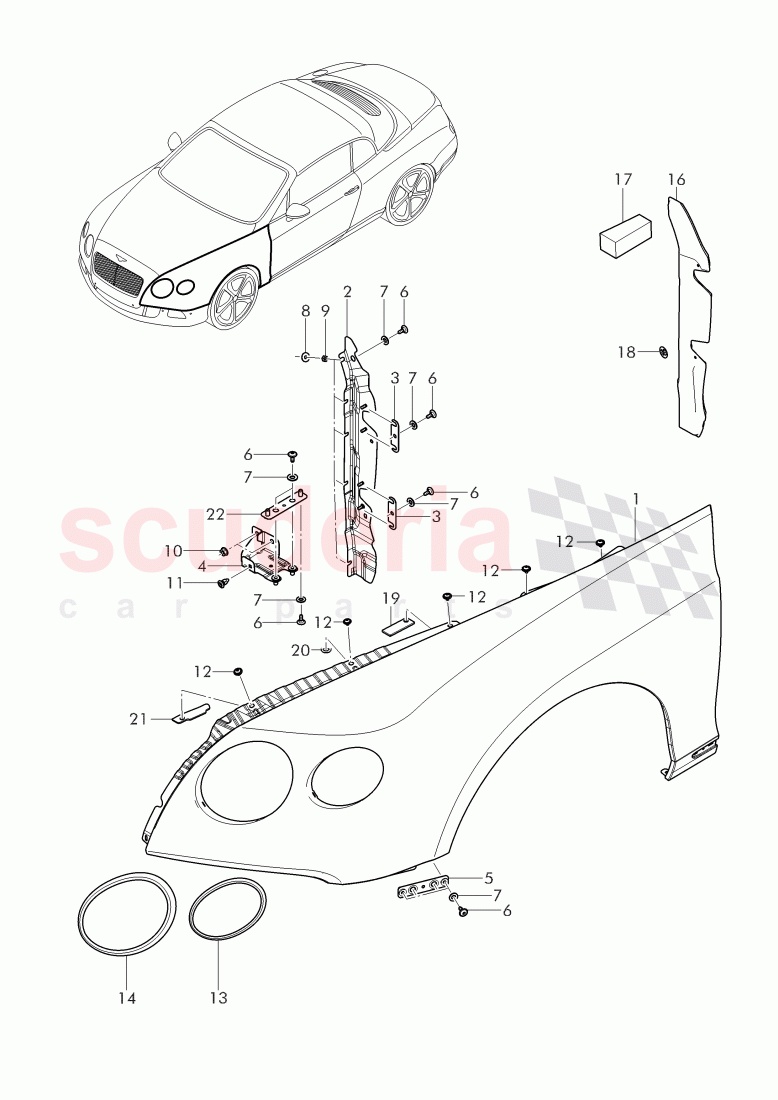

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W8821021AJ	fender, D - 16.01.2012>> - 30.04.2012	Enquire
	3W8821021AQ	fender, D - 24.06.2013>>	Enquire
	3W8821022AQ	fender, D - 24.06.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8821153H	rip plate, D - 25.06.2012>>	Enquire
	3W8821154H	rip plate, D - 25.06.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock

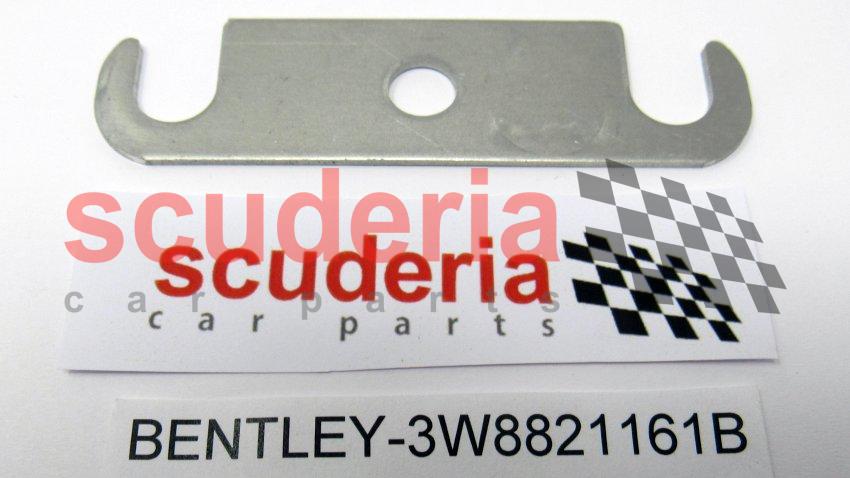

	3W8821161B	spacer washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8821167B	bracket, D - 17.06.2013>>	Enquire
	3W8821168B	bracket, D - 17.06.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8821295B	bracket, bracket, D >> - 30.04.2012	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90788402	Locating bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT005640	washer	Enquire
	N90570802	hex. nut with washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N01166620	Washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N01100632	hexagon nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215804	Hexagon nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90821401	expanding nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91121901	screw, csk. with polygon, socket hd., For mounting to:	Enquire

Photo	Part No	Description	Price (each)	Stock

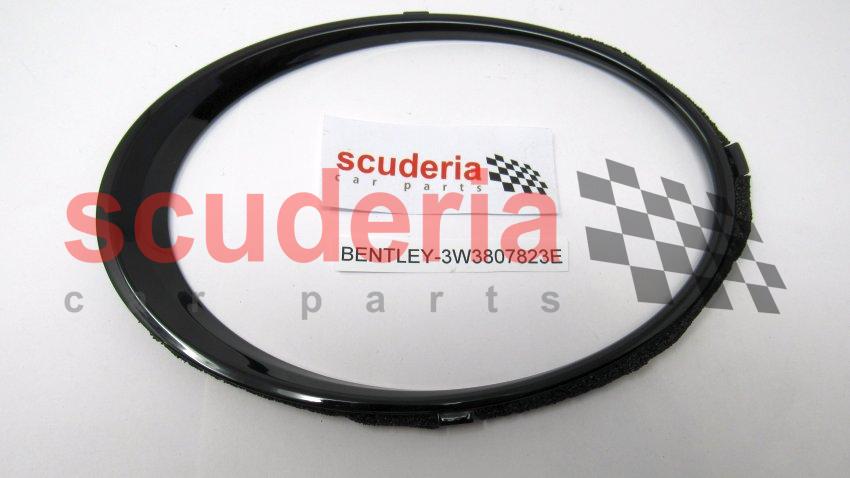

	3W3807823E	headlamp trim frame	Enquire
	3W3807824F	headlamp trim frame	Enquire
	3W3807823E	headlamp trim frame	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3W3807833E	headlamp trim frame	Enquire

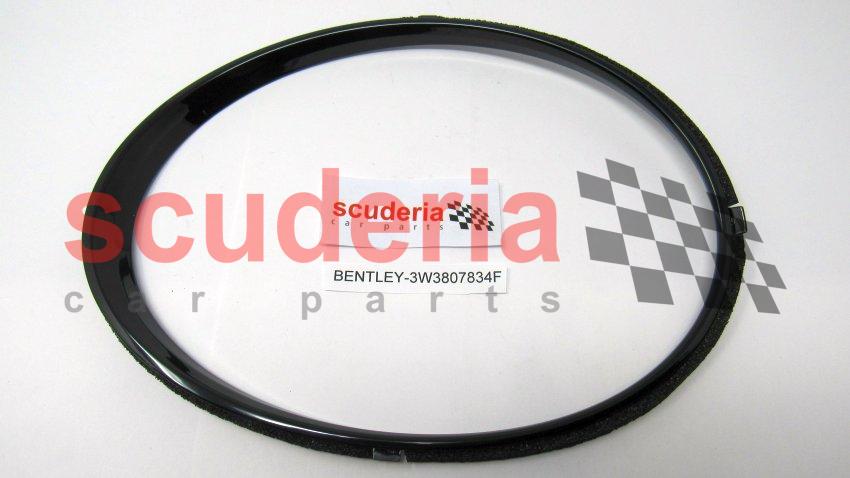

	3W3807834F	headlamp trim frame	Enquire
	3W3807833E	headlamp trim frame	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3W3864422A	sound baffle, D - 23.04.2012>> - 26.05.2014	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3864539A	plastic foam, sound baffle, D - 26.05.2014>>	Enquire
	3W3864540A	plastic foam, sound baffle, D - 26.05.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90335006	Clamping washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0823319	insert, anti-corrosion materials	Enquire
	3W0823320	insert, anti-corrosion materials	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0823445	insert, anti-corrosion materials	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0823715C	insert, anti-corrosion materials	Enquire
	3W0823716C	insert, anti-corrosion materials	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8821295B	bracket, bracket, D >> - 30.04.2012	Enquire
	3W8821233	bracket, D - 30.04.2012>>	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	N91090001	Washer, F 3W-D-084 094>> 3W-D-084 410, F ZA-D-084 094>> ZA-D-084 410	N91090001 Washer, F 3W-D-084 094>> 3W-D-084 410, F ZA-D-084 094>> ZA-D-084 410 8.4X17X2, right,	-	4	Enquire
1	3W8821021AJ	fender, D - 16.01.2012>> - 30.04.2012	3W8821021AJ fender, D - 16.01.2012>> - 30.04.2012 left,	-	1	Enquire
1	3W8821021AQ	fender, D - 24.06.2013>>	3W8821021AQ fender, D - 24.06.2013>> left,	-	1	Enquire
1	3W8821022AQ	fender, D - 24.06.2013>>	3W8821022AQ fender, D - 24.06.2013>> right,	-	1	Enquire
2	3W8821153H	rip plate, D - 25.06.2012>>	3W8821153H rip plate, D - 25.06.2012>> left,	-	1	Enquire
2	3W8821154H	rip plate, D - 25.06.2012>>	3W8821154H rip plate, D - 25.06.2012>> right,	-	1	Enquire
3	3W8821161B	spacer washer	3W8821161B spacer washer	-	6	Enquire
4	3W8821167B	bracket, D - 17.06.2013>>	3W8821167B bracket, D - 17.06.2013>> left lower,	-	1	Enquire
4	3W8821168B	bracket, D - 17.06.2013>>	3W8821168B bracket, D - 17.06.2013>> right lower,	-	1	Enquire
5	3W8821295B	bracket, bracket, D >> - 30.04.2012	3W8821295B bracket, bracket, D >> - 30.04.2012	-	2	Enquire
6	N90788402	Locating bolt	N90788402 Locating bolt M6X16,0,	-	28	Enquire

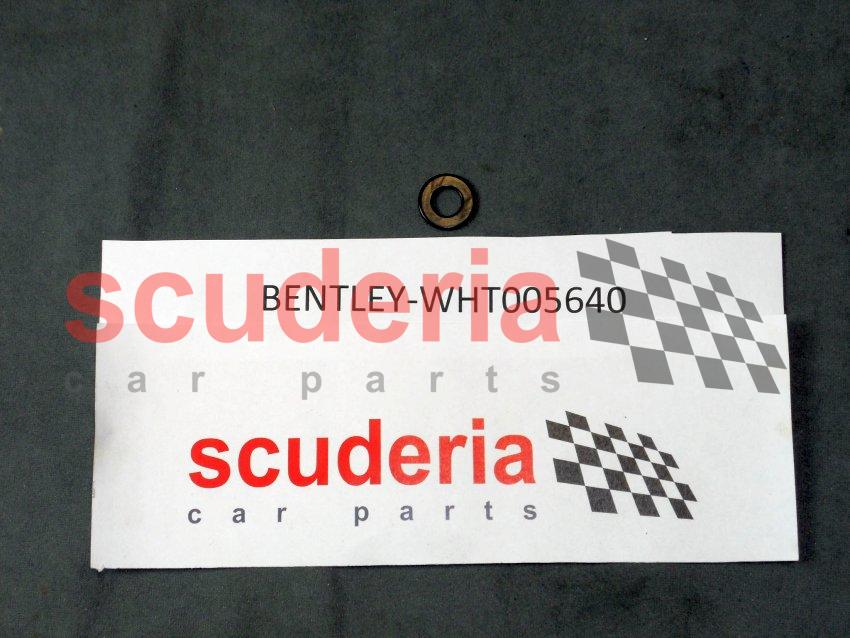

7	WHT005640	washer	WHT005640 washer 9,3X18X2,	-	28	Enquire
7	N90570802	hex. nut with washer	N90570802 hex. nut with washer M6,	-	8	Enquire
8	N01166620	Washer	N01166620 Washer M6,	-	12	Enquire
9	N01100632	hexagon nut	N01100632 hexagon nut M6,	-	12	Enquire
10	N90215804	Hexagon nut	N90215804 Hexagon nut M6,	-	4	Enquire
11	N90821401	expanding nut	N90821401 expanding nut	-	2	Enquire
12	N91121901	screw, csk. with polygon, socket hd., For mounting to:	N91121901 screw, csk. with polygon, socket hd., For mounting to: M6X12,	-	10	Enquire
13	3W3807823E	headlamp trim frame	3W3807823E headlamp trim frame left outer,	-	1	Enquire

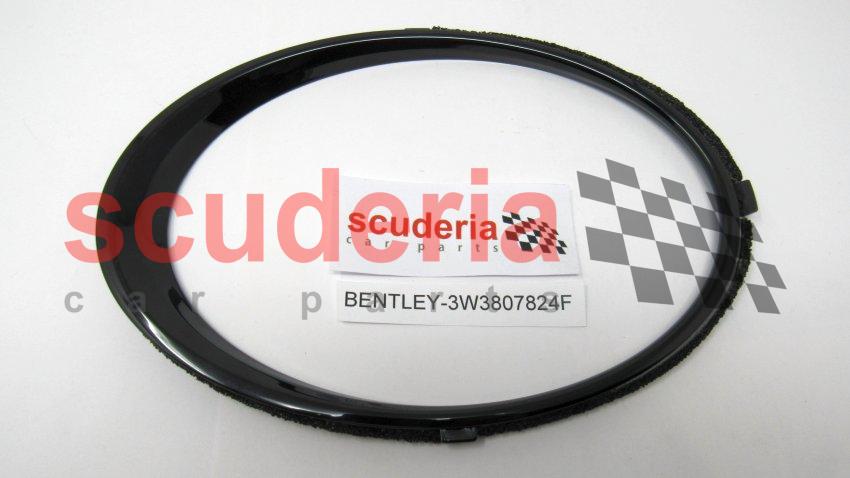

13	3W3807824F	headlamp trim frame	3W3807824F headlamp trim frame right outer,	-	1	Enquire
13	3W3807823E	headlamp trim frame	3W3807823E headlamp trim frame left outer, Concours, Design Edition,	-	1	Enquire
13	3W3807824F	headlamp trim frame	3W3807824F headlamp trim frame right outer, Concours, Design Edition,	-	1	Enquire

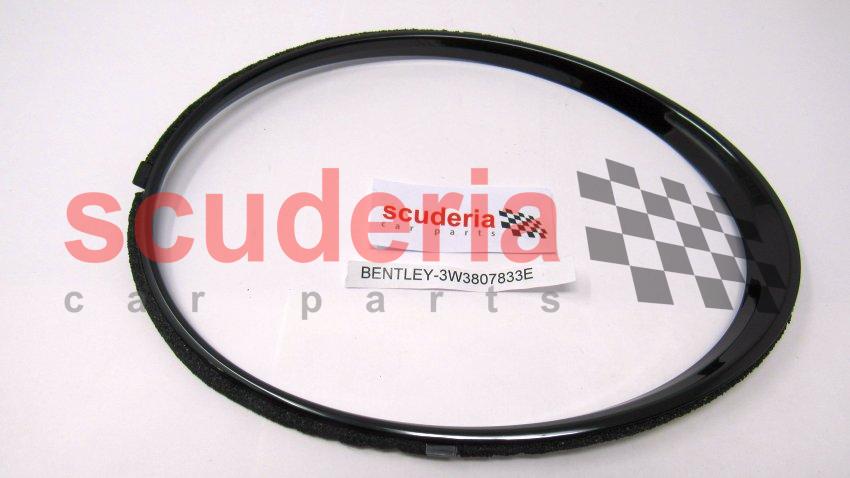

14	3W3807833E	headlamp trim frame	3W3807833E headlamp trim frame left inner,	-	1	Enquire
14	3W3807834F	headlamp trim frame	3W3807834F headlamp trim frame right inner,	-	1	Enquire
14	3W3807833E	headlamp trim frame	3W3807833E headlamp trim frame left inner, Concours, Design Edition,	-	1	Enquire
14	3W3807834F	headlamp trim frame	3W3807834F headlamp trim frame right inner, Concours, Design Edition,	-	1	Enquire
16	3W3864422A	sound baffle, D - 23.04.2012>> - 26.05.2014	3W3864422A sound baffle, D - 23.04.2012>> - 26.05.2014 left a. right,	-	2	Enquire
17	3W3864539A	plastic foam, sound baffle, D - 26.05.2014>>	3W3864539A plastic foam, sound baffle, D - 26.05.2014>> left,	-	1	Enquire
17	3W3864540A	plastic foam, sound baffle, D - 26.05.2014>>	3W3864540A plastic foam, sound baffle, D - 26.05.2014>> right,	-	1	Enquire
18	N90335006	Clamping washer	N90335006 Clamping washer	-	4	Enquire
19	3W0823319	insert, anti-corrosion materials	3W0823319 insert, anti-corrosion materials left,	-	1	Enquire
19	3W0823320	insert, anti-corrosion materials	3W0823320 insert, anti-corrosion materials right,	-	1	Enquire
20	3W0823445	insert, anti-corrosion materials	3W0823445 insert, anti-corrosion materials left a. right,	-	4	Enquire
21	3W0823715C	insert, anti-corrosion materials	3W0823715C insert, anti-corrosion materials left,	-	1	Enquire
21	3W0823716C	insert, anti-corrosion materials	3W0823716C insert, anti-corrosion materials right,	-	1	Enquire
22	3W8821295B	bracket, bracket, D >> - 30.04.2012	3W8821295B bracket, bracket, D >> - 30.04.2012	-	2	Enquire

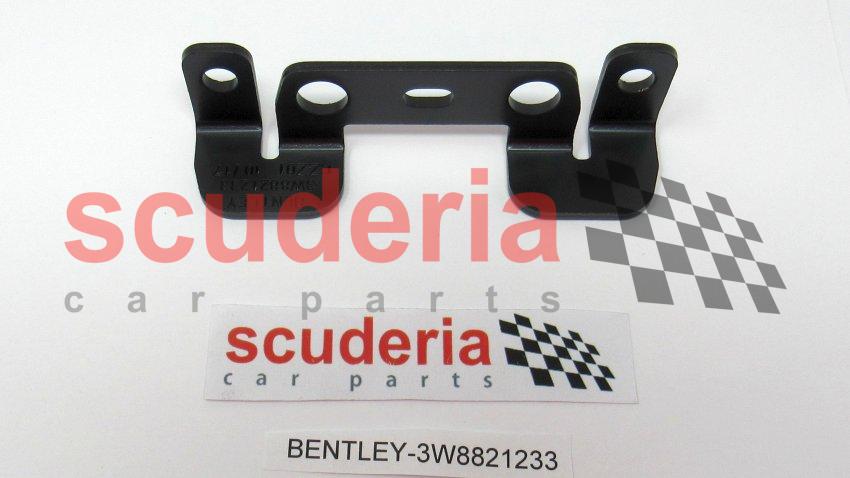

22	3W8821233	bracket, D - 30.04.2012>>	3W8821233 bracket, D - 30.04.2012>>	-	2	Enquire
