floor assembly, spare wheel well of Bentley Bentley Continental GTC (2011+)

View All

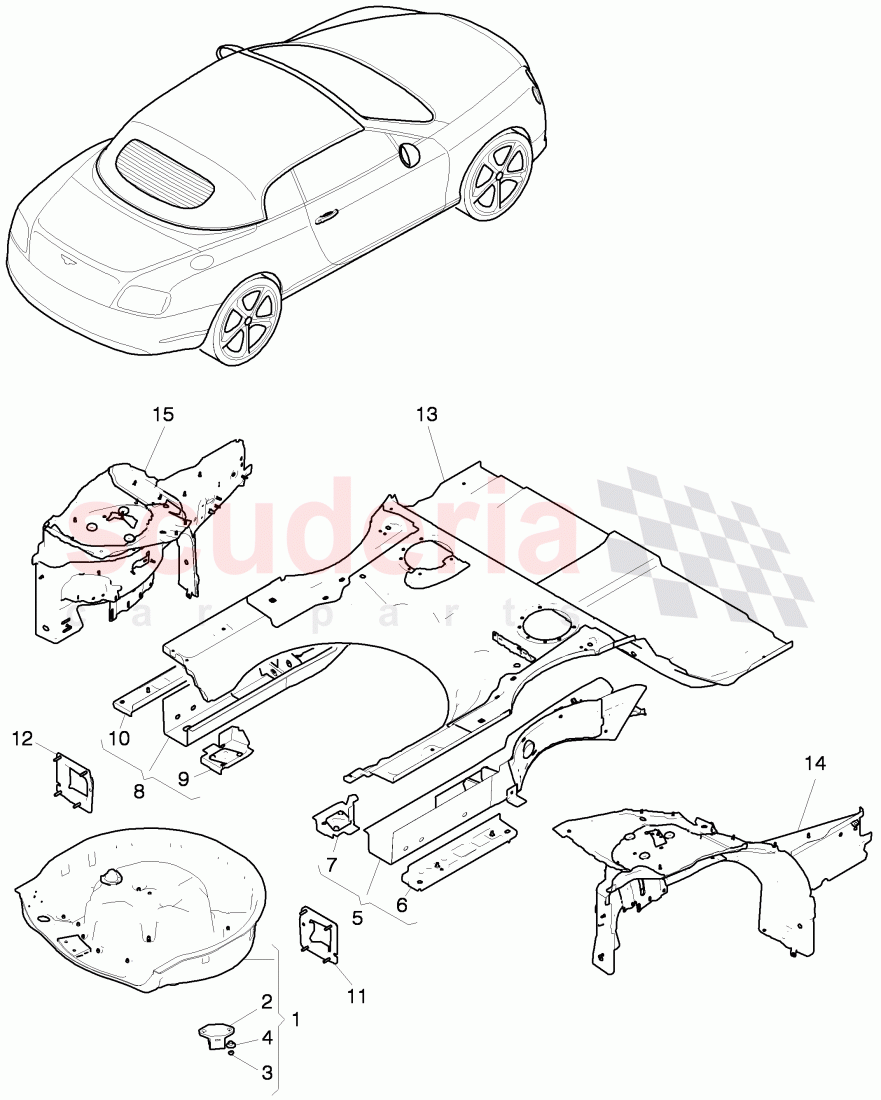

Bentley Continental GTC (2011+) - floor assembly, spare wheel well

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W8803261H	spare wheel well, D - 04.03.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0201449B	pipe holder, F 3W-4-022 702>> 3W-8-053 598	Enquire

Photo	Part No	Description	Price (each)	Stock
	333955756A	bushing	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10011501	shouldered hex. nut, D >> - 30.08.2010	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8803502	repair plates, Service kit	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0802090C	bottom plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0804894C	bracket, repair plate - side member	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8803501	repair plates, sill, Service kit	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0804893C	bracket, repair plate - side member	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0802089C	bottom plate repair panel - side member	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0804474B	cover plate for cross member, Crash support, bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0804473B	cover plate for cross member, Crash support, bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7813113E	floor assembly	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7810364AD	wheel housing, D - 06.06.2016>>	Enquire
	3W7810364AB	wheel housing, D - 01.10.2012>> - 06.06.2016	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7810363AB	wheel housing, D - 18.02.2013>>	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	3W0971838	Cable ties	3W0971838 Cable ties 4,5X200, outer,	-	1	Enquire
1	3W8803261H	spare wheel well, D - 04.03.2013>>	3W8803261H spare wheel well, D - 04.03.2013>>	-	1	Enquire
2	3W0201449B	pipe holder, F 3W-4-022 702>> 3W-8-053 598	3W0201449B pipe holder, F 3W-4-022 702>> 3W-8-053 598	-	1	Enquire
3	333955756A	bushing	333955756A bushing	-	1	Enquire
4	N10011501	shouldered hex. nut, D >> - 30.08.2010	N10011501 shouldered hex. nut, D >> - 30.08.2010 M5,	-	1	Enquire
5	3W8803502	repair plates, Service kit	3W8803502 repair plates, Service kit right rear,	-	1	Enquire
6	3D0802090C	bottom plate	3D0802090C bottom plate right,	-	1	Enquire
7	3D0804894C	bracket, repair plate - side member	3D0804894C bracket, repair plate - side member right,	-	1	Enquire
8	3W8803501	repair plates, sill, Service kit	3W8803501 repair plates, sill, Service kit left rear,	-	1	Enquire
9	3D0804893C	bracket, repair plate - side member	3D0804893C bracket, repair plate - side member left,	-	1	Enquire
10	3D0802089C	bottom plate repair panel - side member	3D0802089C bottom plate repair panel - side member left,	-	1	Enquire
11	3D0804474B	cover plate for cross member, Crash support, bracket	3D0804474B cover plate for cross member, Crash support, bracket right,	-	1	Enquire
12	3D0804473B	cover plate for cross member, Crash support, bracket	3D0804473B cover plate for cross member, Crash support, bracket left,	-	1	Enquire
13	3W7813113E	floor assembly	3W7813113E floor assembly rear,	-	1	Enquire
14	3W7810364AD	wheel housing, D - 06.06.2016>>	3W7810364AD wheel housing, D - 06.06.2016>> right rear,	-	1	Enquire
14	3W7810364AB	wheel housing, D - 01.10.2012>> - 06.06.2016	3W7810364AB wheel housing, D - 01.10.2012>> - 06.06.2016 right rear,	-	1	Enquire
15	3W7810363AB	wheel housing, D - 18.02.2013>>	3W7810363AB wheel housing, D - 18.02.2013>> left rear,	-	1	Enquire
