Air Conditioner, D >> - Mj 2014

Bentley Continental GTC (2011+)

Find Your Part

Bentley Continental GTC (2011+) - air conditioner, D >> - MJ 2014

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
3W2820003D air conditioning D - 19.09.2011>> Enquire
Photo Part No Description Price (each) Stock
3D0898150 intake duct Enquire
Photo Part No Description Price (each) Stock
3D0898380 gasket set Enquire
Photo Part No Description Price (each) Stock
3D0820513A gasket, fresh air flap Enquire
Photo Part No Description Price (each) Stock
3D0898001 1 set of levers for air, distribution housing Enquire
3D2898001 1 set of levers for air, distribution housing Enquire
Photo Part No Description Price (each) Stock
3D0898160A intake duct Enquire
Photo Part No Description Price (each) Stock
N0139649 tapping screw, fill. hd. Enquire
Photo Part No Description Price (each) Stock
4E0815057 cover for blower motor Enquire
Photo Part No Description Price (each) Stock
4D0815061 ring Enquire
Photo Part No Description Price (each) Stock
N90659601 tapping screw Enquire
Photo Part No Description Price (each) Stock
3D0898002 1 set of levers, air distribution housing Enquire
Photo Part No Description Price (each) Stock
3D0959101 blower motor with fan Enquire
Photo Part No Description Price (each) Stock
3D1820695 support for air duct Enquire
Photo Part No Description Price (each) Stock
4D0815135 bracket Enquire
Photo Part No Description Price (each) Stock
4E0820435 hexagon head panel screw Enquire
Photo Part No Description Price (each) Stock
3D0907521A blower control, D - 26.06.2006>> Enquire
Photo Part No Description Price (each) Stock
3D1820696 support for air duct Enquire
Photo Part No Description Price (each) Stock
3D1820690 air duct, footwell vent Enquire
3D2820690 air duct, footwell vent Enquire
Photo Part No Description Price (each) Stock
4D0820231B cover for evaporator Enquire
Photo Part No Description Price (each) Stock
3W1820003C air conditioning D - 19.09.2011>> Enquire
Photo Part No Description Price (each) Stock
3D0820105 evaporator Enquire
Photo Part No Description Price (each) Stock
4D0819380A O-Ring, set of seals for evaporator Enquire
4D0819380B O-Ring, set of seals for evaporator Enquire
Photo Part No Description Price (each) Stock
3D0820105 evaporator Enquire
Photo Part No Description Price (each) Stock
4B0819536C hexagon head bolt (combi) Enquire
Photo Part No Description Price (each) Stock
3D0820099 gasket Enquire
Photo Part No Description Price (each) Stock
3D0898030 heater core, comprising: Enquire
Photo Part No Description Price (each) Stock
4D0820536C bracket for heat exchanger Enquire
Photo Part No Description Price (each) Stock
3D1898350 1 set of tubes for heat, exchanger Enquire
Photo Part No Description Price (each) Stock
4D0820511 motor for adjustment Enquire
Photo Part No Description Price (each) Stock
3D1898350A 1 set of tubes for heat, exchanger Enquire
3D2898351A 1 set of tubes for heat, exchanger Enquire
Photo Part No Description Price (each) Stock
4E0820539 temperature sensor Enquire
Photo Part No Description Price (each) Stock
4D0819699D double grommet Enquire
Photo Part No Description Price (each) Stock
4D0819498A grommet Enquire
Photo Part No Description Price (each) Stock
4E0907543 temperature sensor, evaporator Enquire
Photo Part No Description Price (each) Stock
4E0820536C pipe holder Enquire
Photo Part No Description Price (each) Stock
4D0820536A pipe holder Enquire
Photo Part No Description Price (each) Stock
4D0819498B grommet Enquire
Photo Part No Description Price (each) Stock
3D0898471A gasket set, for air conditioner Enquire
Photo Part No Description Price (each) Stock
3D0898353 air distribution housing Enquire
Photo Part No Description Price (each) Stock
3D1819422 cover, motor for adjustment Enquire
Photo Part No Description Price (each) Stock
3D1820689 air duct, footwell vent Enquire
3D2820689 air duct, footwell vent Enquire
Photo Part No Description Price (each) Stock
3D0959311 motor for adjustment Enquire
Photo Part No Description Price (each) Stock
N0139649 tapping screw, fill. hd. Enquire
Photo Part No Description Price (each) Stock
3D1971565A adapter wiring harness Enquire
3D2971565 adapter wiring harness Enquire
Photo Part No Description Price (each) Stock
3D0898470 1 set of securing parts, frame Enquire
Photo Part No Description Price (each) Stock
3D1819223 intake duct Enquire
Photo Part No Description Price (each) Stock
N90949402 Oval hexagon socket head bolt Enquire
Photo Part No Description Price (each) Stock
3D2898350 1 set of tubes for heat, exchanger Enquire
Photo Part No Description Price (each) Stock
3D2898370 1 set coolant hoses Enquire
Photo Part No Description Price (each) Stock
N90652902 screw, hex. hd. Enquire
Photo Part No Description Price (each) Stock
3W0854551 Edge protection Enquire
View All

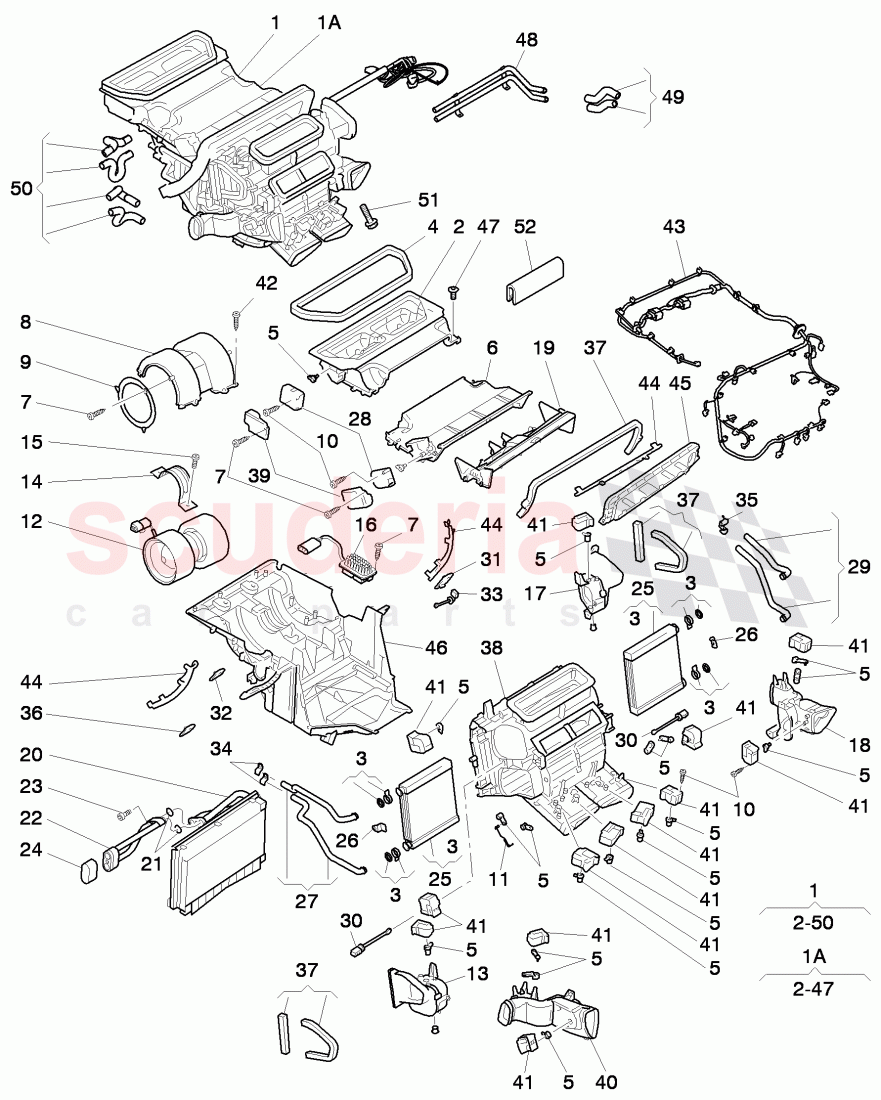

air conditioner, D >> - MJ 2014 of Bentley Bentley Continental GTC (2011+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 3W2820003D
air conditioning D - 19.09.2011>>
rhd, PR-L0R 		- 1 Enquire
1A 3W1820003C
air conditioning D - 19.09.2011>>
lhd, PR-L0L 		- 1 Enquire
2 3D0898150
intake duct 		- 1 Enquire
3 3D0898380
gasket set 		- 1 Enquire
4 3D0820513A
gasket, fresh air flap 		- 1 Enquire
5 3D0898001
1 set of levers for air, distribution housing
lhd, 		- 1 Enquire
5 3D2898001
1 set of levers for air, distribution housing
rhd, 		- 1 Enquire
6 3D0898160A
intake duct
lower, 		- 1 Enquire
7 N0139649
tapping screw, fill. hd.
ST4 2X16, 		- 10 Enquire
8 4E0815057
cover for blower motor 		- 1 Enquire
9 4D0815061
ring 		- 2 Enquire
10 N90659601
tapping screw
3X34, 		- 30 Enquire
11 3D0898002
1 set of levers, air distribution housing 		- 1 Enquire
12 3D0959101
blower motor with fan 		- 1 Enquire
13 3D1820695
support for air duct
left upper, 		- 1 Enquire
14 4D0815135
bracket 		- 1 Enquire
15 4E0820435
hexagon head panel screw
4X20, 		- 2 Enquire
16 3D0907521A
blower control, D - 26.06.2006>> 		- 1 Enquire
17 3D1820696
support for air duct
right upper, 		- 1 Enquire
18 3D1820690
air duct, footwell vent
right lower, lhd, 		- 1 Enquire
18 3D2820690
air duct, footwell vent
right lower, rhd, 		- 1 Enquire
19 4D0820231B
cover for evaporator 		- 1 Enquire
20 3D0820105
evaporator 		- 1 Enquire
21 4D0819380A
O-Ring, set of seals for evaporator 		- 1 Enquire
21 4D0819380B
O-Ring, set of seals for evaporator 		- 1 Enquire
22 3D0820105
evaporator 		- 1 Enquire
23 4B0819536C
hexagon head bolt (combi)
5X16, 		- 2 Enquire
24 3D0820099
gasket 		- 1 Enquire
25 3D0898030
heater core, comprising: 		- 2 Enquire
26 4D0820536C
bracket for heat exchanger 		- 2 Enquire
27 3D1898350
1 set of tubes for heat, exchanger
side left, 		- 1 Enquire
28 4D0820511
motor for adjustment 		- 2 Enquire
29 3D1898350A
1 set of tubes for heat, exchanger
right lhd, 		- 1 Enquire
29 3D2898351A
1 set of tubes for heat, exchanger
right rhd, 		- 1 Enquire
30 4E0820539
temperature sensor 		- 2 Enquire
31 4D0819699D
double grommet
right, 		- 1 Enquire
32 4D0819498A
grommet
left upper, 		- 1 Enquire
33 4E0907543
temperature sensor, evaporator 		- 1 Enquire
34 4E0820536C
pipe holder
left, 		- 2 Enquire
35 4D0820536A
pipe holder
right, 		- 1 Enquire
36 4D0819498B
grommet
left lower, 		- 1 Enquire
37 3D0898471A
gasket set, for air conditioner 		- 1 Enquire
38 3D0898353
air distribution housing 		- 1 Enquire
39 3D1819422
cover, motor for adjustment 		- 2 Enquire
40 3D1820689
air duct, footwell vent
left lower, lhd, 		- 1 Enquire
40 3D2820689
air duct, footwell vent
left lower, rhd, 		- 1 Enquire
41 3D0959311
motor for adjustment 		- 13 Enquire
42 N0139649
tapping screw, fill. hd.
ST4 2X16, 		- 4 Enquire
43 3D1971565A
adapter wiring harness
lhd, 		- 1 Enquire
43 3D2971565
adapter wiring harness
rhd, 		- 1 Enquire
44 3D0898470
1 set of securing parts, frame 		- 1 Enquire
45 3D1819223
intake duct 		- 1 Enquire
47 N90949402
Oval hexagon socket head bolt
M6X12, 		- 6 Enquire
48 3D2898350
1 set of tubes for heat, exchanger
front rhd, 		- 1 Enquire
49 3D2898370
1 set coolant hoses
right rhd, 		- 1 Enquire
51 N90652902
screw, hex. hd.
M6X40, 		- 6 Enquire
52 3W0854551
Edge protection 		- 1 Enquire
