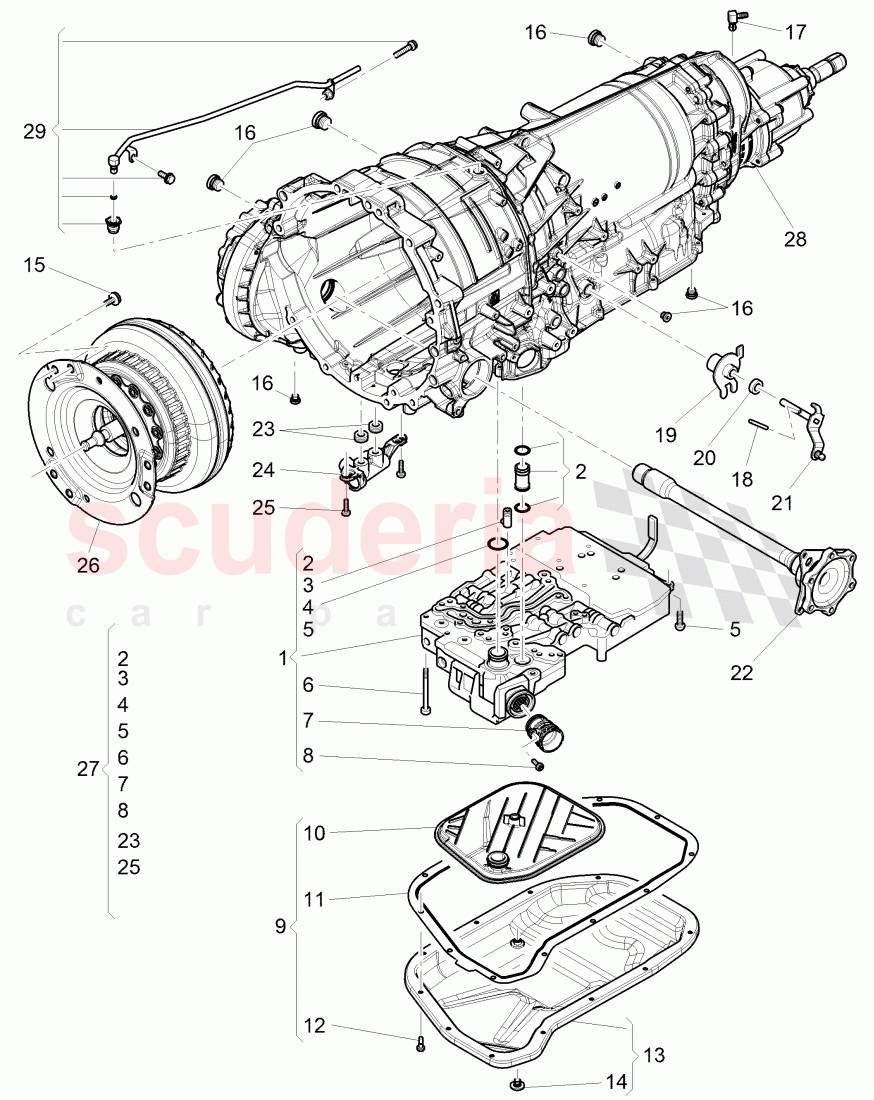

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BBB	Repair kit for, mechatronics	Enquire

Photo	Part No	Description	Price (each)	Stock
	BL398009	set of gaskets for oil sump	Enquire

Photo	Part No	Description	Price (each)	Stock
	BL321359	Transmission oil sump	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT004072	seal bolt with sealing ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90691601	Socket head bolt with hexagon socket head (combination)	Enquire

Photo	Part No	Description	Price (each)	Stock
	BL398048	1 set oil drain plugs and, monitor screws	Enquire

Photo	Part No	Description	Price (each)	Stock
	CU321343	Adapter, contains:, O-Ring, only to be used with:, 8-speed automatic gearbox	Enquire

Photo	Part No	Description	Price (each)	Stock
	1V321546	spring pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	9E409189	radial shaft seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	9E409069	o-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	CU323571C	torque converter, D - MJ 2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	CU398047	small parts kit	Enquire

Photo	Part No	Description	Price (each)	Stock
	CU398008	repair kit for breather assy., only to be used with:, 8-speed automatic gearbox	Enquire

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	BBB	Repair kit for, mechatronics	BBB Repair kit for, mechatronics	-	1	Enquire
9	BL398009	set of gaskets for oil sump	BL398009 set of gaskets for oil sump	-	1	Enquire
13	BL321359	Transmission oil sump	BL321359 Transmission oil sump	-	1	Enquire
14	WHT004072	seal bolt with sealing ring	WHT004072 seal bolt with sealing ring M10X1X10,	-	1	Enquire
15	N90691601	Socket head bolt with hexagon socket head (combination)	N90691601 Socket head bolt with hexagon socket head (combination) M10X17,	-	6	Enquire
16	BL398048	1 set oil drain plugs and, monitor screws	BL398048 1 set oil drain plugs and, monitor screws	-	1	Enquire
17	CU321343	Adapter, contains:, O-Ring, only to be used with:, 8-speed automatic gearbox	CU321343 Adapter, contains:, O-Ring, only to be used with:, 8-speed automatic gearbox 6,75X1,78, 0CU 300 035 D,	-	1	Enquire
18	1V321546	spring pin	1V321546 spring pin 22,5X5,2,	-	1	Enquire
20	9E409189	radial shaft seal	9E409189 radial shaft seal	-	1	Enquire
23	9E409069	o-ring	9E409069 o-ring	-	2	Enquire
26	CU323571C	torque converter, D - MJ 2015>>	CU323571C torque converter, D - MJ 2015>>	-	1	Enquire
27	CU398047	small parts kit	CU398047 small parts kit	-	1	Enquire
29	CU398008	repair kit for breather assy., only to be used with:, 8-speed automatic gearbox	CU398008 repair kit for breather assy., only to be used with:, 8-speed automatic gearbox 0CU 300 035 D,	-	1	Enquire
