oil pressure line for gear oil cooling, Gear oil cooler, D >> - MJ 2014 of Bentley Bentley Continental GTC (2011+)

View All

Bentley Continental GTC (2011+) - oil pressure line for gear oil cooling, Gear oil cooler, D >> - MJ 2014

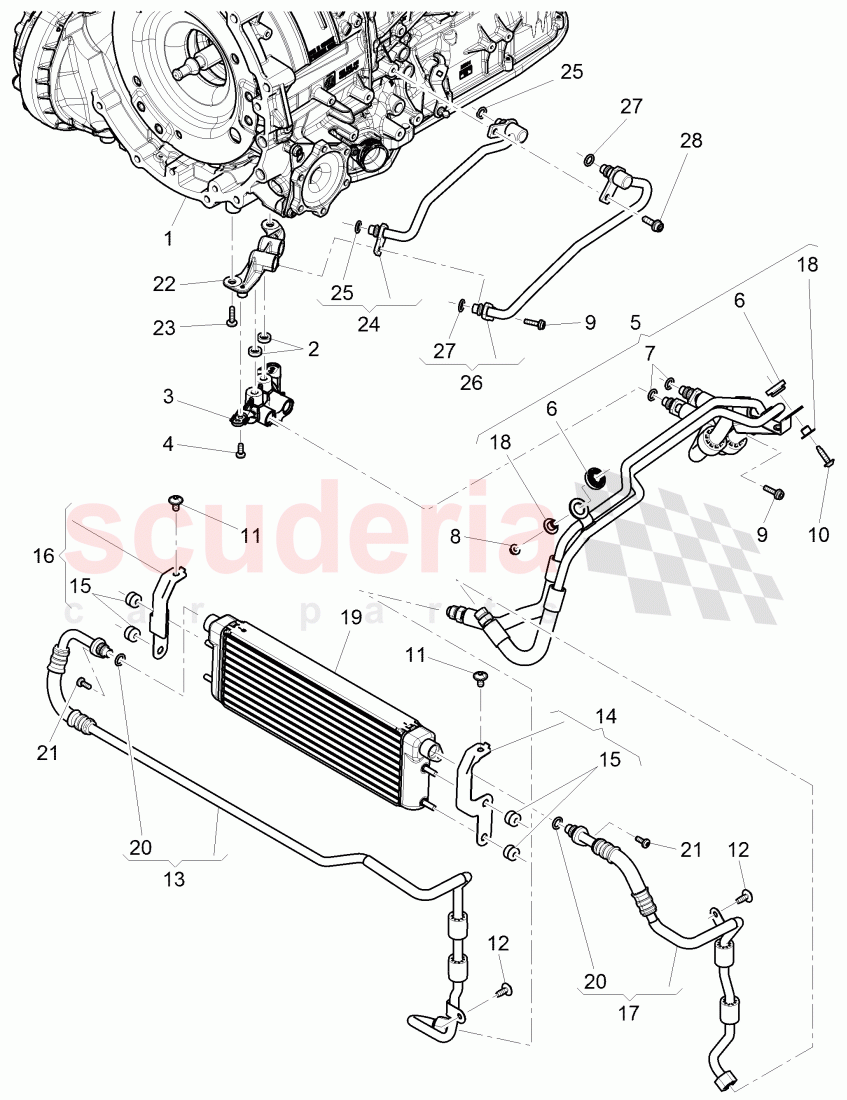

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	WHT006245	cover plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317027A	oil temperatur valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10451405	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317801AF	oil pressure line for, gear oil cooling	Enquire

Photo	Part No	Description	Price (each)	Stock
	867129669	Grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90666003	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90500604	socket head bolt with inner, hex round head, D - 06.11.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90969901	Hex socket head locating bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90737101	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317847F	oil pressure line for gearbox oil cooling	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317828K	bracket for oil cooler, D - 05.11.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317867	rubber isolator, oil cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317828K	bracket for oil cooler, D - 05.11.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317848E	oil pressure line for, gear oil cooling, F >> 3W-D-083 124, F >> ZA-D-083 124	Enquire
	3W0317848F	oil pressure line for, gear oil cooling, F 3W-D-083 125>>, F ZA-D-083 125>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	1K0129734B	bush	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0317019A	Gear oil cooler, D - 07.10.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90666003	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10451405	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317341	mounting, oil temperatur valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91148201	screw, round hd.	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317809	oil pressure line for, gear oil cooling	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90666003	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317819	oil pressure line for, gear oil cooling	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90666003	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91141901	hexagonal socket head, screw	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	WHT006245	cover plate	WHT006245 cover plate 11X18X5,	-	2	Enquire
3	3W0317027A	oil temperatur valve	3W0317027A oil temperatur valve	-	1	Enquire
4	N10451405	Oval hexagon socket head bolt	N10451405 Oval hexagon socket head bolt M6X16,	-	2	Enquire
5	3W0317801AF	oil pressure line for, gear oil cooling	3W0317801AF oil pressure line for, gear oil cooling left rear,	-	1	Enquire
6	867129669	Grommet	867129669 Grommet	-	2	Enquire
7	N90666003	O-ring	N90666003 O-ring 11,5X3,	-	2	Enquire
8	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6,	-	1	Enquire
9	N90500604	socket head bolt with inner, hex round head, D - 06.11.2006>>	N90500604 socket head bolt with inner, hex round head, D - 06.11.2006>> M6X22,	-	2	Enquire
10	N90969901	Hex socket head locating bolt	N90969901 Hex socket head locating bolt M6X25,	-	1	Enquire
11	N90737101	Oval hexagon socket head bolt	N90737101 Oval hexagon socket head bolt M6X12,	-	2	Enquire
13	3W0317847F	oil pressure line for gearbox oil cooling	3W0317847F oil pressure line for gearbox oil cooling right front,	-	1	Enquire
14	3W0317828K	bracket for oil cooler, D - 05.11.2012>>	3W0317828K bracket for oil cooler, D - 05.11.2012>> left,	-	1	Enquire
15	3W0317867	rubber isolator, oil cooler	3W0317867 rubber isolator, oil cooler	-	4	Enquire
16	3W0317828K	bracket for oil cooler, D - 05.11.2012>>	3W0317828K bracket for oil cooler, D - 05.11.2012>> right,	-	1	Enquire
17	3W0317848E	oil pressure line for, gear oil cooling, F >> 3W-D-083 124, F >> ZA-D-083 124	3W0317848E oil pressure line for, gear oil cooling, F >> 3W-D-083 124, F >> ZA-D-083 124 left front,	-	1	Enquire
17	3W0317848F	oil pressure line for, gear oil cooling, F 3W-D-083 125>>, F ZA-D-083 125>>	3W0317848F oil pressure line for, gear oil cooling, F 3W-D-083 125>>, F ZA-D-083 125>> left front,	-	1	Enquire
18	1K0129734B	bush	1K0129734B bush	-	2	Enquire
19	4W0317019A	Gear oil cooler, D - 07.10.2013>>	4W0317019A Gear oil cooler, D - 07.10.2013>>	-	1	Enquire
20	N90666003	O-ring	N90666003 O-ring 11.5X3,	-	2	Enquire
21	N10451405	Oval hexagon socket head bolt	N10451405 Oval hexagon socket head bolt M6X16,	-	2	Enquire
22	3W0317341	mounting, oil temperatur valve	3W0317341 mounting, oil temperatur valve	-	1	Enquire
23	N91148201	screw, round hd.	N91148201 screw, round hd. M6X25,	-	2	Enquire
24	3W0317809	oil pressure line for, gear oil cooling	3W0317809 oil pressure line for, gear oil cooling	-	1	Enquire
25	N90666003	O-ring	N90666003 O-ring 11.5X3,	-	2	Enquire
26	3W0317819	oil pressure line for, gear oil cooling	3W0317819 oil pressure line for, gear oil cooling	-	1	Enquire
27	N90666003	O-ring	N90666003 O-ring 11.5X3,	-	2	Enquire
28	N91141901	hexagonal socket head, screw	N91141901 hexagonal socket head, screw M8X26,	-	1	Enquire
