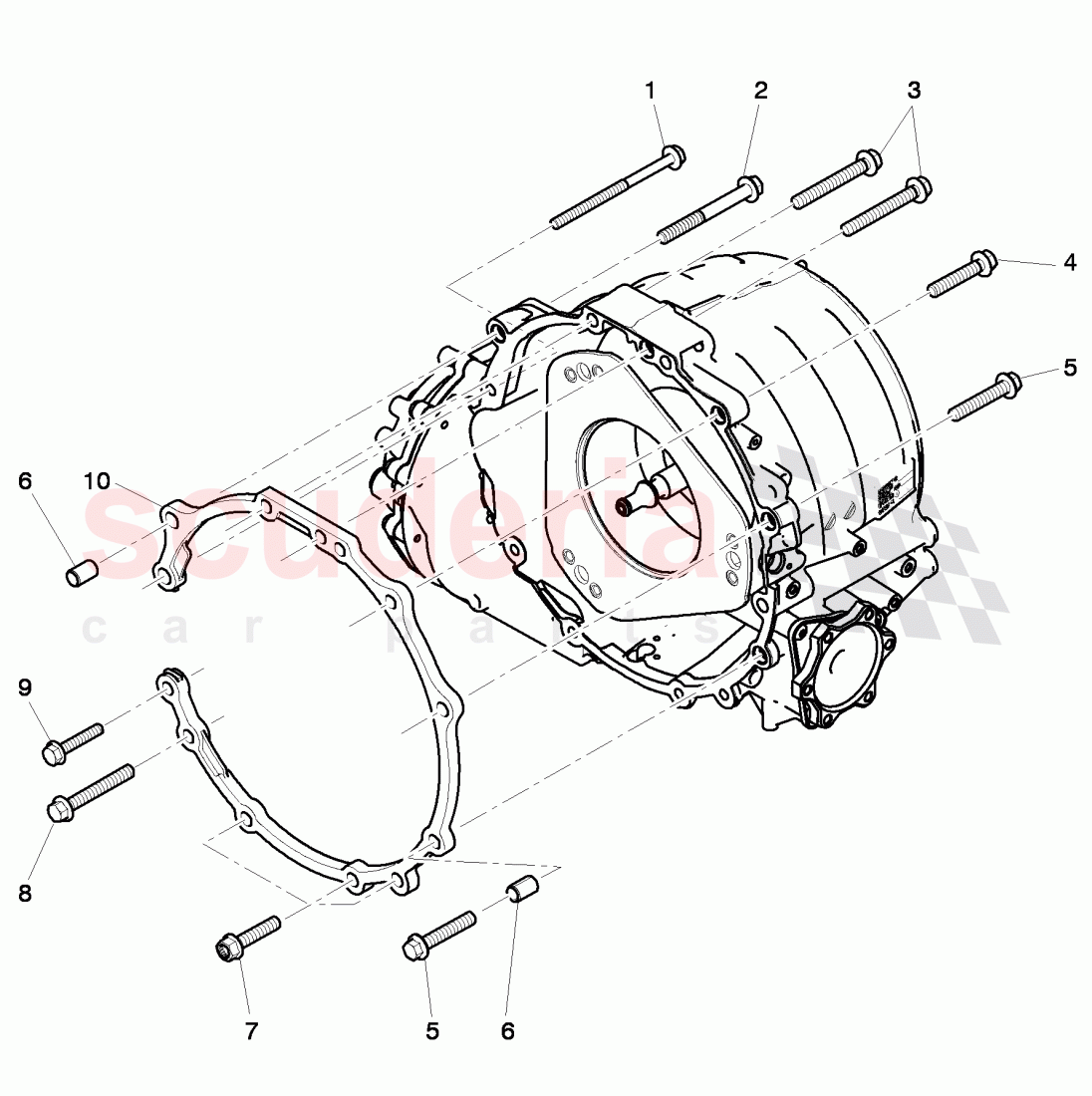

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	N90550505	Hex collared bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90495605	bolt, hex. hd. with shoulder, D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91015402	bolt, hex. hd. with shoulder, D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90495405	bolt, hex. hd. with shoulder, D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	1E301153H	dowel sleeve D - 06.11.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91030402	multi-point socket head bolt with collar D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91015502	bolt, hex. hd. with shoulder, D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	9E103546	intermediate plate	Enquire

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	N90550505	Hex collared bolt	N90550505 Hex collared bolt M12X110X50,	-	1	Enquire
3	N90495605	bolt, hex. hd. with shoulder, D - 11.12.2006>>	N90495605 bolt, hex. hd. with shoulder, D - 11.12.2006>> M12X90,	-	2	Enquire
4	N91015402	bolt, hex. hd. with shoulder, D - 11.12.2006>>	N91015402 bolt, hex. hd. with shoulder, D - 11.12.2006>> M12X62,	-	1	Enquire
5	N90495405	bolt, hex. hd. with shoulder, D - 11.12.2006>>	N90495405 bolt, hex. hd. with shoulder, D - 11.12.2006>> M12X67,	-	2	Enquire
6	1E301153H	dowel sleeve D - 06.11.2006>>	1E301153H dowel sleeve D - 06.11.2006>> 16X24,5,	-	2	Enquire
7	N91030402	multi-point socket head bolt with collar D - 11.12.2006>>	N91030402 multi-point socket head bolt with collar D - 11.12.2006>> M12X55,	-	3	Enquire
8	N91015502	bolt, hex. hd. with shoulder, D - 11.12.2006>>	N91015502 bolt, hex. hd. with shoulder, D - 11.12.2006>> M12X85,	-	1	Enquire
10	9E103546	intermediate plate	9E103546 intermediate plate	-	1	Enquire
