Exhaust gas turbocharger, oil return line, oil pressure line, D - MJ 2011>> of Bentley Bentley Continental Flying Spur (2006-2012)

View All

Bentley Continental Flying Spur (2006-2012) - Exhaust gas turbocharger, oil return line, oil pressure line, D - MJ 2011>>

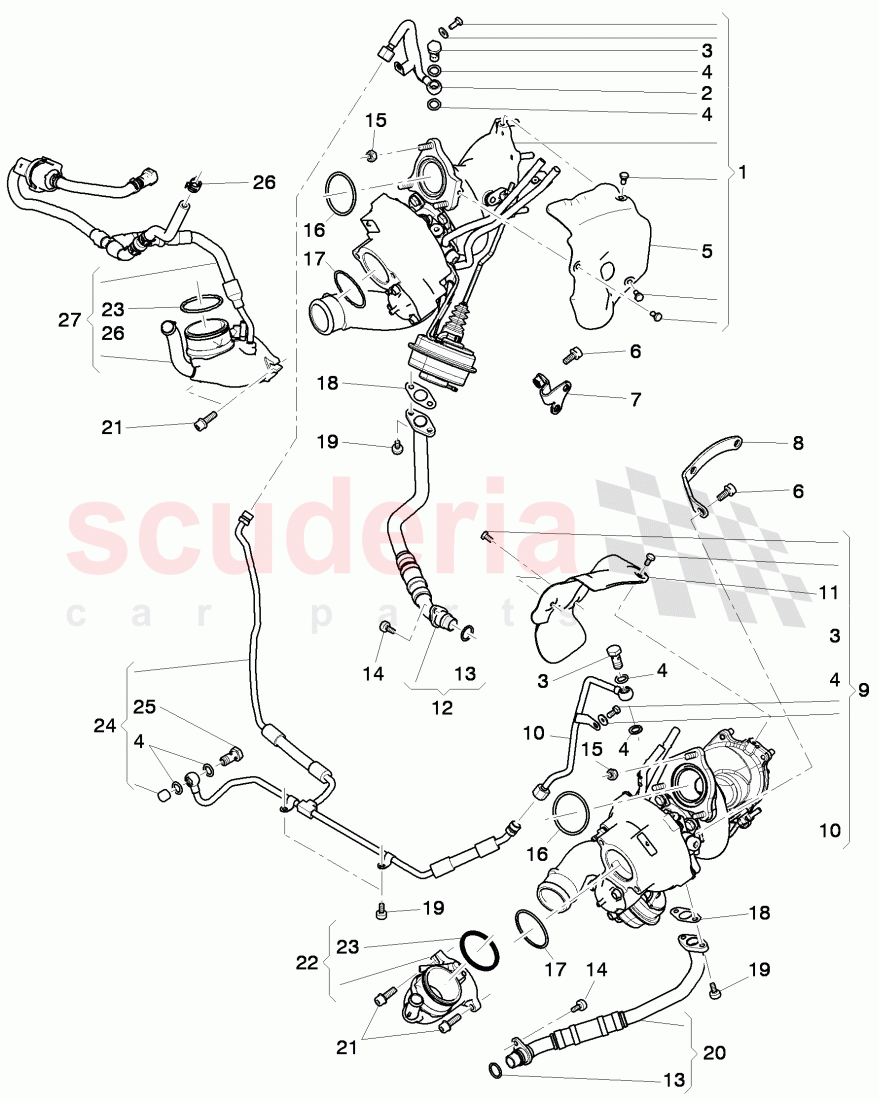

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7C145061AK	Exhaust gas turbocharger, (water-cooled), as required use:, D - 01.10.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C145140N	oil pipe, Exhaust gas turbocharger	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0210716	banjo bolt, D - 18.04.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0138514	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C145787C	heat shield	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91073601	socket head bolt with inner, hex round head	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C145509B	support bracket exhaust gas turbocharger	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C145533D	bracket, Exhaust gas turbocharger	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C145061AL	Exhaust gas turbocharger, (water-cooled), as required use:, D - 01.10.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C145141D	oil pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C145811A	heat shield	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C145736B	oil return line, Exhaust gas turbocharger	Enquire

Photo	Part No	Description	Price (each)	Stock
	78145757	o-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90575102	socket hd. screw with, collar, D - 29.05.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N02214618	lock nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C145039	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C145117A	O-Ring, D - 14.08.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	58145757C	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90575102	socket hd. screw with, collar, D - 29.05.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C145735B	oil return line, Exhaust gas turbocharger	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90292903	socket head bolt with hexagon socket head (combination)	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C145699P	intake air duct, Exhaust gas turbocharger, D - 27.03.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3C0145117D	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C145140K	oil pipe, Exhaust gas turbocharger, D - 09.11.2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0210716	banjo bolt, D - 18.04.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90686701	Spring band clamp	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	WHT001388	stud	WHT001388 stud M8X22,	-	14	Enquire
1	7C145061AK	Exhaust gas turbocharger, (water-cooled), as required use:, D - 01.10.2012>>	7C145061AK Exhaust gas turbocharger, (water-cooled), as required use:, D - 01.10.2012>> Cylinder 1-6, WHT 001 388,	-	1	Enquire
2	7C145140N	oil pipe, Exhaust gas turbocharger	7C145140N oil pipe, Exhaust gas turbocharger Cylinder 1-6, supply,	-	1	Enquire
3	N0210716	banjo bolt, D - 18.04.2011>>	N0210716 banjo bolt, D - 18.04.2011>> M12X1.5X24,	-	2	Enquire
4	N0138514	seal ring	N0138514 seal ring 12X18X1.5,	-	6	Enquire
5	7C145787C	heat shield	7C145787C heat shield right,	-	1	Enquire
6	N91073601	socket head bolt with inner, hex round head	N91073601 socket head bolt with inner, hex round head M8X18,	-	2	Enquire
7	7C145509B	support bracket exhaust gas turbocharger	7C145509B support bracket exhaust gas turbocharger right,	-	1	Enquire
8	7C145533D	bracket, Exhaust gas turbocharger	7C145533D bracket, Exhaust gas turbocharger left,	-	1	Enquire
9	7C145061AL	Exhaust gas turbocharger, (water-cooled), as required use:, D - 01.10.2012>>	7C145061AL Exhaust gas turbocharger, (water-cooled), as required use:, D - 01.10.2012>> cylinders 7-12, WHT 001 388,	-	1	Enquire
10	7C145141D	oil pipe	7C145141D oil pipe cylinders 7-12, supply,	-	1	Enquire
11	7C145811A	heat shield	7C145811A heat shield left,	-	1	Enquire
12	7C145736B	oil return line, Exhaust gas turbocharger	7C145736B oil return line, Exhaust gas turbocharger right lower,	-	1	Enquire
13	78145757	o-ring	78145757 o-ring 17,5X2,5,	-	2	Enquire
14	N90575102	socket hd. screw with, collar, D - 29.05.2006>>	N90575102 socket hd. screw with, collar, D - 29.05.2006>> M6X15,	-	2	Enquire
15	N02214618	lock nut	N02214618 lock nut	-	6	Enquire
16	7C145039	seal ring	7C145039 seal ring 53X60X3,8,	-	2	Enquire
17	7C145117A	O-Ring, D - 14.08.2017>>	7C145117A O-Ring, D - 14.08.2017>> 55X3,	-	2	Enquire
18	58145757C	gasket	58145757C gasket	-	2	Enquire
19	N90575102	socket hd. screw with, collar, D - 29.05.2006>>	N90575102 socket hd. screw with, collar, D - 29.05.2006>> M6X15,	-	6	Enquire
20	7C145735B	oil return line, Exhaust gas turbocharger	7C145735B oil return line, Exhaust gas turbocharger left lower,	-	1	Enquire
21	N90292903	socket head bolt with hexagon socket head (combination)	N90292903 socket head bolt with hexagon socket head (combination) M8X23,4,	-	4	Enquire
22	7C145699P	intake air duct, Exhaust gas turbocharger, D - 27.03.2017>>	7C145699P intake air duct, Exhaust gas turbocharger, D - 27.03.2017>> left,	-	1	Enquire
23	3C0145117D	seal ring	3C0145117D seal ring	-	2	Enquire
24	7C145140K	oil pipe, Exhaust gas turbocharger, D - 09.11.2015>>	7C145140K oil pipe, Exhaust gas turbocharger, D - 09.11.2015>>	-	1	Enquire
25	N0210716	banjo bolt, D - 18.04.2011>>	N0210716 banjo bolt, D - 18.04.2011>> M12X1,5X24,	-	1	Enquire
26	N90686701	Spring band clamp	N90686701 Spring band clamp	-	1	Enquire
