Coolant radiator, Coolant expansion tank, air duct, F >> 3W-6-039 272 of Bentley Bentley Continental Flying Spur (2006-2012)

View All

Bentley Continental Flying Spur (2006-2012) - Coolant radiator, Coolant expansion tank, air duct, F >> 3W-6-039 272

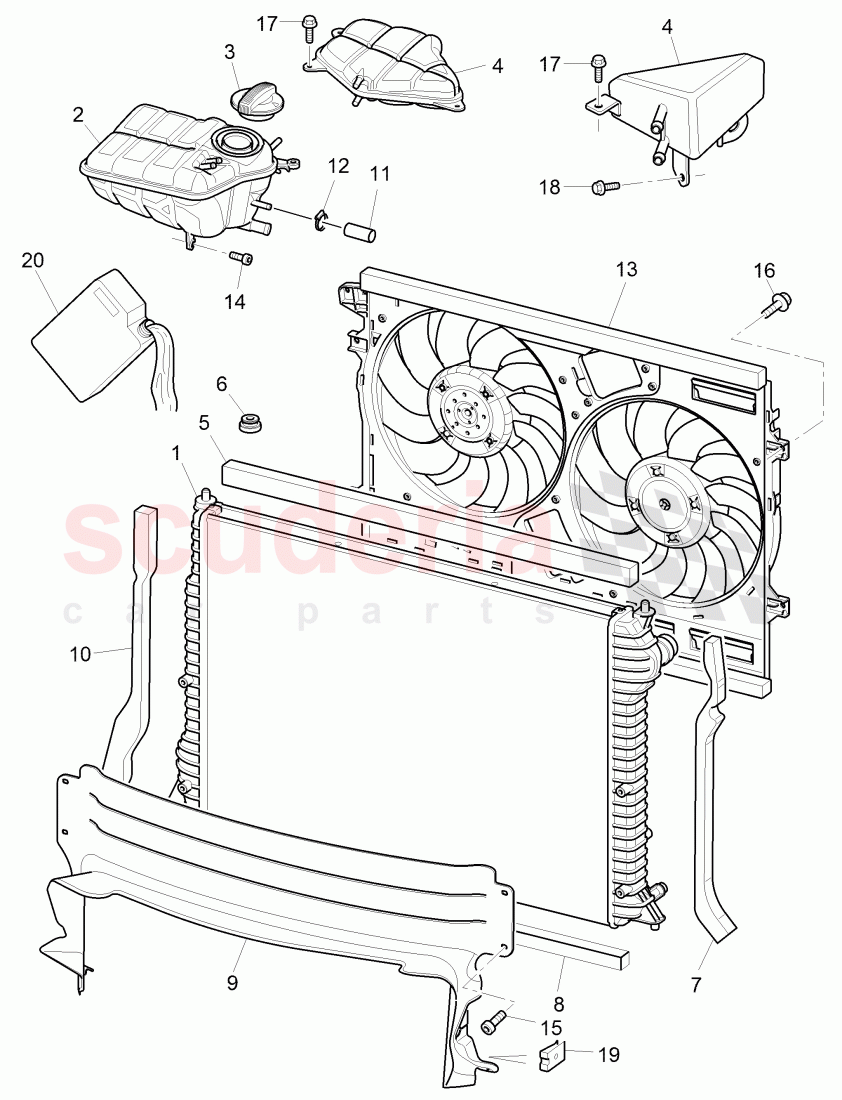

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W0112051D	Coolant Radiator	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0121403F	reservoir, D - 16.10.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0121321A	cap for expansion tank	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0122407B	additional expansion tank	Enquire
	3W2122407	additional expansion tank	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0121221A	sealing strip (self-adhesive)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0121276	rubber bush	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0121221M	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0121221A	sealing strip (self-adhesive)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5121281A	air guide	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0121221M	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	191121343	cap closure	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90686701	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock

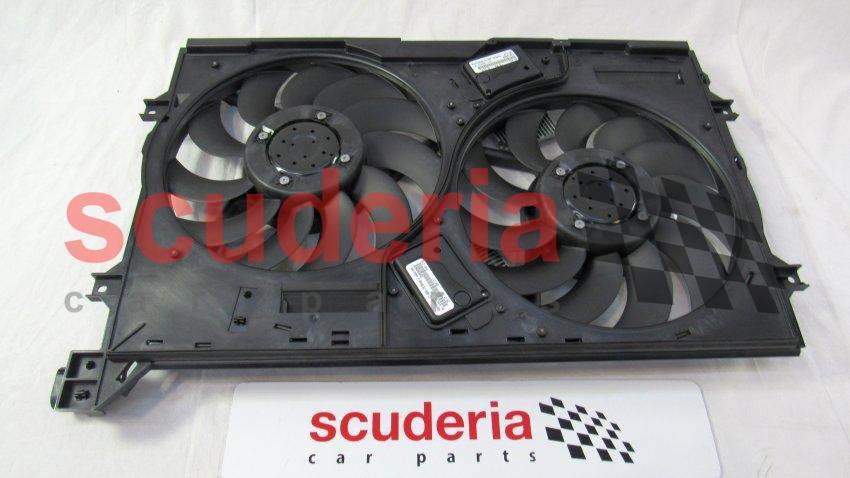

	3W0121191C	electric fan with fan cowl, and control unit, D - 06.11.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10334605	oval socket head bolt, with hex drive	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90737105	Hexagon socket oval head bolt, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90817003	Hexagon socket head panel bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10338903	Hex collared bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90631003	hexagon head bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90698801	Speed nut Included in position:	Enquire

Photo	Part No	Description	Price (each)	Stock
	JNV862564	coolant additive, plus-plus, see workshop manual	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W0112051D	Coolant Radiator	3W0112051D Coolant Radiator	-	1	Enquire
2	3W0121403F	reservoir, D - 16.10.2006>>	3W0121403F reservoir, D - 16.10.2006>>	-	1	Enquire
3	3W0121321A	cap for expansion tank	3W0121321A cap for expansion tank	-	1	Enquire
4	3D0122407B	additional expansion tank	3D0122407B additional expansion tank lhd, PR-L0L	-	1	Enquire
4	3W2122407	additional expansion tank	3W2122407 additional expansion tank rhd, PR-L0R	-	1	Enquire
5	3W0121221A	sealing strip (self-adhesive)	3W0121221A sealing strip (self-adhesive) upper,	-	1	Enquire
6	3W0121276	rubber bush	3W0121276 rubber bush	-	2	Enquire
7	3W0121221M	gasket	3W0121221M gasket left,	-	1	Enquire
8	3W0121221A	sealing strip (self-adhesive)	3W0121221A sealing strip (self-adhesive) lower,	-	1	Enquire
9	3W5121281A	air guide	3W5121281A air guide front,	-	1	Enquire
10	3W0121221M	gasket	3W0121221M gasket right,	-	1	Enquire
11	191121343	cap closure	191121343 cap closure 7,5MM,	-	1	Enquire
12	N90686701	Spring band clamp	N90686701 Spring band clamp 14 DIA,	-	1	Enquire
13	3W0121191C	electric fan with fan cowl, and control unit, D - 06.11.2006>>	3W0121191C electric fan with fan cowl, and control unit, D - 06.11.2006>>	-	1	Enquire
14	N10334605	oval socket head bolt, with hex drive	N10334605 oval socket head bolt, with hex drive M6X20,	-	2	Enquire
15	N90737105	Hexagon socket oval head bolt, self-locking	N90737105 Hexagon socket oval head bolt, self-locking M6X12,	-	6	Enquire
16	N90817003	Hexagon socket head panel bolt	N90817003 Hexagon socket head panel bolt	-	4	Enquire
17	N10338903	Hex collared bolt	N10338903 Hex collared bolt M6X16,	-	2	Enquire
18	N90631003	hexagon head bolt (combi)	N90631003 hexagon head bolt (combi) M6X12,0,	-	1	Enquire
19	N90698801	Speed nut Included in position:	N90698801 Speed nut Included in position:	-	2	Enquire
20	JNV862564	coolant additive, plus-plus, see workshop manual	JNV862564 coolant additive, plus-plus, see workshop manual G12++, 5ltr., lilac,	-	-	Enquire
