Coolant hoses and pipes, engine of Bentley Bentley Continental Flying Spur (2006-2012)

View All

Bentley Continental Flying Spur (2006-2012) - Coolant hoses and pipes, engine

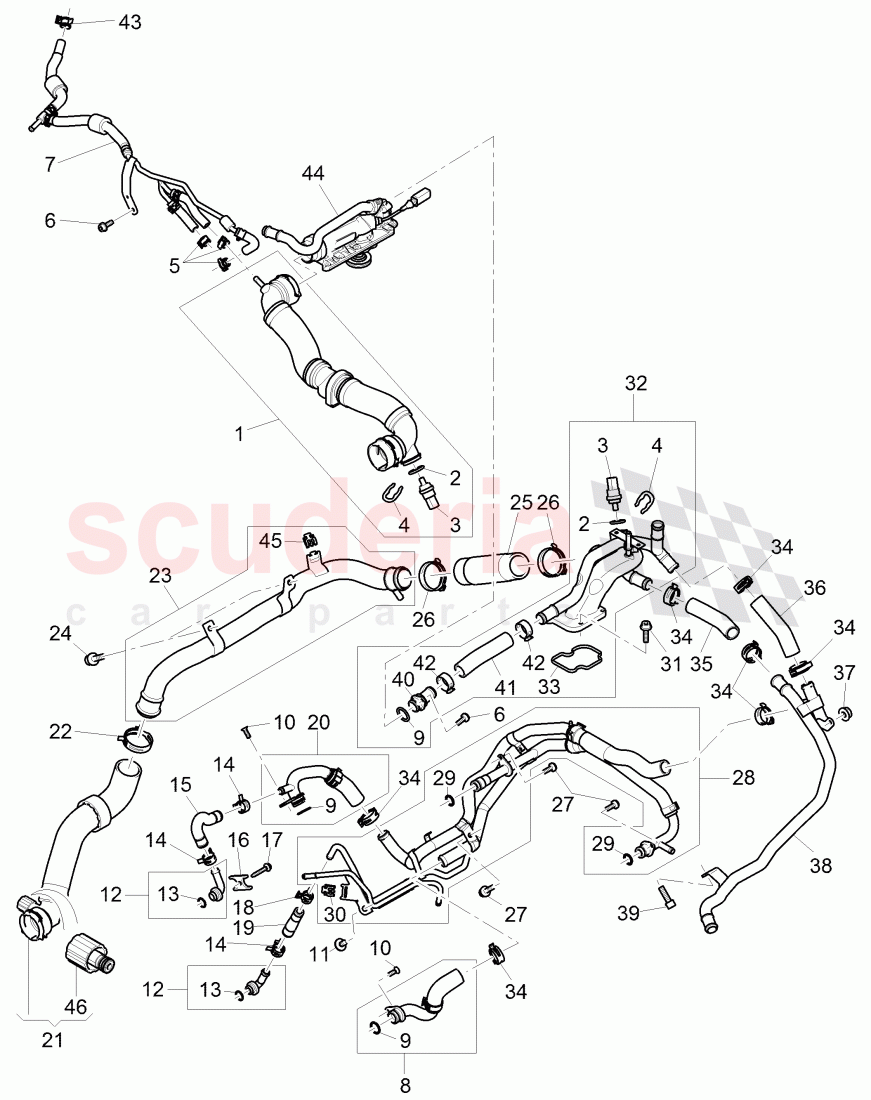

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W0122051F	water hose with quick-, coupling piece	Enquire
	3W0122051C	coolant hose F 3W-7-045 829>> D - >> MJ 2008	Enquire
	3W0122051D	coolant hose with quick release coupling D - MJ 2008>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90316801	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	6A919501A	Coolant temperature sender Coolant pump dark grey	Enquire

Photo	Part No	Description	Price (each)	Stock
	32121142	retaining spring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90686701	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10248003	socket hd. screw with, collar, D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0122447L	coolant hose (expansion tank > distributor > coolant pipe > cylinder head) D - >> MJ 2006	Enquire
	3W0122447S	coolant hose (expansion tank > distributor > coolant pipe > cylinder head) D - MJ 2006>> F >> 3W-6-039 272	Enquire
	3W0122447R	cooling pipe (expansion tank > distributor > coolant pipe > cylinder head) F 3W-6-039 273>> 3W-7-045 828	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	7C121132B	water coolant pipe with, water hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	7D121666	o-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90954905	Hex socket countersunk bolt	Enquire
	N90954905	Hex socket countersunk bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90989102	socket head bolt with inner multipoint head D - 06.11.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C121131J	pipe union	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90783401	O-Ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90926401	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C121096L	coolant hose alternator D - >> MJ 2007	Enquire
	7C121096AB	water hose, Alternator, D - 23.01.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C121077H	retaining plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10530403	socket head collared bolt with inner multipoint head D - MJ 2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90770201	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C121096J	coolant hose alternator	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C121132B	water coolant pipe with, water hose	Enquire
	7C121132J	water coolant pipe with, water hose, D - MJ 2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0122101F	water hose with quick-, coupling piece, D - 04.06.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90655901	spring band clamp D - >> 26.03.2007	Enquire
	8E0121530	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C121070AF	cooling pipe, D >> - MJ 2005	Enquire
	7C121070AL	coolant pipe D - MJ 2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90662603	hexagonal socket head, screw	Enquire
	N90989102	socket head bolt with inner multipoint head D - 06.11.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C121052K	coolant hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90926501	spring band clamp D - >> 26.03.2007	Enquire
	8E0121530	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10248003	socket hd. screw with, collar, D - 11.12.2006>>	Enquire
	N91096701	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C121507C	water coolant pipe with, water hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90561902	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	7D971939	clip, D >> - MJ 2005	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90500604	socket head bolt with inner, hex round head, D - 06.11.2006>>	Enquire
	N90500604	socket head bolt with inner, hex round head, D - 06.11.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C121064H	water coolant pipe with, water hose, D - MJ 2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7D121149B	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C121052B	coolant hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C121052C	coolant hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10340003	hex. nut with washer, D - MJ 2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C121486R	coolant pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90972004	fillister head bolt with multi-point socket head D - MJ 2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C121485A	water connection	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C121060	coolant hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90686701	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	7D971939	clip, D >> - MJ 2005	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0121297	drain plug	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W0122051F	water hose with quick-, coupling piece	3W0122051F water hose with quick-, coupling piece upper,	-	1	Enquire
1	3W0122051C	coolant hose F 3W-7-045 829>> D - >> MJ 2008	3W0122051C coolant hose F 3W-7-045 829>> D - >> MJ 2008 upper,	-	1	Enquire
1	3W0122051D	coolant hose with quick release coupling D - MJ 2008>>	3W0122051D coolant hose with quick release coupling D - MJ 2008>> upper,	-	1	Enquire
2	N90316801	O-ring	N90316801 O-ring 19.6X3.65,	-	2	Enquire
3	6A919501A	Coolant temperature sender Coolant pump dark grey	6A919501A Coolant temperature sender Coolant pump dark grey	-	2	Enquire
4	32121142	retaining spring	32121142 retaining spring	-	2	Enquire
5	N90686701	Spring band clamp	N90686701 Spring band clamp 14X12,	-	3	Enquire
6	N10248003	socket hd. screw with, collar, D - 11.12.2006>>	N10248003 socket hd. screw with, collar, D - 11.12.2006>> M6X14,	-	2	Enquire
7	3W0122447L	coolant hose (expansion tank > distributor > coolant pipe > cylinder head) D - >> MJ 2006	3W0122447L coolant hose (expansion tank > distributor > coolant pipe > cylinder head) D - >> MJ 2006	-	1	Enquire
7	3W0122447S	coolant hose (expansion tank > distributor > coolant pipe > cylinder head) D - MJ 2006>> F >> 3W-6-039 272	3W0122447S coolant hose (expansion tank > distributor > coolant pipe > cylinder head) D - MJ 2006>> F >> 3W-6-039 272	-	1	Enquire
7	3W0122447R	cooling pipe (expansion tank > distributor > coolant pipe > cylinder head) F 3W-6-039 273>> 3W-7-045 828	3W0122447R cooling pipe (expansion tank > distributor > coolant pipe > cylinder head) F 3W-6-039 273>> 3W-7-045 828	-	1	Enquire
7	3W0122447T	vent hose, (RESERVOIR > adapter >, WATER PIPE >, CYLINDER HEAD), F 3W-7-045 829>>, F ZA-A-062 464>>	3W0122447T vent hose, (RESERVOIR > adapter >, WATER PIPE >, CYLINDER HEAD), F 3W-7-045 829>>, F ZA-A-062 464>>	-	1	Enquire
8	7C121132B	water coolant pipe with, water hose	7C121132B water coolant pipe with, water hose	-	1	Enquire
9	7D121666	o-ring	7D121666 o-ring 20X2,	-	3	Enquire
10	N90954905	Hex socket countersunk bolt	N90954905 Hex socket countersunk bolt M6X18,	-	2	Enquire
10	N90954905	Hex socket countersunk bolt	N90954905 Hex socket countersunk bolt M6X18,	-	1	Enquire
11	N90989102	socket head bolt with inner multipoint head D - 06.11.2006>>	N90989102 socket head bolt with inner multipoint head D - 06.11.2006>> M8X16,	-	1	Enquire
12	7C121131J	pipe union	7C121131J pipe union	-	2	Enquire
13	N90783401	O-Ring	N90783401 O-Ring	-	2	Enquire
14	N90926401	Spring band clamp	N90926401 Spring band clamp 19X12,	-	3	Enquire
15	7C121096L	coolant hose alternator D - >> MJ 2007	7C121096L coolant hose alternator D - >> MJ 2007	-	1	Enquire
15	7C121096AB	water hose, Alternator, D - 23.01.2017>>	7C121096AB water hose, Alternator, D - 23.01.2017>>	-	1	Enquire
16	7C121077H	retaining plate	7C121077H retaining plate	-	1	Enquire
17	N10530403	socket head collared bolt with inner multipoint head D - MJ 2007>>	N10530403 socket head collared bolt with inner multipoint head D - MJ 2007>> M6X38,	-	1	Enquire
18	N90770201	Spring band clamp	N90770201 Spring band clamp 17X12,	-	1	Enquire
19	7C121096J	coolant hose alternator	7C121096J coolant hose alternator	-	1	Enquire
20	7C121132B	water coolant pipe with, water hose	7C121132B water coolant pipe with, water hose	-	1	Enquire
20	7C121132J	water coolant pipe with, water hose, D - MJ 2007>>	7C121132J water coolant pipe with, water hose, D - MJ 2007>>	-	1	Enquire
21	3W0122101F	water hose with quick-, coupling piece, D - 04.06.2012>>	3W0122101F water hose with quick-, coupling piece, D - 04.06.2012>> lower,	-	1	Enquire
22	N90655901	spring band clamp D - >> 26.03.2007	N90655901 spring band clamp D - >> 26.03.2007 47X12,	-	1	Enquire
22	8E0121530	Spring band clamp	8E0121530 Spring band clamp 46X12,	-	1	Enquire
23	7C121070AF	cooling pipe, D >> - MJ 2005	7C121070AF cooling pipe, D >> - MJ 2005 right upper,	-	1	Enquire
23	7C121070AL	coolant pipe D - MJ 2006>>	7C121070AL coolant pipe D - MJ 2006>> right upper,	-	1	Enquire
24	N90662603	hexagonal socket head, screw	N90662603 hexagonal socket head, screw M8X18,	-	2	Enquire
24	N90989102	socket head bolt with inner multipoint head D - 06.11.2006>>	N90989102 socket head bolt with inner multipoint head D - 06.11.2006>> M8X16,	-	2	Enquire
25	7C121052K	coolant hose	7C121052K coolant hose rear, upper,	-	1	Enquire
26	N90926501	spring band clamp D - >> 26.03.2007	N90926501 spring band clamp D - >> 26.03.2007 47X12,	-	2	Enquire
26	8E0121530	Spring band clamp	8E0121530 Spring band clamp 46X12,	-	2	Enquire
27	N10248003	socket hd. screw with, collar, D - 11.12.2006>>	N10248003 socket hd. screw with, collar, D - 11.12.2006>> M6X14,	-	3	Enquire
27	N91096701	Oval hexagon socket head bolt	N91096701 Oval hexagon socket head bolt M6X16,	-	3	Enquire
28	7C121507C	water coolant pipe with, water hose	7C121507C water coolant pipe with, water hose right lower,	-	1	Enquire
29	N90561902	O-ring	N90561902 O-ring 15,08X2,26,	-	2	Enquire
30	7D971939	clip, D >> - MJ 2005	7D971939 clip, D >> - MJ 2005 8-9,	-	3	Enquire
31	N90500604	socket head bolt with inner, hex round head, D - 06.11.2006>>	N90500604 socket head bolt with inner, hex round head, D - 06.11.2006>> M6X22,0,	-	4	Enquire
31	N90500604	socket head bolt with inner, hex round head, D - 06.11.2006>>	N90500604 socket head bolt with inner, hex round head, D - 06.11.2006>> M6X22,	-	4	Enquire
32	7C121064H	water coolant pipe with, water hose, D - MJ 2006>>	7C121064H water coolant pipe with, water hose, D - MJ 2006>> centre/rear,	-	1	Enquire
33	7D121149B	gasket	7D121149B gasket	-	1	Enquire
34	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12,	-	9	Enquire
35	7C121052B	coolant hose	7C121052B coolant hose rear, lower,	-	1	Enquire
36	7C121052C	coolant hose	7C121052C coolant hose rear, upper,	-	1	Enquire
37	N10340003	hex. nut with washer, D - MJ 2007>>	N10340003 hex. nut with washer, D - MJ 2007>> M6,	-	1	Enquire
38	7C121486R	coolant pipe	7C121486R coolant pipe left upper,	-	1	Enquire
39	N90972004	fillister head bolt with multi-point socket head D - MJ 2007>>	N90972004 fillister head bolt with multi-point socket head D - MJ 2007>> M10X25,	-	1	Enquire
40	7C121485A	water connection	7C121485A water connection	-	1	Enquire
41	7C121060	coolant hose	7C121060 coolant hose center upper,	-	1	Enquire
42	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12,	-	2	Enquire
43	N90686701	Spring band clamp	N90686701 Spring band clamp	-	1	Enquire
45	7D971939	clip, D >> - MJ 2005	7D971939 clip, D >> - MJ 2005 8-9,	-	1	Enquire
46	3W0121297	drain plug	3W0121297 drain plug	-	1	Enquire
