windshield washer unit of Bentley Bentley Bentayga (2015-2020)

View All

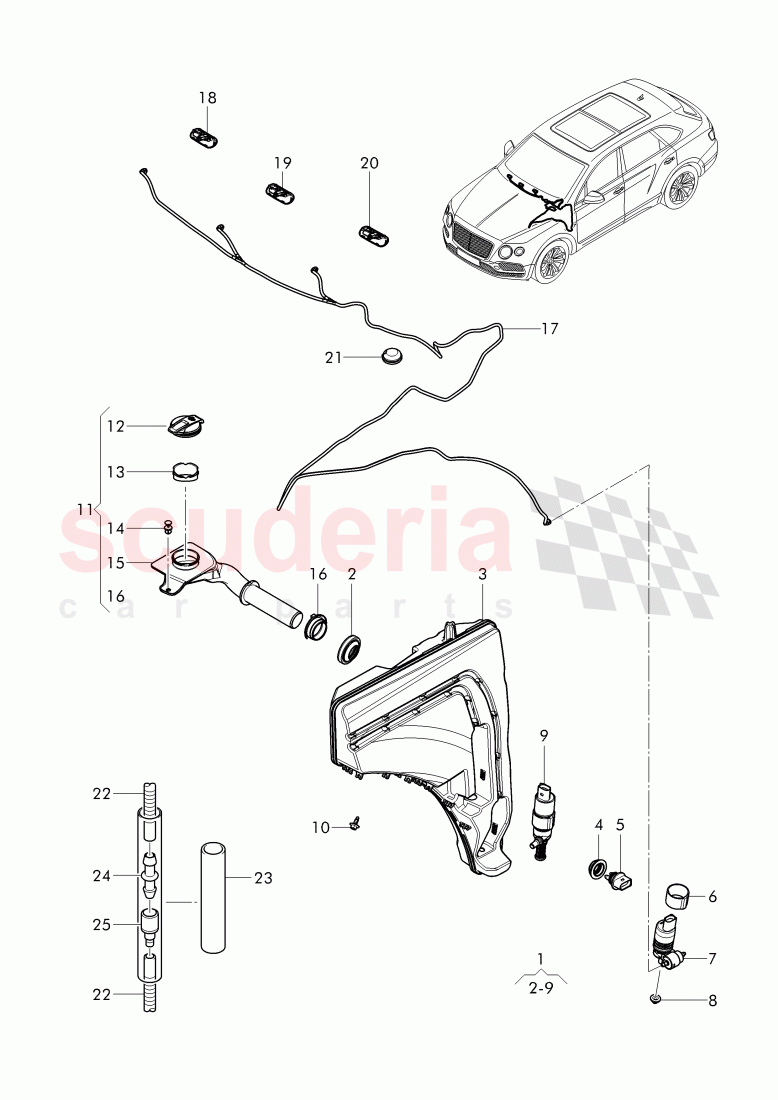

Bentley Bentayga (2015-2020) - windshield washer unit

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M0955449G	Wash water reservoir, assembly, D - 29.08.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	8T0955465A	grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	7M0919382	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	7M0919376	Water level switch	Enquire

Photo	Part No	Description	Price (each)	Stock
	447857991J	intermediate layer	Enquire

Photo	Part No	Description	Price (each)	Stock
	1K6955651	Windscreen washer system pump Windscreen Reversing camera	Enquire

Photo	Part No	Description	Price (each)	Stock
	431955465A	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10009506	hexagon head bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0955462	water filler neck	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0955267	sealing cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	8Z0955485	strainer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91141501	rivet	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0955463	water filler neck	Enquire

Photo	Part No	Description	Price (each)	Stock
	8T0955479	grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A955953A	convoluted tubing	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0955988	Spray nozzle, heated	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0955989	Spray nozzle, heated	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0955987	Spray nozzle, heated	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0955998	Grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	1J0955751D	convoluted tubing, to fit use workshop material, as required use:	Enquire

Photo	Part No	Description	Price (each)	Stock
	979992A	1 set of shrink fit sleeves, can be welded watertight, Temp. resistant:, contents of package:	Enquire

Photo	Part No	Description	Price (each)	Stock
	1J0955875R	coupling piece	Enquire

Photo	Part No	Description	Price (each)	Stock
	1J0955875P	coupling piece	Enquire

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4M0955449G	Wash water reservoir, assembly, D - 29.08.2016>>	4M0955449G Wash water reservoir, assembly, D - 29.08.2016>>	-	1	Enquire
2	8T0955465A	grommet	8T0955465A grommet	-	1	Enquire
4	7M0919382	seal ring	7M0919382 seal ring	-	1	Enquire
5	7M0919376	Water level switch	7M0919376 Water level switch	-	1	Enquire
6	447857991J	intermediate layer	447857991J intermediate layer	-	1	Enquire
7	1K6955651	Windscreen washer system pump Windscreen Reversing camera	1K6955651 Windscreen washer system pump Windscreen Reversing camera	-	1	Enquire
8	431955465A	gasket	431955465A gasket	-	1	Enquire
10	N10009506	hexagon head bolt (combi)	N10009506 hexagon head bolt (combi)	-	1	Enquire
11	4M0955462	water filler neck	4M0955462 water filler neck	-	1	Enquire
12	4M0955267	sealing cap	4M0955267 sealing cap	-	1	Enquire
13	8Z0955485	strainer	8Z0955485 strainer	-	1	Enquire
14	N91141501	rivet	N91141501 rivet	-	1	Enquire
15	4M0955463	water filler neck	4M0955463 water filler neck	-	1	Enquire
16	8T0955479	grommet	8T0955479 grommet	-	1	Enquire
17	36A955953A	convoluted tubing	36A955953A convoluted tubing	-	1	Enquire
18	4M0955988	Spray nozzle, heated	4M0955988 Spray nozzle, heated side right,	-	1	Enquire
19	4M0955989	Spray nozzle, heated	4M0955989 Spray nozzle, heated center,	-	1	Enquire
20	4M0955987	Spray nozzle, heated	4M0955987 Spray nozzle, heated side left,	-	1	Enquire
21	4E0955998	Grommet	4E0955998 Grommet	-	1	Enquire
22	1J0955751D	convoluted tubing, to fit use workshop material, as required use:	1J0955751D convoluted tubing, to fit use workshop material, as required use: 6X0,75X10000MM, 000 979 992 A,	-	1	Enquire
23	979992A	1 set of shrink fit sleeves, can be welded watertight, Temp. resistant:, contents of package:	979992A 1 set of shrink fit sleeves, can be welded watertight, Temp. resistant:, contents of package: 12MM/4MM, L=150MM, -55C/+125C, 8,	-	-	Enquire
24	1J0955875R	coupling piece	1J0955875R coupling piece black,	-	-	Enquire
25	1J0955875P	coupling piece	1J0955875P coupling piece black,	-	-	Enquire
