Find Your Part

LED lamp of Bentley Bentley Bentayga (2015-2020)

View All

Bentley Bentayga (2015-2020) - LED lamp

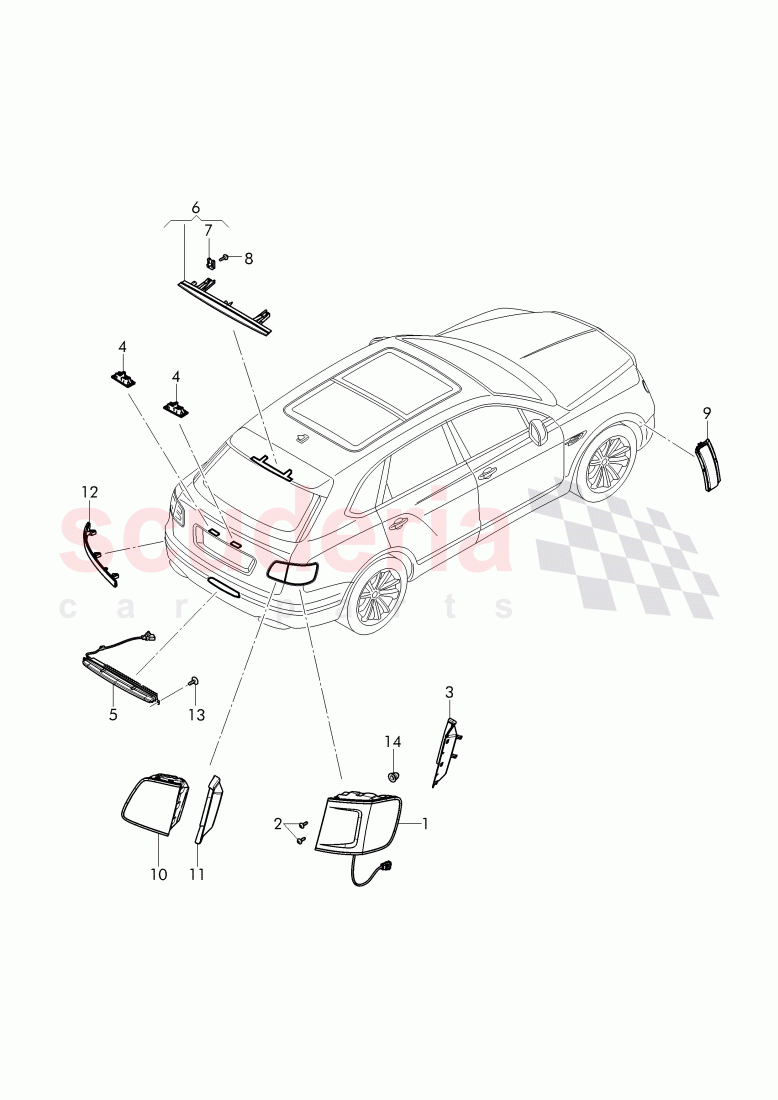

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

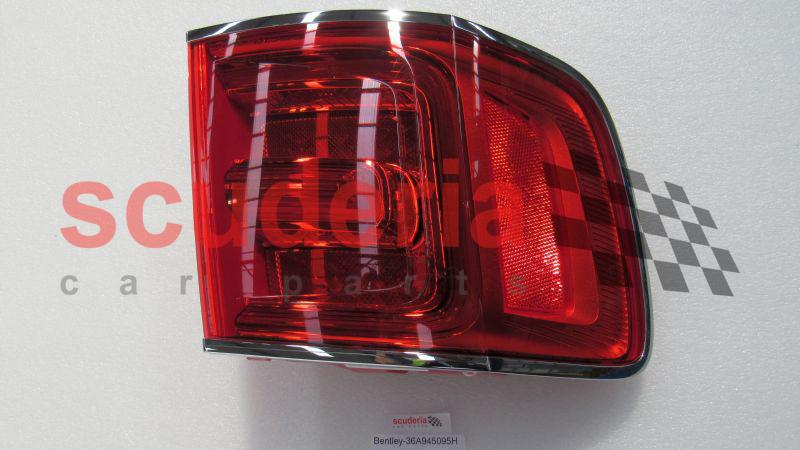

	36A945095H	LED tail light, D - 30.05.2016>> - 03.04.2017	Enquire
	36A945095H	LED tail light, D - 30.05.2016>> - 03.04.2017	Enquire
	36A945095D	LED tail light, D - 03.04.2017>>	Enquire

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N91074202	bolt	Enquire
	N90917104	Hex socket oval head collared	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A945255A	bulb housing	Enquire
	36A945256A	bulb housing	Enquire

Photo	Part No	Description	Price (each)	Stock
	3AF943021A	LED licence place light, D - 24.08.2015>> - 20.02.2017	Enquire
	5NA943021	LED licence place light, D - 10.04.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0945703	LED fog lamp, back-up light, D >> - 07.07.2014	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0945097	High-mounted brake light	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90559101	speed nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10600901	Hexagon socket flat, head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A945071A	side marker light, D >> - 02.01.2017	Enquire
	36A945072A	side marker light, D >> - 02.01.2017	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A945093P	LED tail light, D - 20.02.2017>> - 03.04.2017	Enquire
	36A945093P	LED tail light, D - 20.02.2017>> - 03.04.2017	Enquire
	36A945093S	LED tail light, D - 03.04.2017>>	Enquire

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	36A945253A	bulb housing, Tailgate trim	Enquire
	36A945254A	bulb housing, Tailgate trim	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A945105	reflector	Enquire
	36A945106	reflector	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90974701	Hexagon socket head panel bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A941156	power outlet, LED tail light	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	36A945095H	LED tail light, D - 30.05.2016>> - 03.04.2017	36A945095H LED tail light, D - 30.05.2016>> - 03.04.2017 left, ECE, all countries,, except:, north american, area, PR-8SK	-	1	Enquire
1	36A945095H	LED tail light, D - 30.05.2016>> - 03.04.2017	36A945095H LED tail light, D - 30.05.2016>> - 03.04.2017 left, ECE, all countries,, except:, north american, area, PR-4ZB+8SK	-	1	Enquire
1	36A945095D	LED tail light, D - 03.04.2017>>	36A945095D LED tail light, D - 03.04.2017>> left, ECE, all countries,, except:, north american, area, PR-4ZD+8SK	-	1	Enquire
1	36A945095J	LED tail light, D - 30.05.2016>> - 03.04.2017	36A945095J LED tail light, D - 30.05.2016>> - 03.04.2017 left, SAE, north american, area, PR-8SL	-	1	Enquire
1	36A945095J	LED tail light, D - 30.05.2016>> - 03.04.2017	36A945095J LED tail light, D - 30.05.2016>> - 03.04.2017 left, SAE, north american, area, PR-4ZB+8SL	-	1	Enquire
1	36A945095E	LED tail light, D - 03.04.2017>>	36A945095E LED tail light, D - 03.04.2017>> left, SAE, north american, area, PR-4ZD+8SL	-	1	Enquire
1	36A945096H	LED tail light, D - 30.05.2016>> - 03.04.2017	36A945096H LED tail light, D - 30.05.2016>> - 03.04.2017 right, ECE, all countries,, except:, north american, area, PR-8SK	-	1	Enquire
1	36A945096H	LED tail light, D - 30.05.2016>> - 03.04.2017	36A945096H LED tail light, D - 30.05.2016>> - 03.04.2017 right, ECE, all countries,, except:, north american, area, PR-4ZB+8SK	-	1	Enquire
1	36A945096D	LED tail light, D - 03.04.2017>>	36A945096D LED tail light, D - 03.04.2017>> right, ECE, all countries,, except:, north american, area, PR-4ZD+8SK	-	1	Enquire
1	36A945096J	LED tail light, D - 30.05.2016>> - 03.04.2017	36A945096J LED tail light, D - 30.05.2016>> - 03.04.2017 right, SAE, north american, area, PR-8SL	-	1	Enquire
1	36A945096J	LED tail light, D - 30.05.2016>> - 03.04.2017	36A945096J LED tail light, D - 30.05.2016>> - 03.04.2017 right, SAE, north american, area, PR-4ZB+8SL	-	1	Enquire
1	36A945096E	LED tail light, D - 03.04.2017>>	36A945096E LED tail light, D - 03.04.2017>> right, SAE, north american, area, PR-4ZD+8SL	-	1	Enquire
2	N91074202	bolt	N91074202 bolt M5 X 16,	-	2	Enquire
2	N90917104	Hex socket oval head collared	N90917104 Hex socket oval head collared	-	2	Enquire
3	36A945255A	bulb housing	36A945255A bulb housing side left, body,	-	1	Enquire
3	36A945256A	bulb housing	36A945256A bulb housing side right, body,	-	1	Enquire
4	3AF943021A	LED licence place light, D - 24.08.2015>> - 20.02.2017	3AF943021A LED licence place light, D - 24.08.2015>> - 20.02.2017	-	2	Enquire
4	5NA943021	LED licence place light, D - 10.04.2017>>	5NA943021 LED licence place light, D - 10.04.2017>>	-	2	Enquire
5	4W0945703	LED fog lamp, back-up light, D >> - 07.07.2014	4W0945703 LED fog lamp, back-up light, D >> - 07.07.2014	-	1	Enquire
6	4M0945097	High-mounted brake light	4M0945097 High-mounted brake light	-	1	Enquire
7	N90559101	speed nut	N90559101 speed nut	-	2	Enquire
8	N10600901	Hexagon socket flat, head bolt	N10600901 Hexagon socket flat, head bolt M4X14,	-	2	Enquire
9	36A945071A	side marker light, D >> - 02.01.2017	36A945071A side marker light, D >> - 02.01.2017 north american, area, side left, PR-8F1	-	1	Enquire
9	36A945072A	side marker light, D >> - 02.01.2017	36A945072A side marker light, D >> - 02.01.2017 north american, area, side right, PR-8F1	-	1	Enquire
10	36A945093P	LED tail light, D - 20.02.2017>> - 03.04.2017	36A945093P LED tail light, D - 20.02.2017>> - 03.04.2017 left, ECE, all countries,, except:, north american, area, PR-8SK	-	1	Enquire
10	36A945093P	LED tail light, D - 20.02.2017>> - 03.04.2017	36A945093P LED tail light, D - 20.02.2017>> - 03.04.2017 left, ECE, all countries,, except:, north american, area, PR-4ZB+8SK	-	1	Enquire
10	36A945093S	LED tail light, D - 03.04.2017>>	36A945093S LED tail light, D - 03.04.2017>> left, ECE, all countries,, except:, north american, area, PR-4ZD+8SK	-	1	Enquire
10	36A945093Q	LED tail light, D - 20.02.2017>> - 03.04.2017	36A945093Q LED tail light, D - 20.02.2017>> - 03.04.2017 left, SAE, north american, area, PR-8SL	-	1	Enquire
10	36A945093Q	LED tail light, D - 20.02.2017>> - 03.04.2017	36A945093Q LED tail light, D - 20.02.2017>> - 03.04.2017 left, SAE, north american, area, PR-4ZB+8SL	-	1	Enquire
10	36A945093S	LED tail light, D - 03.04.2017>>	36A945093S LED tail light, D - 03.04.2017>> left, SAE, north american, area, PR-4ZD+8SL	-	1	Enquire
10	36A945094P	LED tail light, D - 20.02.2017>> - 03.04.2017	36A945094P LED tail light, D - 20.02.2017>> - 03.04.2017 right, ECE, all countries,, except:, north american, area, PR-8SK	-	1	Enquire
10	36A945094P	LED tail light, D - 20.02.2017>> - 03.04.2017	36A945094P LED tail light, D - 20.02.2017>> - 03.04.2017 right, ECE, all countries,, except:, north american, area, PR-4ZB+8SK	-	1	Enquire
10	36A945094R	LED tail light, D - 03.04.2017>>	36A945094R LED tail light, D - 03.04.2017>> right, ECE, all countries,, except:, north american, area, PR-4ZD+8SK	-	1	Enquire
10	36A945094Q	LED tail light, D - 20.02.2017>> - 03.04.2017	36A945094Q LED tail light, D - 20.02.2017>> - 03.04.2017 right, SAE, north american, area, PR-8SL	-	1	Enquire
10	36A945094Q	LED tail light, D - 20.02.2017>> - 03.04.2017	36A945094Q LED tail light, D - 20.02.2017>> - 03.04.2017 right, SAE, north american, area, PR-4ZB+8SL	-	1	Enquire
10	36A945094S	LED tail light, D - 03.04.2017>>	36A945094S LED tail light, D - 03.04.2017>> right, SAE, north american, area, PR-4ZD+8SL	-	1	Enquire
11	36A945253A	bulb housing, Tailgate trim	36A945253A bulb housing, Tailgate trim side left,	-	1	Enquire
11	36A945254A	bulb housing, Tailgate trim	36A945254A bulb housing, Tailgate trim side right,	-	1	Enquire
12	36A945105	reflector	36A945105 reflector side left, rear,	-	1	Enquire
12	36A945106	reflector	36A945106 reflector side right, rear,	-	1	Enquire
13	N90974701	Hexagon socket head panel bolt	N90974701 Hexagon socket head panel bolt	-	2	Enquire
14	36A941156	power outlet, LED tail light	36A941156 power outlet, LED tail light	-	2	Enquire
