Voltage transformer, F 4V-J-017 572>>, F ZV-J-017 572>> of Bentley Bentley Bentayga (2015-2020)

View All

Bentley Bentayga (2015-2020) - Voltage transformer, F 4V-J-017 572>>, F ZV-J-017 572>>

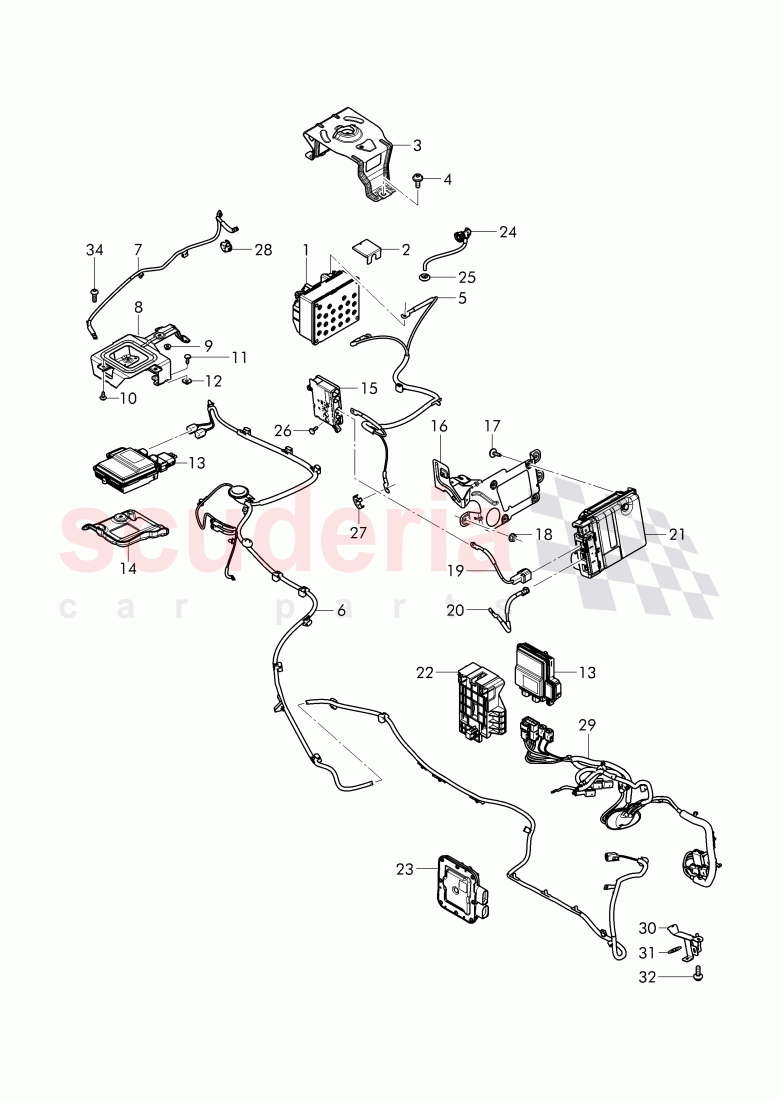

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M0802747A	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91128001	Socket head bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0971227BE	harness for battery +/-, D >> - 11.04.2016	Enquire
	4M0971227BE	harness for battery +/-, D >> - 11.04.2016	Enquire
	4M0971227BH	harness for battery +/-	Enquire

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4M0971227BN	harness for battery +	Enquire
	4M0971227BN	harness for battery +	Enquire
	4M0971227CC	harness for battery +	Enquire

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4M0971534T	ground strap	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0501143M	bracket for elec.contr. module	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10669502	Socket head bolt with inner hex round head	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90708803	speed nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	971907156Q	Control unit for active roll stabilisation D - 29.04.2019>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0507133E	heatshield	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0941828	fuse box with fuse contains:	Enquire
	4M0941828J	fuse box with fuse	Enquire
	4M0941828A	fuse box with fuse	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0907349	bracket, transformer	Enquire
	4M0907349C	bracket, transformer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90900401	Hex socket oval head collared	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0971534T	ground strap	Enquire
	4M0971534T	ground strap	Enquire
	4M0971534K	harness for battery +	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0971534T	ground strap	Enquire
	4M0971534T	ground strap	Enquire
	4M0971534D	ground strap, Voltage transformer	Enquire

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4M0959663G	Voltage converter F >> 3S-L-077 168 F >> ZG-L-077 168	Enquire
	4M0959663G	Voltage converter F >> 3S-L-077 168 F >> ZG-L-077 168	Enquire
	4M0959663F	Voltage transformer, D - 18.09.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0907371G	bracket for elec.contr. module	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0915500A	battery discahrge	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0915143	grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10700201	Hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0971260	retainer	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0907371H	retainer	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0971227CG	harness for battery +, for compressor	Enquire
	4M1971227B	harness for battery +	Enquire
	4M2971227B	harness for battery +	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0407731B	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90335006	Clamping washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90533005	bolt, hex. hd. (combi.)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10430104	Hexagon socket flat head bolt	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
3	4M0802747A	bracket	4M0802747A bracket PR-0E2+0K0+, 0MA+1P7	-	1	Enquire
4	N91128001	Socket head bolt with inner multipoint head	N91128001 Socket head bolt with inner multipoint head	-	2	Enquire
5	4M0971227BE	harness for battery +/-, D >> - 11.04.2016	4M0971227BE harness for battery +/-, D >> - 11.04.2016 rear, PR-FM0,FN4, +0E2+0K0, +1P7,1VH,1VM, +3NL,3NQ	-	1	Enquire
5	4M0971227BE	harness for battery +/-, D >> - 11.04.2016	4M0971227BE harness for battery +/-, D >> - 11.04.2016 rear, PR-FM0+FN4, +0E2+0K0, +1A2+1P7+1VJ, +3NL,3NQ	-	1	Enquire
5	4M0971227BH	harness for battery +/-	4M0971227BH harness for battery +/- rear, PR-FM0,FN4, +0E2+0K0+1P7, +1VH,1VM+5KL	-	1	Enquire
5	4M0971227BH	harness for battery +/-	4M0971227BH harness for battery +/- rear, PR-FM0,FN4, +0E2+0K0+1A2, +1P7+1VJ+5KL	-	1	Enquire
5	4M0971227BG	harness for battery +/-	4M0971227BG harness for battery +/- rear, PR-0E2+0F3, +0K0+1VJ, +3NL,3NQ	-	1	Enquire
5	4M0971227CB	harness for battery +/-	4M0971227CB harness for battery +/- rear, PR-0E2+0F3, +0K0+1VJ+5KL	-	1	Enquire
6	4M0971227BN	harness for battery +	4M0971227BN harness for battery + PR-FM0,FN4, +0E2+0K0+1P7, +1VH,1VM, +3NL,3NQ	-	1	Enquire
6	4M0971227BN	harness for battery +	4M0971227BN harness for battery + PR-FM0+FN4, +0E2+0K0+1A2, +1P7+1VJ, +3NL,3NQ	-	1	Enquire
6	4M0971227CC	harness for battery +	4M0971227CC harness for battery + PR-0E2+0F3, +0K0+1P7+1VJ, +3NL,3NQ	-	1	Enquire
6	4M0971227CE	harness for battery +	4M0971227CE harness for battery + PR-0E2+0F3, +0K0+1P0+1VJ, +3NL,3NQ	-	1	Enquire
6	4M0971227BM	harness for battery +	4M0971227BM harness for battery + PR-FM0,FN4, +0E2+0K0+1P7, +1VH,1VM+5KL	-	1	Enquire
6	4M0971227BM	harness for battery +	4M0971227BM harness for battery + PR-FM0,FN4, +0E2+0K0+1A2, +1P7+1VJ+5KL	-	1	Enquire
6	4M0971227CD	harness for battery +	4M0971227CD harness for battery + PR-0E2+0F3, 0K0+1P7+1VJ, +5KL	-	1	Enquire
6	4M0971227CF	harness for battery +	4M0971227CF harness for battery + PR-0E2+0F3, +0K0+1P0+1VJ, +5KL	-	1	Enquire
7	4M0971534T	ground strap	4M0971534T ground strap PR-1P7	-	1	Enquire
8	4M0501143M	bracket for elec.contr. module	4M0501143M bracket for elec.contr. module PR-1P7	-	1	Enquire
9	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6,	-	3	Enquire
10	N10669502	Socket head bolt with inner hex round head	N10669502 Socket head bolt with inner hex round head M5X12,	-	3	Enquire
12	N90708803	speed nut	N90708803 speed nut	-	3	Enquire
13	971907156Q	Control unit for active roll stabilisation D - 29.04.2019>>	971907156Q Control unit for active roll stabilisation D - 29.04.2019>> PR-1P7	-	2	Enquire
14	4M0507133E	heatshield	4M0507133E heatshield PR-1P7	-	1	Enquire
15	4M0941828	fuse box with fuse contains:	4M0941828 fuse box with fuse contains: PR-FM0,FN4, +0K0,0K3+1A2, +1P7+1VJ,1VM	-	1	Enquire
15	4M0941828J	fuse box with fuse	4M0941828J fuse box with fuse C/125A, PR-0E2+0F3, +0K0+1P0+1VJ	-	1	Enquire
15	4M0941828A	fuse box with fuse	4M0941828A fuse box with fuse C/125A, D/30A, PR-0E2+0F3, +0K0+1P7+1VJ	-	1	Enquire
16	4M0907349	bracket, transformer	4M0907349 bracket, transformer PR-0E2+0MA+, 1P7+3NL+3NQ	-	1	Enquire
16	4M0907349C	bracket, transformer	4M0907349C bracket, transformer PR-0E2+0MA, +1P7+5KL	-	1	Enquire
17	N90900401	Hex socket oval head collared	N90900401 Hex socket oval head collared PR-0E2+1P7, +3NL,3NQ	-	4	Enquire
18	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6, PR-0E2+1P7, +3NL,3NQ	-	4	Enquire
19	4M0971534T	ground strap	4M0971534T ground strap PR-FM0,FN4, +0E2+0K0+1P7, +1VH,1VM, +3NL,3NQ	-	1	Enquire
19	4M0971534T	ground strap	4M0971534T ground strap PR-FM0,FN4, +0E2+0K0+1A2, +1P7+1VJ, +3NL,3NQ	-	1	Enquire
19	4M0971534K	harness for battery +	4M0971534K harness for battery + PR-0E2+0F3, +0K0+1VJ, +3NL,3NQ	-	1	Enquire
20	4M0971534T	ground strap	4M0971534T ground strap PR-FM0,FN4, +0E2+0K0+1P7, +1VH,1VM, +3NL,3NQ	-	1	Enquire
20	4M0971534T	ground strap	4M0971534T ground strap PR-FM0,FN4, +0E2+0K0+1P7, +1A2+1VJ, +3NL,3NQ	-	1	Enquire
20	4M0971534D	ground strap, Voltage transformer	4M0971534D ground strap, Voltage transformer 48V, PR-FM0,FN4, +0E2+0K0+1P7, +1VH,1VM+5KL	-	1	Enquire
20	4M0971534D	ground strap, Voltage transformer	4M0971534D ground strap, Voltage transformer 48V, PR-FM0,FN4, +0E2+0K0+1A2, +1P7+1VJ+5KL	-	1	Enquire
20	4M0971534G	ground strap	4M0971534G ground strap 48V, PR-0E2+0F3, +0K0+1VJ, +3NL,3NQ	-	1	Enquire
20	4M0971227S	ground strap, Voltage transformer	4M0971227S ground strap, Voltage transformer 48V, PR-0E2+0F3+, 0K0+1VJ+5KL	-	1	Enquire
21	4M0959663G	Voltage converter F >> 3S-L-077 168 F >> ZG-L-077 168	4M0959663G Voltage converter F >> 3S-L-077 168 F >> ZG-L-077 168 PR-T0Q,T1M,, +0MA+1P7	-	1	Enquire
21	4M0959663G	Voltage converter F >> 3S-L-077 168 F >> ZG-L-077 168	4M0959663G Voltage converter F >> 3S-L-077 168 F >> ZG-L-077 168 PR-T0Q,T1M,, T9I+0MA+1P7	-	1	Enquire
21	4M0959663F	Voltage transformer, D - 18.09.2017>>	4M0959663F Voltage transformer, D - 18.09.2017>> PR-TI4+0MA	-	1	Enquire
22	4M0907371G	bracket for elec.contr. module	4M0907371G bracket for elec.contr. module PR-1P7	-	1	Enquire
24	4M0915500A	battery discahrge	4M0915500A battery discahrge PR-0E2+0K0+, +1P7+3NL,3NQ	-	1	Enquire
25	4M0915143	grommet	4M0915143 grommet	-	1	Enquire
26	N10700201	Hexagon socket head bolt	N10700201 Hexagon socket head bolt M6X22, PR-1P7	-	1	Enquire
27	4H0971260	retainer	4H0971260 retainer PR-1P7	-	1	Enquire
28	4M0907371H	retainer	4M0907371H retainer PR-1P7	-	1	Enquire
29	4M0971227CG	harness for battery +, for compressor	4M0971227CG harness for battery +, for compressor PR-0E2+0F3+, 0K0+1VJ	-	1	Enquire
29	4M1971227B	harness for battery +	4M1971227B harness for battery + PR-L0L+0K0, +1P7	-	1	Enquire
29	4M2971227B	harness for battery +	4M2971227B harness for battery + PR-L0R+0K0, +1P7	-	1	Enquire
30	4M0407731B	bracket	4M0407731B bracket	-	1	Enquire
31	N90335006	Clamping washer	N90335006 Clamping washer	-	1	Enquire
32	N90533005	bolt, hex. hd. (combi.)	N90533005 bolt, hex. hd. (combi.)	-	1	Enquire
34	N10430104	Hexagon socket flat head bolt	N10430104 Hexagon socket flat head bolt M5X16,	-	2	Enquire
