Rear Quarter Trim Panel, 2+2 (Coupe) of Aston Martin Aston Martin Virage

View All

Aston Martin Virage - Rear Quarter Trim Panel, 2+2 (Coupe)

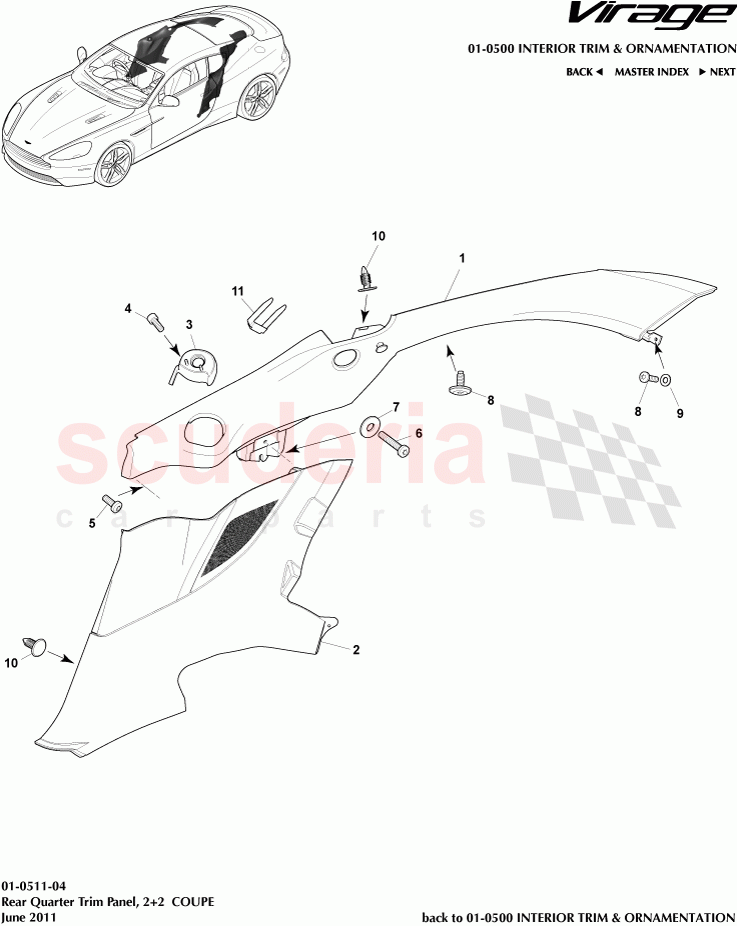

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G4331112AMW	Panel, body side trim rear, RH	Enquire	To Order
	4G4331113AMW	Panel, body side trim rear, LH	Enquire	To Order
	9G3331112ACW	Panel, body side trim rear, RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G4331012AFW	Panel Assy, body side trim, RH	Enquire	To Order
	4G4331013AFW	Panel Assy, body side trim, LH	Enquire	To Order
	9G3331012BDW	Panel Assy, body side trim, RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G4324858AEW	Bezel Assembly, Front Seat Belt, RH	Enquire	To Order
	4G4324859AEW	Bezel Assembly, Front Seat Belt, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43V850063AA	Screw, Cap Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703175	SCREW M4 x 10 PAN TORX CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703177	M5 TORX SCREW CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4331112AA	Washer M6 black	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43290E16AB	Plate, Light to Quarter Panel	Enquire	To Order
	7G43C2437AAW	CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE	Enquire	To Order
	7G43SPD5596AA	Foam Strip, Anti-rattle	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G4331112AMW	Panel, body side trim rear, RH	4G4331112AMW Panel, body side trim rear, RH ALPINE	-	1	Enquire
1	4G4331113AMW	Panel, body side trim rear, LH	4G4331113AMW Panel, body side trim rear, LH ALPINE	-	1	Enquire
1	9G3331112ACW	Panel, body side trim rear, RH	9G3331112ACW Panel, body side trim rear, RH B&O	-	1	Enquire
1	9G3331113ACW	Panel, body side trim rear, LH	9G3331113ACW Panel, body side trim rear, LH B&O	-	1	Enquire
2	4G4331012AFW	Panel Assy, body side trim, RH	4G4331012AFW Panel Assy, body side trim, RH ALPINE	-	1	Enquire
2	4G4331013AFW	Panel Assy, body side trim, LH	4G4331013AFW Panel Assy, body side trim, LH ALPINE	-	1	Enquire
2	9G3331012BDW	Panel Assy, body side trim, RH	9G3331012BDW Panel Assy, body side trim, RH B&O	-	1	Enquire
2	9G3331013BDW	Panel Assy, body side trim, LH	9G3331013BDW Panel Assy, body side trim, LH B&O	-	1	Enquire
3	4G4324858AEW	Bezel Assembly, Front Seat Belt, RH	4G4324858AEW Bezel Assembly, Front Seat Belt, RH	-	1	Enquire
3	4G4324859AEW	Bezel Assembly, Front Seat Belt, LH	4G4324859AEW Bezel Assembly, Front Seat Belt, LH	-	1	Enquire
4	4G43V850063AA	Screw, Cap Hd	4G43V850063AA Screw, Cap Hd	-	2	Enquire
5	703175	SCREW M4 x 10 PAN TORX CHROME FREE	703175 SCREW M4 x 10 PAN TORX CHROME FREE	-	2	Enquire
6	703177	M5 TORX SCREW CHROME FREE	703177 M5 TORX SCREW CHROME FREE	-	2	Enquire
7	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20	-	2	Enquire
9	4G4331112AA	Washer M6 black	4G4331112AA Washer M6 black	-	2	Enquire
11	4G43290E16AB	Plate, Light to Quarter Panel	4G43290E16AB Plate, Light to Quarter Panel	-	2	Enquire
11	7G43C2437AAW	CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE	7G43C2437AAW CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE	-	-	Enquire
11	7G43SPD5596AA	Foam Strip, Anti-rattle	7G43SPD5596AA Foam Strip, Anti-rattle	-	-	Enquire
