Centre Stack Trim Panel (Sat Nav) of Aston Martin Aston Martin Virage

View All

Aston Martin Virage - Centre Stack Trim Panel (Sat Nav)

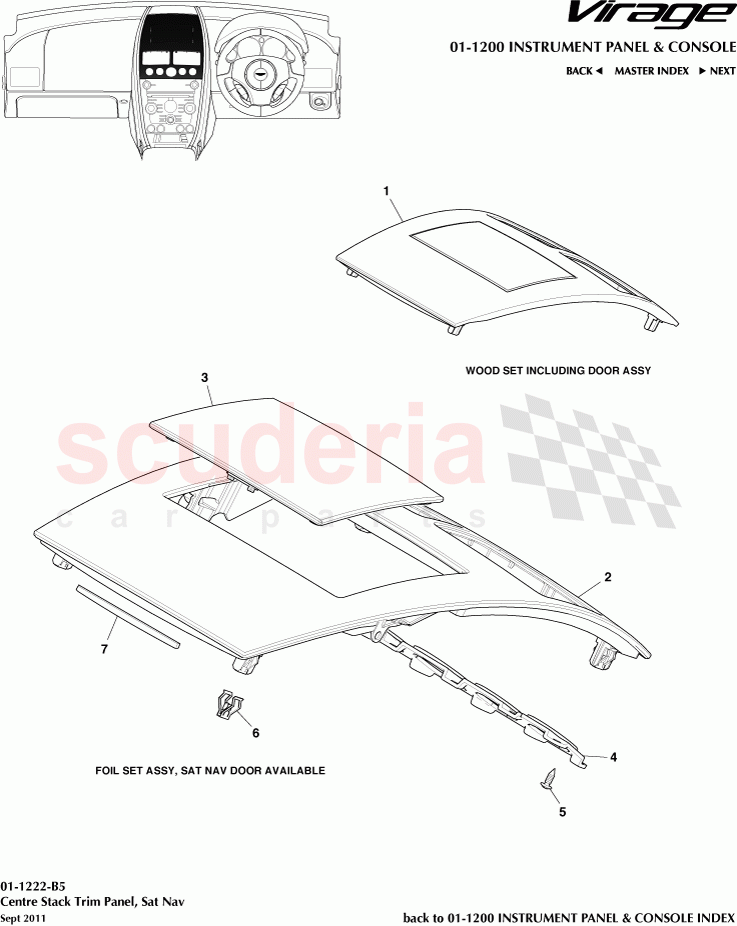

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CG43045J10RE	BZL ASY I/PNL CONTR	Enquire	To Order
	CG43045J10VE	BZL ASY I/PNL CONTR	Enquire	To Order
	CG43045J10HD	Centre Bezel Assy, Instrument Panel, Mahogany	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	CG43047A04AA	Bezel assy, Double Apex Alloy AUTO	Enquire	To Order
	CG43047A04CA	Bezel assy, Double Apex Alloy, AUTO, Sat nav	Enquire	To Order
	CD43047A04AA	Bezel assy, IP Centre- NON Sat Nav- Nexus Alloy	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	AG43045G37AA	DOOR CONSOLE NAV	Enquire	To Order
	AD43045G37AA	DOOR CONSOLE NAV NEXUS ALLOY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3314A462BH	RETAINER CONTROL SWITCH - FOIL	Enquire	To Order
	8D3314A462AJ	RETAINER CONTROL SWITCH - VENEER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703178	M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG43F46970AA	Foam Strip, 90mm x 5mm x 3mm	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	CG43045J10RE	BZL ASY I/PNL CONTR	CG43045J10RE BZL ASY I/PNL CONTR	-	1	Enquire
1	CG43045J10VE	BZL ASY I/PNL CONTR	CG43045J10VE BZL ASY I/PNL CONTR	-	1	Enquire
1	CG43045J10HD	Centre Bezel Assy, Instrument Panel, Mahogany	CG43045J10HD Centre Bezel Assy, Instrument Panel, Mahogany	-	1	Enquire
1	CG43045J10NE	SAT NAV TRIM SURROUND BLACK	CG43045J10NE SAT NAV TRIM SURROUND BLACK	-	1	Enquire
1	CG43045J10GD	Centre Bezel Assy, Instrument Panel, Walnut	CG43045J10GD Centre Bezel Assy, Instrument Panel, Walnut	-	1	Enquire
1	CG43045J10JD	Centre Bezel Assy, Instrument Panel, Bamboo	CG43045J10JD Centre Bezel Assy, Instrument Panel, Bamboo	-	1	Enquire
1	CG43045J10SE	NAV SURROUND - ASH	CG43045J10SE NAV SURROUND - ASH	-	1	Enquire
1	CG43045J10BE	NAV SURROUND - MAH	CG43045J10BE NAV SURROUND - MAH	-	1	Enquire
1	CG43045J10AE	NAV SURROUND -WALNUT	CG43045J10AE NAV SURROUND -WALNUT	-	1	Enquire
1	CG43045J10CE	NAV SURROUND - BAMBO	CG43045J10CE NAV SURROUND - BAMBO	-	1	Enquire
2	CG43047A04AA	Bezel assy, Double Apex Alloy AUTO	CG43047A04AA Bezel assy, Double Apex Alloy AUTO	-	1	Enquire
2	CG43047A04CA	Bezel assy, Double Apex Alloy, AUTO, Sat nav	CG43047A04CA Bezel assy, Double Apex Alloy, AUTO, Sat nav	-	1	Enquire
2	CD43047A04AA	Bezel assy, IP Centre- NON Sat Nav- Nexus Alloy	CD43047A04AA Bezel assy, IP Centre- NON Sat Nav- Nexus Alloy	-	1	Enquire
2	CD43047A04CA	Bezel assy, IP Centre- Sat Nav- Nexus Alloy	CD43047A04CA Bezel assy, IP Centre- Sat Nav- Nexus Alloy	-	1	Enquire
3	AG43045G37AA	DOOR CONSOLE NAV	AG43045G37AA DOOR CONSOLE NAV	-	1	Enquire
3	AD43045G37AA	DOOR CONSOLE NAV NEXUS ALLOY	AD43045G37AA DOOR CONSOLE NAV NEXUS ALLOY	-	1	Enquire
4	8D3314A462BH	RETAINER CONTROL SWITCH - FOIL	8D3314A462BH RETAINER CONTROL SWITCH - FOIL	-	1	Enquire
4	8D3314A462AJ	RETAINER CONTROL SWITCH - VENEER	8D3314A462AJ RETAINER CONTROL SWITCH - VENEER	-	1	Enquire
5	703178	M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE	703178 M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE	-	12	Enquire
6	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	702520PK Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	-	4	Enquire
7	CG43F46970AA	Foam Strip, 90mm x 5mm x 3mm	CG43F46970AA Foam Strip, 90mm x 5mm x 3mm	-	1	Enquire
