Front Door Trim panel of Aston Martin Aston Martin Virage

View All

Aston Martin Virage - Front Door Trim panel

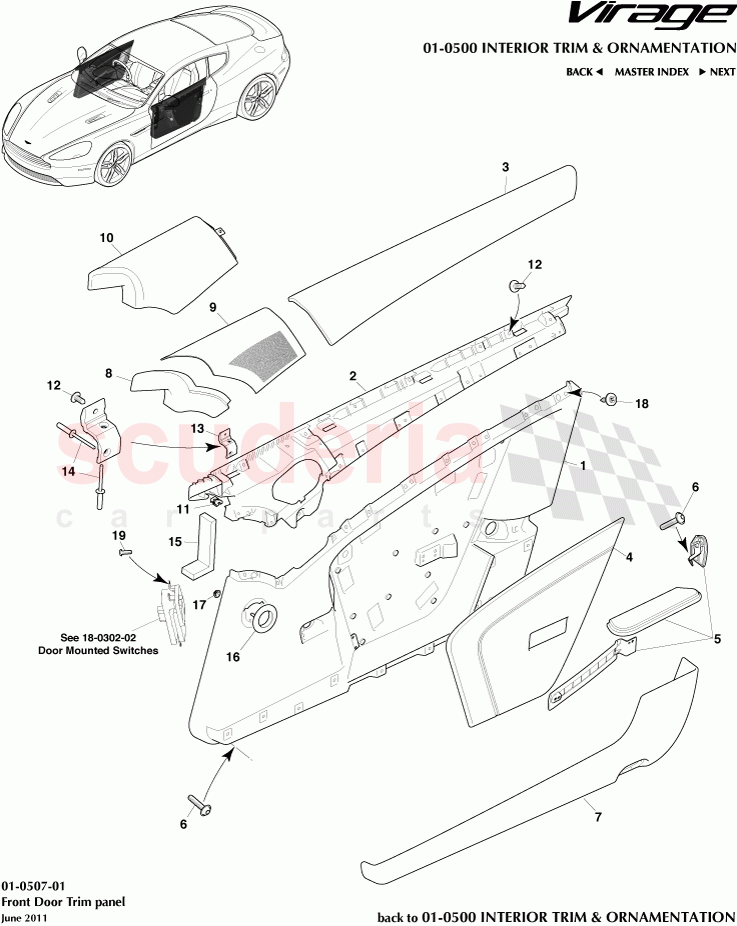

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9D3323900AA	Panel, Front Door Trim Upper, RH	Enquire	To Order
	9D3323901AA	Panel, Front Door Trim Upper, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G438711261	Panel Assy, Door Trim Kit, Piano Black	Enquire	To Order
	9G438711263	Panel Assy, Door Trim Kit, Mahogany	Enquire	To Order
	9G438711265	Panel Assy, Door Trim Kit, Tamo Ash	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	CG4323864AAW	Insert Assy, door trim panel, RH	Enquire	To Order
	CG4323865AAW	Insert Assy, door trim panel, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG43240A28AA	Kit, door armrest and caps, RH	Enquire	To Order
	CG43240A29AA	Kit, door armrest and caps, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707623	Screw and Washer, M4 x 16, Pan Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G4323718AA	Pocket Assy, door, RH	Enquire	To Order
	4G4323719AA	Pocket Assy, door, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4323940AAW	Cover Assy Door Trim Panel LH	Enquire	To Order
	9G4323941AAW	Cover Assy Door Trim Panel RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D33C18978AB	Speaker Assy, RH Side Door Top Speaker Grille silver	Enquire	To Order
	9D33C18979AB	Speaker Assy, LH Side Door Top Speaker Grille silver	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43C18978BA	Speaker Grille Assy, RH	Enquire	To Order
	9G43C18979BA	Speaker Grille Assy, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707613	SCREW M4.2 X 13 FLANGE BLACK	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AG4320838BA	Retainer, Door Trim Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701655	Rivet, 4.8 x 6.3-12.7	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4302275AB	Seal Venair Outlet Duct Door Lower RH	Enquire	To Order
	4G4302276AB	Seal Venair Outlet Duct Door Lower LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G33C237898AA	Bezel, Door Trim, Black	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4383000BB	Nut - Speed M5	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703027	SCREW M4x10 PAN HD TORX S/TAP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CG4320161ACW	Trim, door assy COMPLETE, RH	CG4320161ACW Trim, door assy COMPLETE, RH excludes items 3 & 5	-	1	Enquire
-	CG4320160ACW	Trim, door assy COMPLETE, LH	CG4320160ACW Trim, door assy COMPLETE, LH excludes items 3 & 5	-	1	Enquire
2	9D3323900AA	Panel, Front Door Trim Upper, RH	9D3323900AA Panel, Front Door Trim Upper, RH	-	1	Enquire
2	9D3323901AA	Panel, Front Door Trim Upper, LH	9D3323901AA Panel, Front Door Trim Upper, LH	-	1	Enquire
3	9G438711261	Panel Assy, Door Trim Kit, Piano Black	9G438711261 Panel Assy, Door Trim Kit, Piano Black ALPINE	-	1	Enquire
3	9G438711263	Panel Assy, Door Trim Kit, Mahogany	9G438711263 Panel Assy, Door Trim Kit, Mahogany ALPINE	-	1	Enquire
3	9G438711265	Panel Assy, Door Trim Kit, Tamo Ash	9G438711265 Panel Assy, Door Trim Kit, Tamo Ash ALPINE	-	1	Enquire
3	4G438710254	VENEER SET-DOOR PAIR WALNUT	4G438710254 VENEER SET-DOOR PAIR WALNUT ALPINE	-	1	Enquire
3	9G438711264	Panel Assy, Door Trim Kit, Bambo	9G438711264 Panel Assy, Door Trim Kit, Bambo ALPINE	-	1	Enquire
3	CG4323928AAW	Panel Assy Door RH Leather Wrapped Top Roll & Flip Stiched Seam	CG4323928AAW Panel Assy Door RH Leather Wrapped Top Roll & Flip Stiched Seam	-	1	Enquire
3	CG4323929AAW	Panel Assy Door LH Leather Wrapped Top Roll & Flip Stiched Seam	CG4323929AAW Panel Assy Door LH Leather Wrapped Top Roll & Flip Stiched Seam	-	1	Enquire
4	CG4323864AAW	Insert Assy, door trim panel, RH	CG4323864AAW Insert Assy, door trim panel, RH	-	1	Enquire
4	CG4323865AAW	Insert Assy, door trim panel, LH	CG4323865AAW Insert Assy, door trim panel, LH	-	1	Enquire
5	CG43240A28AA	Kit, door armrest and caps, RH	CG43240A28AA Kit, door armrest and caps, RH	-	1	Enquire
5	CG43240A29AA	Kit, door armrest and caps, LH	CG43240A29AA Kit, door armrest and caps, LH	-	1	Enquire
6	707623	Screw and Washer, M4 x 16, Pan Head IN STOCK	707623 Screw and Washer, M4 x 16, Pan Head IN STOCK	-	12	Enquire
7	4G4323718AA	Pocket Assy, door, RH	4G4323718AA Pocket Assy, door, RH	-	1	Enquire
7	4G4323719AA	Pocket Assy, door, LH	4G4323719AA Pocket Assy, door, LH	-	1	Enquire
8	9G4323940AAW	Cover Assy Door Trim Panel LH	9G4323940AAW Cover Assy Door Trim Panel LH B&O	-	1	Enquire
8	9G4323941AAW	Cover Assy Door Trim Panel RH	9G4323941AAW Cover Assy Door Trim Panel RH B&O	-	1	Enquire
9	9D33C18978AB	Speaker Assy, RH Side Door Top Speaker Grille silver	9D33C18978AB Speaker Assy, RH Side Door Top Speaker Grille silver B&O	-	1	Enquire
9	9D33C18979AB	Speaker Assy, LH Side Door Top Speaker Grille silver	9D33C18979AB Speaker Assy, LH Side Door Top Speaker Grille silver B&O	-	1	Enquire
10	9G43C18978BA	Speaker Grille Assy, RH	9G43C18978BA Speaker Grille Assy, RH ALPINE	-	1	Enquire
10	9G43C18979BA	Speaker Grille Assy, LH	9G43C18979BA Speaker Grille Assy, LH ALPINE	-	1	Enquire
11	707613	SCREW M4.2 X 13 FLANGE BLACK IN STOCK	707613 SCREW M4.2 X 13 FLANGE BLACK IN STOCK	-	22	Enquire
12	AG4320838BA	Retainer, Door Trim Upper	AG4320838BA Retainer, Door Trim Upper	-	8	Enquire
13	701655	Rivet, 4.8 x 6.3-12.7	701655 Rivet, 4.8 x 6.3-12.7	-	16	Enquire
14	4G4302275AB	Seal Venair Outlet Duct Door Lower RH	4G4302275AB Seal Venair Outlet Duct Door Lower RH	-	1	Enquire
14	4G4302276AB	Seal Venair Outlet Duct Door Lower LH	4G4302276AB Seal Venair Outlet Duct Door Lower LH	-	1	Enquire
15	9G33C237898AA	Bezel, Door Trim, Black	9G33C237898AA Bezel, Door Trim, Black	-	2	Enquire
16	4G4383000BB	Nut - Speed M5 IN STOCK	4G4383000BB Nut - Speed M5 IN STOCK	-	4	Enquire
17	701157PK	Screw & Washer 4.2 x 16 (Pack of 10) IN STOCK	701157PK Screw & Washer 4.2 x 16 (Pack of 10) IN STOCK	-	14	Enquire
18	703027	SCREW M4x10 PAN HD TORX S/TAP	703027 SCREW M4x10 PAN HD TORX S/TAP	-	8	Enquire
