Aston Martin Virage - Engine Cooling Pack (line fit)

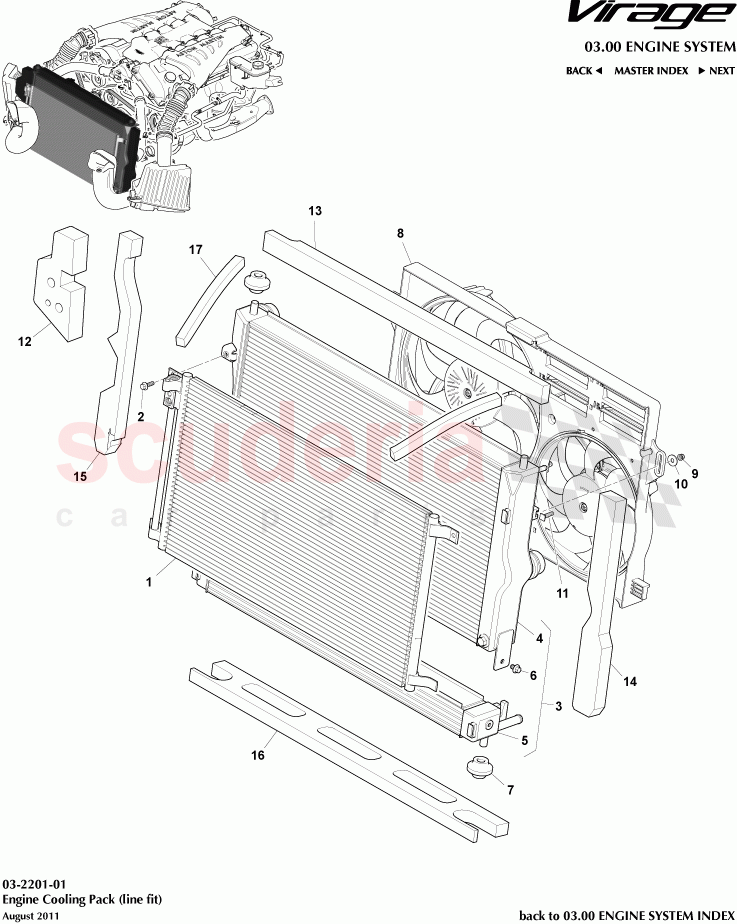

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9G4319710AA	Condenser	$879.50	To Order

Photo	Part No	Description	Price (each)	Stock
	703750	Bolt, M6 x 20, Hex Flg Hd	$3.00	To Order

Photo	Part No	Description	Price (each)	Stock
	9D338W000AA	Combined Radiator/Transmission Oil Cooler	$3,774.60	To Order

Photo	Part No	Description	Price (each)	Stock
	9D338W000AA	Combined Radiator/Transmission Oil Cooler	$3,774.60	To Order

Photo	Part No	Description	Price (each)	Stock
	9D338W000AA	Combined Radiator/Transmission Oil Cooler	$3,774.60	To Order

Photo	Part No	Description	Price (each)	Stock
	703202	Screw, M8 x 12, Flange Hd	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	3285101PK	Bush Mounting Upper (Pack of 2)	$21.06	To Order

Photo	Part No	Description	Price (each)	Stock
	8D338C607AD	Fan Module	$1,044.83	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	699614	WASHER 22 X 6.8 X 2 STAINLESS	$18.61	To Order

Photo	Part No	Description	Price (each)	Stock
	703728	Screw, M6 x 19, Square Head	$13.35	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43C8585BA	Foam Pad	$6.86	To Order

Photo	Part No	Description	Price (each)	Stock
	CG438N301AA	Foam Seal - Upper Fan Module	$27.78	To Order

Photo	Part No	Description	Price (each)	Stock
	CG43F8B171AA	FOAM SEAL-LEFT HAND	$38.08	To Order

Photo	Part No	Description	Price (each)	Stock
	CG43F8B170AA	FOAM SEAL-R/HAND	$38.08	To Order

Photo	Part No	Description	Price (each)	Stock
	CG438C477AD	Foam Seal, Lower	$38.03	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12322666AAPK	COOLANT ANTIFREEZE (OAT) 1 Ltr BOTTLE -BOX OF 12	$232.74	To Order
	CG43403D62AA	Seal, Upper Panel, Air Vent	$3.32	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	9G4319710AA	Condenser	9G4319710AA Condenser	$879.50	1
2	703750	Bolt, M6 x 20, Hex Flg Hd	703750 Bolt, M6 x 20, Hex Flg Hd	$3.00	1
3	9D338W000AA	Combined Radiator/Transmission Oil Cooler	9D338W000AA Combined Radiator/Transmission Oil Cooler	$3,774.60	1
4	9D338W000AA	Combined Radiator/Transmission Oil Cooler	9D338W000AA Combined Radiator/Transmission Oil Cooler	$3,774.60	1
5	9D338W000AA	Combined Radiator/Transmission Oil Cooler	9D338W000AA Combined Radiator/Transmission Oil Cooler	$3,774.60	1
6	703202	Screw, M8 x 12, Flange Hd	703202 Screw, M8 x 12, Flange Hd	$0.37	2
7	3285101PK	Bush Mounting Upper (Pack of 2)	3285101PK Bush Mounting Upper (Pack of 2)	$21.06	4
8	8D338C607AD	Fan Module	8D338C607AD Fan Module	$1,044.83	1
9	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE	$0.59	2
10	699614	WASHER 22 X 6.8 X 2 STAINLESS	699614 WASHER 22 X 6.8 X 2 STAINLESS	$18.61	2
11	703728	Screw, M6 x 19, Square Head	703728 Screw, M6 x 19, Square Head	$13.35	2
12	4G43C8585BA	Foam Pad	4G43C8585BA Foam Pad	$6.86	1
13	CG438N301AA	Foam Seal - Upper Fan Module	CG438N301AA Foam Seal - Upper Fan Module	$27.78	1
14	CG43F8B171AA	FOAM SEAL-LEFT HAND	CG43F8B171AA FOAM SEAL-LEFT HAND	$38.08	1
15	CG43F8B170AA	FOAM SEAL-R/HAND	CG43F8B170AA FOAM SEAL-R/HAND	$38.08	1
16	CG438C477AD	Foam Seal, Lower	CG438C477AD Foam Seal, Lower	$38.03	1
17	1R12322666AAPK	COOLANT ANTIFREEZE (OAT) 1 Ltr BOTTLE -BOX OF 12	1R12322666AAPK COOLANT ANTIFREEZE (OAT) 1 Ltr BOTTLE -BOX OF 12 per Litre	$232.74	1
17	CG43403D62AA	Seal, Upper Panel, Air Vent	CG43403D62AA Seal, Upper Panel, Air Vent	$3.32	2
