Engine Power Conversion

Aston Martin Virage

Find Your Part

Aston Martin Virage - Engine Power Conversion

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G430210229 CrankShaft $7,125.59 IN STOCK
Photo Part No Description Price (each) Stock
1R124110177 DOWEL PIN $11.54 To Order
Photo Part No Description Price (each) Stock
4G430210939 Pulley Assy, Crankshaft $1,747.21 IN STOCK
Photo Part No Description Price (each) Stock
285008 Key, Crankshaft, 4.76 x 53.5 $31.34 To Order
Photo Part No Description Price (each) Stock
4G430210821 WASHER 13.5 X 39.5 X 7.35 STEEL $17.06 To Order
Photo Part No Description Price (each) Stock
4G430210822 BOLT-M12x48 HF PIL10 $16.47 IN STOCK
Photo Part No Description Price (each) Stock
4R3E6A339AA Washer CrankShaft MN Thrust Lower $12.78 IN STOCK
Photo Part No Description Price (each) Stock
BR3E6A341BA Washer, Crankshaft Main Thrust Upper $9.31 IN STOCK
Photo Part No Description Price (each) Stock
4R3E6A338BA Bearing, Crankshaft, Main, Lower (.012) $20.31 IN STOCK
4R3E6A338CA Bearing, Crankshaft, Main, Lower (.014) $29.20 To Order
285020 BEARING CRANKSHAFT MAIN LOWER $31.18 IN STOCK
Photo Part No Description Price (each) Stock
4R3E6333BA Bearing Crankshaft Main Upper Grade 2 $17.15 IN STOCK
4R3E6333CA Bearing Crankshaft Main Upper Grade 3 $29.20 To Order
4R3E6333AA Bearing Crankshaft Main Upper Grade 1 $12.11 IN STOCK
Photo Part No Description Price (each) Stock
4G4E6100BC Piston and connecting rod assy Enquire To Order
Photo Part No Description Price (each) Stock
285013 Piston Ring Compression Lower Orange/Yellow Ring $22.57 To Order
Photo Part No Description Price (each) Stock
4G4E6110AA PISTON GRADE SIZE 1 $374.42 To Order
4G4E6110BB Piston, Grade 2 Enquire To Order
4G4E6110CB Piston, Grade 3 Enquire To Order
Photo Part No Description Price (each) Stock
1R120210060 Piston Ring Compression Upper $45.30 To Order
Photo Part No Description Price (each) Stock
285013 Piston Ring Compression Lower Orange/Yellow Ring $22.57 To Order
Photo Part No Description Price (each) Stock
285014 Segment, Piston Oil Control Ring $12.61 To Order
Photo Part No Description Price (each) Stock
285015 Spacer, Piston Oil Control Segment $11.54 IN STOCK
Photo Part No Description Price (each) Stock
6E5E6200A6B Connecting rod assy Enquire To Order
Photo Part No Description Price (each) Stock
4G430210968 BUSH - CONN ROD V12 $5.69 IN STOCK
Photo Part No Description Price (each) Stock
285018 Bolt, Connecting Rod $19.83 To Order
Photo Part No Description Price (each) Stock
6E5E6211AB Bearing, Connecting Rod $26.10 IN STOCK
Photo Part No Description Price (each) Stock
4G430210955 PIN-PISTON (SINGLE) $112.70 IN STOCK
Photo Part No Description Price (each) Stock
1R120210448 Retainer, Piston Pin $3.00 IN STOCK
Photo Part No Description Price (each) Stock
1R120210061 Bearing Assembly Pilot $34.64 IN STOCK
Photo Part No Description Price (each) Stock
697748 Plug-Oil Pan Drain $26.96 IN STOCK
View All

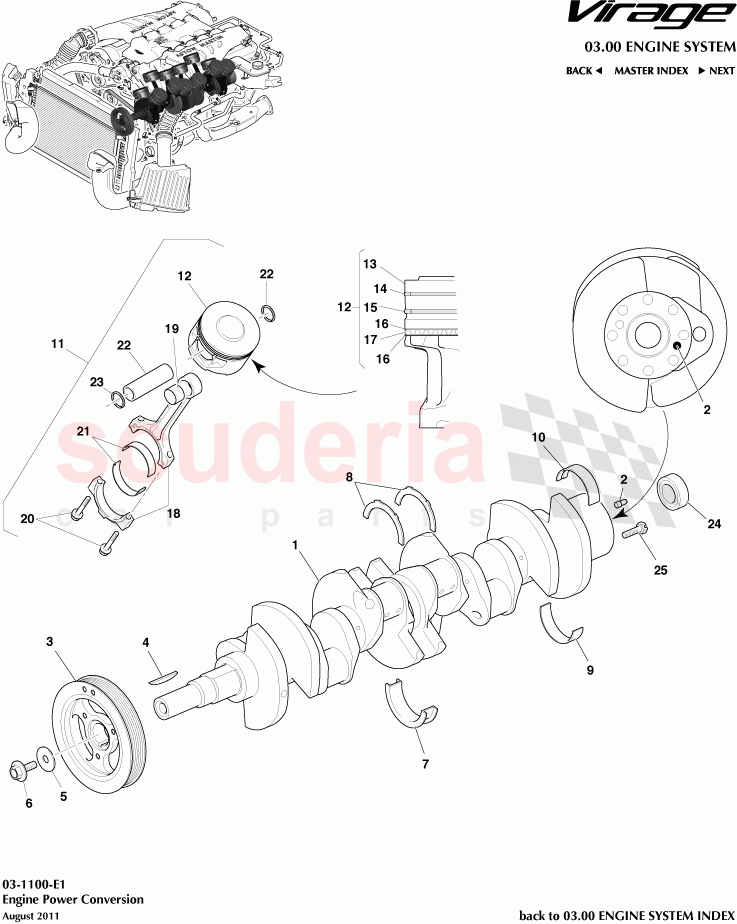

Engine Power Conversion of Aston Martin Aston Martin Virage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G430210229
CrankShaft
IN STOCK 		$7,125.59 1
2 1R124110177
DOWEL PIN 		$11.54 1
3 4G430210939
Pulley Assy, Crankshaft
IN STOCK 		$1,747.21 1
4 285008
Key, Crankshaft, 4.76 x 53.5 		$31.34 1
5 4G430210821
WASHER 13.5 X 39.5 X 7.35 STEEL 		$17.06 1
6 4G430210822
BOLT-M12x48 HF PIL10
IN STOCK 		$16.47 1
7 4R3E6A339AA
Washer CrankShaft MN Thrust Lower
IN STOCK 		$12.78 1
8 BR3E6A341BA
Washer, Crankshaft Main Thrust Upper
IN STOCK 		$9.31 2
9 4R3E6A338BA
Bearing, Crankshaft, Main, Lower (.012)
IN STOCK 		$20.31 -
9 4R3E6A338CA
Bearing, Crankshaft, Main, Lower (.014) 		$29.20 -
9 285020
BEARING CRANKSHAFT MAIN LOWER
IN STOCK 		$31.18 6
10 4R3E6333BA
Bearing Crankshaft Main Upper Grade 2
IN STOCK 		$17.15 -
10 4R3E6333CA
Bearing Crankshaft Main Upper Grade 3 		$29.20 -
10 4R3E6333AA
Bearing Crankshaft Main Upper Grade 1
IN STOCK 		$12.11 7
11 4G4E6100BC
Piston and connecting rod assy 		- 12 Enquire
12 285013
Piston Ring Compression Lower Orange/Yellow Ring 		$22.57 -
13 4G4E6110AA
PISTON GRADE SIZE 1 		$374.42 -
13 4G4E6110BB
Piston, Grade 2 		- - Enquire
13 4G4E6110CB
Piston, Grade 3 		- - Enquire
14 1R120210060
Piston Ring Compression Upper 		$45.30 12
15 285013
Piston Ring Compression Lower Orange/Yellow Ring 		$22.57 12
16 285014
Segment, Piston Oil Control Ring 		$12.61 24
17 285015
Spacer, Piston Oil Control Segment
IN STOCK 		$11.54 12
18 6E5E6200A6B
Connecting rod assy 		- 12 Enquire
19 4G430210968
BUSH - CONN ROD V12
IN STOCK 		$5.69 12
20 285018
Bolt, Connecting Rod 		$19.83 24
21 6E5E6211AB
Bearing, Connecting Rod
IN STOCK 		$26.10 24
22 4G430210955
PIN-PISTON (SINGLE)
IN STOCK 		$112.70 12
23 1R120210448
Retainer, Piston Pin
IN STOCK 		$3.00 24
24 1R120210061
Bearing Assembly Pilot
IN STOCK 		$34.64 1
25 697748
Plug-Oil Pan Drain
IN STOCK 		$26.96 8
