Name: Exhaust Manifolds, Heatshields and Electronic Engine Control
Rating: 4.0 (1 reviews)

Exhaust Manifolds, Heatshields and Electronic Engine Control of Aston Martin Aston Martin Virage

View All

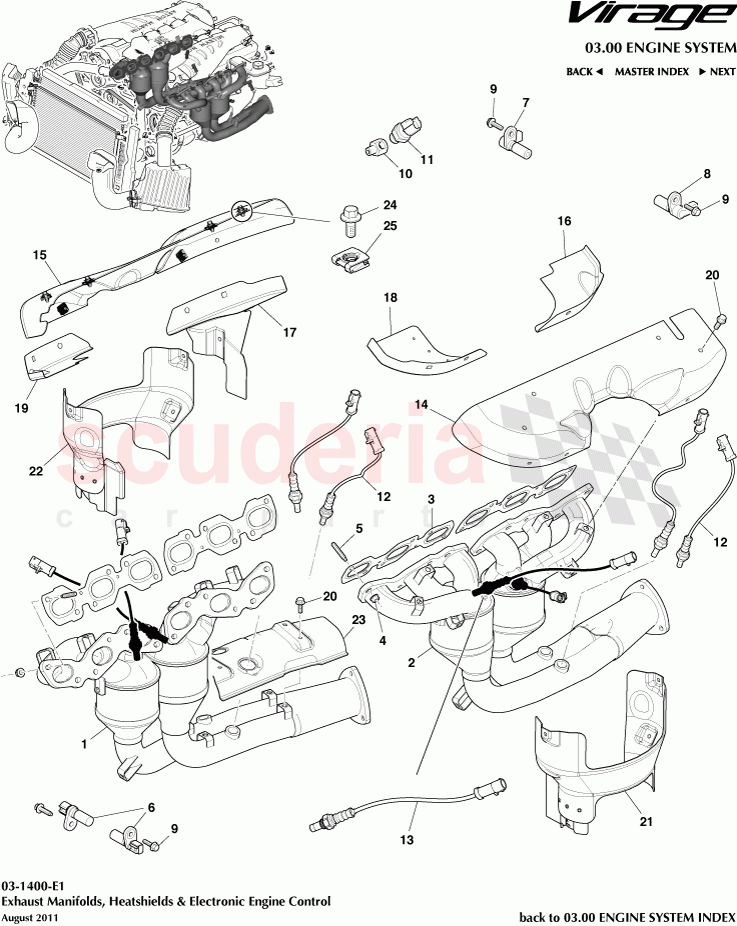

Aston Martin Virage - Exhaust Manifolds, Heatshields and Electronic Engine Control

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8G435G236BB	MANIFOLD EXHAUST RH	$5,359.52	To Order

Photo	Part No	Description	Price (each)	Stock
	8G435G232BB	Manifold Exhaust LH	$5,359.52	To Order
	699736	Clip, Exhaust Heatshields	$3.05	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433510003	Gasket Exhaust Manifold	$63.97	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	697775PK	Nut M8 Hex Flange Head (Pack of 10)	$42.29	To Order

Photo	Part No	Description	Price (each)	Stock
	703704	Stud, M8 x 13.6+16, Hex Head	$10.84	To Order

Photo	Part No	Description	Price (each)	Stock
	3985756	SENSOR-CRANK TIMING	$20.77	To Order

Photo	Part No	Description	Price (each)	Stock
	785755	Sensor, Crankshaft Timing	$283.10	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433910014	Sensor, Crankshaft, Rear	$697.63	To Order

Photo	Part No	Description	Price (each)	Stock
	702542	BOLT M6 x 20 HF PIL 8	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	ED230610174	ADAPTOR-O/PRESS SWTC	$137.50	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123910532	Switch, Oil Pressure	$8.95	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123910175	Sensor HEGO RH Rear Post Catalytic Converter	$275.08	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120710720	SENSOR RING-IGNITION	$50.58	To Order
	1R123910174	Heated Exhaust Gas Oxygen Sensor Rear	$278.45	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439A462AC	Heat Shield, Exhaust Manifold, LH	$131.17	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439A462BC	Heat Shield, Exhaust Manifold, RH	$131.17	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439A462CC	EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR	$114.78	To Order

Photo	Part No	Description	Price (each)	Stock
	8G439A462AD	Heat Shield, Exhaust Manifold, RH Rear	$131.17	To Order

Photo	Part No	Description	Price (each)	Stock
	8D339A462BB	Heat Shield, Exhaust Manifold, LH Front	$114.78	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439A462CC	EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR	$114.78	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	BG439N454AA	HeatShield, Exhaust Manifold RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG439N454BA	HeatShield, Exhaust Manifold LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD23C5K286AA	SHIELD - EXHAUST PIPE HEAT RH	$137.75	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8G435G236BB	MANIFOLD EXHAUST RH	8G435G236BB MANIFOLD EXHAUST RH	$5,359.52	1
2	8G435G232BB	Manifold Exhaust LH	8G435G232BB Manifold Exhaust LH	$5,359.52	1
2	699736	Clip, Exhaust Heatshields	699736 Clip, Exhaust Heatshields	$3.05	4
3	4G433510003	Gasket Exhaust Manifold ARRIVING SOON	4G433510003 Gasket Exhaust Manifold ARRIVING SOON	$63.97	4
4	697775PK	Nut M8 Hex Flange Head (Pack of 10)	697775PK Nut M8 Hex Flange Head (Pack of 10)	$42.29	24
5	703704	Stud, M8 x 13.6+16, Hex Head	703704 Stud, M8 x 13.6+16, Hex Head	$10.84	24
6	3985756	SENSOR-CRANK TIMING	3985756 SENSOR-CRANK TIMING	$20.77	1
7	785755	Sensor, Crankshaft Timing	785755 Sensor, Crankshaft Timing	$283.10	1
8	4G433910014	Sensor, Crankshaft, Rear	4G433910014 Sensor, Crankshaft, Rear	$697.63	1
9	702542	BOLT M6 x 20 HF PIL 8	702542 BOLT M6 x 20 HF PIL 8	$1.34	4
10	ED230610174	ADAPTOR-O/PRESS SWTC	ED230610174 ADAPTOR-O/PRESS SWTC	$137.50	1
11	1R123910532	Switch, Oil Pressure	1R123910532 Switch, Oil Pressure	$8.95	1
12	1R123910175	Sensor HEGO RH Rear Post Catalytic Converter	1R123910175 Sensor HEGO RH Rear Post Catalytic Converter	$275.08	4
13	1R120710720	SENSOR RING-IGNITION	1R120710720 SENSOR RING-IGNITION	$50.58	1
13	1R123910174	Heated Exhaust Gas Oxygen Sensor Rear	1R123910174 Heated Exhaust Gas Oxygen Sensor Rear	$278.45	4
14	4G439A462AC	Heat Shield, Exhaust Manifold, LH	4G439A462AC Heat Shield, Exhaust Manifold, LH	$131.17	1
15	4G439A462BC	Heat Shield, Exhaust Manifold, RH	4G439A462BC Heat Shield, Exhaust Manifold, RH	$131.17	1
16	4G439A462CC	EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR	4G439A462CC EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR	$114.78	1
17	8G439A462AD	Heat Shield, Exhaust Manifold, RH Rear	8G439A462AD Heat Shield, Exhaust Manifold, RH Rear	$131.17	1
18	8D339A462BB	Heat Shield, Exhaust Manifold, LH Front	8D339A462BB Heat Shield, Exhaust Manifold, LH Front	$114.78	1
19	4G439A462CC	EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR	4G439A462CC EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR	$114.78	1
20	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD	$0.75	20
21	BG439N454AA	HeatShield, Exhaust Manifold RH	BG439N454AA HeatShield, Exhaust Manifold RH	-	1	Enquire
22	BG439N454BA	HeatShield, Exhaust Manifold LH	BG439N454BA HeatShield, Exhaust Manifold LH	-	1	Enquire
23	AD23C5K286AA	SHIELD - EXHAUST PIPE HEAT RH	AD23C5K286AA SHIELD - EXHAUST PIPE HEAT RH	$137.75	1
