Rear Wheel and Tyre Assembly (V8S) of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

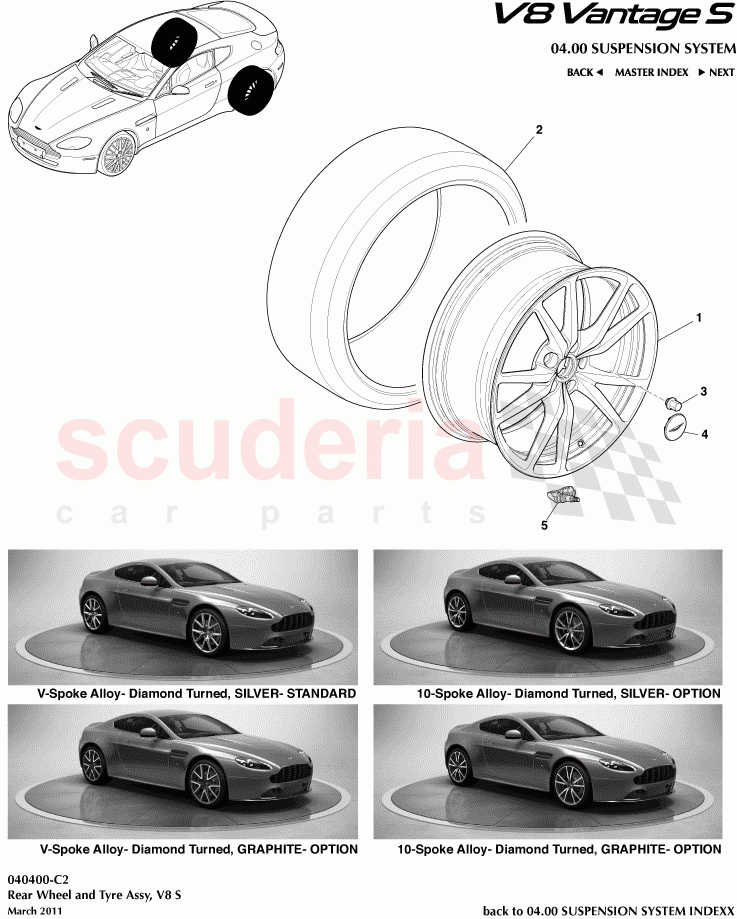

Aston Martin V8 Vantage (upto 2016) - Rear Wheel and Tyre Assembly (V8S)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BG331007WA	REAR WHEEL-19 inch SILVER DT CFF 206 STANDARD RR	Enquire	To Order
	BG331007YA	Wheel, Rear, 19" GRAPHITE	Enquire	To Order
	BG331007KA	REAR WHEEL- GRAPH 19in x10.0 ET59.3	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	9G331508DB	WINTER TYRE RR-19in	Enquire	To Order
	GG331508BA	TYRE RR 285/35 X19	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G431K024BD	Nut, Wheel, M14 x 2.0	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	HY531A096BAPK	Badge Wheel Centre (Pack of 4)	Enquire	To Order
	HY531A096DAPK	Badge - Wheel Centre (Pack of 4)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG33360671AA	Transmitter, Valve (433MHZ)	Enquire	To Order
	BG33360671BA	Transmitter, Valve (315MHZ)	Enquire	To Order
	4G431040AA	Weight, counter balance	Enquire	To Order

...and 5 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	BG331007WA	REAR WHEEL-19 inch SILVER DT CFF 206 STANDARD RR	BG331007WA REAR WHEEL-19 inch SILVER DT CFF 206 STANDARD RR STANDARD, V8S/12.25MY	-	2	Enquire
1	BG331007YA	Wheel, Rear, 19" GRAPHITE	BG331007YA Wheel, Rear, 19" GRAPHITE WINTER, V8 s/12.25MY	-	2	Enquire
1	BG331007KA	REAR WHEEL- GRAPH 19in x10.0 ET59.3	BG331007KA REAR WHEEL- GRAPH 19in x10.0 ET59.3 OPTION, V8S/12.25MY	-	2	Enquire
1	BG331007MA	REAR WHEEL-19 inch SILVER + DIAMOND TURNED	BG331007MA REAR WHEEL-19 inch SILVER + DIAMOND TURNED OPTION, V8S/12.25MY	-	2	Enquire
1	BG331007UA	REAR WHEEL-19 inch GRAPH DT CFF 260 STANDARD RR	BG331007UA REAR WHEEL-19 inch GRAPH DT CFF 260 STANDARD RR OPTION, V8S/12.25MY	-	2	Enquire
1	BG331007PA	REAR WHEEL19 inch BLACK + DIAMOND TURNED	BG331007PA REAR WHEEL19 inch BLACK + DIAMOND TURNED OPTION, V8S/12.25MY	-	2	Enquire
2	9G331508DB	WINTER TYRE RR-19in	9G331508DB WINTER TYRE RR-19in WINTER	-	2	Enquire
2	GG331508BA	TYRE RR 285/35 X19	GG331508BA TYRE RR 285/35 X19	-	2	Enquire
3	4G431K024BD	Nut, Wheel, M14 x 2.0 ARRIVING SOON	4G431K024BD Nut, Wheel, M14 x 2.0 ARRIVING SOON	-	10	Enquire
4	HY531A096BAPK	Badge Wheel Centre (Pack of 4)	HY531A096BAPK Badge Wheel Centre (Pack of 4) Standard, 12.25MY	-	2	Enquire
4	HY531A096DAPK	Badge - Wheel Centre (Pack of 4)	HY531A096DAPK Badge - Wheel Centre (Pack of 4) V8S/12.25MY	-	2	Enquire
5	BG33360671AA	Transmitter, Valve (433MHZ)	BG33360671AA Transmitter, Valve (433MHZ) 11MY 433MHZ	-	1	Enquire
5	BG33360671BA	Transmitter, Valve (315MHZ)	BG33360671BA Transmitter, Valve (315MHZ) 11MY 433MHZ	-	1	Enquire
5	4G431040AA	Weight, counter balance	4G431040AA Weight, counter balance	-	-	Enquire
5	CG33360671AA	TPMS Valve Service	CG33360671AA TPMS Valve Service	-	1	Enquire
5	1R123610555	TRANSMITTER DUST CAP SILVER	1R123610555 TRANSMITTER DUST CAP SILVER	-	1	Enquire
5	4G43974747AA	WINTER TYRE LABEL	4G43974747AA WINTER TYRE LABEL	-	1	Enquire
5	4G433610809	VALVE STEM CAP METAL DB9	4G433610809 VALVE STEM CAP METAL DB9	-	1	Enquire
5	3683832	T/VALVE-SNAP IN WINTER WHEEL RUBBER COVERED	3683832 T/VALVE-SNAP IN WINTER WHEEL RUBBER COVERED	-	1	Enquire
