Front Suspension Subsystem

Find Your Part

Aston Martin V8 Vantage (upto 2016) - Front Suspension Subsystem

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
BG333K185AA KNUCKLE ASSEMBLY FRONT LH $2,976.65 To Order
BG333K186AA KNUCKLE ASSEMBLY FRONT WHEEL RH $2,976.65 To Order
7G433K185AB KNUCKLE FRONT LH $2,165.66 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G432B663AD HUB & BEARING ASSEMBLY, FRONT $588.48 To Order
4G432B663AD HUB & BEARING ASSEMBLY, FRONT $588.48 To Order
Photo Part No Description Price (each) Stock
4G430783AAPK Hub Bolt M10 x 55 x 1.25 (Pack of 5) $27.31 To Order
Photo Part No Description Price (each) Stock
8G333A053AB FRONT SUSPENSION LOWER ARM LH $845.16 To Order
8G333A052AC FRONT SUSPENSION LOWER ARM RH $916.15 To Order
8D333A053AC FRONT SUSPENSION LOWER ARM LH $791.23 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
706933 Nut And Washer Set M12 $17.53 To Order
Photo Part No Description Price (each) Stock
4G433B236CB Bolt, M14, eccentric $29.24 To Order
Photo Part No Description Price (each) Stock
4G433B237CA Washer, M14 eccentric $10.89 To Order
Photo Part No Description Price (each) Stock
704596 Nut, M14, Hex Flange Head $1.39 To Order
Photo Part No Description Price (each) Stock
4G433B236BB Bolt M12 Eccentric Front $69.68 To Order
Photo Part No Description Price (each) Stock
8D333091AC Arm Bush Front Suspension Upper LH $706.38 To Order
8D333084AC Arm Bush Front Suspension Upper RH $706.38 To Order
4G433091BE ARM BUSH FRONT SUSPENSION UPPER LH $1,074.67 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
703565 NUT-M12 HEX FLANGE $1.27 To Order
Photo Part No Description Price (each) Stock
CG4308024AA BOLT M12 X 90 HEXAGON HEAD FLANGED $6.69 To Order
Photo Part No Description Price (each) Stock
703565 NUT-M12 HEX FLANGE $1.27 To Order
Photo Part No Description Price (each) Stock
4G433B237BB Washer, M12, Eccentric $11.95 To Order
View All

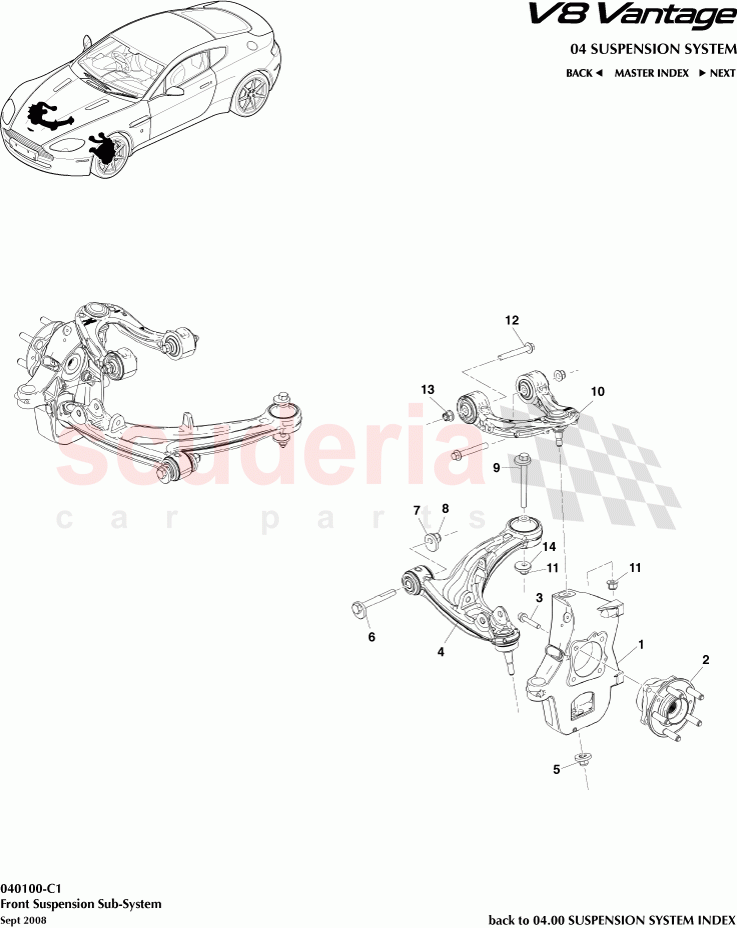

Front Suspension Subsystem of Aston Martin Aston Martin V8 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 BG333K185AA
KNUCKLE ASSEMBLY FRONT LH
V8S /12.25MY 		$2,976.65 1
1 BG333K186AA
KNUCKLE ASSEMBLY FRONT WHEEL RH
V8S /12.25MY 		$2,976.65 1
1 7G433K185AB
KNUCKLE FRONT LH 		$2,165.66 1
1 7G433K186AB
KNUCKLE FRONT RH 		$2,165.66 1
2 4G432B663AD
HUB & BEARING ASSEMBLY, FRONT
V8S /12.25MY 		$588.48 2
2 4G432B663AD
HUB & BEARING ASSEMBLY, FRONT 		$588.48 2
3 4G430783AAPK
Hub Bolt M10 x 55 x 1.25 (Pack of 5) 		$27.31 8
4 8G333A053AB
FRONT SUSPENSION LOWER ARM LH
Sportspack, V8S/ 12.25MY 		$845.16 1
4 8G333A052AC
FRONT SUSPENSION LOWER ARM RH
Sportspack, V8S/ 12.25MY 		$916.15 1
4 8D333A053AC
FRONT SUSPENSION LOWER ARM LH
09MY 		$791.23 1
4 8D333A052AC
FRONT SUSPENSION LOWER ARM RH
09MY 		$791.23 1
4 6G333A053BC
SUSPENSION ARM LOWER FRONT LH 		$791.23 1
4 6G333A052BC
SUSPENSION ARM LOWER FRONT RH 		$791.23 1
5 706933
Nut And Washer Set M12 		$17.53 2
6 4G433B236CB
Bolt, M14, eccentric 		$29.24 2
7 4G433B237CA
Washer, M14 eccentric 		$10.89 2
8 704596
Nut, M14, Hex Flange Head 		$1.39 2
9 4G433B236BB
Bolt M12 Eccentric Front 		$69.68 2
10 8D333091AC
Arm Bush Front Suspension Upper LH
V8S/ 12.25MY 		$706.38 1
10 8D333084AC
Arm Bush Front Suspension Upper RH
V8S/ 12.25MY 		$706.38 1
10 4G433091BE
ARM BUSH FRONT SUSPENSION UPPER LH
07MY 		$1,074.67 1
10 4G433084BE
ARM BUSH FRONT SUSPENSION UPPER RH
07MY 		$1,074.67 1
10 6G333091AB
ARM BUSH/JOINT FRONT SUSPENSION UPPER LH 		$706.38 1
10 6G333084AB
ARM BUSH/JOINT FRONT SUSPENSION UPPER RH 		$706.38 1
11 703565
NUT-M12 HEX FLANGE 		$1.27 4
12 CG4308024AA
BOLT M12 X 90 HEXAGON HEAD FLANGED 		$6.69 4
13 703565
NUT-M12 HEX FLANGE 		$1.27 4
14 4G433B237BB
Washer, M12, Eccentric 		$11.95 2
