Front Wheel and Tyre Assembly of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

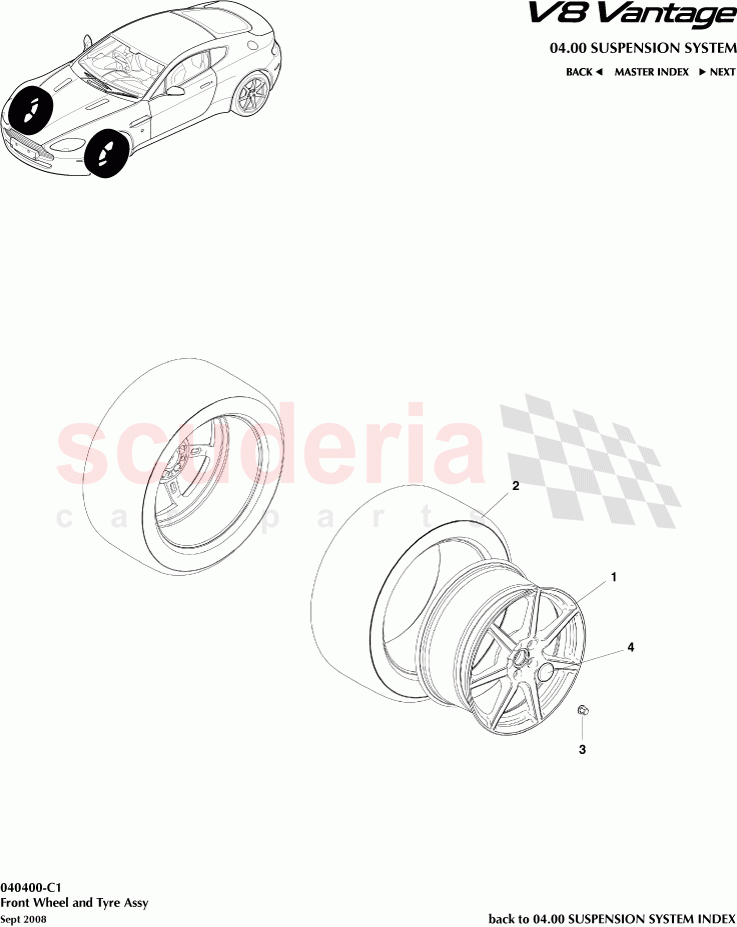

Aston Martin V8 Vantage (upto 2016) - Front Wheel and Tyre Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BG331007DA	FRONT WHEEL 7 SPOKE	Enquire	To Order
	6G431007AA	WHEEL FRONT 8.5 x 19 (LIGHTWEIGHT SPORTSPACK)	Enquire	To Order
	6G331007AB	WHEEL (8 1/2 J X 18 50.3MM OFFSET) FRONT	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	9G431508AA	TYRE-ROAD FRONT 235-40ZR19	Enquire	To Order
	6G331508AA	ROAD TYRE FRONT 235/45 ZR 18	Enquire	To Order
	9G331508CA	WINTER TYRE-FRONT 235-40x19 inch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G431K024BD	Nut, Wheel, M14 x 2.0	Enquire	ARRIVING SOON
	4G431K024BD	Nut, Wheel, M14 x 2.0	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	1R123610555	TRANSMITTER DUST CAP SILVER	Enquire	To Order
	CG33360671AA	TPMS Valve Service	Enquire	To Order
	CG33360671AA	TPMS Valve Service	Enquire	To Order

...and 6 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	BG331007DA	FRONT WHEEL 7 SPOKE	BG331007DA FRONT WHEEL 7 SPOKE From (V) C02905	-	2	Enquire
1	6G431007AA	WHEEL FRONT 8.5 x 19 (LIGHTWEIGHT SPORTSPACK)	6G431007AA WHEEL FRONT 8.5 x 19 (LIGHTWEIGHT SPORTSPACK) From TBA	-	2	Enquire
1	6G331007AB	WHEEL (8 1/2 J X 18 50.3MM OFFSET) FRONT	6G331007AB WHEEL (8 1/2 J X 18 50.3MM OFFSET) FRONT 6.5MY on	-	2	Enquire
1	6G431007EA	WHEEL FRNT 8.5 X 19 LIGHTWEIGHT SPORTSPACK	6G431007EA WHEEL FRNT 8.5 X 19 LIGHTWEIGHT SPORTSPACK N400	-	2	Enquire
1	6G331007AB	WHEEL (8 1/2 J X 18 50.3MM OFFSET) FRONT	6G331007AB WHEEL (8 1/2 J X 18 50.3MM OFFSET) FRONT 06MY	-	2	Enquire
1	BG331007CA	FRT WHL SILV 7 SPOKE	BG331007CA FRT WHL SILV 7 SPOKE	-	2	Enquire
2	9G431508AA	TYRE-ROAD FRONT 235-40ZR19	9G431508AA TYRE-ROAD FRONT 235-40ZR19	-	2	Enquire
2	6G331508AA	ROAD TYRE FRONT 235/45 ZR 18	6G331508AA ROAD TYRE FRONT 235/45 ZR 18	-	2	Enquire
2	9G331508CA	WINTER TYRE-FRONT 235-40x19 inch	9G331508CA WINTER TYRE-FRONT 235-40x19 inch	-	2	Enquire
3	4G431K024BD	Nut, Wheel, M14 x 2.0 ARRIVING SOON	4G431K024BD Nut, Wheel, M14 x 2.0 08MY From (V) D07649 ARRIVING SOON	-	10	Enquire
3	4G431K024BD	Nut, Wheel, M14 x 2.0 ARRIVING SOON	4G431K024BD Nut, Wheel, M14 x 2.0 07MY ARRIVING SOON	-	10	Enquire
4	1R123610555	TRANSMITTER DUST CAP SILVER	1R123610555 TRANSMITTER DUST CAP SILVER For use with TP vlvs	-	2	Enquire
4	CG33360671AA	TPMS Valve Service	CG33360671AA TPMS Valve Service Up to (V) C02128	-	2	Enquire
4	CG33360671AA	TPMS Valve Service	CG33360671AA TPMS Valve Service From (V) C02129	-	2	Enquire
4	3683832	T/VALVE-SNAP IN WINTER WHEEL RUBBER COVERED	3683832 T/VALVE-SNAP IN WINTER WHEEL RUBBER COVERED CCC7042/2	-	2	Enquire
4	4G431040AA	Weight, counter balance	4G431040AA Weight, counter balance	-	-	Enquire
4	4G43974747AA	WINTER TYRE LABEL	4G43974747AA WINTER TYRE LABEL	-	1	Enquire
4	HY531A096DAPK	Badge - Wheel Centre (Pack of 4)	HY531A096DAPK Badge - Wheel Centre (Pack of 4)	-	2	Enquire
4	HY531A096BAPK	Badge Wheel Centre (Pack of 4)	HY531A096BAPK Badge Wheel Centre (Pack of 4)	-	2	Enquire
4	4G433610809	VALVE STEM CAP METAL DB9	4G433610809 VALVE STEM CAP METAL DB9	-	2	Enquire
