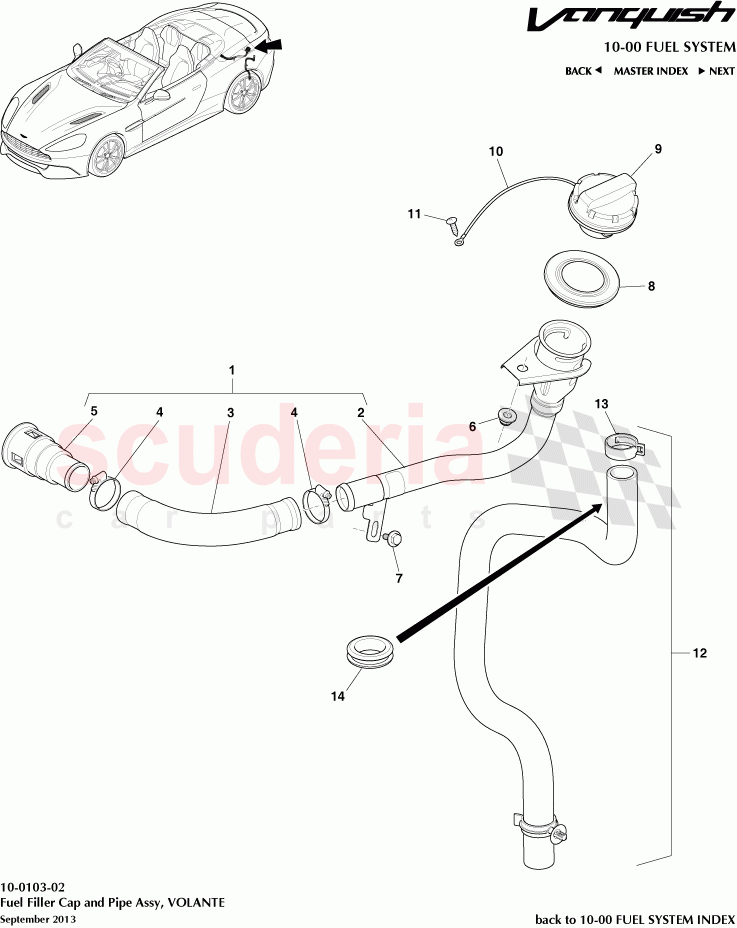

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	ED339032BC	Pipe and Hose Assy, Fuel Tank Filler	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED339034BB	Pipe Assembly, Fuel Tank Filler	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439047AA	HOSE - FUEL TANK FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439A064AA	Clamp, Fuel Tank Filler Hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439A117AA	Connector, Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704327	Nut and Washer, M6, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703151	Screw M6x16 Washer Hex HD Chrome Free	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G438703AA	FUEL FILLER PIPE GAITER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	GG339030AA	CAP FUEL TANK	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G439C027AA	TETHER FUEL TANK FILLER CAP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702288	Screw, 4.2 x 16 Self Tapping	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED339C071AC	Pipe Assy, Fuel Fill Overflow	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707120	HOSE CLMP SPRG 29x12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED3314605BA	Grommet, Drain Hose	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	ED339032BC	Pipe and Hose Assy, Fuel Tank Filler	ED339032BC Pipe and Hose Assy, Fuel Tank Filler	-	1	Enquire
2	ED339034BB	Pipe Assembly, Fuel Tank Filler	ED339034BB Pipe Assembly, Fuel Tank Filler	-	1	Enquire
3	4G439047AA	HOSE - FUEL TANK FILLER	4G439047AA HOSE - FUEL TANK FILLER	-	1	Enquire
4	4G439A064AA	Clamp, Fuel Tank Filler Hose	4G439A064AA Clamp, Fuel Tank Filler Hose	-	2	Enquire
5	4G439A117AA	Connector, Pipe	4G439A117AA Connector, Pipe Use Item 1	-	1	Enquire
6	704327	Nut and Washer, M6, Hex Flange Head	704327 Nut and Washer, M6, Hex Flange Head	-	1	Enquire
7	703151	Screw M6x16 Washer Hex HD Chrome Free IN STOCK	703151 Screw M6x16 Washer Hex HD Chrome Free IN STOCK	-	1	Enquire
8	4G438703AA	FUEL FILLER PIPE GAITER IN STOCK	4G438703AA FUEL FILLER PIPE GAITER IN STOCK	-	1	Enquire
9	GG339030AA	CAP FUEL TANK IN STOCK	GG339030AA CAP FUEL TANK IN STOCK	-	1	Enquire
10	4G439C027AA	TETHER FUEL TANK FILLER CAP IN STOCK	4G439C027AA TETHER FUEL TANK FILLER CAP IN STOCK	-	1	Enquire
11	702288	Screw, 4.2 x 16 Self Tapping	702288 Screw, 4.2 x 16 Self Tapping	-	1	Enquire
12	ED339C071AC	Pipe Assy, Fuel Fill Overflow	ED339C071AC Pipe Assy, Fuel Fill Overflow	-	1	Enquire
13	707120	HOSE CLMP SPRG 29x12	707120 HOSE CLMP SPRG 29x12	-	1	Enquire
14	ED3314605BA	Grommet, Drain Hose	ED3314605BA Grommet, Drain Hose	-	1	Enquire
