Fuel Tank Assembly

Aston Martin Vanquish (2012+)

Find Your Part

Aston Martin Vanquish (2012+) - Fuel Tank Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
CD339074AA Plate Assy, Fuel Tank Cover Enquire To Order
Photo Part No Description Price (each) Stock
CD339074BA Plate, Fuel Tank Cover Enquire To Order
Photo Part No Description Price (each) Stock
CD339073BA Gasket, Fuel Tank Cover Plate Enquire To Order
Photo Part No Description Price (each) Stock
CD339C133AF TNK & CNSTR ASY FUEL Enquire To Order
Photo Part No Description Price (each) Stock
4G4332133BA Clamp Plate, Fuel Tank Enquire To Order
Photo Part No Description Price (each) Stock
CD339A309AA Cover, Fuel Tank, Service Enquire To Order
Photo Part No Description Price (each) Stock
703169 NUT - M6 HEX FLANGE CHROME FREE Enquire To Order
Photo Part No Description Price (each) Stock
4G439073AA Gasket, Fuel Tank Service Cover Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
DG439155AA Vapour Filter, Fuel Tank Enquire To Order
Photo Part No Description Price (each) Stock
DG4314407AD Harness, Fuel Tank, Single Fuel Pump Enquire To Order
Photo Part No Description Price (each) Stock
697177 Nut, M6, Flanged Enquire To Order
Photo Part No Description Price (each) Stock
BG434090AA Hose Assembly Enquire To Order
Photo Part No Description Price (each) Stock
BG439D653AB BRKT FU/VPR STRG CN Enquire To Order
Photo Part No Description Price (each) Stock
CD339H307AB Pump And Reservoir Enquire To Order
Photo Part No Description Price (each) Stock
6G439155AB Filter Assy Enquire To Order
Photo Part No Description Price (each) Stock
702082 Bolt, Self Locking, M5 x 16 Enquire To Order
Photo Part No Description Price (each) Stock
8G439180AA Bracket, filter assy Enquire To Order
Photo Part No Description Price (each) Stock
6G3366991AB Earth Wire Enquire To Order
Photo Part No Description Price (each) Stock
4G439E275AA Sensor - Fuel Tank Sender Enquire To Order
Photo Part No Description Price (each) Stock
CD339275AA Jet Pump Module Assembly Enquire To Order
Photo Part No Description Price (each) Stock
DG4348781AA Fuel Tank Packer Enquire To Order
View All

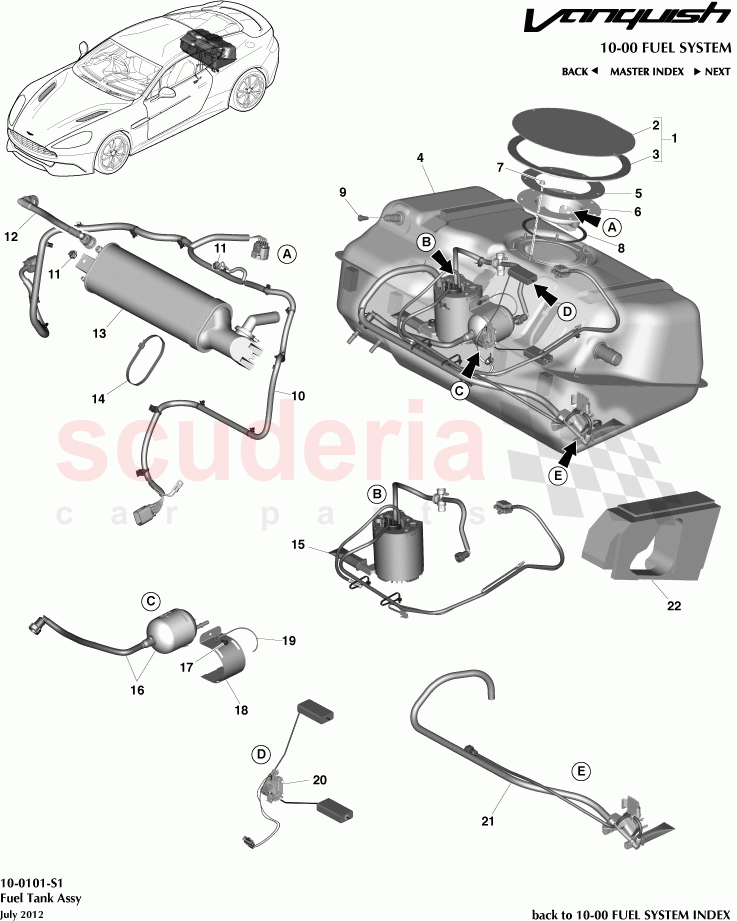

Fuel Tank Assembly of Aston Martin Aston Martin Vanquish (2012+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 CD339074AA
Plate Assy, Fuel Tank Cover 		- 1 Enquire
2 CD339074BA
Plate, Fuel Tank Cover 		- 1 Enquire
3 CD339073BA
Gasket, Fuel Tank Cover Plate 		- 1 Enquire
4 CD339C133AF
TNK & CNSTR ASY FUEL
Includes Items 5 to 21 		- 1 Enquire
5 4G4332133BA
Clamp Plate, Fuel Tank 		- 1 Enquire
6 CD339A309AA
Cover, Fuel Tank, Service 		- 1 Enquire
7 703169
NUT - M6 HEX FLANGE CHROME FREE 		- 7 Enquire
8 4G439073AA
Gasket, Fuel Tank Service Cover
ARRIVING SOON 		- 1 Enquire
9 DG439155AA
Vapour Filter, Fuel Tank 		- 1 Enquire
10 DG4314407AD
Harness, Fuel Tank, Single Fuel Pump 		- 1 Enquire
11 697177
Nut, M6, Flanged 		- 2 Enquire
12 BG434090AA
Hose Assembly 		- 1 Enquire
13 BG439D653AB
BRKT FU/VPR STRG CN 		- 1 Enquire
15 CD339H307AB
Pump And Reservoir 		- 1 Enquire
16 6G439155AB
Filter Assy 		- 1 Enquire
17 702082
Bolt, Self Locking, M5 x 16 		- 1 Enquire
18 8G439180AA
Bracket, filter assy 		- 1 Enquire
19 6G3366991AB
Earth Wire 		- 1 Enquire
20 4G439E275AA
Sensor - Fuel Tank Sender 		- 1 Enquire
21 CD339275AA
Jet Pump Module Assembly 		- 1 Enquire
22 DG4348781AA
Fuel Tank Packer
14.5MY 		- 1 Enquire
